The utility model relates to the field of processing equipment, and discloses a glass edging machine, which comprises a base, an electric control box is fixedly installed on one side of the base, a button is movably installed on one side of the electric control box, and one end on the top of the base is installed A edging support table is fixedly installed, an edging motor is fixedly installed on the top of the edging support table, a backing plate is fixedly installed in the middle of the top of the base, a pneumatic telescopic rod is fixedly installed on the front of the backing plate, and two sides of the top of the base are fixedly installed The guide rails are fixedly installed, and the middle of the two guide rails is provided with a chute. The glass edging machine, through the rotating disc and the fixed disc, realizes the effect of fixing the glass and automatically rotating the angle of the glass to make it turn and edging, which solves the need for workers when machining the four corners of the glass. Lifting the glass back and forth to one end of the machine not only has low processing efficiency and wastes labor, but also often causes the problem of workers being cut on their hands when lifting the glass, which improves the safety and efficiency of the equipment.

Description

Glass edge grinding machine

Technical Field

The utility model relates to a processing equipment field specifically is a glass edging machine.

Background

Glass is an ancient building material, and the wide application is in our living environment, and glass has good perspective, light transmission performance, often is used in the building to separate the wind printing opacity, or increases the aesthetic feeling between two parties at home, and after glass produced, the producer can cut glass according to customer's demand to obtain the glass of required size, and the glass outer fringe after the cutting is sharp the edge, cuts the people easily, so need carry out the chamfer to the glass after the cutting, forms the cambered surface, thereby reduces the danger that the people was cut by glass.

The prior glass edge grinding machine mainly comprises a base, a transmission belt, a pressing component and a plurality of groups of edge grinding components, wherein after glass enters an edge grinding working area, the transmission belt is pressed on the glass under the action of the pressing component, so as to drive the glass to move forwards, the edge grinding components on the left side and the right side grind the edge of the outer edge of the glass while the glass moves, the transmission length of the existing transmission belt is kept unchanged, therefore, when the glass with different thicknesses is pressed, the pressing component presses the transmission belt to easily cause the stretching of the transmission belt, which leads to the problem of shortening the service life of the transmission belt, meanwhile, the belt moving method of the existing glass edge grinding machine is fixed, the glass is driven to move beside an edge grinding motor for edge grinding, when four corners of the glass are machined, workers are required to lift the glass back to one end of the machine in a reciprocating mode, the machining efficiency is low, manpower is wasted, and the problem that hands are cut when the workers lift the glass is often caused.

SUMMERY OF THE UTILITY MODEL

Not enough to current glass edging machine, the utility model provides a glass edging machine possesses the angle that fixes and rotary disk autogiration glass to glass and makes its advantage that changes the limit edging, need the reciprocal one end of getting back to the machine of glass of workman when having solved four corners of machine tooling glass not only the low extravagant manual work of machining efficiency still often cause the workman to lift the problem that the hand was cut when glass.

The utility model provides a following technical scheme: a glass edge grinding machine comprises a base, wherein an electric cabinet is fixedly mounted on one side of the base, a button is movably mounted on one side of the electric cabinet, an edge grinding supporting table is fixedly mounted at one end of the top of the base, an edge grinding motor is fixedly mounted at the top of the edge grinding supporting table, a base plate is fixedly mounted in the middle of the top of the base, a first pneumatic telescopic rod is fixedly mounted on the front surface of the base plate, guide rails are fixedly mounted on two sides of the top of the base, a sliding groove is formed in the middle of each of the two guide rails, a sliding table is movably sleeved between the two guide rails, a transmission base table is fixedly mounted at the top of the sliding table, a transportation roller shaft is movably mounted in an inner cavity of the transmission base table, a transportation motor is fixedly mounted on the front surface of the transmission base, the inner chamber fixed mounting of support frame has the rotating electrical machines, the top fixed mounting of rotating electrical machines has the rotary disk, one side fixed mounting of transmission base station has pneumatic telescopic link two, one side movable mounting of pneumatic telescopic link two has the screw thread swing arm, the top fixed mounting of screw thread swing arm has the fixed disk.

Preferably, the height of the rotating disc is consistent with that of a base plate, and the length of the base plate is half of the distance between the two guide rails.

Preferably, the height of the top of the belt is three centimeters higher than the height of the conveying base.

Preferably, the output shaft of the rotating motor penetrates through the top of the support frame and extends to the outside, and the output shaft of the rotating motor is movably clamped on the top of the support frame.

Preferably, the maximum telescopic length of the pneumatic telescopic rod II is consistent with the length of the belt, and the maximum telescopic length of the pneumatic telescopic rod I is consistent with the length of the guide rail.

With the contrast of current glass edging machine, the utility model discloses possess following beneficial effect:

1. this glass edging machine through rotary disk and fixed disk, has realized fixing glass and the angle of rotary disk autogiration glass makes its effect of changeing the limit edging, need the reciprocal one end of getting back to the machine of lifting glass of workman when having solved four corners of machine tooling glass not only the low extravagant manual work of machining efficiency but also often cause the workman to lift the problem that the hand was cut when glass, has improved the safety high efficiency of equipment.

2. This glass edging machine drives the belt through the transportation motor, has realized need not to extrude the belt to the glass of different thickness and has driven its effect that removes, compresses tightly the subassembly and leads to the tensile problem that leads to shortening the life of transmission band easily to transmission band pressure when having solved the glass that compresses tightly different thickness, has improved the stability of equipment.

Drawings

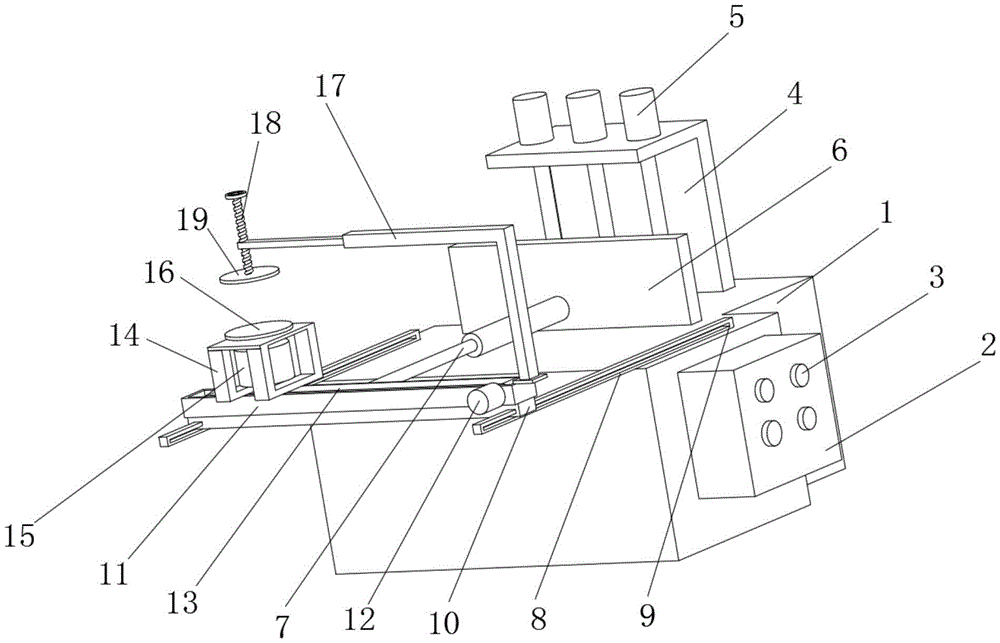

FIG. 1 is a schematic view of a glass edge grinding machine according to the present invention;

fig. 2 is the utility model relates to a front end structure schematic diagram of a glass edge grinding machine.

In the figure: 1. a base; 2. an electric cabinet; 3. a button; 4. an edging support platform; 5. an edging motor; 6. A base plate; 7. a first pneumatic telescopic rod; 8. a guide rail; 9. a chute; 10. a sliding table; 11. a transmission base station; 12. A transport motor; 13. a belt; 14. a support frame; 15. a rotating electric machine; 16. rotating the disc; 17. a second pneumatic telescopic rod; 18. a threaded screw; 19. fixing the disc; 20. and (5) conveying the roll shafts.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, a glass edge grinding machine comprises a base 1, an electric cabinet 2 is fixedly installed on one side of the base 1, a button 3 is movably installed on one side of the electric cabinet 2, an edge grinding support table 4 is fixedly installed on one end of the top of the base 1, an edge grinding motor 5 is fixedly installed on the top of the edge grinding support table 4, a backing plate 6 is fixedly installed in the middle of the top of the base 1, a pneumatic telescopic rod I7 is fixedly installed on the front surface of the backing plate 6, guide rails 8 are fixedly installed on both sides of the top of the base 1, a chute 9 is arranged between the two guide rails 8, a sliding table 10 is movably sleeved between the two guide rails 8, a transmission base table 11 is fixedly installed on the top of the sliding table 10, a transportation roller shaft 20 is movably installed in an inner cavity of the transmission base table 11, a transportation, height at belt 13 top is three centimetres higher than transmission base station 11, it is higher than transmission base station 11 through belt 13, the effect that it drives its removal to need not to extrude the belt to the glass of different thickness is realized, the problem of the tensile life that leads to shortening the transmission band of transmission band easily to transmission band pressure to compress tightly the subassembly when having solved the glass of different thickness is compressed tightly, the stability of equipment has been improved, the one end fixed mounting at belt 13 top has support frame 14, the inner chamber fixed mounting of support frame 14 has rotating electrical machines 15, rotating electrical machines 15's output shaft runs through support frame 14 top and extends outside, and rotating electrical machines 15's output shaft activity joint is on support frame 14's top, run through support frame 14 through rotating electrical machines 15, the effect that rotating electrical machines 15 is rotatory to carry out glass and change limit has been realized, it is reciprocal not only that the one end that the workman lifts glass back to the machine with the reciprocal not only machining efficiency is low extravagant artifical The problem that hands are cut during glass processing is solved, the safety and the high efficiency of the equipment are improved, the rotating disc 16 is fixedly arranged at the top of the rotating motor 15, the height of the rotating disc 16 is consistent with that of the backing plate 6, the length of the backing plate 6 is half of the distance between the two guide rails 8, the effects of fixing the glass and automatically rotating the angle of the glass by the rotating disc 16 and the fixed disc 19 to enable the glass to rotate and edge the glass are achieved, the problem that when four corners of the glass are processed by a machine, workers need to lift the glass back to one end of the machine in a reciprocating mode, not only is the processing efficiency low and manpower wasted, but also the problem that the hands are cut when the workers lift the glass is often caused is solved, the safety and the high efficiency of the equipment are improved, the pneumatic telescopic rod two 17 is fixedly arranged on one side of the transmission base station 11, the maximum telescopic length of the pneumatic telescopic rod two, through pneumatic telescoping rod 7 and pneumatic telescoping rod two 17, realized fixed glass and according to the effect of glass length adjustment slip table 10 to the 6 distances of backing plate, solved the problem that different model glasses can't in time be processed, improved the high efficiency of equipment, one side movable mounting of pneumatic telescoping rod two 17 has screw thread swing arm 18, and screw thread swing arm 18's top fixed mounting has fixed disk 19.

The working principle is as follows: when in use, the glass is placed on the rotating disc 16, the threaded rotary rod 18 is rotated to drive the fixed disc 19 to tightly clamp the glass, the electric cabinet 2 of the edging motor 5 is controlled by pressing the button 3, the pneumatic edging motor 5 rotates, the electric cabinet 2 which continuously presses down and adjusts the extension of the first pneumatic telescopic rod 7 adjusts the length of the first pneumatic telescopic rod 7 according to the size of glass, when the sliding table 10 is pushed to move along the sliding groove 9 on the guide rail 8, the glass reaches a proper distance, the conveying motor 12 is started to drive the conveying roller shaft 20 to rotate, the conveying roller shaft 20 drives the belt 13 to move, the support frame 14 pushes the rotary disc 16 on the rotary motor 15 to move, the rotary disc 16 pushes the glass to go through the edge grinding motor 5 to grind the edge, after one edge is ground, the rotating motor 15 is started to rotate to drive the glass to rotate by ninety degrees, the conveying motor 12 rotates reversely to drive the support frame 14 to move back to grind the edge, and the edge is ground by repeated operation.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Also in the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and for simplicity of description, and do not indicate or imply that the equipment or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention. In addition, in the drawings of the present invention, the filling pattern is only for distinguishing the pattern layer, and is not limited to any other pattern.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A glass edging machine, comprising a base (1), an electric control box (2) is fixedly installed on one side of the base (1), and a side of the electric control box (2) is movably installed with A button (3), one end of the top of the base (1) is fixedly installed with an edging support table (4), and a edging motor (5) is fixedly installed on the top of the edging support table (4), characterized in that : a backing plate (6) is fixedly installed in the middle of the top of the base (1), a pneumatic telescopic rod (7) is fixedly installed on the front of the backing plate (6), and two pneumatic telescopic rods (7) are fixedly installed on the front of the backing plate (6). Guide rails (8) are fixedly installed on the sides, a chute (9) is provided in the middle of the two guide rails (8), and a sliding table (10) is movably sleeved between the two guide rails (8), so A transmission base (11) is fixedly installed on the top of the sliding table (10), a transport roller shaft (20) is movably installed in the inner cavity of the transmission base (11), and the front surface of the transmission base (11) is fixed A transport motor (12) is installed, a belt (13) is movably sleeved on the periphery of the transport roller shaft (20), and a support frame (14) is fixedly installed at one end of the top of the belt (13), and the support frame ( 14) A rotating motor (15) is fixedly installed in the inner cavity, a rotating disk (16) is fixedly installed on the top of the rotating motor (15), and a pneumatic telescopic rod 2 is fixedly installed on one side of the transmission base (11). (17), a threaded rod (18) is movably installed on one side of the second pneumatic telescopic rod (17), and a fixed plate (19) is fixedly installed on the top of the threaded rod (18).

2. A glass edging machine according to claim 1, characterized in that: the height of the rotating disc (16) is consistent with the backing plate (6), and the length of the backing plate (6) is two guide rails (8) Half of the pitch.

3 . The glass edger according to claim 1 , wherein the top of the belt ( 13 ) is three centimeters higher than the transmission base ( 11 ). 4 .

4. A glass edging machine according to claim 1, characterized in that: the output shaft of the rotary motor (15) extends through the top of the support frame (14) to the outside, and the output shaft of the rotary motor (15) The movable clip is attached to the top of the support frame (14).

5. A glass edging machine according to claim 1, characterized in that: the maximum telescopic length of the two (17) pneumatic telescopic rods is consistent with the length of the belt (13), and the one (7) pneumatic telescopic rod The maximum telescopic length is the same as the length of the guide rail (8).
