CN213032546U

CN213032546U - Pharmacy sampling tube placer

Info

Publication number: CN213032546U
Application number: CN202021895401.5U
Authority: CN
Inventors: 杨晓瑞
Original assignee: Zhengzhou Central Hospital
Current assignee: Zhengzhou Central Hospital
Priority date: 2020-09-03
Filing date: 2020-09-03
Publication date: 2021-04-23
Anticipated expiration: 2030-09-03

Abstract

The utility model discloses a device for placing a pharmaceutical sampling tube, which comprises a fixed upper frame plate and a support side plate. The fixed upper frame plate is installed on the front side outer wall of the support side plate close to the upper end, and the front side outer wall of the lower end of the support side plate is installed on the front side outer wall. A fixed bottom plate is connected, the outer wall of the fixed upper shelf plate is provided with a sampling pipe jack, and a fixed half-clamp ring is arranged on the outer wall of the upper end of the fixed upper shelf plate on the rear side of the sampling pipe jack, which can be used when placing the sampling pipe. The fixed half-clamp ring is pushed back to fully expose the sampling tube socket, so that the sampling tube can be smoothly passed through the sampling tube socket. The half-clamping ring moves forward, so that the sampling tube is clamped in the sampling tube jack, which is easy to use and firmly fixed. The flexibility plays a good role in protecting the sampling tube.

Description

Pharmacy sampling tube placer

Technical Field

The utility model belongs to the technical field of the pharmacy apparatus is relevant, concretely relates to pharmacy sampling tube placer.

Background

The sampling tube is one of pharmaceutical sampling experimental instruments. The sampling tube is mostly a wooden shelf or a bamboo shelf and has two types of 6 holes and 12 holes. The sampling tube rack is the most basic laboratory instrument in a pharmaceutical laboratory for placing (sometimes, the sampling tube can be placed on the rack to observe the phenomenon of a certain experiment) and airing the sampling tube. The placing rack is attached with a corresponding number of small wooden columns and small holes. The foraminous tube may be placed upright for use or to allow continued observation of the reaction. The cleaned test tube with the column can be placed upside down for air drying.

The prior art for placing the pharmaceutical sampling tube has the following problems: because the thickness degree of sampling tube is different, the jack of design on the traditional pharmacy sampling tube placer often is bigger than normal, just so leads to the sampling tube easily to empty when placing to make the inside liquid medicine of depositing unrestrained, and jack department does not have any protector, easily causes the damage to the sampling tube.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a pharmacy sampling tube placer to solve the above-mentioned background art and go up the jack of design on the traditional pharmacy sampling tube placer that proposes and easily empty when placing, jack department does not have any protector and easily causes the damage problem to the sampling tube.

In order to achieve the above object, the utility model provides a following technical scheme:

a device for placing a pharmaceutical sampling tube comprises a fixed upper frame plate and a supporting side plate, wherein the fixed upper frame plate is arranged on the outer wall of the front side of the supporting side plate close to the upper end, the outer wall of the front side of the lower end of the supporting side plate is connected with a fixed bottom plate, the outer wall of the fixed upper frame plate is provided with a sampling tube jack, the outer wall of the upper end of the fixed upper frame plate behind the sampling tube jack is provided with a fixed half clamping ring, the outer wall of the rear side of the fixed half clamping ring is connected with a stretching push rod, the outer part of the rear end of the stretching push rod is sleeved with a telescopic sleeve, a pressing push block is arranged inside the telescopic sleeve behind the stretching push rod, an extension spring is arranged between the pressing push block and the opposite inner wall of the telescopic sleeve, the front end and the rear end of the extension spring are connected with spring rubber pads, the outer wall of the lower end of the, and a protective pipe filler is arranged in the pipe fixing sleeve.

Preferably, a holding and holding hole is formed in the outer wall, close to the upper end, of the supporting side plate, and the supporting side plate and the fixed upper frame plate and the fixed bottom plate at the front end are perpendicular to each other.

Preferably, the sampling tube jack is vertically aligned with the circle center of the tube fixing sleeve.

Preferably, the fixed half clamping ring is of a semi-annular structure, and rubber gaskets are attached to the fixed half clamping ring and the inner circumferential wall of the sampling tube jack.

Preferably, the stretching push rod is limited in the telescopic sleeve through pressing the push block and can move in a front-back telescopic mode, and the front end and the rear end of the stretching spring are fixedly embedded in the spring rubber mat.

Preferably, the number of the guide jaws is four.

Preferably, four guide clamping pieces are in a cross-shaped structure and evenly surround the circumference outer side of the sampling tube jack.

Preferably, the protective tube filler is of a sponge annular structure, and an inverted circular truncated cone-shaped groove is formed in the inner wall of the protective tube filler.

Compared with the prior art of placing the sampling tube, the utility model provides a pharmacy sampling tube placing device possesses following beneficial effect:

1. the utility model discloses a set up fixed half clamp ring on fixed upper ledge board, can promote fixed half clamp ring to the rear side when placing the sampling tube, make the sampling tube jack appear out completely, thereby can pass the sampling tube jack smoothly with the sampling tube, at the in-process of releasing the sampling tube, can move fixed half clamp ring forward under the elasticity promotion of extension spring, thereby it is solid in the sampling tube jack with the sampling tube card, high durability and convenient use, it is fixed firm, and all attached rubber gasket on the circumference inner wall of fixed half clamp ring and sampling tube jack, it plays protective action well to increase the compliance to the sampling tube, novel pharmacy sampling tube placer is fit for the sampling tube of different thickness degrees and places, it is more extensive to use.

2. The utility model discloses a set up four direction clamping pieces that are cross structure on fixed upper bracket plate lower extreme outer wall, can accurately insert to the solid tube socket of downside under the effect of four direction clamping pieces after the sampling tube passes the sampling tube jack, thereby be convenient for the sampling tube to find fixed hole site fast, and set up in solid tube socket and can change abluent pillar filler, the recess type structural design of pillar filler makes the sampling tube can be along bent shape cambered surface landing to recess in, thereby accomplish inserting of sampling tube fast and put, and the pillar filler adopts soft material, can play fine guard action, avoid the sampling tube to receive the damage.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

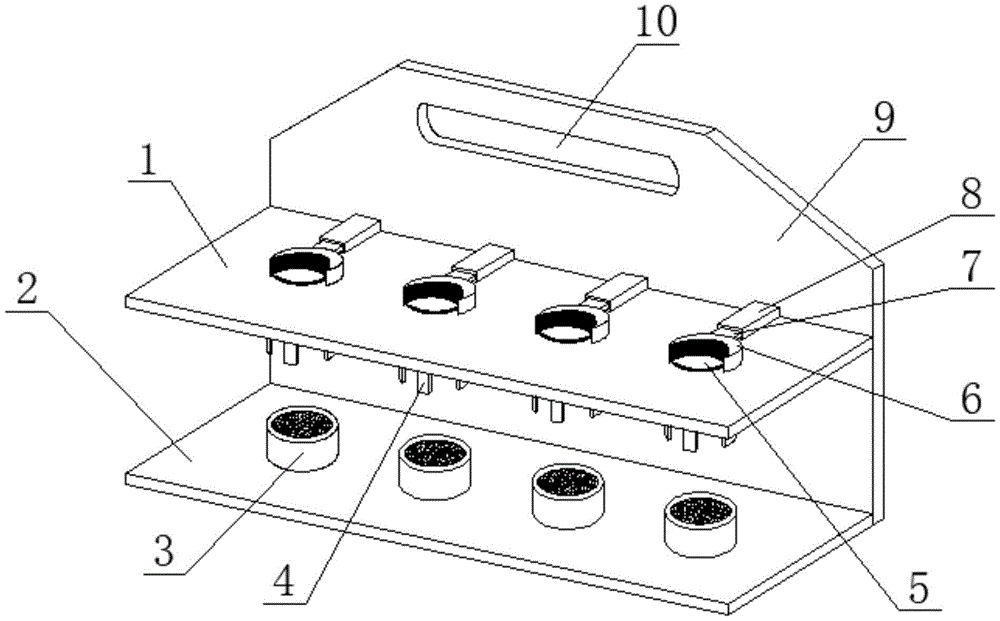

Fig. 1 is the utility model provides a pharmacy sampling tube placer structure sketch map.

Fig. 2 is the side structure schematic diagram of the device for placing the pharmaceutical sampling tube provided by the utility model.

Fig. 3 is the schematic diagram of the internal structure of the telescopic tube provided by the present invention.

Fig. 4 is a schematic view of a sectional structure of the sleeve for fixing pipe according to the present invention.

In the figure: 1. fixing the upper frame plate; 2. fixing the bottom plate; 3. fixing a pipe sleeve; 4. a guide clip; 5. a sampling tube jack; 6. fixing the half clamping ring; 7. stretching the push rod; 8. a telescopic sleeve; 9. supporting the side plates; 10. holding the holding hole; 11. pressing the push block; 12. an extension spring; 13. a spring rubber cushion; 14. and (4) filling the protective pipe.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a kind of pharmacy sampling tube placer, including fixing the upper shelf board 1 and supporting the lateral plate 9, fix the upper shelf board 1 to install on the front outer wall near upper end of supporting the lateral plate 9, connect with the fixed base plate 2 on the front outer wall of the lower end of supporting the lateral plate 9, there are sampling tube jacks 5 on the outer wall of the fixed upper shelf board 1 behind the sampling tube jack 5, there are fixed half clamp rings 6 on the outer wall of upper end of the fixed upper shelf board behind the sampling tube jack 5, the fixed half clamp ring 6 is a half-ring structure, when placing the sampling tube, can push the fixed half clamp ring 6 to the rear side, make the sampling tube jack 5 reveal out completely, thus can pass the sampling tube jack 5 smoothly, and can push the sampling tube to fix in the sampling tube jack 5 under the promotion of the fixed half clamp ring 6, and the circumference inner wall of the sampling tube jack 5 is affixed with the rubber gasket on the fixed half clamp ring 6, increase the flexibility, thereby playing a certain protection role for the sampling tube.

The outer wall of the rear side of the fixed half clamping ring 6 is connected with an extension push rod 7, the outer part of the rear end of the extension push rod 7 is sleeved with an extension sleeve 8, a pressing push block 11 is arranged inside the extension sleeve 8 at the rear end of the extension push rod 7, an extension spring 12 is arranged between the pressing push block 11 and the opposite inner wall of the extension sleeve 8, the front end and the rear end of the extension spring 12 are connected with spring rubber pads 13, the extension push rod 7 is limited in the extension sleeve 8 through the pressing push block 11 and can move in a front-back telescopic mode, the front end and the rear end of the extension spring 12 are fixedly embedded in the spring rubber pads 13, in the process of pushing the fixed half clamping ring 6 towards the rear side, the extension spring 12 in the extension sleeve 8 is compressed inwards due to the extrusion effect of the pressing push block 11, so that certain elastic potential energy is provided, and in the process of releasing the sampling tube, the fixed half clamping ring 6 can move forwards under the pushing, thereby clamping the sampling tube in the sampling tube insertion hole 5.

A device for placing a pharmaceutical sampling tube comprises an upper fixed frame plate 1, wherein the outer wall of the lower end of the upper fixed frame plate is connected with four guide clamping pieces 4, the four guide clamping pieces 4 are arranged in a cross shape and uniformly surround the outer side of the circumference of a sampling tube jack 5, the sampling tube can be accurately inserted into a fixed tube sleeve 3 on the lower side under the action of the four guide clamping pieces 4 after passing through the sampling tube jack 5, so that the sampling tube can quickly find a fixed hole position, the outer wall of the upper end of a fixed bottom plate 2 on the lower side of each guide clamping piece 4 is connected with the fixed tube sleeve 3, the circle centers of the sampling tube jack 5 and the fixed tube sleeve 3 are vertically aligned, the sampling tube can be downwards inserted into the fixed tube sleeve 3 after being inserted into the sampling tube jack 5, so that the sampling tube is fixed on a placing frame, a protective tube filler 14 is arranged inside the fixed tube sleeve 3, and the protective tube filler 14 is of a sponge annular structure, be provided with radius circular truncated cone type recess in the inner wall of pillar filler 14, make the sampling tube find fast under the guide effect of direction clamping piece 4 and aim at solid tub of sleeve 3 position fast, and the recess type structural design of pillar filler 14 makes the sampling tube can slide to the recess along bent shape cambered surface in to accomplish inserting of sampling tube fast and put, and pillar filler 14 adopts soft material, can play fine guard action, avoids the sampling tube to receive the damage.

The utility model provides a pharmacy sampling tube placer, is provided with on the outer wall that supports curb plate 9 and is close to the upper end and holds hole 10, supports and keeps the mutually perpendicular state between fixed frame plate 1 and PMKD 2 of curb plate 9 and front end, and fixed frame plate 1, PMKD 2 and support curb plate 9 are the main frame structure of sampling tube rack, fix the sampling tube through fixed frame plate 1 and PMKD 2 of front end.

The utility model discloses a theory of operation and use flow: after the utility model is installed, the novel medicine sampling tube placing device is of a frame structure comprising a fixed upper frame plate 1, a fixed bottom plate 2 and a supporting side plate 9, wherein the fixed upper frame plate 1 is provided with a guiding clamping piece 4, a fixed half clamping ring 6, a stretching push rod 7, a telescopic sleeve 8 and other structures, the fixed bottom plate 2 is provided with a fixed tube sleeve 3, when in use, the lower end of the sampling tube can be arranged at the position of a sampling tube jack 5, the lower end of the sampling tube is slowly pushed to the rear side to press the fixed half clamping ring 6, so that the sampling tube jack 5 is completely exposed, the sampling tube can pass through the sampling tube jack 5, the sampling tube can quickly find the position of the fixed tube sleeve 3 under the guiding action of the guiding clamping piece 4, and the groove type structure design of a protective tube filler 14 enables the sampling tube to slide into a groove along a curved cambered surface, thereby quickly completing the insertion and the placement of the sampling tube, when the sampling tube is naturally loosened, the fixed half clamping ring 6 slides forwards under the elastic force of the extension spring 12 in the telescopic sleeve 8 to clamp and fix the sampling tube in the sampling tube jack 5, and the clamping process of the sampling tube is automatically finished.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a pharmacy sampling tube placer, includes fixed frame plate (1) and support curb plate (9), its characterized in that: the device is characterized in that the fixed upper frame plate (1) is arranged on the outer wall of the front side of the supporting side plate (9) close to the upper end, the outer wall of the front side of the lower end of the supporting side plate (9) is connected with a fixed bottom plate (2), the outer wall of the fixed upper frame plate (1) is provided with a sampling tube jack (5), the outer wall of the upper end of the fixed upper frame plate (1) at the rear side of the sampling tube jack (5) is provided with a fixed half clamping ring (6), the outer wall of the rear side of the fixed half clamping ring (6) is connected with a stretching push rod (7), the outer part of the rear end of the stretching push rod (7) is sleeved with a telescopic sleeve (8), a pressing push block (11) is arranged inside the telescopic sleeve (8) at the rear end of the stretching push rod (7), an extending spring (12) is arranged between the pressing push block (11) and the opposite inner wall of the, the fixed frame plate is characterized in that a guide clamping piece (4) is connected to the outer wall of the lower end of the fixed upper frame plate (1), a fixed pipe sleeve (3) is connected to the outer wall of the upper end of the fixed bottom plate (2) on the lower side of the guide clamping piece (4), and a protective pipe filler (14) is arranged inside the fixed pipe sleeve (3).

2. A pharmaceutical coupon placement device as defined in claim 1 wherein: the outer wall of the supporting side plate (9) close to the upper end is provided with a holding hole (10), and the supporting side plate (9) and the fixed upper frame plate (1) and the fixed bottom plate (2) at the front end are kept in a mutually vertical state.

3. A pharmaceutical coupon placement device as defined in claim 1 wherein: the sampling tube jack (5) and the circle center of the fixed tube sleeve (3) are vertically arranged on the same straight line.

4. A pharmaceutical coupon placement device as defined in claim 1 wherein: the fixed half clamping ring (6) is of a semi-annular structure, and rubber gaskets are attached to the inner walls of the circumference of the fixed half clamping ring (6) and the circumference of the sampling tube jack (5).

5. A pharmaceutical coupon placement device as defined in claim 1 wherein: the stretching push rod (7) is limited in the telescopic sleeve (8) through the pressing push block (11) and can move in a front-back telescopic mode, and the front end and the rear end of the stretching spring (12) are fixedly embedded in the spring rubber pad (13).

6. A pharmaceutical coupon placement device as defined in claim 1 wherein: the number of the guide clamping pieces (4) is four.

7. A pharmaceutical coupon placement device as defined in claim 6 further comprising: the four guide clamping pieces (4) are of a cross structure and uniformly surround the outer side of the circumference of the sampling tube jack (5).
