Abstract
本实用新型公开了一种风电场监控系统信息安全检测装置，包括缓冲板、束线板和壳体，所述壳体内部的一侧安装有散热风机，且壳体的另一侧均匀开设有散热口，所述壳体内部一端的下端均匀开设有插口，且插口两侧的壳体一侧均设置有夹持结构，所述壳体一端的下端横向安装有束线板，且壳体顶端的中间位置处安装有PLC控制器，所述PLC控制器一侧的壳体顶端安装有蜂鸣器，且壳体的四个拐角处均设置有防护结构。本实用新型通过在壳体四个拐角处均设置缓冲板和缓冲弹簧，利用缓冲弹簧的弹性形变，抵消本装置不慎掉落与地面产生的冲击力，避免冲击力过大导致壳体内部的器件损坏，进而提高装置的实用性。
The utility model discloses an information security detection device for a wind farm monitoring system, comprising a buffer board, a wire harness board and a casing. A cooling fan is installed on one side of the casing, and the other side of the casing is evenly provided with A heat dissipation port, the lower end of one end of the inside of the casing is evenly provided with sockets, and one side of the casing on both sides of the socket is provided with a clamping structure. A PLC controller is installed at the middle position of the PLC controller, a buzzer is installed on the top of the casing on one side of the PLC controller, and protective structures are provided at the four corners of the casing. By arranging buffer plates and buffer springs at the four corners of the casing, the utility model utilizes the elastic deformation of the buffer springs to offset the impact force generated by the accidental falling of the device and the ground, so as to avoid excessive impact force leading to shocks inside the casing. The device is damaged, thereby improving the usability of the device.
Description
Technical Field
The utility model relates to a wind-powered electricity generation field monitoring facilities technical field specifically is a wind-powered electricity generation field monitored control system information safety detection device.
Background
With the continuous development of science and technology, the development of environment-friendly sustainable green energy becomes an important target in our society, wherein wind power generation is a green energy development technology which is mature at present, and the development of science and technology enables the wind power generation operation and maintenance to be more and more intelligently networked, in order to ensure the normal operation of the system, the system needs to be frequently and safely detected, so as to avoid being invaded by viruses or other modes and further causing damage, but the information safety detection device of the existing wind power plant monitoring system has many problems or defects:
first, traditional wind-powered electricity generation field monitored control system information safety detection device does not have protective structure during the use, when the device falls carelessly, easily causes inside device to damage.
Second, traditional wind-powered electricity generation field monitored control system information safety detection device does not have fixed socket structure during the use, and the connecting wire is connected with this device and is not stable enough, probably receives external force and drops, influences the detection effect.
Third, the traditional information security detection device for the wind power plant monitoring system is not provided with a heat dissipation structure during use, and heat inside the device is not easy to dissipate, so that the use of equipment is affected.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a wind-powered electricity generation field monitored control system information safety inspection device to solve the inconvenient protection that proposes in the above-mentioned background art, inconvenient fixed socket and inconvenient radiating problem.
In order to achieve the above object, the utility model provides a following technical scheme: a wind power plant monitoring system information safety detection device comprises a buffer board, a wiring board and a shell, wherein a cooling fan is installed on one side inside the shell, a cooling hole is evenly formed in the other side of the shell, a socket is evenly formed in the lower end of one end inside the shell, clamping structures are arranged on one side of the shell on two sides of the socket, the wiring board is transversely installed on the lower end of one end of the shell, a PLC (programmable logic controller) is installed in the middle of the top end of the shell, a buzzer is installed on the top end of the shell on one side of the PLC, and protection structures are arranged at four corners of the shell;
protective structure includes the baffle-box, the baffle-box is all seted up at four inside corners of casing, and one side of baffle-box inside evenly installs buffer spring, the inside equal sliding connection of baffle-box of buffer spring one end has the buffer block, and buffer block one end all installs the buffer beam that extends to the casing outside, the buffer board is all installed to the one end of buffer beam.
Preferably, the clamping structure includes spout, fixed spring, slider and grip block, the inside one end of casing in the socket both sides is all seted up to the spout, and the inside one side of spout all installs fixed spring, the inside equal sliding connection of spout of fixed spring one end has the slider, and slider one end all installs the grip block that extends to the casing outside, the front view of grip block is semi-circular.
Preferably, the through groove is transversely seted up to the inside upper end of bunch board, and leads to the inside spacing ring that has evenly seted up of bunch board of groove bottom.
Preferably, the inside one end of socket all installs fire-retardant sealing washer, and fire-retardant sealing washer internal diameter equals the diameter of socket one end cross section.
Preferably, radiating fins are uniformly arranged at the upper end of the casing close to one end of the bunching plate, and radiating holes are uniformly formed in the surfaces of the radiating fins.
Preferably, it is as described.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) by arranging the buffer plates and the buffer boxes at the four corners of the shell, when the device falls off due to unexpected external force, the impact force generated by the contact of the corners of the shell and the ground can drive the buffer plates to move towards the shell, so that the buffer blocks slide to compress the buffer springs, the impact force generated by the falling is further offset by utilizing the elastic action of the buffer springs, the device is prevented from being in hard collision with the ground, and devices in the shell are damaged due to the impact of larger external force, so that the practicability of the device is improved;
(2) the clamping structure and the wiring board are arranged at one end of the shell, a power line and other external leads slide into the wiring board through the through groove and sequentially fall into the limiting ring, a certain limiting effect is achieved on the leads, the leads are prevented from being wound, then the clamping plate is shifted, lead heads are sequentially inserted into the socket, then the clamping plate is restored to the original position by the aid of the elastic force of the fixing spring, the leads are clamped, and the situation that the interface between the leads and the socket is loosened due to accidents subsequently, the device is disconnected from a monitoring system, potential safety hazards cannot be discovered in time, and accordingly detection effects are affected;
(3) through set up radiating fin, cooling fan and thermovent at housing face, through starting cooling fan for the inside air flow of casing, and then pass through the thermovent with the inside heat of casing and discharge, and set up radiating fin, can increase the passive heat radiating area of this device, improve the radiating efficiency, avoid the heat to influence the normal work of this device, reduce the work efficiency that detects, when serious, reduce the life of equipment even, increase production economic loss.
Drawings

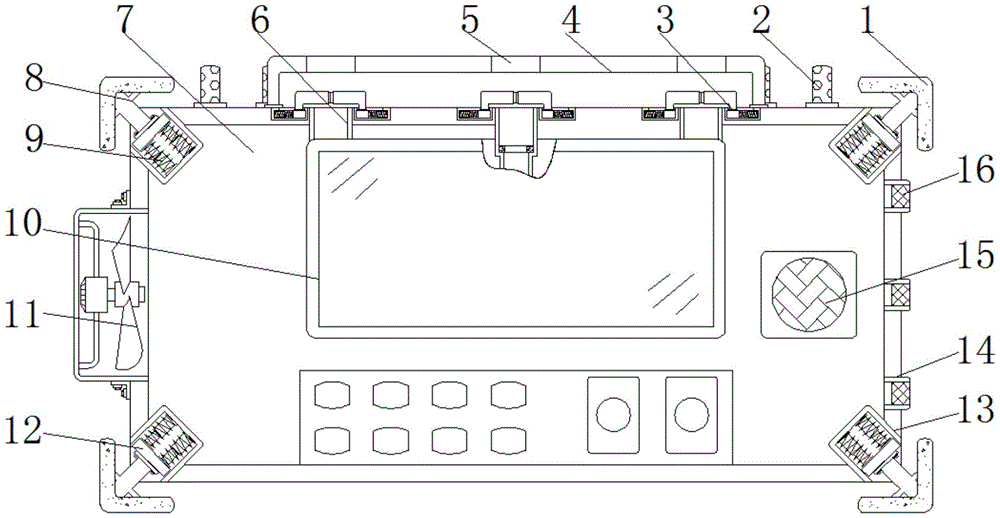

Fig. 1 is a schematic top view of the cross-sectional structure of the present invention;
fig. 2 is a schematic view of a rear view cross-sectional structure of the present invention;
FIG. 3 is a schematic side view of the structure of the present invention;
fig. 4 is a schematic view of the protective structure of the present invention showing an enlarged structure from top view.
In the figure: 1. a buffer plate; 2. a heat dissipating fin; 3. a clamping structure; 301. a chute; 302. fixing the spring; 303. a slider; 304. a clamping plate; 4. a wire bundling plate; 5. a limiting ring; 6. a socket; 7. a housing; 8. a buffer rod; 9. a buffer spring; 10. a PLC controller; 11. a heat radiation fan; 12. a buffer block; 13. a buffer tank; 14. a heat dissipation port; 15. a buzzer; 16. a dust screen; 17. a through groove; 18. fire-retardant sealing washer.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example 1: referring to fig. 1-4, an information safety detection device for a wind farm monitoring system comprises a buffer plate 1, a wire bundling plate 4 and a shell 7, wherein a heat radiation fan 11 is installed at one side inside the shell 7, the type of the heat radiation fan 11 can be HSTF001, heat radiation ports 14 are evenly formed in the other side of the shell 7, a socket 6 is evenly formed in the lower end of one end inside the shell 7, clamping structures 3 are arranged at one sides of the shell 7 at two sides of the socket 6, the wire bundling plate 4 is transversely installed at the lower end of one end of the shell 7, a PLC controller 10 is installed at the middle position of the top end of the shell 7, the type of the PLC controller 10 can be FX1N-14MR-001, a buzzer 15 is installed at the top end of the shell 7 at one side of the PLC controller 10, the type of the buzzer 15 can be SMD-075025H, and four corners of the shell 7;
referring to fig. 1-4, the information safety detection device for the wind power plant monitoring system further comprises a protection structure, the protection structure comprises buffer boxes 13, the buffer boxes 13 are all arranged at four corners inside the shell 7, buffer springs 9 are evenly arranged on one side inside the buffer boxes 13, buffer blocks 12 are connected inside the buffer boxes 13 at one ends of the buffer springs 9 in a sliding mode, buffer rods 8 extending to the outside of the shell 7 are arranged at one ends of the buffer blocks 12, and buffer plates 1 are arranged at one ends of the buffer rods 8;
specifically, as shown in fig. 1, fig. 2 and fig. 3, when the device is dropped by an unexpected external force, the impact force generated by the contact between the corner of the housing 7 and the ground will drive the buffer board 1 to move toward the housing 7, so that the buffer block 12 slides to compress the buffer spring 9, thereby further counteracting the impact force generated by the dropping by the elastic action of the buffer spring 9, and preventing the device from being damaged by the external force.
Example 2: the clamping structure 3 comprises sliding chutes 301, fixed springs 302, sliding blocks 303 and clamping plates 304, the sliding chutes 301 are all arranged at one end inside the shell 7 at two sides of the socket 6, the fixed springs 302 are installed at one side inside the sliding chutes 301, the sliding blocks 303 are all connected inside the sliding chutes 301 at one ends of the fixed springs 302 in a sliding mode, the clamping plates 304 extending to the outside of the shell 7 are installed at one ends of the sliding blocks 303, and the front view of the clamping plates 304 is semicircular;
a through groove 17 is transversely formed in the upper end of the interior of the wire bundling plate 4, and limiting rings 5 are uniformly formed in the wire bundling plate 4 at the bottom end of the through groove 17;
one end inside the socket 6 is provided with a flame-retardant sealing ring 18, and the inner diameter of the flame-retardant sealing ring 18 is equal to the diameter of the cross section of one end of the socket 6;
specifically, as shown in fig. 1, fig. 2 and fig. 4, the external lead slides into the wiring board 4 through the through groove 17, and sequentially falls into the limiting ring 5, so that the lead is limited to a certain extent, the winding of the lead is avoided, and then the clamping plate 304 is restored to the original position by utilizing the elastic force of the fixing spring 302, so that the lead is clamped, the looseness of the joint between the lead and the socket 6 caused by accidents in the following process is avoided, and meanwhile, the flame-retardant sealing ring 18 is arranged, so that the sealing performance between the external lead and the socket 6 is improved.
Example 3: the upper end of the shell 7 close to one end of the wire bundling plate 4 is uniformly provided with the heat dissipation fins 2, and the surfaces of the heat dissipation fins 2 are uniformly provided with heat dissipation holes;
six heat dissipation ports 14 are arranged at equal intervals on one side inside the shell 7, and dust screens 16 are arranged on one side inside the heat dissipation ports 14;
specifically, as shown in fig. 1, fig. 2 and fig. 3, by starting the heat dissipation fan 11, the air inside the housing 7 is accelerated to flow, and then the heat inside the housing 7 is discharged through the heat dissipation port 14, and the heat dissipation fins 2 are arranged, so that the passive heat dissipation area of the device can be increased, the heat dissipation efficiency is improved, and meanwhile, the dust screen 16 inside the heat dissipation port 14 can prevent impurities such as dust from entering the housing 7.
The output end of the PLC controller 10 is electrically connected to the input ends of the heat dissipation fan 11 and the buzzer 15 through wires.
The working principle is as follows: when the device is used, firstly, the device is placed, then a power line and other external leads slide into the wiring board 4 through the through groove 17 and fall into the limiting ring 5 in sequence, a certain limiting effect is achieved on the leads, the leads are prevented from being wound, then the clamping plate 304 is shifted, the sliding block 303 slides in the sliding groove 301 to compress the fixing spring 302, then the lead head is inserted into the socket 6 in sequence, the clamping plate 304 is restored to the original position by utilizing the elasticity of the fixing spring 302, the leads are clamped, the phenomenon that the interface between the leads and the socket 6 is loosened due to accidents later on and the detection effect is influenced is avoided, the flame-retardant sealing ring 18 is arranged, the sealing performance between the external leads and the socket 6 is improved, the two leads are connected more tightly, and the stable transmission of information between the device and a monitoring system is ensured;
after a power supply is switched on, the device starts to work, information intercommunication between a wind power plant monitoring system and the device is realized through an external lead, and further information safety detection of the wind power plant monitoring system is realized, when the information safety hidden danger occurs, the PLC 10 displays the safety hidden danger and starts the buzzer 15, so that an alarm sound is given out to remind a worker to overhaul, and a larger accident is avoided;
meanwhile, in the working process of the device, the heat dissipation fan 11 can be started to accelerate the air flow in the shell 7, so that the heat in the shell 7 is discharged through the heat dissipation port 14, the heat dissipation fins 2 are arranged, the passive heat dissipation area of the device can be increased, the heat dissipation efficiency is improved, the heat is prevented from influencing the normal work of the device, and meanwhile, the dust screen 16 in the heat dissipation port 14 can prevent impurities such as dust and the like from entering the shell 7;
when this device receives unexpected external force to lead to dropping, the impact force that 7 turnings of casing and ground contact produced can drive buffer board 1 and remove toward 7 directions of casing, and then drives buffer block 12 through buffer beam 8 and slide compression buffer spring 9 in buffer tank 13 inside for utilize buffer spring 9's elastic force effect, further offset the impact force that drops the production, avoid the device to receive external force and damage, increase economic loss.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a wind-powered electricity generation field monitored control system information safety detection device, includes buffer board (1), wiring board (4) and casing (7), its characterized in that: a cooling fan (11) is installed on one side inside the shell (7), heat dissipation ports (14) are uniformly formed in the other side of the shell (7), sockets (6) are uniformly formed in the lower end of one end inside the shell (7), clamping structures (3) are arranged on one side of the shell (7) on the two sides of each socket (6), a wiring board (4) is transversely installed at the lower end of one end of the shell (7), a PLC (programmable logic controller) (10) is installed in the middle of the top end of the shell (7), a buzzer (15) is installed at the top end of the shell (7) on one side of the PLC (10), and protection structures are arranged at four corners of the shell (7);
protective structure includes baffle-box (13), four corners inside casing (7) are all seted up in baffle-box (13), and inside one side of baffle-box (13) evenly installs buffer spring (9), the inside equal sliding connection of baffle-box (13) of buffer spring (9) one end has buffer block (12), and buffer block (12) one end all installs and extend to outside buffer beam (8) of casing (7), buffer board (1) are all installed to the one end of buffer beam (8).
2. The information safety detection device for the wind power plant monitoring system according to claim 1, characterized in that: clamping structure (3) include spout (301), fixed spring (302), slider (303) and grip block (304), spout (301) are all seted up in the inside one end of casing (7) of socket (6) both sides, and fixed spring (302) are all installed to the inside one side of spout (301), the inside equal sliding connection of spout (301) of fixed spring (302) one end has slider (303), and slider (303) one end all installs grip block (304) that extend to casing (7) outside, the front view of grip block (304) is semi-circular.
3. The information safety detection device for the wind power plant monitoring system according to claim 1, characterized in that: the wire bundling plate is characterized in that a through groove (17) is transversely formed in the upper end of the interior of the wire bundling plate (4), and a limiting ring (5) is uniformly formed in the wire bundling plate (4) at the bottom end of the through groove (17).
4. The information safety detection device for the wind power plant monitoring system according to claim 1, characterized in that: flame-retardant sealing ring (18) are all installed to the inside one end of socket (6), and flame-retardant sealing ring (18) inner diameter equals the diameter of socket (6) one end cross section.
5. The information safety detection device for the wind power plant monitoring system according to claim 1, characterized in that: the radiating fins (2) are uniformly arranged at the upper end of one end, close to the wire bundling plate (4), of the shell (7), and radiating holes are uniformly formed in the surfaces of the radiating fins (2).
6. The information safety detection device for the wind power plant monitoring system according to claim 1, characterized in that: the heat dissipation ports (14) on one side inside the shell (7) are arranged at six equal intervals, and dust screens (16) are arranged on one side inside the heat dissipation ports (14).
