CN213004453U - Circular tube groove machining device

Info

Publication number: CN213004453U
Application number: CN202021900213.7U
Authority: CN
Inventors: 钟洪波; 杨启华; 赵金奎; 曾强; 李绍强; 姚永军; 杨传
Original assignee: Chengdu Xin Jiuda Machinery Equipment Co ltd
Current assignee: Chengdu Xin Jiuda Machinery Equipment Co ltd
Priority date: 2020-09-03
Filing date: 2020-09-03
Publication date: 2021-04-20
Anticipated expiration: 2030-09-03

Abstract

The present application provides a beveling device for a round pipe, comprising: a positioning part and a rotating part. The positioning component includes a ring, the ring is uniformly provided with at least three groups of pressing mechanisms along the circumference, and the pressing mechanism includes a top plate, the top plate is located outside the ring, and the top plate can be along the ring. The track moves in the normal direction of the ring, the track is arranged in parallel above the ring, the track is a ring structure, and its cross section is circular; the rotating part includes a slider and a rotating plate hinged to the slider, the slider Slidingly connected to the track, the rotation axis of the rotating plate is parallel to the plane where the track is located, and is perpendicular to the normal line of the track, the rotating plate is provided with a fixed ring, and the fixed ring is provided with at least one A locking screw, the axis of the fixing ring and the rotation axis of the rotating plate are perpendicular to each other. It can effectively improve the quality of round pipe beveling, is easy to carry, and is suitable for use in various venues.

Description

Circular tube groove machining device

Technical Field

The utility model belongs to pipe terminal surface groove preparation field especially relates to a pipe groove preparation device.

Background

When carrying out welded connection, large-scale pipe is in order to increase welded intensity, all need to the terminal surface outer edge processing groove, because the use place of pipe does not possess the condition of machine tool machining, adopts the mode of manual polishing to process the groove usually, owing to the angle of the groove machining of being not convenient for control, the angle is inconsistent everywhere of the groove that consequently processing came out, and the groove is neat inadequately, and the size is very nonstandard, seriously influences welded intensity.

SUMMERY OF THE UTILITY MODEL

For solving prior art not enough, the utility model provides a pipe groove preparation device can process out neat groove to everywhere groove angle is unanimous, has improved groove preparation's quality effectively, thereby guarantees welding strength.

In order to realize the purpose of the utility model, the following scheme is proposed:

a circular tube groove machining device includes: a positioning member and a rotating member.

The positioning component comprises a circular ring, at least three groups of pressing mechanisms are uniformly arranged on the circular ring along the circumference, each pressing mechanism comprises a top plate, the top plate is positioned outside the circular ring and can move along the normal direction of the circular ring, a track is arranged above the circular ring in parallel, the track is of a circular ring structure, and the cross section of the track is circular;

the rotating part comprises a sliding block and a rotating plate hinged to the sliding block, the sliding block is connected to the rail in a sliding mode, the rotating axis of the rotating plate is parallel to the plane where the rail is located and perpendicular to the normal line of the rail, the rotating plate is provided with a fixing ring, at least one locking screw penetrates through the fixing ring, and the axis of the fixing ring is perpendicular to the rotating axis of the rotating plate.

Furthermore, the ring corresponds hold-down mechanism all is equipped with the connecting plate, the ring cross-section is the rectangle, the connecting plate is located the ring inner wall, roof swing joint has the screw rod, the screw rod passes simultaneously ring and connecting plate, the screw rod cooperation is equipped with the nut.

Further, the roof surface is the arc surface, the axis of arc surface with the axis of ring is parallel, the roof is greater than 100mm along the length of arc surface axis direction.

Further, a rubber layer is arranged on the outer surface of the top plate.

Further, the track with connect through the cylinder between the ring, cylindrical diameter is less than orbital radius, the cylinder is followed the ring circumference evenly is equipped with many.

Further, there is the stopper slider bottom through the screw connection, slider bottom processing has arc wall an, stopper bottom processing has arc wall b, the stopper connect in behind the slider, the round hole that arc wall an and arc wall b formed surpasss the circular-shaped half of track cross-section, arc wall an and arc wall b all with the track clearance sets up.

Furthermore, the width of the sliding block and the limiting block in the tangential direction of the track is larger than twice of the diameter of the track.

Furthermore, the hinged position of the rotating plate and the sliding block is connected and fixed through bolts and nuts.

The beneficial effects of the utility model reside in that:

1. the quality of the circular tube groove processing can be effectively improved, the groove angles of all parts of the end surface of the circular tube are consistent, the grooves are neat, and the angle of the rotating plate can be adjusted according to requirements for processing grooves with different angles.

2. Is convenient to carry and suitable for various sites, in particular to various construction sites.

3. Convenient to use, roof and rotor plate all pass through threaded connection, and the dismouting is all very convenient with the regulation.

Drawings

The drawings described herein are for illustrative purposes only of selected embodiments and not all possible implementations, and are not intended to limit the scope of the present disclosure.

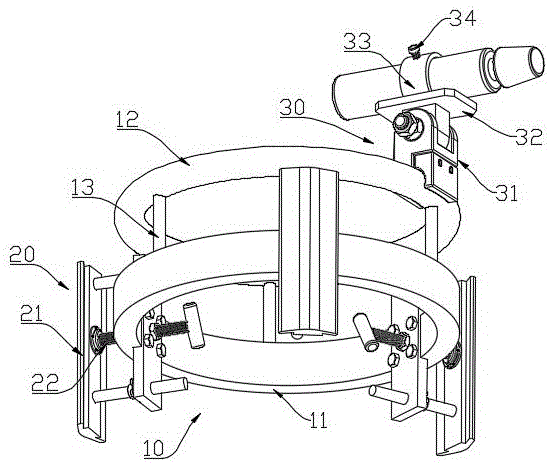

FIG. 1 shows the overall construction of the present application;

FIG. 2 shows the construction and connection of the slider to the rotating plate;

FIG. 3 illustrates the relationship of the slider and the stop to the track;

fig. 4 shows an embodiment of the present application.

The labels in the figure are: 1-a grinding machine, 2-a grinding head, 3-a round pipe, 10-a positioning component, 11-a round ring, 12-a track, 13-a connecting plate, 14-a cylinder, 20-a pressing mechanism, 21-a top plate, 22-a screw, 30-a rotating component, 31-a sliding block, 310-an arc-shaped groove a, 32-a rotating plate, 33-a fixing ring, 34-a locking screw, 35-a limiting block and 350-an arc-shaped groove b.

Detailed Description

To make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the following detailed description of the embodiments of the present invention is provided with reference to the accompanying drawings, but the described embodiments of the present invention are some embodiments of the present invention, not all embodiments.

It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate the position or positional relationship based on the position or positional relationship shown in the drawings, or the position or positional relationship that the product of the present invention is usually placed when in use, and this is only for the convenience of description of the present invention and simplification of the description. The terms "first," "second," and the like are used solely to distinguish one from another and are not to be construed as indicating or implying relative importance. The terms "parallel", "perpendicular", etc. do not require that the components be absolutely parallel or perpendicular, but may be slightly inclined.

In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; either directly or indirectly through intervening media, or through both elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.

Examples

As shown in fig. 1-2, a device for beveling a circular tube 3 includes: a positioning member 10, a pressing mechanism 20, and a rotating member 30.

Specifically, the positioning component 10 includes a circular ring 11, and at least three groups of pressing mechanisms 20 are uniformly arranged on the circular ring 11 along the circumference. The upper side of the circular ring 11 is provided with a track 12 in parallel, the track 12 is in a circular ring structure, and the section of the track is circular. More specifically, the track 12 is connected with the ring 11 through a plurality of cylinders 14, and the plurality of cylinders 14 are uniformly arranged along the circumference of the ring 11.

Specifically, the pressing mechanism 20 includes a top plate 21, the top plate 21 is located outside the circular ring 11, and the top plate 21 is movable in a normal direction of the circular ring 11. Ring 11 corresponds hold-down mechanism 20 and all is equipped with connecting plate 13, and ring 11 cross-section is the rectangle, and 11 inner walls of ring are located to connecting plate 13, and roof 21 swing joint has screw rod 22, and screw rod 22 passes ring 11 and connecting plate 13 simultaneously, and the screw rod 22 cooperation is equipped with the nut, utilizes this nut locking screw rod 22. When in use, the screw 22 and the street top plate 21 can be rotated from the inside of the circular ring 11 to tightly push or release the inner wall of the circular pipe 3.

Preferably, the outer surface of the top plate 21 is a circular arc surface, so that the outer surface can be better attached to the inner walls of the circular tubes 3 with different diameters. The axis of the arc surface is parallel to the axis of the circular ring 11, in order to ensure the parallel of the circular ring 11 and the axis of the circular tube 3, the length of the top plate 21 along the axis direction of the arc surface is greater than 100mm, when the top plate 21 is completely attached to the inner wall of the circular tube 3 along the length direction, the axes of the circular ring 11 and the track 12 are all kept parallel to the axis of the circular tube 3, and therefore the plane of the track 12 is ensured to be perpendicular to the axis of the circular tube 3.

Specifically, the rotating component 30 includes a sliding block 31 and a rotating plate 32 hinged to the sliding block 31, the sliding block 31 is slidably connected to the rail 12, a rotation axis of the rotating plate 32 is parallel to a plane of the rail 12 and perpendicular to a normal of the rail 12, the rotating plate 32 is provided with a fixing ring 33, the fixing ring 33 is provided with at least one locking screw 34, an axis of the fixing ring 33 is perpendicular to the rotation axis of the rotating plate 32, the fixing ring 33 is used for penetrating the sander 1, and the locking screw 34 is used for pressing the sander 1 to fix the sander.

Preferably, the friction between the top plate 21 and the inner wall of the circular tube 3 is increased to prevent sliding. The outer surface of the top plate 21 is provided with a rubber layer.

Preferably, as shown in FIG. 3, the diameter of the cylinder 14 is smaller than the radius of the track 12 to prevent the cylinder 14 from contacting the slider 31 and the stop 35.

Preferably, as shown in fig. 2 and 3, the bottom of the sliding block 31 is connected with a limiting block 35 through a screw, the bottom of the sliding block 31 is processed with an arc-shaped groove a310, the bottom of the limiting block 35 is processed with an arc-shaped groove b350, the limiting block 35 is connected to the sliding block 31, and then a round hole formed by the arc-shaped groove a310 and the arc-shaped groove b350 exceeds a half of the round section of the rail 12 to prevent the sliding block 31 from falling off. In order to facilitate the sliding of the slider 31 on the rail 12, the arc-shaped grooves a310 and b350 are spaced apart from the rail 12.

Preferably, to prevent the slider 31 from rotating around the rail 12, the angle of the rotating plate 32 is affected. The width of the sliding block 31 and the limiting block 35 along the tangential direction of the track 12 is greater than twice the diameter of the track 12, so that a longer contact arc length between the sliding block 31 and the limiting block 35 and the track 12 is ensured.

Preferably, the inclination angle of the polishing head 2 and the end face of the circular tube 3 can be changed by rotating the rotating plate 32 to adapt to groove processing at different angles. In order to facilitate the adjustment of the rotating plate 32, the hinged position of the rotating plate 32 and the sliding block 31 is connected and fixed through bolts and nuts, and the nuts adopt a double-nut structure to prevent loosening.

The specific implementation process comprises the following steps: as shown in fig. 4, the device is placed in the circular tube 3, the end face of the circular tube 3 at the high position of the rotating plate 32 is rotated, the screw 23 is rotated, the top plate 21 is abutted against the inner wall of the circular tube 3, and then the screw 22 is locked and fixed by the nut on the screw 22 in a loose manner; adjusting the angle of the rotating plate 33, pre-tightening, adjusting the position of the sander 1 to enable the sanded end face to be in contact with the outer edge of the end face of the circular tube 3, and then locking and fixing the sander 1 by using a locking screw 34; to start grinding, the grinder 1 is held by moving the slider 31 slowly around the rail 12, and a certain pressure is applied to the round tube 3, and the rotating plate 32 is rotated following the applied pressure. After the groove is ground to a certain degree, the groove can be corrected, the grinding head 2 is tightly attached to the groove which is subjected to addition molding at the moment, then double nuts at the hinged part of the rotating plate 32 and the sliding block 31 are screwed, so that the position of the rotating plate 32 is kept fixed, then the sliding block 31 is moved along the track 12, and the groove is corrected.

The foregoing is only a preferred embodiment of the invention and is not intended to be the only or limiting embodiment of the invention. It should be understood by those skilled in the art that various changes and equivalent substitutions made herein may be made without departing from the scope of the invention as defined by the appended claims.

Claims

1. a round pipe beveling processing device, is characterized in that, comprises:

A positioning member (10), the positioning member (10) includes a circular ring (11), and the circular ring (11) is uniformly provided with at least three groups of pressing mechanisms (20) along the circumference, and the pressing mechanisms (20) comprising a top plate (21), the top plate (21) is located outside the circular ring (11), the top plate (21) can move along the normal direction of the circular ring (11), the circular ring (11) ) is provided with a track (12) in parallel above, the track (12) is in the form of a ring, and its cross-section is circular;

A rotating part (30), the rotating part (30) includes a sliding block (31) and a rotating plate (32) hinged to the sliding block (31), the sliding block (31) is slidably connected to the rail (31) 12), the rotation axis of the rotating plate (32) is parallel to the plane where the track (12) is located, and is perpendicular to the normal of the track (12), and the rotating plate (32) is provided with a fixing ring (33) ), the fixing ring (33) is provided with at least one locking screw (34), and the axis of the fixing ring (33) is perpendicular to the rotation axis of the rotating plate (32).

2 . The device for beveling a circular pipe according to claim 1 , wherein the circular ring ( 11 ) is provided with a connecting plate ( 13 ) corresponding to the pressing mechanism ( 20 ). The cross section of the ring (11) is rectangular, the connecting plate (13) is arranged on the inner wall of the ring (11), the top plate (21) is movably connected with a screw (22), and the screw (22) passes through the The annular ring (11) and the connecting plate (13) are provided with a nut in cooperation with the screw rod (22).

3 . The circular pipe beveling device according to claim 1 , wherein the outer surface of the top plate ( 21 ) is a circular arc surface, and the axis of the circular arc surface is the axis of the circular ring ( 11 ). 4 . In parallel, the length of the top plate (21) along the axis direction of the arc surface is greater than 100 mm.

4 . The beveling device for round pipes according to claim 1 , wherein a rubber layer is provided on the outer surface of the top plate ( 21 ). 5 .

5. A circular pipe beveling device according to claim 1, characterized in that, the rail (12) and the ring (11) are connected by a cylinder (14), and the cylinder (14) ) is smaller than the radius of the track (12), and the cylinder (14) is evenly provided with a plurality of cylinders (14) along the circumference of the ring (11).

6 . The round pipe beveling device according to claim 1 , wherein the bottom of the slider ( 31 ) is connected to the limiting block ( 35 ) by screws, and the bottom of the slider ( 31 ) is processed with a Arc-shaped groove a (310), an arc-shaped groove b (350) is machined at the bottom of the limit block (35), after the limit block (35) is connected to the slider (31), the arc-shaped groove (350) is The circular hole formed by the groove a (310) and the arc-shaped groove b (350) exceeds half of the circular cross-section of the track (12). The above-mentioned track (12) gap is set.

7 . The round pipe beveling device according to claim 6 , wherein the width of the sliding block ( 31 ) and the limiting block ( 35 ) along the tangential direction of the track ( 12 ) is greater than that of the Twice the diameter of the track (12).

8 . The round pipe beveling device according to claim 1 , wherein the hinged joint between the rotating plate ( 32 ) and the slider ( 31 ) is connected and fixed by bolts and nuts. 9 .
