Abstract

The utility model is suitable for a laser cutting machine correlation field provides a laser cutting machine convenient to it is clean, including lathe base, laser cutting device and first motor, fixed mounting has first carriage around lathe base's top, and the top of first carriage is connected with the second carriage, laser cutting device's bottom front side fixedly connected with cutting knife, and laser cutting device's inside below middle part fixed mounting has first motor, the below of first motor is connected with the rotating turret, and is connected with the fixed disk below the inside of rotating turret, the below of fixed disk is connected with the slagging-off sword. This laser cutting machine convenient to it is clean is provided with rotating turret, fixed disk, slagging-off sword and rotates the handle, because of rotating turret and fixed disk constitution threaded connection, and then rotates the handle with the hand rotation to make the slagging-off sword of fixed mounting in the fixed disk below do the up-and-down motion, and then realize the regulation to the slagging-off sword degree of depth.

Description

Laser cutting machine convenient to it is clean
Technical Field
The utility model relates to a laser cutting machine correlation technique field specifically is a laser cutting machine convenient to it is clean.
Background
With the rapid development of science and technology, the workshop cutting technology is also updated day by day, the most frequent mode of cutting workpieces belongs to the laser cutting machine, the wide use of the laser cutting machine greatly saves manpower, material resources and financial resources, and although the advantages of the laser cutting machine are numerous, the laser cutting machine still has some defects, such as burrs generated in the cutting process.
The existing laser cutting machine cannot adjust the slag removal depth according to the requirements of people, cannot quickly clean the slag falling on the base of the machine tool, and cannot timely collect and process the removed slag, so that the laser cutting machine convenient to clean is provided, and the problems existing in the prior art are solved.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a laser cutting machine convenient to it is clean to solve above-mentioned background art and propose that the current degree of depth that can not adjust the slagging-off according to people's demand, can not carry out quick clearance with the residue that drops at the lathe base, can not carry out timely collection and the problem of handling to the residue of rejecting.
In order to achieve the above object, the utility model provides a following technical scheme: a laser cutting machine convenient to clean comprises a machine tool base, a laser cutting device and a first motor, wherein a first sliding frame is fixedly arranged on the periphery above the machine tool base, a second sliding frame is connected above the first sliding frame, the front end and the rear end of the second sliding frame are connected with the laser cutting device, a cutting knife is fixedly connected to the front side of the bottom end of the laser cutting device, a first motor is fixedly arranged in the middle of the lower portion inside the laser cutting device, a rotating frame is connected below the first motor, a fixed disc is connected below the rotating frame, a deslagging knife is connected below the fixed disc, a rotating handle is connected in the middle of the lower portion of the fixed disc, a second motor is fixedly arranged at the rear end of the left side above the machine tool base, a rotating rod is welded on the right side of the second motor, and first helical gears are fixedly arranged at the left end and the right end of the, the front side of first helical gear is connected with the second helical gear, and the front end fixed mounting of second helical gear has the dwang, the surface connection of dwang has the sliding block, and the right side of sliding block is connected with the movable block to the below fixed mounting of movable block has the brush hair, both sides fixed connection has the mount about the inside bottom top of lathe base, and the top of mount is connected with the dump bin.
The utility model discloses this provides the connected mode of rotating turret and fixed disk is threaded connection, and the connected mode of fixed disk and rotation handle is the welding to the fixed disk is vertical distribution with the rotation handle.
The utility model discloses this provides the connected mode of slagging-off sword and fixed disk is the welding, and the slagging-off sword has 4 with the equal angular distribution in the centre of a circle of fixed disk.
The utility model discloses this provides rotary rod and dwang constitute meshing type rotating-structure through first helical gear and second helical gear, and the dwang is provided with 2.
The utility model discloses this provides the movable block constitutes integral structure with the sliding block, and the connected mode of movable block and brush hair is the bonding.
The utility model discloses this provides the dump bin passes through the mount with the lathe base and constitutes sliding construction, and the top front end of lathe base has seted up the fluting.
Compared with the prior art, the beneficial effects of the utility model are that: the laser cutting machine convenient to clean;
1. be provided with rotating turret, fixed disk, slagging-off sword and rotation handle, because of rotating turret and fixed disk constitution threaded connection, and then rotate the rotation handle with the hand to make the slagging-off sword of fixed mounting below the fixed disk do the up-and-down motion, and then realize the regulation to the slagging-off sword degree of depth.
2. Be provided with rotary rod, dwang, movable block and brush hair, start the second motor, and then drive the rotation of rotary rod to drive the rotation of dwang, and then make the movable block do the back-and-forth movement, thereby make the brush hair of fixed mounting below the movable block do the back-and-forth movement, and then realize the centralized processing to the residue that drops to the lathe base up end.
3. Be provided with the waste bin, pass through the mount with the lathe base because of the waste bin and constitute sliding construction, and then with the handle of pulling waste bin front end middle part to realize the waste bin at the inside pulling in and pulling out of lathe base, and then realize collecting fast and handling the waste material.
Drawings

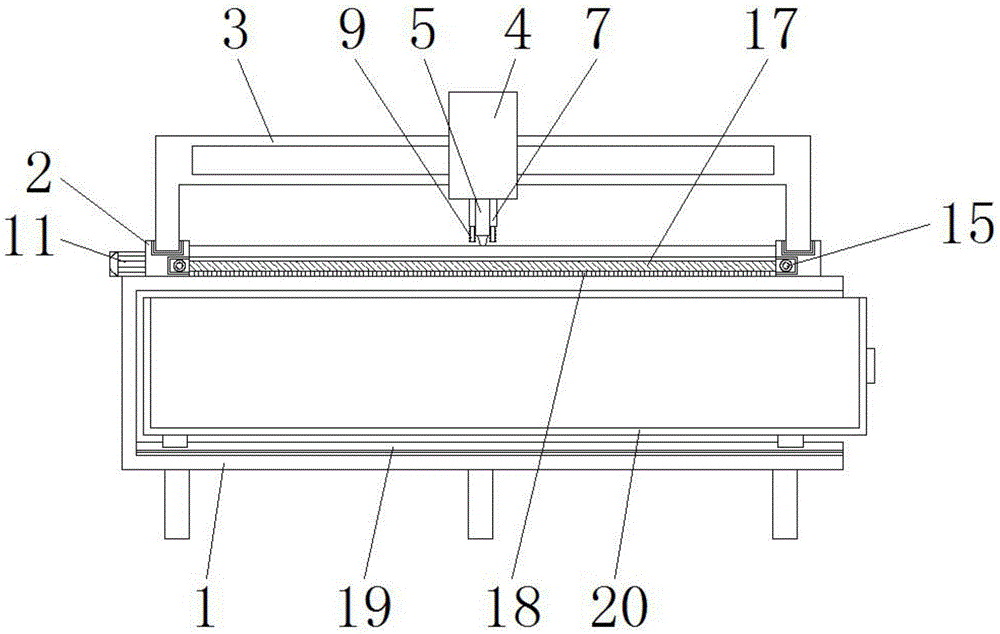

Fig. 1 is a schematic view of a front view cross-sectional structure provided by the present invention;
fig. 2 is a schematic diagram of a right-view cross-sectional structure provided by the present invention;
fig. 3 is an enlarged schematic structural view of a point a in fig. 2 according to the present invention;
fig. 4 is a schematic view of a top-view cross-sectional structure provided by the present invention;
fig. 5 is a schematic view of the bottom structure of the slag removing knife provided by the utility model.
In the figure: 1. a machine tool base; 2. a first carriage; 3. a second carriage; 4. a laser cutting device; 5. a cutting knife; 6. a first motor; 7. a rotating frame; 8. fixing the disc; 9. a deslagging knife; 10. rotating the handle; 11. a second motor; 12. rotating the rod; 13. a first helical gear; 14. a second helical gear; 15. rotating the rod; 16. a slider; 17. a moving block; 18. brushing; 19. a fixed mount; 20. a waste bin.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a laser cutting machine convenient to clean comprises a machine tool base 1, a first sliding frame 2, a second sliding frame 3, a laser cutting device 4, a cutting knife 5, a first motor 6, a rotating frame 7, a fixed disc 8, a deslagging knife 9, a rotating handle 10, a second motor 11, a rotating rod 12, a first helical gear 13, a second helical gear 14, a rotating rod 15, a sliding block 16, a moving block 17, bristles 18, a fixed frame 19 and a waste material box 20, wherein the first sliding frame 2 is fixedly arranged on the periphery above the machine tool base 1, the second sliding frame 3 is connected above the first sliding frame 2, the laser cutting device 4 is connected with the front end and the rear end of the second sliding frame 3, the cutting knife 5 is fixedly connected with the front side of the bottom end of the laser cutting device 4, the first motor 6 is fixedly arranged in the middle part below the inside of the laser cutting device 4, the rotating frame 7 is connected below the first motor 6, and the inside below of rotating turret 7 is connected with fixed disk 8, the below of fixed disk 8 is connected with slagging-off sword 9, and the below middle part of fixed disk 8 is connected with rotation handle 10, the top left side rear end fixed mounting of machine tool base 1 has second motor 11, and the right side welding of second motor 11 has rotary rod 12, and both ends fixed mounting has first helical gear 13 about rotary rod 12, the front side of first helical gear 13 is connected with second helical gear 14, and the front end fixed mounting of second helical gear 14 has dwang 15, the surface of dwang 15 is connected with sliding block 16, and the right side of sliding block 16 is connected with movable block 17, and the below fixed mounting of movable block 17 has brush hair 18, the inside bottom top left and right sides fixed connection of machine tool base 1 has mount 19, and the top of mount 19 is connected with dump bin 20.
As shown in fig. 3 and 5, the rotating frame 7 is connected with the fixed disk 8 by screw threads, the fixed disk 8 is connected with the rotating handle 10 by welding, the fixed disk 8 and the rotating handle 10 are vertically distributed, so that the rotation of the fixed disk 8 is convenient to realize, the deslagging knives 9 are connected with the fixed disk 8 by welding, and the deslagging knives 9 are distributed at equal angles with the circle center of the fixed disk 8, so that the removal of burrs generated in the cutting process is convenient to realize;
as shown in fig. 2 and 4, the rotating rod 12 and the rotating rod 15 form a meshing type rotating structure through the first bevel gear 13 and the second bevel gear 14, and 2 rotating rods 15 are provided, so that the rotation of the rotating rod 15 is facilitated, as shown in fig. 5, the moving block 17 and the sliding block 16 form an integrated structure, and the connecting mode of the moving block 17 and the brush bristles 18 is bonding, so that the cleaning of the residues falling to the upper end surface of the machine tool base 1 is facilitated, as shown in fig. 1 and 4, the waste bin 20 and the machine tool base 1 form a sliding structure through the fixing frame 19, and the front end above the machine tool base 1 is provided with a slot, so that the collection and treatment of the residues are facilitated.
The working principle is as follows: when the device is used, firstly, according to the requirement of people on the slag removal depth, the rotating handle 10 is rotated by hands, the connecting mode of the rotating handle 10 and the fixed disk 8 is welding, the connecting mode of the fixed disk 8 and the rotating frame 7 is threaded connection, and then the slag removal cutter 9 fixedly installed below the fixed disk 8 is moved up and down, so that the depth of the slag removal cutter 9 is adjusted, when the height is proper, the rotating handle 10 is stopped to rotate, so that the height of the slag removal cutter 9 is fixed, and the requirement of people on the slag removal depth is met, then the laser cutting device 4 and the first motor 6 are started, so that the cutting cutter 5 starts to cut a workpiece, and the rotating frame 7 is driven to rotate by the rotation of the first motor 6, so that the slag removal cutter 9 is driven to rotate, and burrs generated in the cutting process are removed;
simultaneously, the second motor 11 is started, so that the first bevel gear 13 fixedly arranged on the surface of the rotating rod 12 is driven to rotate, the rotating rod 12 and the rotating rod 15 form a meshing type rotating structure through the first bevel gear 13 and the second bevel gear 14, so that the rotating rod 15 makes circular motion, the sliding block 16 is in threaded connection with the rotating rod 15, so that the moving block 17 fixedly arranged on the left side of the sliding block 16 makes front and back movement, so that the bristles 18 arranged below the moving block 17 are driven to make front and back movement, further, the concentrated cleaning of residues falling onto the upper end surface of the machine tool base 1 is realized, the front side of the upper end surface of the machine tool base 1 is provided with a groove, so that the residues pushed forward by the bristles 18 fall into a waste material box 20 from the groove arranged on the front side above the machine tool base 1, and the waste material box 20 and the machine tool base 1 form a, the handle in the middle of the front side of the waste bin 20 is then pulled by hand to achieve a timely collection and disposal of the residue, which is not described in detail in this specification, as is well known to those skilled in the art.
The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the description with the record of drawing of description, and the concrete connected mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt among the prior art, and conventional model, including the conventional connected mode among the circuit connection adoption prior art, and the details are not repeated here, and the content that does not make detailed description in this description belongs to the prior art that skilled person in the art knows.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims (6)

1. The utility model provides a laser cutting machine convenient to it is clean, includes lathe base (1), laser cutting device (4) and first motor (6), its characterized in that: the machine tool base is characterized in that a first sliding frame (2) is fixedly arranged on the periphery of the upper portion of the machine tool base (1), a second sliding frame (3) is connected to the upper portion of the first sliding frame (2), laser cutting devices (4) are connected to the front end and the rear end of the second sliding frame (3), a cutting knife (5) is fixedly connected to the front side of the bottom end of each laser cutting device (4), a first motor (6) is fixedly arranged in the middle of the lower portion of the inside of each laser cutting device (4), a rotating frame (7) is connected to the lower portion of the first motor (6), a fixed disc (8) is connected to the lower portion of the inside of each rotating frame (7), a deslagging knife (9) is connected to the lower portion of the fixed disc (8), a rotating handle (10) is connected to the middle of the lower portion of the fixed disc (8), a second motor (11) is fixedly arranged on the rear side of the upper left side of the, and both ends fixed mounting has first helical gear (13) about rotary rod (12), the front side of first helical gear (13) is connected with second helical gear (14), and the front end fixed mounting of second helical gear (14) has dwang (15), the surface connection of dwang (15) has sliding block (16), and the right side of sliding block (16) is connected with movable block (17) to the below fixed mounting of movable block (17) has brush hair (18), both sides fixed connection has mount (19) about the inside bottom top of lathe base (1), and the top of mount (19) is connected with dump bin (20).
2. The laser cutting machine convenient to clean of claim 1, wherein: the connection mode of the rotating frame (7) and the fixed disk (8) is threaded connection, the connection mode of the fixed disk (8) and the rotating handle (10) is welding, and the fixed disk (8) and the rotating handle (10) are vertically distributed.
3. The laser cutting machine convenient to clean of claim 1, wherein: the connection mode of slagging-off sword (9) and fixed disk (8) is the welding, and slagging-off sword (9) use the centre of a circle of fixed disk (8) equiangular distribution to have 4.
4. The laser cutting machine convenient to clean of claim 1, wherein: the rotating rod (12) and the rotating rod (15) form a meshing type rotating structure through a first helical gear (13) and a second helical gear (14), and the number of the rotating rods (15) is 2.
5. The laser cutting machine convenient to clean of claim 1, wherein: the moving block (17) and the sliding block (16) form an integrated structure, and the moving block (17) and the bristles (18) are connected in an adhesion mode.
6. The laser cutting machine convenient to clean of claim 1, wherein: the waste bin (20) and the machine tool base (1) form a sliding structure through a fixing frame (19), and the front end of the upper part of the machine tool base (1) is provided with a groove.
