CN212999036U - Pure electric environmental sanitation cleaning vehicle with high-pressure spray dust removal function - Google Patents
Pure electric environmental sanitation cleaning vehicle with high-pressure spray dust removal function Download PDFInfo
- Publication number
- CN212999036U CN212999036U CN202020987750.3U CN202020987750U CN212999036U CN 212999036 U CN212999036 U CN 212999036U CN 202020987750 U CN202020987750 U CN 202020987750U CN 212999036 U CN212999036 U CN 212999036U
- Authority
- CN
- China
- Prior art keywords
- water tank
- dust removal
- cleaning vehicle
- pure electric
- pressure spray
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cleaning By Liquid Or Steam (AREA)
Abstract
本实用新型公开了一种高压喷雾除尘的纯电动环卫保洁车，包括水箱和驾驶室，所述水箱与所述驾驶室之间设置有配电箱，所述水箱的尾部安装有注水阀，所述水箱的顶部安装有转向电机，所述转向电机上方通过雾化器与喷雾头相连接，所述驾驶室内侧上方安装有操作面板，所述驾驶室的下方安装有电动箱，所述电动箱与所述水箱底部的减震底盘相连接，所述减震底盘上安装有微处理器，该种高压喷雾除尘的纯电动环卫保洁车，可以将过滤后的净水，通过高压喷出，并雾化，之后喷洒到空气中，水雾与空气中的灰尘结合，提高灰尘的重量，从而使灰尘落地，起到除尘的目的，本实用新型具有环保性好、操作简单、维护方便、成本低廉的优点。
The utility model discloses a pure electric sanitation cleaning vehicle with high-pressure spray and dust removal, comprising a water tank and a driver's cab, a distribution box is arranged between the water tank and the driver's cab, and a water injection valve is installed at the tail of the water tank. A steering motor is installed on the top of the water tank, the upper part of the steering motor is connected with the spray head through an atomizer, an operation panel is installed above the inside of the cab, an electric box is installed under the cab, and the electric box is installed It is connected with the shock-absorbing chassis at the bottom of the water tank, and a microprocessor is installed on the shock-absorbing chassis. This kind of pure electric sanitation cleaning vehicle with high-pressure spray and dust removal can spray the filtered purified water through high-pressure, and clean it. It is atomized and then sprayed into the air. The water mist is combined with the dust in the air to increase the weight of the dust, so that the dust falls to the ground and achieves the purpose of dust removal. The utility model has the advantages of good environmental protection, simple operation, convenient maintenance and low cost. The advantages.
Description
Technical Field
The utility model relates to a sanitation car field specifically is a electricelectric moves sanitation dumper of high pressure spray dust removal.
Background
The sanitation cleaning vehicle is a general name of special vehicles for cleaning and tidying urban appearance, wherein the sanitation cleaning vehicle can be divided into various types such as a sprinkler, a garbage truck, a sweeping machine, a sewage suction truck, a dung suction truck and the like according to functions, and along with the continuous promotion of urbanization, various sanitation cleaning vehicles are more and more perfect, so that great contribution is made to providing good urban environment for people.
The existing sanitation cleaning vehicles in the market are various in types, wherein the sanitation vehicles for air dust removal are new types which are increased along with polluted air in recent years, and the existing dust removal sanitation cleaning vehicles in the market are fuel oil vehicles, so that the existing dust removal sanitation cleaning vehicles are high in operation cost and complex in maintenance on a flat day, and cause air pollution due to large pollution to the environment.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a pure electric sanitation cleaning car of high pressure spraying dust removal to solve the present fuel car sanitation car on the existing market that provides in the above-mentioned background art, there is the problem that operation cost is high, maintain comparatively complicated, great, can cause air pollution to the pollution of environment on weekdays.
The technical scheme of the utility model is realized like this: the utility model provides a pure electric sanitation dumper that high pressure spraying removed dust, includes water tank and driver's cabin, the water tank with be provided with the block terminal between the driver's cabin, the water injection valve is installed to the afterbody of water tank, the motor that turns to is installed at the top of water tank, it is connected with the atomising head through the atomizer to turn to motor top, operating panel is installed to driver's cabin inboard top, the electronic case is installed to the below of driver's cabin, the electronic case with the shock attenuation chassis of water tank bottom is connected, install microprocessor on the shock attenuation chassis, the panel is installed to shock attenuation chassis below, the inside of water tank is provided with force (forcing) pump and pressurized motor.
Preferably, the water tank is fixedly connected with the water injection valve, and the water injection valve is a one-way valve.
Preferably, a filter element is arranged in the water injection valve.
Preferably, the water tank is fixedly connected with the pressurizing motor, and the water tank is fixedly connected with the pressurizing pump.
Preferably, the pressurizing motor is in transmission connection with the pressurizing pump, the pressurizing pump is in sealed communication with the atomizer through a rubber tube, the pressurizing motor is electrically connected with the microprocessor, and the microprocessor is electrically connected with the steering motor.
Preferably, the microprocessor is electrically connected with the operation panel, and the microprocessor is electrically connected with the distribution box.
Preferably, the electric box is in transmission connection with the damping chassis, the damping chassis is fixedly connected with the battery board, and the battery board is electrically connected with the distribution box.
Preferably, the operation panel is attached to a roof of the cab through a bellows.
Preferably, an electronic water level gauge electrically connected with the operation panel is arranged inside the water tank.
By adopting the technical scheme, the beneficial effects of the utility model are that:
this kind of electricelectric moves sanitation dumper of high pressure spray dust removal can be with the water purification after filtering, through high-pressure blowout to the atomizing, later spray the air in, the dust in water smoke and the air combines, improves the weight of dust, thereby makes the dust fall to the ground, plays the purpose of dust removal, the utility model has the advantages of the feature of environmental protection is good, easy operation, maintenance convenience, low cost.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive exercise.

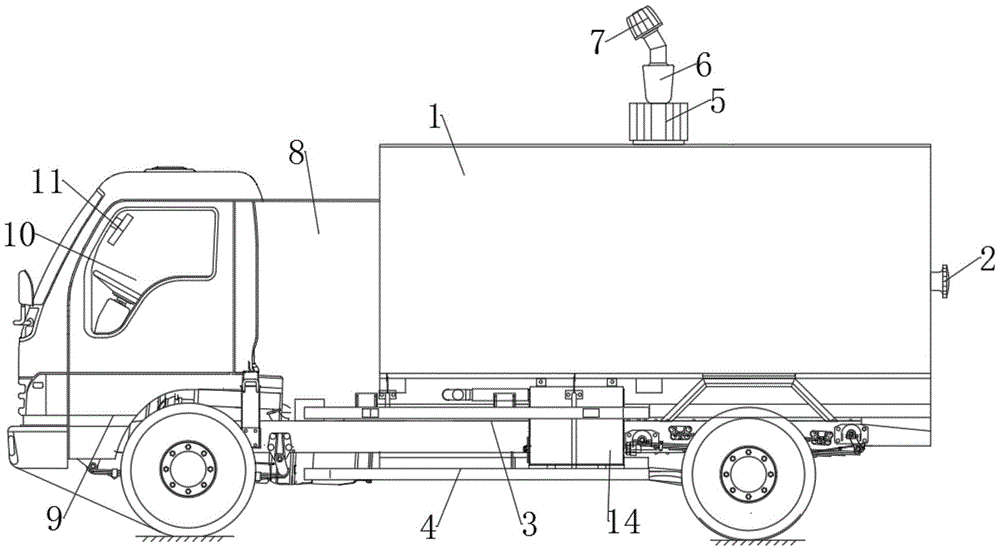

Fig. 1 is a front view of the present invention;
fig. 2 is an internal structure view of the present invention.
Wherein: 1. a water tank; 2. a water injection valve; 3. a shock absorbing chassis; 4. a battery plate; 5. a steering motor; 6. an atomizer; 7. a spray head; 8. a distribution box; 9. an electric box; 10. a cab; 11. an operation panel; 12. a pressure pump; 13. a pressurizing motor; 14. a microprocessor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
Referring to fig. 1-2, a pure electric sanitation cleaning vehicle with high-pressure spraying dust removal function comprises a water tank 1 and a cab 10, a distribution box 8 is arranged between the water tank 1 and the cab 10, a water injection valve 2 is installed at the tail of the water tank 1, a steering motor 5 is installed at the top of the water tank 1, the upper portion of the steering motor 5 is connected with an atomizing head 7 through an atomizer 6, an operation panel 11 is installed above the inner side of the cab 10, an electric box 9 is installed below the cab 10, the electric box 9 is connected with a damping chassis 3 at the bottom of the water tank 1, a microprocessor 14 is installed on the damping chassis 3, a battery panel 4 is installed below the damping chassis 3, and a pressure pump 12 and a pressure motor 13 are arranged inside the water tank 1.
Specifically, water tank 1 and water injection valve 2 fixed connection, water injection valve 2 are the check valve, set up like this and are convenient for the staff and pass through water injection valve 2 and inject the water for spray dust removal into water tank 1.
Specifically, be provided with the filter core in the water injection valve 2, set up the impurity that can filter the aquatic like this, block up atomizer 6 when avoiding atomizing.
Specifically, the water tank 1 is fixedly connected with the pressurizing motor 13, and the water tank 1 is fixedly connected with the pressurizing pump 12, so that the pressurizing motor 13 and the pressurizing pump 12 can be fixed inside the water tank 1, and a fixed support function is provided for the pressurizing motor 13 and the pressurizing pump 12.
Specifically, the pressurization motor 13 is connected with the transmission of pressurization pump 12, the pressurization pump 12 passes through the sealed intercommunication of rubber tube with atomizer 6, pressurization motor 13 is connected with microprocessor 14 electricity, microprocessor 14 is connected with steering motor 5 electricity, it makes things convenient for the staff to input work order to microprocessor 14 through operating panel 11 to set up like this, through the operation of microprocessor 14 control pressurization motor 13, pressurization motor 13 drives pressurization pump 12 and rotates, with the water suction in the water tank 1 in atomizer 6, and the atomizing back is spouted by atomising head 7.
Specifically, microprocessor 14 is electrically connected with operation panel 11, and microprocessor 14 is electrically connected with block terminal 8, and the setting is convenient for block terminal 8 to supply power for this device.
Specifically, electronic case 9 is connected with 3 transmissions on shock attenuation chassis, and shock attenuation chassis 3 and panel 4 fixed connection, panel 4 are connected with 8 electricity on the block terminal, set up like this and are convenient for provide electric power for this device through block terminal 8 by panel 4.
Specifically, the operation panel 11 is mounted on the roof of the cab 10 through a bellows, so that the operation panel 11 is easily bent by a worker, and is more comfortable to use.
Specifically, the inside electron fluviograph that is connected with operating panel 11 electricity that is provided with of water tank 1 sets up the water yield in the staff real-time observation water tank 1 of being convenient for like this to in time the moisturizing.
The working principle is as follows: at first charge for panel 4, be this sanitation car power supply through panel 4, and inject the water purification into water tank 1 through water injection valve 2, the staff sits and drives this device in driver's cabin 10, simultaneously through operating panel 11 to microprocessor 14 input work order, through the operation of microprocessor 14 control pressurization motor 13, pressurization motor 13 drives force (forcing) pump 12 and rotates, with the water suction atomizer 6 in the water tank 1 in, and spout by atomising head 7 after the atomizing, the staff can adjust to turn to motor 5 and drive atomizer 6 and atomising head 7 and turn to, thereby to the directional blowout water smoke of trees on roadside, in the time of for the moisturizing of trees, the operation of removing dust.
The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (9)
1. A pure electric environmental sanitation cleaning vehicle with high-pressure spray dust removal is characterized by comprising: a water tank (1) and a cab (10), a distribution box (8) is arranged between the water tank (1) and the cab (10), a water injection valve (2) is arranged at the tail part of the water tank (1), a steering motor (5) is arranged at the top part of the water tank (1), the upper part of the steering motor (5) is connected with a spray head (7) through an atomizer (6), an operation panel (11) is arranged above the inner side of the cab (10), an electric box (9) is arranged below the cab (10), the electric box (9) is connected with a damping chassis (3) at the bottom of the water tank (1), a microprocessor (14) is arranged on the damping chassis (3), a battery plate (4) is arranged below the damping chassis (3), a pressure pump (12) and a pressure motor (13) are arranged in the water tank (1).
2. The pure electric environmental sanitation cleaning vehicle with high-pressure spray dust removal function according to claim 1, characterized in that: the water tank (1) is fixedly connected with the water injection valve (2), and the water injection valve (2) is a one-way valve.
3. The pure electric environmental sanitation cleaning vehicle with high-pressure spray dust removal function according to claim 1, characterized in that: and a filter element is arranged in the water injection valve (2).
4. The pure electric environmental sanitation cleaning vehicle with high-pressure spray dust removal function according to claim 1, characterized in that: the water tank (1) is fixedly connected with the pressurizing motor (13), and the water tank (1) is fixedly connected with the pressurizing pump (12).
5. The pure electric environmental sanitation cleaning vehicle with high-pressure spray dust removal function according to claim 1, characterized in that: the pressurization motor (13) with the force (forcing) pump (12) transmission is connected, force (forcing) pump (12) with atomizer (6) are through the sealed intercommunication of rubber tube, pressurization motor (13) with microprocessor (14) electricity is connected, microprocessor (14) with turn to motor (5) electricity and be connected.
6. The pure electric environmental sanitation cleaning vehicle with high-pressure spray dust removal function according to claim 1, characterized in that: the microprocessor (14) is electrically connected with the operation panel (11), and the microprocessor (14) is electrically connected with the distribution box (8).
7. The pure electric environmental sanitation cleaning vehicle with high-pressure spray dust removal function according to claim 1, characterized in that: the electric box (9) is in transmission connection with the damping chassis (3), the damping chassis (3) is fixedly connected with the battery board (4), and the battery board (4) is electrically connected with the distribution box (8).
8. The pure electric environmental sanitation cleaning vehicle with high-pressure spray dust removal function according to claim 1, characterized in that: the operation panel (11) is attached to the roof of the cab (10) via a bellows.
9. The pure electric environmental sanitation cleaning vehicle with high-pressure spray dust removal function according to claim 1, characterized in that: an electronic water level meter electrically connected with the operation panel (11) is arranged in the water tank (1).
