CN212992517U

CN212992517U - Signal box for 5G communication that can fix a position installation fast

Info

Publication number: CN212992517U
Application number: CN202021457454.9U
Authority: CN
Inventors: 郭世达
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-07-22
Filing date: 2020-07-22
Publication date: 2021-04-16
Anticipated expiration: 2030-07-22

Abstract

The utility model discloses a but signal case for 5G communication of quick location installation, including bracing piece, connecting rod, dwang, movable block, stopper, block pole and signal case body, the left side surface welded fastening of bracing piece has the connecting rod, and the middle part of connecting rod has seted up the standing groove to the holding tank has been seted up at the left side edge of connecting rod, the inside of holding tank is provided with the dwang, and the surface of dwang is provided with the connecting pipe, the inside of connecting pipe is provided with the gag lever post, and the right-hand member welded fastening of gag lever post has the movable block, the right side surface welded fastening of movable block has the stopper, the surface of connecting rod is provided with the connecting block, and the spread groove has been seted up. This signal case for 5G communication that can fix a position the installation fast is provided with standing groove, connecting block, spread groove, reset spring and block pole, can install the signal case body fast, makes the installation by that whole device can be quick.

Description

Signal box for 5G communication that can fix a position installation fast

Technical Field

The utility model relates to a 5G communication technology field specifically is a but 5G signal case for communication of quick location installation.

Background

Along with the development of science and technology, people have come to the 5G era from the 4G era, and the 5G era can make people's communication faster, and information transfer is also more smooth and easy, in order to guarantee that people's 5G uses more smoothly, need the distance with 5G signal box install outdoor bracing piece on.

Some existing 5G communication signal boxes have the following problems:

firstly, the installation is not convenient enough, when the existing 5G communication signal boxes are installed, workers need to place the signal box bodies on the connecting rods, firstly, the signal boxes are preliminarily fixed by screws, so that the signal boxes cannot be loosened on the supporting rods and then are screwed up one by one, and since the workers need to climb onto the supporting rods by using external tools, the signal boxes are preliminarily fixed by the screws, the operation of the workers is not convenient, and further, the installation of the whole device is not convenient enough;

two, the maintenance is inconvenient, and some current signal boxes for 5G communication use the bolt to fix the back with the signal box, owing to can only rely on the anti-corrosion coating of part self to come to face the wind and shine to make the screw rust easily, the staff of being not convenient for then takes off the signal box and changes the maintenance operation, makes the dismantlement efficiency of whole device not good then.

Therefore, we propose a 5G communication signal box capable of being quickly positioned and installed so as to solve the problems mentioned above.

Disclosure of Invention

An object of the utility model is to provide a but 5G for communication signal box of quick location installation to solve some current for communication signal box installations convenient and the inconvenient problem of maintenance inadequately on the existing market that above-mentioned background art provided.

In order to achieve the above object, the utility model provides a following technical scheme: A5G communication signal box capable of being quickly positioned and installed comprises a supporting rod, a connecting rod, a rotating rod, a moving block, a limiting block, a clamping rod and a signal box body, wherein the connecting rod is fixedly welded on the left side surface of the supporting rod, a placing groove is formed in the middle of the connecting rod, a containing groove is formed in the left side edge of the connecting rod, the rotating rod is arranged inside the containing groove, a connecting pipe is arranged on the outer surface of the rotating rod, the limiting rod is arranged inside the connecting pipe, the moving block is fixedly welded on the right end of the limiting rod, the limiting block is fixedly welded on the right side surface of the moving block, a protective block is fixedly welded on the outer surface of the moving block, a connecting block is arranged on the outer surface of the connecting rod, a connecting groove is formed in the lower surface of the connecting block, the signal, and the lower surface of the return spring is fixedly welded with a clamping rod.

Preferably, the connecting rod is connected with the block pole is inlayed through the standing groove, and the standing groove runs through the connecting rod in vertical direction to standing groove and connecting rod one-to-one.

Preferably, the dwang passes through the holding tank and constitutes revolution mechanic with the connecting rod, and revolution mechanic is constituteed with the connecting pipe to the dwang.

Preferably, the connection mode between the moving block and the rotating rod is threaded connection, the moving block and the connecting pipe form a sliding structure through a limiting rod, and the sliding structure is symmetrically provided with two groups about a central axis of the moving block.

Preferably, the connection mode between stopper and the block pole is for inlaying the connection, and the stopper is located the protection piece under.

Preferably, the block pole passes through reset spring and the elastic construction of connecting block constitution, and the block pole passes through the spread groove and constitutes sliding construction with the connecting block, the surface of protection piece is circular-arcly, and the surface of the surface block pole of protection piece laminates mutually.

Compared with the prior art, the beneficial effects of the utility model are that:

the signal box for 5G communication capable of being quickly positioned and installed is provided with a placing groove, a connecting block, a connecting groove, a reset spring and a clamping rod, when the signal box body needs to be installed, the clamping rod is aligned with the placing groove, the signal box body is placed downwards, the clamping rod and the placing groove are connected in an embedded mode, and the connecting block and the connecting rod are clamped together, so that the signal box body can be quickly installed on a supporting rod, operation of workers is facilitated, and installation efficiency of the signal box body is relatively improved;

secondly, the signal box for 5G communication capable of being positioned and installed quickly is provided with an accommodating groove, a rotating rod, a moving block, a limiting rod, a limiting block, a protective block and a connecting pipe, when the signal box body is placed, the rotating rod is rotated, and the connecting pipe is held, so that the moving block in threaded connection with the rotating rod starts to slide on the connecting rod under the limiting action of the limiting rod, so that the limiting block extrudes the clamping rod to enable the clamping rod to slide in the connecting groove, the return spring is compressed and deformed at the moment, under the action of the restoring deformation of the return spring, the limiting block is embedded and connected with the clamping rod, thereby the signal box body is difficult to loose in the vertical direction, simultaneously the protective block on the movable block and the protective block on the connecting rod are tightly attached on the outer surface of the clamping rod, therefore, the whole device can protect the clamping rod and firmly fix the signal body.

Drawings

FIG. 1 is a schematic front view of the present invention;

FIG. 2 is a left sectional view of the present invention;

FIG. 3 is a schematic view of a sectional view of the limiting block of the present invention;

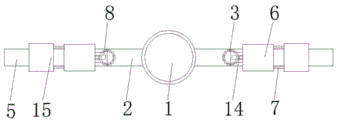

FIG. 4 is a schematic top view of the protection block of the present invention;

fig. 5 is a schematic structural diagram of a portion a in fig. 2 according to the present invention.

In the figure: 1. a support bar; 2. a connecting rod; 3. a placement groove; 4. accommodating grooves; 5. rotating the rod; 6. a moving block; 7. a limiting rod; 8. a limiting block; 9. connecting blocks; 10. connecting grooves; 11. a return spring; 12. a clamping rod; 13. a signal box body; 14. a protection block; 15. and (4) connecting the pipes.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides a technical solution: A5G communication signal box capable of being quickly positioned and installed comprises a support rod 1, a connecting rod 2, a placing groove 3, a containing groove 4, a rotating rod 5, a moving block 6, a limiting rod 7, a limiting block 8, a connecting block 9, a connecting groove 10, a reset spring 11, a clamping rod 12, a signal box body 13, a protective block 14 and a connecting pipe 15, wherein the connecting rod 2 is fixedly welded on the left side surface of the support rod 1, the placing groove 3 is formed in the middle of the connecting rod 2, the containing groove 4 is formed in the left side edge of the connecting rod 2, the rotating rod 5 is arranged inside the containing groove 4, the connecting pipe 15 is arranged on the outer surface of the rotating rod 5, the limiting rod 7 is arranged inside the connecting pipe 15, the moving block 6 is fixedly welded on the right end of the limiting rod 7, the limiting block 8 is fixedly welded on the right side surface of the moving block 6, the protective block, and the connecting groove 10 has been seted up to the lower surface of connecting block 9 to the front surface welded fastening of connecting block 9 has signal box body 13, and the inside welded fastening of connecting groove 10 has reset spring 11, and the lower surface welded fastening of reset spring 11 has block pole 12.

Connecting rod 2 inlays with block pole 12 through standing groove 3 and is connected, and standing groove 3 runs through connecting rod 2 in vertical direction to standing groove 3 and connecting rod 2 one-to-one can make signal case body 13 can be quick fixed.

Dwang 5 passes through holding tank 4 and constitutes revolution mechanic with connecting rod 2, and dwang 5 constitutes revolution mechanic with connecting pipe 15, can carry out the secondary through the pivoted mode to signal case body 13 and fix.

The connection mode between the moving block 6 and the rotating rod 5 is threaded connection, the moving block 6 forms a sliding structure through the limiting rod 7 and the connecting pipe 15, two sets of the sliding structure are symmetrically arranged on the central axis of the moving block 6, secondary fixing can be carried out on the clamping rod 12, and the signal box body 13 is prevented from loosening.

The connection mode between stopper 8 and the block pole 12 is for inlaying the connection, and stopper 8 is located protection piece 14 under, can fix tightly signal box body 13 to make things convenient for staff's operation.

The elastic structure is formed by the clamping rod 12 through the reset spring 11 and the connecting block 9, the sliding structure is formed by the clamping rod 12 through the connecting groove 10 and the connecting block 9, the outer surface of the protection block 14 is arc-shaped, the outer surface of the clamping rod 12 on the outer surface of the protection block 14 is attached to the outer surface of the clamping rod, the clamping rod 12 can be protected, and meanwhile the signal box body 13 is detached more quickly.

The working principle is as follows: when the 5G communication signal box capable of being quickly positioned and installed is used, firstly, as shown in fig. 1-2 and 5, when the signal box body 13 needs to be installed, the clamping rod 12 is aligned with the placing groove 3, the signal box body 13 is placed downwards, the clamping rod 12 is connected with the placing groove 3 in an embedded mode, and the connecting block 9 is clamped with the connecting rod 2 at the moment, so that the signal box body 13 can be quickly installed on the supporting rod 1, operation of workers is facilitated, and installation efficiency of the signal box body 13 is relatively improved;

according to fig. 1 and 3-4, when the signal box body 13 is placed, the rotating rod 5 is rotated and the connecting pipe 15 is held, so that the moving block 6 screwed with the rotating rod 5 starts to slide on the connecting rod 2 under the action of the limitation of the limiting rod 7, and the limiting block 8 extrudes the clamping rod 12 (the side of the clamping rod 12 opposite to the limiting block 8 is inclined), so that the clamping rod 12 slides in the connecting groove 10, at the moment, the return spring 11 is compressed and deformed, and under the action of the return spring 11 recovering the deformation, the limiting block 8 and the clamping rod 12 are connected in an embedded manner, so that the signal box body 13 is difficult to loosen in the vertical direction, and meanwhile, the protective block 14 on the moving block 6 and the protective block 14 on the connecting rod 2 are tightly attached to the outer surface of the clamping rod 12, so that the whole device can protect the clamping rod 12, meanwhile, the signal body is more convenient to disassemble, which is the working principle of the 5G communication signal box capable of being quickly positioned and installed, and the content which is not described in detail in the specification belongs to the prior art known by the professional in the field.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims

1. The utility model provides a but signal case for 5G communication of quick location installation, includes bracing piece (1), connecting rod (2), dwang (5), movable block (6), stopper (8), block pole (12) and signal case body (13), its characterized in that: the left side surface of the supporting rod (1) is fixedly welded with a connecting rod (2), the middle of the connecting rod (2) is provided with a placing groove (3), the left side edge of the connecting rod (2) is provided with a containing groove (4), a rotating rod (5) is arranged inside the containing groove (4), the outer surface of the rotating rod (5) is provided with a connecting pipe (15), the inside of the connecting pipe (15) is provided with a limiting rod (7), the right end of the limiting rod (7) is fixedly welded with a moving block (6), the right side surface of the moving block (6) is fixedly welded with a limiting block (8), the outer surface of the moving block (6) is fixedly welded with a protective block (14), the outer surface of the connecting rod (2) is provided with a connecting block (9), the lower surface of the connecting block (9) is provided with a connecting groove (10), and the front surface of the, a return spring (11) is fixedly welded inside the connecting groove (10), and a clamping rod (12) is fixedly welded on the lower surface of the return spring (11).

2. The signal box for 5G communication capable of being quickly positioned and installed according to claim 1, wherein: connecting rod (2) are inlayed through standing groove (3) and block pole (12) and are connected, and standing groove (3) run through connecting rod (2) in vertical direction to standing groove (3) and connecting rod (2) one-to-one.

3. The signal box for 5G communication capable of being quickly positioned and installed according to claim 1, wherein: dwang (5) constitute revolution mechanic through holding tank (4) and connecting rod (2), and dwang (5) constitute revolution mechanic with connecting pipe (15).

4. The signal box for 5G communication capable of being quickly positioned and installed according to claim 1, wherein: the connection mode between the moving block (6) and the rotating rod (5) is threaded connection, the moving block (6) and the connecting pipe (15) form a sliding structure through the limiting rod (7), and the sliding structure is symmetrically provided with two groups about the central axis of the moving block (6).

5. The signal box for 5G communication capable of being quickly positioned and installed according to claim 1, wherein: the connection mode between stopper (8) and block pole (12) is for inlaying the connection, and stopper (8) are located protection piece (14) under.

6. The signal box for 5G communication capable of being quickly positioned and installed according to claim 1, wherein: the elastic structure is formed by the clamping rod (12) and the connecting block (9) through the reset spring (11), the sliding structure is formed by the clamping rod (12) and the connecting block (9) through the connecting groove (10), the outer surface of the protection block (14) is arc-shaped, and the outer surface of the outer surface clamping rod (12) of the protection block (14) is attached to the outer surface of the protection block.
