Gardens fallen leaves cleaning device
Technical Field
The utility model relates to a gardens cleaning device technical field specifically is a gardens fallen leaves cleaning device.
Background
Gardens include gardens, residential gardens, small paradises, gardens, post-parks, vegetable gardens and the like, and with the development of garden disciplines, forests, squares, streets, scenic spots, natural conservation areas or tourist areas of national parks and recreational areas are included;
1. in the leaf cleaning work of gardens, the leaves are often cleaned and collected by using larger manpower or driving force, so that the inconvenience in cleaning of operators is increased, and in the collecting process of the leaves, dust adhered to the leaves can scatter around, so that the surrounding air quality is reduced, and the working flow of the operators is influenced;
2. the leaf can the adhesion on earth surface, is difficult for cleaning after the leaf and ground contact time overlength or rainy season, and the device often can rock because the hole of earth is uneven when the operation, reduces the stability of device.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a gardens fallen leaves cleaning device to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a garden fallen leaf cleaning device comprises a box body, wherein a mounting frame is arranged at the top of one side of the box body, a collecting groove is arranged at one side of the interior of the box body, slide rails are arranged at the bottoms of two sides of the mounting frame, slide blocks are arranged in two groups of slide rails, a mounting plate which is mutually connected with the slide blocks is arranged at one side of the slide blocks, mounting columns A are arranged at two ends of the bottom of the mounting plate, a barbed needle roller is arranged at the bottom of the inner side of each mounting column A, hinging blocks are arranged at two sides of one end, close to each other, of the mounting plate and the mounting frame, hinging rods which are mutually hinged with the hinging blocks are arranged at the inner sides of the hinging blocks, a spring which is mutually connected with the mounting frame is arranged at the middle position of the top of the mounting plate, a mounting column B is arranged at two ends of the bottom of, the intermediate position department of axis of rotation is equipped with cleans the roller the one end that the axis of rotation outside was kept away from each other all is equipped with the gear area, the both ends in the axis of rotation outside all are equipped with the walking wheel with the bottom of a set of slide rail, the outside in gear area is equipped with rather than intermeshing's gear, the inside dust removal collection subassembly that is equipped with of box, the intermediate position department of box one side is equipped with control panel.
Preferably, the dust removal collection assembly comprises an air blower, a collection groove, a dustproof filter screen and an activated carbon conduit, the air blower is located on one side of the inside of the placement groove, the collection groove is located on one side of the inside of the box body, the input end of the air blower extends to the inside of the box body and is connected with the collection groove in an interconnecting mode, the activated carbon conduit connected with the collection groove in an interconnecting mode is arranged at the top of the box body, the dustproof filter screen is arranged at the top of the collection groove, and the control panel is electrically connected with the air blower through a.
Preferably, the top of box one side is equipped with and promotes the handle, and the outside that promotes the handle is equipped with anti-skidding line.
Preferably, the outer side of the sweeping roller is provided with brooms which are arranged in a plurality of groups of straight lines.
Preferably, one side of one end of the box body is provided with a bin door, and the middle position of the bin door is provided with an observation window.
Preferably, one side of the bottom of the placing groove is provided with a guide roller, and the guide roller is matched with the cleaning roller.
Compared with the prior art, the beneficial effects of the utility model are that: this gardens fallen leaves cleaning device utilizes the drive power that the device promoted to drive the cleaning roller and cleans the leaf automatically, and the leaf blocks and purifies the gas that produces the dust after collecting, makes the quality of surrounding air can keep, utilizes the rotation of licker-in roller to prick the leaf that is difficult for cleaning and attaches, strengthens the effect of leaf clearance through the linking cooperation of cleaning roller, and the device structure sets up rationally, suitable using widely.
1. When the device is pushed, the power of the travelling wheels and the rotating shaft is utilized to drive the gears and the gear belts to be matched, so that the cleaning rollers are driven to clean fallen leaves to the placing groove by the pushing travelling of the device, the pressure given by the air blower is utilized to absorb and scatter the leaves and blow the leaves to the collecting groove, dust adhered to the leaves at the moment is blocked and collected by the filter screen, and the blocked gas flows out after being purified by the activated carbon conduit, so that the device is convenient to clean the leaves and simultaneously increases the environmental protection property of gas circulation;
2. utilize the rotation of licker-in roller to carry out the pressfitting with the leaf before cleaning when the device promotes, will attach licker-in roller surface with the leaf that the ground adhesion is in the same place to sweep it down the standing groove through the broom in the rotation and collect, strengthen the efficiency of cleaning of leaf, and the licker-in roller rotates the in-process through elasticity and articulated cooperation, makes it be suitable for equally to hole's ground, and through the relation of being connected of slider and slide rail, to the part spacing and increase the stability of walking wheel and cleaning roller during operation.
Drawings

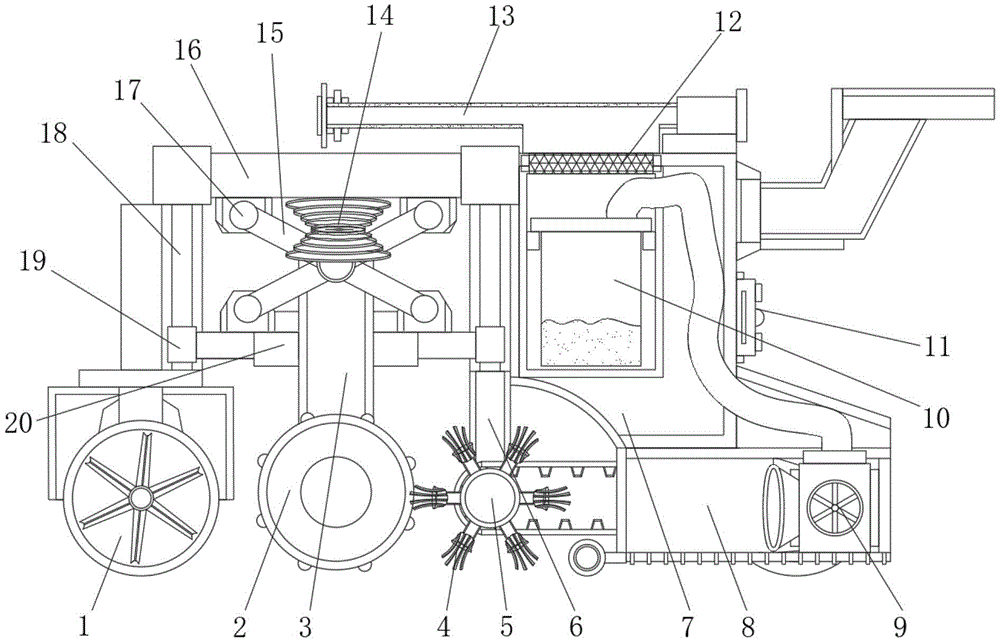

Fig. 1 is a front sectional view of the present invention;
FIG. 2 is a front view of the present invention;
FIG. 3 is an enlarged side view of the licker-in roller of the present invention;
FIG. 4 is an enlarged side view of the sweeping roller of the present invention;
fig. 5 is an enlarged view of the gear belt of the present invention.
In the figure: 1. a traveling wheel; 2. a licker-in roller; 3. mounting a column A; 4. cleaning the roller; 5. a rotating shaft; 6. mounting a column B; 7. a box body; 8. a placement groove; 9. a blower; 10. collecting tank; 11. a control panel; 12. a dustproof filter screen; 13. an activated carbon conduit; 14. a spring; 15. a hinged lever; 16. a mounting frame; 17. a hinged block; 18. a slide rail; 19. a slider; 20. mounting a plate; 21. a gear; 22. a gear belt.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides an embodiment: a garden fallen leaf cleaning device comprises a box body 7, a mounting frame 16 is arranged at the top of one side of the box body 7, a collecting groove 10 is arranged at one side inside the box body 7, slide rails 18 are arranged at the bottoms of two sides of the mounting frame 16, slide blocks 19 are arranged inside two groups of slide rails 18, a mounting plate 20 connected with the slide blocks 19 is arranged at one side, close to each other, of each slide block 19, mounting columns A3 are arranged at two ends of the bottom of the mounting plate 20, a barbed needle roller 2 is arranged at the bottom of the inner side of each mounting column A3, hinged blocks 17 are arranged at two sides, close to each other, of the mounting plate 20 and the mounting frame 16, hinged rods 15 hinged with the hinged blocks 17 are arranged at the inner sides of the hinged blocks 17, springs 14 connected with the mounting frame 16 are arranged at the middle positions of the top of the mounting plate 20, mounting columns B6 are arranged at two ends of the bottom of one group of, the intermediate position department of axis of rotation 5 is equipped with cleans roller 4, the one end that keeps away from each other in the 5 outside of axis of rotation all is equipped with gear belt 22, it is rotatory to drive the part according to the drive power that the device removed, the both ends in the 5 outside of axis of rotation all are equipped with walking wheel 1 with the bottom of a set of slide rail 18, gear belt 22's the outside is equipped with rather than intermeshing's gear 21, the inside dust removal collection subassembly that is equipped with of box 7, strengthen the feature of environmental protection of gas circulation, the intermediate position department of box 7 one side is equipped with control.
Further, the dust removal collection assembly comprises an air blower 9, a collection groove 10, a dustproof filter screen 12 and an active carbon conduit 13, the air blower 9 is located on one side of the inside of the placement groove 8, the collection groove 10 is located on one side of the inside of the box body 7, an input end of the air blower 9 extends to the inside of the box body 7 and is connected with the collection groove 10 in an interconnecting mode, the top of the box body 7 is provided with the active carbon conduit 13 connected with the collection groove 10 in an interconnecting mode, the top of the collection groove 10 is provided with the dustproof filter screen 12, and the control panel 11 is electrically connected with.
Furthermore, the top of 7 one sides of box is equipped with and promotes the handle, and the outside that promotes the handle is equipped with anti-skidding line, has strengthened the operability.
Furthermore, the outer side of the cleaning roller 4 is provided with a broom which is arranged in a plurality of groups in a straight line, so that the leaf cleaning efficiency is improved.
Furthermore, one side of one end of the box body 7 is provided with a bin door, and the middle position of the bin door is provided with an observation window, so that the subsequent cleaning work of operators is facilitated.
Further, one side of the bottom of the placing groove 8 is provided with a guide roller, and the guide roller is matched with the cleaning roller 4, so that the leaves can be guided and rolled in.
The working principle is as follows: the electric parts of the device are all powered by an external power supply, and the blower 9 can be started through the control panel 11 before the device is used, so that the blower 9 operates and absorbs in the placing groove 8.
1. The pushing device drives the rotating shaft 5 and the walking wheels 1 to rotate, so that the rotating shaft 5 drives one group of gear belts 22 to rotate, the cooperation of the gears 21 drives the other group of gear belts 22 to rotate, the gear belts 22 drive the cleaning rollers 4 to rotate under the cooperation of the mounting columns B6, leaves existing in places where the device passes can be cleaned and slide into the placing groove 8, then the leaves are absorbed by the air blower 9 started in advance, the leaves are scattered and blown down to the collecting groove 10 when being absorbed by pressure given in the period, and therefore gas with dust in the leaves can be blocked by the dustproof filter screen 12, the dust flows into the collecting groove 10 to be stored together with the leaves, the filtered gas flows into the activated carbon conduit 13 to be purified and flows out, and convenience for cleaning the leaves and environmental friendliness of air quality are effectively improved;
2. when the leaves are stuck with the soil due to too long contact time, the barbed needle roller 2 is driven to rotate by the pushing of the device, the leaves are pressed and stuck on the surface of the barbed needle roller 2 along with the rotation of the barbed needle roller 2, then the leaves are cleaned by the cleaning roller 4 in rotation, the leaves are dropped and then collected into the placing groove 8, the barbed needle roller 2 can be used for different terrain differences through the elasticity of the spring 14 and the hinging relation between the hinging rod 15 and the hinging block 17 when in operation, and the connecting sliding relation between the sliding block 19 and the sliding rail 18 can guide the parts and simultaneously connect the parts with each other, so that the barbed needle roller is more stable, the stability of the device in operation is improved, and the working efficiency of the device is enhanced.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (6)

1. The utility model provides a gardens fallen leaves cleaning device, includes box (7), its characterized in that: the top of box (7) one side is equipped with mounting bracket (16), one side of box (7) inside is equipped with collecting vat (10), the bottom of mounting bracket (16) both sides is equipped with slide rail (18), the inside of two sets of slide rail (18) is equipped with slider (19), one side that slider (19) are close to each other is equipped with mounting panel (20) rather than interconnect, the both ends of mounting panel (20) bottom are equipped with erection column A (3), the bottom of erection column A (3) inboard is equipped with acupuncture roller (2), the both sides that mounting panel (20) and mounting bracket (16) are close to each other one end all are equipped with articulated piece (17), the inboard of articulated piece (17) is equipped with rather than articulated rod (15) each other, the intermediate position department at mounting panel (20) top is equipped with spring (14) with mounting bracket (16) interconnect, a set of both ends of slider (19) bottom are equipped with erection column B (6), one side of box (7) bottom is equipped with standing groove (8), the both ends of standing groove (8) one side all are equipped with axis of rotation (5) with the bottom of erection column B (6), the intermediate position department of axis of rotation (5) is equipped with cleans roller (4), the one end of keeping away from each other in axis of rotation (5) outside all is equipped with toothed belt (22), the both ends in axis of rotation (5) outside all are equipped with walking wheel (1) with the bottom of a set of slide rail (18), the outside of toothed belt (22) is equipped with rather than intermeshing's gear (21), box (7) inside is equipped with the dust removal and collects the subassembly, the intermediate position department of box (7) one side is equipped with control panel (11).
2. A gardens fallen leaves cleaning device according to claim 1, characterized in that: the dust removal collection assembly comprises an air blower (9), a collecting groove (10), a dustproof filter screen (12) and an activated carbon conduit (13), wherein the air blower (9) is located on one side of the inside of a placing groove (8), the collecting groove (10) is located on one side of the inside of a box body (7), the input end of the air blower (9) extends to the inside of the box body (7) and is connected with the collecting groove (10) in an interconnecting mode, the top of the box body (7) is provided with the activated carbon conduit (13) connected with the collecting groove (10) in an interconnecting mode, the top of the collecting groove (10) is provided with the dustproof filter screen (12), and a control panel (11) is electrically connected with the air blower (9).
3. A gardens fallen leaves cleaning device according to claim 1, characterized in that: the top of one side of the box body (7) is provided with a pushing handle, and the outer side of the pushing handle is provided with anti-skid grains.
4. A gardens fallen leaves cleaning device according to claim 1, characterized in that: and brooms are arranged on the outer sides of the sweeping rollers (4) and are arranged in a plurality of groups of straight lines.
5. A gardens fallen leaves cleaning device according to claim 1, characterized in that: one side of one end of the box body (7) is provided with a bin door, and the middle position of the bin door is provided with an observation window.
6. A gardens fallen leaves cleaning device according to claim 1, characterized in that: one side of the bottom of the placing groove (8) is provided with a guide roller, and the guide roller is matched with the cleaning roller (4).
