Abstract
本实用新型公开了一种适用于有引流管或伤口的病人使用的多功能翻身枕，包括：多个主枕，所述主枕为横置的三棱柱状，所述主枕具有一个底面和两个向底面弯曲的侧面，两个侧面用于支撑患者，多个所述主枕通过主连杆连接；多个副枕，所述副枕为柱状，其横截面为橄榄球形，多个所述副枕通过副连杆连接，所述副枕置于所述主枕的侧面上。其具有适用于不同气温、不同身高、不同引流管和伤口位置以及不同卧床方式的患者的优点。
The utility model discloses a multifunctional turning pillow suitable for patients with drainage tubes or wounds. The two side surfaces are curved toward the bottom surface, and the two side surfaces are used to support the patient, and a plurality of the main pillows are connected by a main link; The auxiliary pillows are connected by auxiliary connecting rods, and the auxiliary pillows are placed on the side surfaces of the main pillows. It has the advantage of being suitable for patients with different temperatures, different heights, different drainage tubes and wound locations, and different bed rest patterns.
Description
Technical Field
The utility model relates to the field of medical treatment, especially relate to a multi-functional pillow that stands up that is applicable to the patient that has drainage tube or wound to use.
Background
The existing turning-over pillow has a single structure and is suitable for most patients, but for patients with drainage tubes and wounds on the chest and abdomen, the drainage tubes cannot be placed reasonably, so that the patients feel uncomfortable and painful; the existing turnover pillow has single content, cannot meet the requirement of comfort level caused by temperature change in different seasons, and cannot meet the requirement of patients with different body types and different requirements on the feeling of the turnover pillow.
SUMMERY OF THE UTILITY MODEL
To the above problem, the utility model provides a multi-functional pillow of standing up that is applicable to the patient that has drainage tube or wound to use has the patient's that is applicable to different temperature, different height, different drainage tube and wound position and different bed modes advantage.
The technical scheme of the utility model is that:
a multifunctional turn-over pillow suitable for patients with drainage tubes or wounds, comprising:
the pillow comprises a plurality of main pillows, a plurality of connecting rods and a plurality of connecting rods, wherein the main pillows are in a transverse triangular prism shape, each main pillow is provided with a bottom surface and two side surfaces which are bent towards the bottom surface and used for supporting a patient, and the main pillows are connected through the connecting rods;
the auxiliary pillows are columnar, the cross sections of the auxiliary pillows are football-shaped, the auxiliary pillows are connected through auxiliary connecting rods, and the auxiliary pillows are arranged on the side faces of the main pillows.
The working principle of the technical scheme is as follows:
when in use, the plurality of main pillows are moved or detached to form gaps among the main pillows, a patient lies on one side surface of the main pillows, positions where the drainage tubes are inserted or the parts with wounds are arranged at the gaps, and the auxiliary pillows are adjusted in the same way and are arranged on the other side surface of the main pillows; in another use mode, the auxiliary pillows are placed on two side surfaces of the main pillow, a gap is formed by adjusting so as to be convenient for a patient in a prone position to use, and the turning-over pillow is arranged in such a way, so that the turning-over pillow can be suitable for patients with different heights, different drainage tubes and wound positions and different bed-lying modes.
In a further technical scheme, the main connecting rod and the auxiliary connecting rod are both polygonal columns.
The polygonal-prism-shaped main connecting rod and the polygonal-prism-shaped auxiliary connecting rod can prevent the main pillow and the auxiliary pillow from rotating to influence use.
In a further technical scheme, two sides of main pillow are equipped with cotton filling layer and silica gel filling layer respectively, vice pillow with the face that main pillow contacted is equipped with the cotton filling layer, and with the face that main pillow contactless is equipped with the silica gel filling layer.
The cotton filling layer of the auxiliary pillow is arranged in contact with the cotton filling layer of the main pillow, and the cotton filling layer is a silica gel filling layer when the auxiliary pillow is used, so that the auxiliary pillow is suitable for being used at high temperature; the silica gel filling layer of the auxiliary pillow is arranged in contact with the silica gel filling layer of the main pillow, and the cotton filling layer is in contact with the silica gel filling layer of the auxiliary pillow when the pillow is used, so that the pillow is suitable for being used at low temperature.
In a further technical scheme, the main pillow and the auxiliary pillow are adhered through magic tapes.
The magic tape can be used for conveniently adjusting the positions of the main pillow and the auxiliary pillow.
In a further technical scheme, limiting rings are arranged on the main connecting rod and the auxiliary connecting rod.
The limiting ring can limit the main pillow and the auxiliary pillow to slide on the main connecting rod and the auxiliary connecting rod respectively.
The utility model has the advantages that:
1. when in use, the plurality of main pillows are moved or detached to form gaps among the main pillows, a patient lies on one side surface of the main pillows, positions where the drainage tubes are inserted or the parts with wounds are arranged at the gaps, and the auxiliary pillows are adjusted in the same way and are arranged on the other side surface of the main pillows; in another use mode, the auxiliary pillows are placed on two side surfaces of the main pillow, and a gap is adjusted to be convenient for a patient in a prone position to use, so that the turning-over pillow can be suitable for patients with different heights, different drainage tubes and wound positions and different bed lying modes;
2. the polygonal-prism-shaped main connecting rod and the auxiliary connecting rod can prevent the main pillow and the auxiliary pillow from rotating to influence the use;
3. the cotton filling layer of the auxiliary pillow is arranged in contact with the cotton filling layer of the main pillow, and the cotton filling layer is a silica gel filling layer when the auxiliary pillow is used, so that the auxiliary pillow is suitable for being used at high temperature; the silica gel filling layer of the auxiliary pillow is arranged in contact with the silica gel filling layer of the main pillow, and the cotton filling layer is in contact with the silica gel filling layer of the auxiliary pillow when the pillow is used, so that the pillow is suitable for being used at low temperature;
4. the positions of the main pillow and the auxiliary pillow can be more conveniently adjusted by the magic tape bonding mode;
5. the limiting ring can limit the main pillow and the auxiliary pillow to slide on the main connecting rod and the auxiliary connecting rod respectively.
Drawings

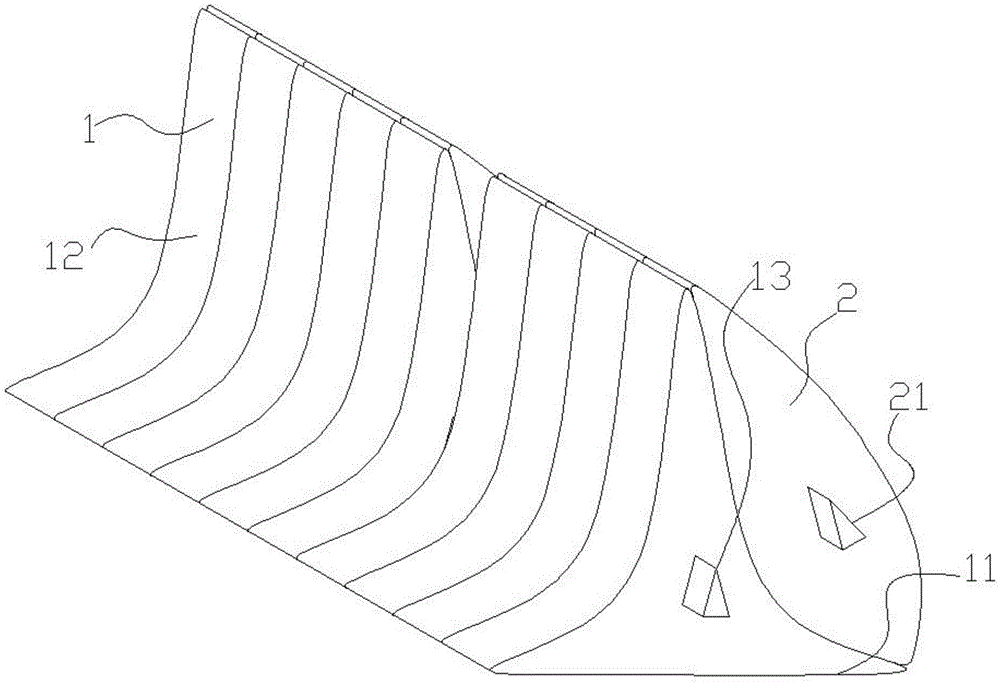

Fig. 1 is a schematic view of a multifunctional turning-over pillow suitable for patients with drainage tubes or wounds in embodiment 1 of the present invention;
fig. 2 is a three-dimensional structure diagram of a multifunctional turning-over pillow suitable for patients with drainage tubes or wounds in embodiment 1 of the present invention;
fig. 3 is a schematic view of another usage of the multifunctional turning-over pillow suitable for patients with drainage tubes or wounds in embodiment 1 of the present invention;
fig. 4 is a top view of the multifunctional turning pillow suitable for patients with drainage tubes or wounds, which is disclosed in embodiment 3 of the present invention;
FIG. 5 is a cross-sectional view of section A-A of FIG. 4;
fig. 6 is a three-dimensional structure diagram of a multifunctional turning-over pillow suitable for patients with drainage tubes or wounds in embodiment 4 of the present invention;
fig. 7 is a perspective view of the auxiliary pillow according to embodiment 4 of the present invention;
fig. 8 is a three-dimensional structure diagram of a multifunctional turning-over pillow suitable for patients with drainage tubes or wounds in embodiment 5 of the present invention;
fig. 9 is a front view of the multifunctional turning pillow suitable for patients with drainage tubes or wounds in embodiment 5 of the present invention.
Description of reference numerals:
1. a main pillow; 11. a bottom surface; 12. a side surface; 13. a main link; 2. a secondary pillow; 21. an auxiliary connecting rod; 3. a cotton filling layer; 4. a silica gel filling layer; 5. magic tape; 6. a limit ring.
Detailed Description
The embodiments of the present invention will be further explained with reference to the drawings.
Example 1:
as shown in fig. 1 to 3, a multifunctional turn-over pillow suitable for a patient with a drainage tube or a wound, comprises:
the pillow comprises a plurality of main pillows 1, wherein the main pillows 1 are in a transverse triangular prism shape, referring to fig. 1, each main pillow 1 is provided with a bottom surface 11 and two downward-bent side surfaces 12, the two downward-bent side surfaces 12 are in mirror symmetry, the two side surfaces 12 are used for supporting a patient, and the main pillows 1 are connected through a main connecting rod 13;
the auxiliary pillows 2 are columnar, the cross sections of the auxiliary pillows 2 are football-shaped, referring to fig. 1, the auxiliary pillows 2 are connected through auxiliary connecting rods 21, the auxiliary pillows 2 also have two curved surfaces which are bilaterally symmetrical and correspond to the side surfaces 12 of the main pillows 1, and the auxiliary pillows 2 are arranged on the side surfaces 12 of the main pillows 1.
The working principle of the technical scheme is as follows:
when in use, the plurality of main pillows 1 are moved or detached to form gaps among the main pillows 1, referring to fig. 2, a patient lies on one side surface 12 of the main pillow 1, places a part inserted with a drainage tube or with a wound at the gap, makes the same adjustment on the auxiliary pillow 2 and places the auxiliary pillow at the other side surface 12 of the main pillow 1; in another use mode, referring to fig. 4, the auxiliary pillows 2 are placed on two side surfaces 12 of the main pillow 1, a gap is adjusted to be used by a patient in a prone position, and the turnover pillow is arranged so that the turnover pillow can be suitable for patients with different heights, different drainage tubes and wound positions and different bed lying modes.
Example 2:
compared to embodiment 1, both the main link 13 and the sub link 21 have a triangular prism shape.
The triangular prism-shaped main connecting rod 13 and the auxiliary connecting rod 21 can prevent the main pillow 1 and the auxiliary pillow 2 from rotating and affecting the use.
Example 3:
as shown in fig. 4 and 5, compared with the embodiment 2, the left side surface of the main pillow 1 is provided with the cotton filling layer 3, the right side surface is provided with the silica gel filling layer 4, the left side surface of the auxiliary pillow 2 is provided with the silica gel filling layer 4, and the right side surface is provided with the cotton filling layer 3.
The cotton filling layer 3 of the auxiliary pillow 2 is arranged together in a contact way with the cotton filling layer 3 of the main pillow 1, and the silica gel filling layer 4 is in contact when the pillow is used, so that the pillow is suitable for being used when the air temperature is high; the silica gel filling layer 4 of the auxiliary pillow 2 is arranged together in a contact way with the silica gel filling layer 4 of the main pillow 1, and the cotton filling layer 3 is in contact when the pillow is used, so that the pillow is suitable for being used at low temperature; the pillow can also be matched into a form that the silica gel filling layer 4 and the cotton filling layer 3 are used at the same time according to the needs of a patient, or the main pillow 1 or the auxiliary pillow 2 is partially provided with the cotton filling layer 3 and partially provided with the silica gel filling layer 4.
Example 4:
as shown in fig. 6 and 7, compared with embodiment 3, each of the main pillows 1 and the sub-pillows 2 is adhered by the hook and loop fastener 5.
The magic tape 5 can be used for conveniently adjusting the positions of the main pillow 1 and the auxiliary pillow 2.
Example 5:
as shown in fig. 8 and 9, compared with the embodiment 4, the main link 13 and the auxiliary link 21 are provided with a plurality of position limiting rings 6, the position limiting rings 6 are respectively arranged at the two ends of the main link 13 and the auxiliary link 21, and the gap between the main link 13 and the auxiliary link 21 is arranged to fix the positions of the main pillow 1 and the auxiliary pillow 2.
The limiting ring 6 can limit the main pillow 1 and the auxiliary pillow 2 to slide on the main connecting rod 13 and the auxiliary connecting rod 21 respectively.
The above-mentioned embodiments only express the specific embodiments of the present invention, and the description thereof is specific and detailed, but not construed as limiting the scope of the present invention. It should be noted that, for those skilled in the art, without departing from the spirit of the present invention, several variations and modifications can be made, which are within the scope of the present invention.
Claims (5)
1. A multifunctional turn-over pillow suitable for patients with drainage tubes or wounds is characterized by comprising:
the pillow comprises a plurality of main pillows, a plurality of connecting rods and a plurality of connecting rods, wherein the main pillows are in a transverse triangular prism shape, each main pillow is provided with a bottom surface and two side surfaces which are bent towards the bottom surface and used for supporting a patient, and the main pillows are connected through the connecting rods;
the auxiliary pillows are columnar, the cross sections of the auxiliary pillows are football-shaped, the auxiliary pillows are connected through auxiliary connecting rods, and the auxiliary pillows are arranged on the side faces of the main pillows.
2. The multifunctional turn-over pillow for patients with drainage tubes or wounds as claimed in claim 1, wherein the main link and the auxiliary link are both polygonal column-shaped.
3. The multifunctional turning-over pillow for the patient with the drainage tube or the wound as claimed in claim 2, wherein the two side surfaces of the main pillow are respectively provided with a cotton filling layer and a silica gel filling layer, the surface of the auxiliary pillow contacting with the main pillow is provided with a cotton filling layer, and the surface not contacting with the main pillow is provided with a silica gel filling layer.
4. The multifunctional turn-over pillow for patients with drainage tubes or wounds as claimed in claim 3, wherein said main pillow and said auxiliary pillow are adhered by means of Velcro.
5. The multifunctional turning pillow for patients with drainage tubes or wounds as claimed in claim 4, wherein the main connecting rod and the auxiliary connecting rod are provided with limiting rings.
