CN212954806U

CN212954806U - A mud pressure filter for making wine waste water treatment

Info

Publication number: CN212954806U
Application number: CN202021072929.2U
Authority: CN
Inventors: 王文钊; 刘伟; 李久洪; 魏国
Original assignee: Wuhan Yashibo Technology Co Ltd
Current assignee: Yellow Crane Tower Distillery Co ltd
Priority date: 2020-06-11
Filing date: 2020-06-11
Publication date: 2021-04-13
Anticipated expiration: 2030-06-11

Abstract

The utility model discloses a sludge filter press for brewing wastewater treatment, comprising a filter press box and a squeeze box, the squeeze box is fixedly welded on the upper end of the filter press box, and the filter press box and the squeeze box are fixed and welded. Internal communication, the side wall of the squeeze box is provided with a sewage inlet pipe, and the sewage inlet pipe is communicated with the squeeze box, the upper end of the squeeze box is inserted with a first rotating shaft, and the first rotating shaft is fixedly connected with a Spiral crushing knife, a second rotating shaft is inserted into the side wall of the filter press box, and a rotating drum is fixedly sleeved on the second rotating shaft, and two sets of crawlers are rotatably connected to the rotating drum, and the two sets of crawler belts are fixed between A pressure plate is connected, and a filter plate is arranged inside the filter press box. The purpose of this utility model is to provide a sludge filter press for brewing wastewater treatment, so as to solve the problem of the sludge filter press device existing in the prior art. The large particles in the sludge cannot be pulverized, and the problem of clogging is easy to be caused during the filter press process.

Description

A mud pressure filter for making wine waste water treatment

Technical Field

The utility model relates to a sludge press filtration technical field specifically is a sludge press filter for making wine waste water treatment.

Background

In the sewage process, can produce a large amount of mud, mud can carry out recycle once more through the filter-pressing, and present mud filter-pressing equipment is mostly belt filter press and plate and frame filter press, and the belt filter press is in the work has the unable breakage of great granule if in mud, very easily causes the filter belt to damage, and plate and frame filter press all filters through extruded mode.

The existing sludge filter-pressing device can not crush large particles in sludge and is easy to cause blockage in the filter-pressing process, so that a sludge filter-pressing machine for treating brewing wastewater needs to be provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a sludge press filter for making wine waste water treatment to current sludge press filter device who provides in solving above-mentioned background art can not smash the large granule in the mud, and causes the problem of jam easily at the filter-pressing in-process.

In order to achieve the above object, the utility model provides a following technical scheme:

a sludge filter press for treating brewing wastewater comprises a filter press box and an extrusion box, wherein the extrusion box is fixedly welded at the upper end of the filter press box, the filter press box is communicated with the inside of the extrusion box, a sewage inlet pipe is arranged on the side wall of the extrusion box and is communicated with the extrusion box, a first rotating shaft is inserted into the upper end of the extrusion box, a spiral crushing cutter is fixedly connected onto the first rotating shaft, a second rotating shaft is inserted into the side wall of the filter press box, a rotating drum is fixedly connected onto the second rotating shaft, two groups of tracks are rotatably connected onto the rotating drum, a pressing plate is fixedly connected between the two groups of tracks, a filter plate is arranged inside the filter press box, a sliding block is arranged at the upper end of the filter plate, a sliding block is arranged in the sliding block, a fixed block is fixedly connected onto the upper end of the sliding block, a threaded hole is formed in the side wall of the, the one end of first pivot, second pivot and third pivot all is provided with the motor, and the one end of three motor output shafts of group all through the shaft coupling respectively with three pivot fixed connection of group, the fixed welding of one end of filter plate has the mud guide, the fixed welding in the inner wall of filter-pressing case of one end of mud guide.

Preferably, four groups of second rotating shafts are arranged, the four groups of second rotating shafts are divided into two pairs which are arranged at different horizontal heights, and the two pairs of second rotating shafts with different horizontal heights are arranged in a staggered manner.

Preferably, the spout is provided with two sets ofly, and equal slidable mounting has the sliding block in two sets of spouts, the sliding block sets up to right trapezoid sliding block.

Preferably, two sets of vertical plates are fixedly welded at the upper end of the filter plate, a transverse plate is fixedly welded between the two sets of vertical plates, a bearing is fixedly embedded in the transverse plate, and one end of a third rotating shaft is fixedly inserted into an inner ring of the bearing.

Preferably, the side wall of the filter-pressing box is provided with a sludge discharge port, and the lower surface of the sludge discharge port and the upper surface of the lower end of the sludge guide plate are positioned on the same plane.

Preferably, the side wall of the filter-pressing box is provided with a drain pipe, the drain pipe is communicated with the filter-pressing box, and the drain pipe is provided with a valve.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses a lateral wall at the extrusion case is provided with into dirty pipe, and advances dirty pipe and extrusion case intercommunication, and the upper end of extrusion case is pegged graft and is had first pivot, fixedly connected with spiral crushing sword in the first pivot, and the one end of first pivot is through shaft coupling fixed connection in the one end of motor output shaft, when carrying mud in the net filter-press case, spiral crushing sword can be smashed the large granule in the mud, drives the mud transport simultaneously, avoids blockking up;

2. be provided with the filter plate through the inside at the filter-pressing box, the spout has been seted up to the upper end of filter plate, and the spout is provided with two sets ofly, and equal slidable mounting has the sliding block in two sets of spouts, and the sliding block sets up to the right trapezoid sliding block, and the upper end fixedly connected with fixed block of sliding block, the lateral wall of fixed block set up threaded hole, and threaded hole female connection has the third pivot, and shaft coupling fixed connection is passed through in the design of the one end of motor output shaft to the one end of third pivot, the utility model discloses when mud is through top clamp plate drainage, inevitably have some mud to permeate from the hole and get off, the accessible was opened the motor and is driven the fixed.

Drawings

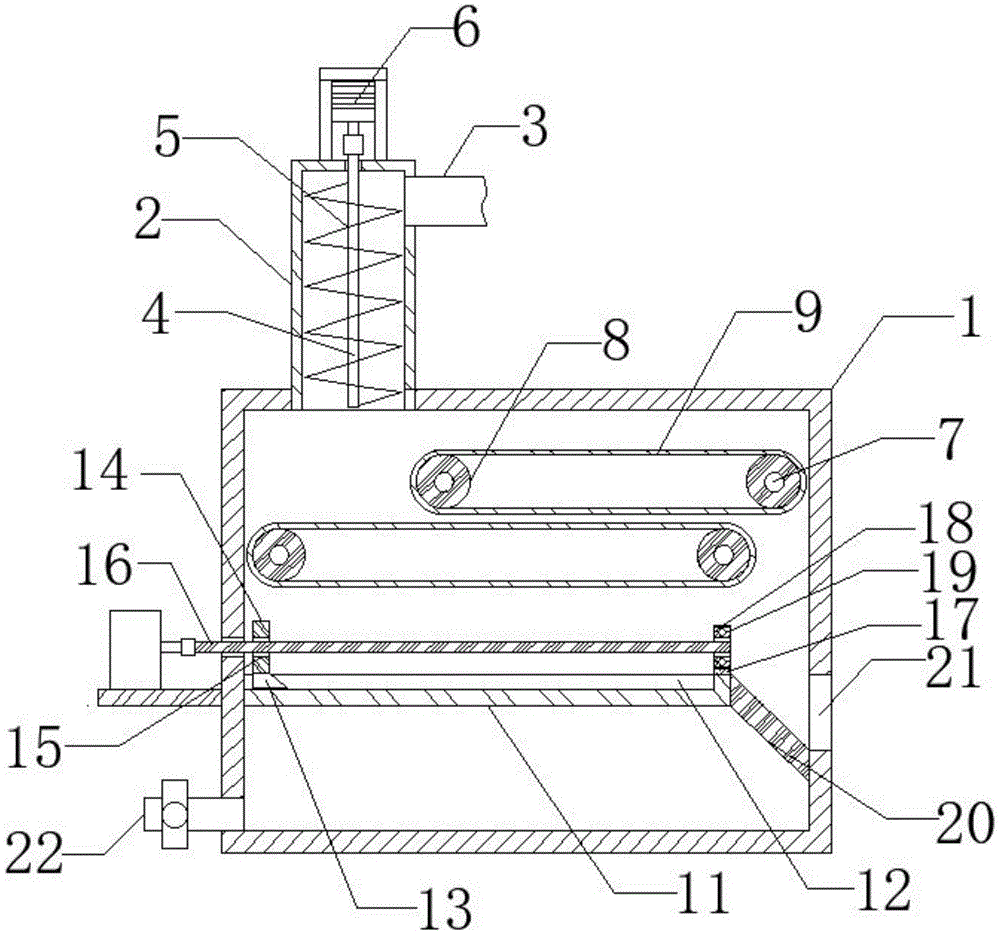

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic structural view of the pressing plate of the present invention;

fig. 3 is a schematic structural diagram of the third rotating shaft of the present invention.

In the figure: 1. a filter-pressing box; 2. extruding the box; 3. a sewage inlet pipe; 4. a first rotating shaft; 5. a spiral crushing cutter; 6. a motor; 7. a second rotating shaft; 8. a rotating drum; 9. a crawler belt; 10. pressing a plate; 11. filtering the plate; 12. a chute; 13. a slider; 14. a fixed block; 15. a threaded hole; 16. a third rotating shaft; 17. a vertical plate; 18. a transverse plate; 19. a bearing; 20. a mud guide plate; 21. a sludge discharge port; 22. and a water discharge pipe.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a sludge filter press for treating brewing wastewater comprises a filter press box 1 and an extrusion box 2, wherein the extrusion box 2 is fixedly welded at the upper end of the filter press box 1, the filter press box 1 is communicated with the inside of the extrusion box 2, a sewage inlet pipe 3 is arranged on the side wall of the extrusion box 2, the sewage inlet pipe 3 is communicated with the extrusion box 2, a first rotating shaft 4 is inserted at the upper end of the extrusion box 2, and a spiral crushing cutter 5 is fixedly connected to the first rotating shaft 4;

a second rotating shaft 7 is inserted into the side wall of the filter-pressing box 1, four groups of second rotating shafts 7 are arranged on the second rotating shaft 7, the four groups of second rotating shafts 7 are divided into two pairs which are arranged at different horizontal heights, the two pairs of second rotating shafts 7 with different horizontal heights are arranged in a staggered manner, a rotating drum 8 is fixedly sleeved on the second rotating shafts 7, two groups of tracks 9 are rotatably connected on the rotating drum, and a pressing plate 10 is fixedly connected between the two groups of tracks 9;

a filter plate 11 is arranged inside the filter-pressing box 1, the upper end of the filter plate 11 is provided with two groups of sliding grooves 12, sliding blocks 13 are slidably mounted in the two groups of sliding grooves 12, the sliding blocks 13 are right trapezoid sliding blocks, the upper end of each sliding block 13 is fixedly connected with a fixed block 14, the side wall of each fixed block 14 is provided with a threaded hole 15, a third rotating shaft 16 is connected with the threaded hole 15 in an internal thread manner, one ends of the first rotating shaft 4, the second rotating shaft 7 and the third rotating shaft 16 are provided with motors 6, and one ends of output shafts of the three groups of motors 6 are respectively and fixedly connected with the three groups;

the upper end fixed welding of filter plate 11 has two sets of risers 17, fixed welding has diaphragm 18 between two sets of risers 17, it is fixed with bearing 19 to inlay the dress on the diaphragm 18, and the fixed inner circle of pegging graft in bearing 19 of one end of third pivot 16, the fixed welding of one end of filter plate 11 has mud guard 20, the fixed welding of one end of mud guard 20 is in the inner wall of filter-press case 1, row's mud mouth 21 has been seted up to filter-press case 1's lateral wall, and the lower surface of row's mud mouth 21 and the upper surface that leads mud guard 20 lower extreme are located the coplanar, filter-press case 1's lateral wall is provided with drain pipe 22, and drain pipe 22 and filter-press case 1 intercommunication, be provided.

The working principle is as follows: through arranging the sewage inlet pipe 3 on the side wall of the extrusion box 2, and the sewage inlet pipe 3 is communicated with the extrusion box 2, the upper end of the extrusion box 2 is inserted with the first rotating shaft 4, the first rotating shaft 4 is fixedly connected with the spiral crushing cutter 5, one end of the first rotating shaft 4 is fixedly connected with one end of the output shaft of the motor 6 through the coupler, when sludge is conveyed in the net filter-pressing box 1, the spiral crushing cutter 5 can crush large particles in the sludge and drive the sludge to be conveyed at the same time, so as to avoid blockage, through arranging the filter plate 11 in the filter-pressing box 1, the upper end of the filter plate 11 is provided with the sliding chute 12, the sliding chute 12 is provided with two groups, and sliding blocks 13 are respectively and slidably arranged in the two groups of sliding chutes 12, the sliding blocks 13 are arranged into right trapezoid, the upper end of the sliding block 13 is fixedly connected with a fixed block, one end of the third rotating shaft 16 is fixedly connected to one end of an output shaft of the motor 6 through a coupler, when sludge is filtered through the upper pressing plate, some sludge is inevitably infiltrated from the pores, and at the moment, the motor 6 is started to drive the fixing block 14 to push the sludge accumulated on the filter plate 11 into the sludge discharge port 21, so that the filter plate 11 is prevented from being blocked by the sludge.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a sludge press filter for making wine waste water treatment, includes filter-pressing case (1) and extrusion case (2), its characterized in that: the extrusion box (2) is fixedly welded at the upper end of the filter-pressing box (1), the filter-pressing box (1) is communicated with the inside of the extrusion box (2), the side wall of the extrusion box (2) is provided with a sewage inlet pipe (3), the sewage inlet pipe (3) is communicated with the extrusion box (2), the upper end of the extrusion box (2) is spliced with a first rotating shaft (4), the first rotating shaft (4) is fixedly connected with a spiral crushing cutter (5), the side wall of the filter-pressing box (1) is spliced with a second rotating shaft (7), the second rotating shaft (7) is fixedly connected with a rotating drum (8), the rotating drum is rotatably connected with two groups of tracks (9), a pressing plate (10) is fixedly connected between the two groups of tracks (9), the inside of the filter-pressing box (1) is provided with a filter plate (11), the upper end of the filter plate (11) is provided with a sliding chute (12), and the sliding block (13) is arranged in the, the upper end fixedly connected with fixed block (14) of sliding block (13), threaded hole (15) have been seted up to the lateral wall of fixed block (14), threaded hole (15) female connection has third pivot (16), the one end of first pivot (4), second pivot (7) and third pivot (16) all is provided with motor (6), and the one end of three motor (6) output shafts of group all through the shaft coupling respectively with three pivot fixed connection of group, the one end fixed weld of filter plate (11) has mud guide plate (20), the one end fixed welding of mud guide plate (20) is in the inner wall of filter-pressing case (1).

2. The sludge filter press for the treatment of brewery wastewater according to claim 1, characterized in that: the second rotating shafts (7) are provided with four groups, the four groups of second rotating shafts (7) are divided into two pairs which are arranged at different horizontal heights, and the two pairs of second rotating shafts (7) with different horizontal heights are arranged in a mutually staggered mode.

3. The sludge filter press for the treatment of brewery wastewater according to claim 1, characterized in that: the sliding grooves (12) are provided with two sets, sliding blocks (13) are arranged in the two sets of sliding grooves (12) in a sliding mode, and the sliding blocks (13) are arranged into right-angled trapezoid sliding blocks.

4. The sludge filter press for the treatment of brewery wastewater according to claim 1, characterized in that: the filter plate is characterized in that two sets of vertical plates (17) are fixedly welded at the upper end of the filter plate (11), a transverse plate (18) is fixedly welded between the two sets of vertical plates (17), a bearing (19) is fixedly embedded in the transverse plate (18), and one end of a third rotating shaft (16) is fixedly inserted into an inner ring of the bearing (19).

5. The sludge filter press for the treatment of brewery wastewater according to claim 1, characterized in that: the side wall of the filter-pressing box (1) is provided with a sludge discharge port (21), and the lower surface of the sludge discharge port (21) and the upper surface of the lower end of the sludge guide plate (20) are positioned on the same plane.

6. The sludge filter press for the treatment of brewery wastewater according to claim 1, characterized in that: the side wall of filter-pressing case (1) is provided with drain pipe (22), and drain pipe (22) and filter-pressing case (1) intercommunication, be provided with the valve on drain pipe (22).
