Abstract
本实用新型公开了一种坚果生产用增湿灭菌装置，包括箱体，所述箱体的上端左右两侧均固定安装有隔离套，所述隔离套的内部底端固定安装有弹簧，所述弹簧的上端固定安装有限位块，所述弹簧的内侧设有压杆，所述压杆的一端固定安装有刮板，所述刮板边缘与所述箱体内壁贴合，另一端固定安装有手柄，所述箱体的内部设有传送带，所述箱体的左端通过折页活动安装有柜门，所述箱体的内部底端固定安装有过滤板，所述箱体的下端固定安装有支撑腿；该坚果生产用增湿灭菌装置，通过刮板在箱体内壁上下刮动来实现对附着滋生的水生物进行清理，保持了箱体内壁的洁净，通过手动操作压杆进行清理，既简单，又省力，有利于保障工作的效率。
The utility model discloses a humidifying and sterilizing device for nut production, comprising a box body, isolation sleeves are fixedly installed on the left and right sides of the upper end of the box body, and a spring is fixedly installed at the inner bottom end of the isolation sleeve, so that the The upper end of the spring is fixedly installed with a limit block, the inner side of the spring is provided with a pressure rod, one end of the pressure rod is fixedly installed with a scraper, the edge of the scraper is attached to the inner wall of the box, and the other end is fixedly installed There is a handle, the inside of the box body is provided with a conveyor belt, the left end of the box body is movably installed with a cabinet door, the bottom end of the box body is fixedly installed with a filter plate, and the lower end of the box body is fixedly installed There are support legs; this nut production humidification and sterilization device cleans the attached and bred aquatic organisms by scraping the scraper up and down the inner wall of the box, keeping the inner wall of the box clean, and cleaning by manually operating the pressure rod , which is simple and labor-saving, which is conducive to ensuring the efficiency of work.
Description
Technical Field
The utility model relates to a nut production technical field specifically is a humidification sterilizing equipment is used in nut production.
Background
Nuts, a classification of closed fruit, the peel is hard, contain 1 or more seeds, such as the fruits of Chinese chestnut, almond and the like, the nuts are the essential parts of plants, generally all are rich in nutrition, contain protein, grease, mineral substances and vitamins, have excellent effects on human growth and development, build up health and prevent diseases, after the nuts are picked, and before further deep processing, the nuts generally need to be humidified and sterilized to discharge, so as to meet the subsequent processing requirements, thereby ensuring the subsequent processing quality, the traditional humidification sterilization device has a single function, and due to the nature of the nuts, the nuts can be used for a long time in the humidification device, and the inner wall surface can be attached with growth aquatic organisms, such as irregular treatment, the nuts can be deteriorated in the device, the working yield is influenced, and the existing technology needs to be improved.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a nut production is with humidification degassing unit to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a humidification sterilizing equipment is used in nut production, includes the box, the equal fixed mounting in both sides has the separation sleeve about the upper end of box, the inside bottom fixed mounting of separation sleeve has the spring, the upper end fixed mounting of spring has the stopper, the inboard of spring is equipped with the depression bar, the one end fixed mounting of depression bar has the scraper blade, the scraper blade edge with the laminating of box inner wall, other end fixed mounting has the handle, the inside of box is equipped with the conveyer belt, the left end of box has the cabinet door through the movable mounting that folds paper, the inside bottom fixed mounting of box has the filter, the lower extreme fixed mounting of box has the supporting leg.
Preferably, the surface of conveyer belt is fixed and is installed a set of container body, the top fixed mounting of container body has the filter screen.
Preferably, a water tank is fixedly mounted at the upper end of the box body, a sprinkler head is fixedly mounted at the lower end of the water tank, and the sprinkler head is located at the upper end of the conveyor belt.
Preferably, the upper end of box is located the equal fixed mounting in water tank both ends has the power, the lower extreme fixed mounting of power has sterilamp, and is located the conveyer belt upper end, sterilamp's outer end fixed mounting has the lamp shade.
Preferably, the outer side wall of the cabinet door is provided with an observation port, transparent glass is fixedly embedded in the observation port, and the right end of the observation port is fixedly provided with a door handle.
Compared with the prior art, the beneficial effects of the utility model are that: this humidification sterilizing equipment is used in nut production scrapes through the scraper blade and moves to realize clearing up the aquatic thing that attaches to breed about the box inner wall, has kept the clean of box inner wall, clears up through the manually operation depression bar, and is both simple, laborsaving again, is favorable to the efficiency of guarantee work.
Drawings

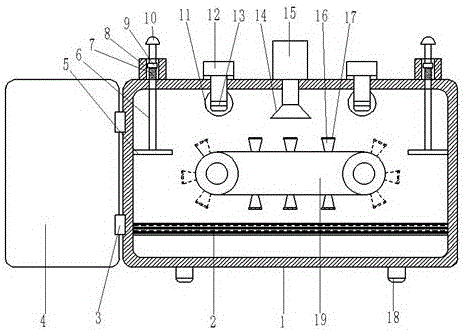

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic front view of the structure of the present invention.
In the figure: 1 box body, 2 filter plates, 3 hinges, 4 cabinet doors, 5 scrapers, 6 compression bars, 7 springs, 8 isolation sleeves, 9 limit blocks, 10 handles, 11 lampshades, 12 power supplies, 13 ultraviolet germicidal lamps, 14 sprinkler heads, 15 water tanks, 16 groups of container bodies, 17 filter screens, 18 support legs, 19 conveyor belts, 20 transparent glass and 21 door handles.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 and fig. 2, the present invention provides a technical solution: a humidifying and sterilizing device for nut production comprises a box body 1, wherein isolation sleeves 8 are fixedly mounted on the left side and the right side of the upper end of the box body 1, springs 7 are fixedly mounted at the bottom ends of the interiors of the isolation sleeves 8, limit blocks 9 are fixedly mounted at the upper ends of the springs 7, pressure rods 6 are arranged on the inner sides of the springs 7, scrapers 5 are fixedly mounted at one ends of the pressure rods 6, the edges of the scrapers 5 are attached to the inner wall of the box body 1, handles 10 are fixedly mounted at the other ends of the scrapers 5, a conveying belt 19 is arranged inside the box body 1, a cabinet door 4 is movably mounted at the left end of the box body 1 through a hinge 3, a filter plate 2 is fixedly mounted at the bottom end of the interior;
specifically, both ends fixed mounting about the upper surface of box 1 the separation sleeve 8, separation sleeve 8 is used for placing equipment such as depression bar, spring 7 is used for pushing down behind depression bar 6, the automatic return, stopper 9 is installed the first half of depression bar 6 is used for fixed and connection spring 7, filter 2 is used for the impurity that falls down from the upper end to keep apart, and liquid flows the bottom of box 1.
A group of container bodies 16 are fixedly arranged on the surface of the conveyor belt 19, and a filter screen 17 is fixedly arranged at the top end of each container body 16;
in particular, the conveyor belt 19 can drive the set of container bodies 16 to convey, so as to uniformly humidify and sterilize the nuts. The filter screen 17 is convenient for humidifying and sterilizing the nuts inside and can prevent the nuts from falling off when the conveying belt conveys the nuts to the lower end.
A water tank 15 is fixedly arranged at the upper end of the box body 1, a spraying head 14 is fixedly arranged at the lower end of the water tank 15, and the spraying head 14 is positioned at the upper end of the conveyor belt 19;
in particular, the spray head 14 is used to humidify nuts within a set of containers 16.
The upper end of the box body 1 is fixedly provided with a power supply 12 at both ends of the water tank 15, the lower end of the power supply 12 is fixedly provided with an ultraviolet germicidal lamp 13 and is positioned at the upper end of the conveyor belt 19, and the outer end of the ultraviolet germicidal lamp 13 is fixedly provided with a lampshade 11;
in particular, the UV germicidal lamp 13 is used to sterilize nuts within a set of containers 16.
The outer side wall of the cabinet door 4 is provided with an observation port, transparent glass 20 is fixedly embedded in the observation port, and the right end of the observation port is fixedly provided with a door handle 21;
specifically, when in operation, the inside of the cabinet can be observed through the transparent glass 20, and the door handle 21 facilitates opening and closing of the cabinet door 4.
The working principle is as follows: when the nut needs to be humidified and sterilized, the nut is placed in a group of container bodies 16, the cabinet door 4 is closed, the conveyor belt 19 is started, the sprinkler head 14 is started, the ultraviolet germicidal lamp 13 is started, the conveyor belt 19 conveys the nut, in the conveying process, redundant water in the group of container bodies 16 can be poured, the humidification and sterilization are carried out on the inside of the group of container bodies 16 through the sprinkler head 14 and the ultraviolet germicidal lamp 13, when the inside of the box body 1 needs to be cleaned, the handle 10 is pressed, the pressing rod moves downwards to drive the scraping plate 5 to move along the inner wall of the box body 1, the inner wall of the box body 1 can be cleaned completely, because the limiting block 9 drives the spring 7 to shrink when the pressing rod 6 moves downwards, because the elastic deformation of the spring 7 can return the pressing rod 6 when the handle 10 is loosened, the inner wall of the box body 1 can be quickly cleaned by repeating the process; the cleaning is carried out by manually operating the pressing rod, so that the cleaning device is simple, labor-saving and beneficial to ensuring the working efficiency.
