Abstract
本实用新型公开了一种灯具用快速对位结构，包括对位结构主体与灯具体，所述对位结构主体的下端四周均连接有一号固定杆，所述一号固定杆的下端插接有可滑动连接的一号连接杆，所述一号连接杆的下端连接有角度可调对位机构，所述灯具体位于角度可调对位机构的下方，所述灯具体的四周均连接有装配件。本实用新型所述的一种灯具用快速对位结构，设有角度可调对接机构与结构稳固机构，能够在灯具安装的时候，便于对安装的角度进行调节、对位，从而实现灯具安装时的快速对接，提高安装的效率，并能在灯具安装后，对其进行稳固，从而增加灯具整体的结构强度，保证安装的稳定性，带来更好的使用前景。
The utility model discloses a quick alignment structure for a lamp, which comprises a main body of the alignment structure and a lamp body, a No. A No. 1 connecting rod that can be slidably connected, the lower end of the No. 1 connecting rod is connected with an angle-adjustable alignment mechanism, the lamp is specifically located below the angle-adjustable alignment mechanism, and the lights are connected with a device around them. Accessories. The quick alignment structure for a lamp according to the utility model is provided with an angle-adjustable docking mechanism and a structure-stabilizing mechanism, which can facilitate the adjustment and alignment of the installation angle when the lamp is installed, so as to realize the installation of the lamp. The quick docking of the luminaire improves the efficiency of the installation, and can stabilize the luminaire after it is installed, thereby increasing the overall structural strength of the luminaire, ensuring the stability of the installation, and bringing better prospects for use.
Description
Technical Field
The utility model relates to a lamps and lanterns are with quick counterpoint structure field, in particular to lamps and lanterns are with quick counterpoint structure.
Background
The lamp is a lighting device which can make the light source reliably emit light to meet the light requirement when people are engaged in various activities, along with the continuous improvement of living standard of people, different kinds of lamps are also in endlessly, and in order to facilitate the rapid installation of the lamps, the rapid alignment structure for the lamps is provided.
There is certain drawback in current counterpoint structure when using, at first, when counterpointing lamps and lanterns, the counterpoint mode is single, be not convenient for adjust its position of counterpointing, thereby influence the efficiency of lamps and lanterns installation, certain adverse effect has, secondly, counterpoint structure is the effect that singly plays the counterpoint only, can not counterpoint the back at lamps and lanterns installation, stabilize it, performance is not strong, certain adverse effect has, certain influence has been brought to people's use, for this reason, we provide a lamps and lanterns with structure of counterpointing fast.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a lamps and lanterns are with quick counterpoint structure can effectively solve the problem in the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a lamps and lanterns are with quick counterpoint structure, includes the counterpoint structure main part and the lamp body, the lower extreme of counterpoint structure main part all is connected with the dead lever No. one all around, but the lower extreme of dead lever is pegged graft and is had a connecting rod of sliding connection, the lower extreme of a connecting rod is connected with angularly adjustable counterpoint mechanism, the lamp body is located angularly adjustable counterpoint mechanism's below, the specific all is connected with the assembly part all around of lamp, the surface of counterpoint structure main part is provided with the structure firm mechanism, the upper end of counterpoint structure main part is connected with the jib, the upper end of jib is connected with the mounting panel.
Preferably, the angularly adjustable counterpoint mechanism includes butt joint dish, carousel, butt joint spare and installation screw, the upper end of butt joint dish is provided with rotatable carousel, all be provided with the butt joint spare around the butt joint dish, the middle part of butt joint spare is vertical to be run through has rotatable installation screw.
Preferably, structure stabilizing mean includes well hollow plate, fastener, firm spring, firm reel, No. two connecting rods and No. two dead levers, the lower extreme of well hollow plate is equipped with No. two dead levers of two symmetries, but No. two connecting rods of sliding connection are pegged graft to the lower extreme of No. two dead levers, the lower extreme of No. two connecting rods is equipped with the firm reel that cup joints with the lamp body, the both sides of firm reel all are equipped with rotatable fastener, one side of fastener is provided with firm spring.
Preferably, be connected for rotating between butt joint dish and the carousel, be threaded connection between butt joint spare and the installation screw, the quantity of butt joint spare is four groups, is the symmetric distribution on the butt joint dish.
Preferably, be sliding connection between No. two connecting rods and No. two dead levers, be threaded connection between fastener and the firm reel, the quantity of fastener is two sets of, is the symmetric distribution on firm reel.
Preferably, the lamp body is fixedly connected with the assembly part, and the alignment structure body is fixedly connected with the hanger rod.
Compared with the prior art, the utility model discloses following beneficial effect has: the rapid alignment structure for the lamp can enable the alignment disc to rotate at the lower end of the rotary disc through the arranged angle-adjustable alignment mechanism, so that the angle of alignment installation of the lamp is convenient to adjust, then the installation screw on the alignment piece can be vertically screwed down to enable the alignment piece to be in butt joint with the assembly piece on the lamp body, thereby realizing rapid alignment and installation of the lamp body, enabling the alignment installation to be more flexible and being beneficial to people to use, through the arranged structure stabilizing mechanism, the stabilizing shaft disc can be sleeved on the lamp body after the lamp body is installed, then the position of the second connecting rod on the second fixing rod is adjusted to enable the stabilizing shaft disc to be arranged in the middle of the lamp body, then the fastening piece on the stabilizing shaft disc can be screwed down, the two sides of the lamp body are stabilized through the stabilizing spring on the fastening piece, and through the hollow plate externally connected with the lamp body and the stabilizing shaft disc externally connected with the alignment structure body, can increase its holistic structural strength, guarantee the stability of the specific butt joint installation of lamp, be favorable to people to use, whole lamps and lanterns are with quick counterpoint structure simple structure, convenient operation, and the effect of using is better for traditional mode.
Drawings

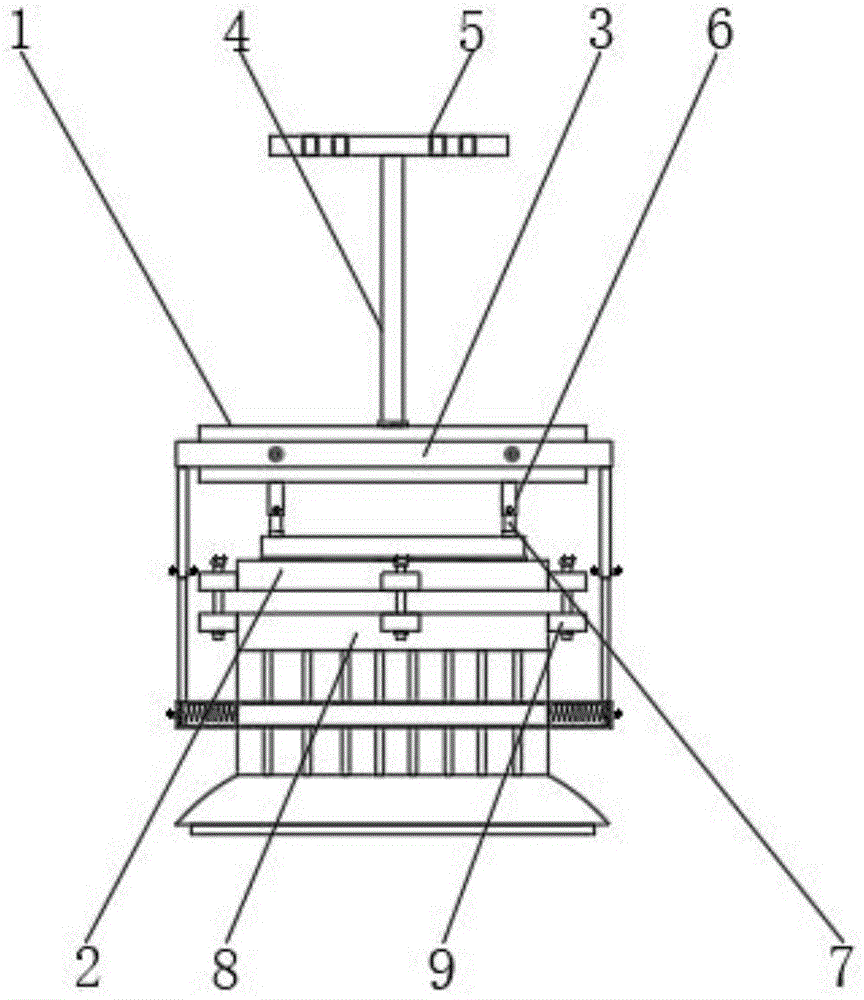

Fig. 1 is the utility model relates to a lamps and lanterns are with overall structure sketch map of quick counterpoint structure.
Fig. 2 is the utility model relates to a structure diagram of the adjustable angle docking mechanism 2 in fig. 1 of quick counterpoint structure for lamps and lanterns.
Fig. 3 is a schematic structural view of the structure stabilizing mechanism 3 in fig. 1 of the rapid alignment structure for a lamp of the present invention.
In the figure: 1. aligning the structure main body; 2. an angle-adjustable alignment mechanism; 201. a docking tray; 202. a turntable; 203. a docking member; 204. mounting screws; 3. a structure stabilizing mechanism; 301. a hollow plate; 302. a fastener; 303. a stabilizing spring; 304. a stable shaft disc; 305. a second connecting rod; 306. a second fixing rod; 4. a boom; 5. mounting a plate; 6. a first fixing rod; 7. a first connecting rod; 8. a lamp body; 9. And (7) assembling the components.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
As shown in fig. 1-3, a quick counterpoint structure for lamps and lanterns, including counterpoint structure main part 1 and the lamp body 8, the lower extreme of counterpoint structure main part 1 all is connected with dead lever 6 all around, the lower extreme of dead lever 6 is pegged graft and is had a connecting rod 7 of slidable connection, the lower extreme of connecting rod 7 is connected with angularly adjustable counterpoint mechanism 2, the lamp body 8 is located angularly adjustable counterpoint mechanism 2's below, all be connected with assembly part 9 around the lamp body 8, the surface of counterpoint structure main part 1 is provided with structure stabilizing mean 3, the upper end of counterpoint structure main part 1 is connected with jib 4, the upper end of jib 4 is connected with mounting panel 5.
Further, angularly adjustable counterpoint mechanism 2 includes to the dish 201, carousel 202, butt joint piece 203 and installation screw 204, the upper end of butt joint dish 201 is provided with rotatable carousel 202, all be provided with butt joint piece 203 around the dish 201, the vertical penetration in middle part of butt joint piece 203 has rotatable installation screw 204, can make butt joint dish 201 rotate at the lower extreme of carousel 202, thereby be convenient for adjust the angle of lamps and lanterns counterpoint installation, then can vertically screw up installation screw 204 on the butt joint piece 203 and make its assembly part 9 with on the lamp body 8 dock, thereby realize counterpointing fast to the lamp body 8, install, can make the installation of counterpointing become more nimble, be favorable to people to using.
Further, the structure stabilizing mechanism 3 comprises a hollow plate 301, a fastening piece 302, a stabilizing spring 303, a stabilizing shaft disc 304, a second connecting rod 305 and a second fixing rod 306, the lower end of the hollow plate 301 is provided with the two symmetrical second fixing rods 306, the lower end of the second fixing rod 306 is inserted with the slidably connected second connecting rod 305, the lower end of the second connecting rod 305 is provided with the stabilizing shaft disc 304 sleeved with the lamp body 8, both sides of the stabilizing shaft disc 304 are provided with the rotatable fastening pieces 302, one side of the fastening piece 302 is provided with the stabilizing spring 303, the stabilizing shaft disc 304 can be sleeved on the lamp body 8 after the lamp body 8 is installed, then the position of the second connecting rod 305 on the second fixing rod 306 is adjusted, the stabilizing shaft disc 304 is arranged in the middle of the lamp body 8, then the fastening piece 302 on the stabilizing shaft disc 304 can be screwed, both sides of the lamp body 8 are stabilized by the stabilizing spring 303 on the fastening piece 302, through counterpointing the external well hollow plate 301 of main structure body 1 and the external firm reel 304 of the external of the lamp body 8, can increase its holistic structural strength, guarantee the stability of the butt joint installation of the lamp body 8, be favorable to people to use.
Further, the butt joint discs 201 are rotatably connected with the rotary disc 202, the butt joint pieces 203 are in threaded connection with the mounting screws 204, the number of the butt joint pieces 203 is four, and the butt joint discs 201 are symmetrically distributed.
Furthermore, the second connecting rod 305 is slidably connected with the second fixing rod 306, the fastening members 302 are threadedly connected with the fixing shaft disc 304, and the number of the fastening members 302 is two, and the fastening members are symmetrically distributed on the fixing shaft disc 304.
Further, the lamp body 8 is fixedly connected with the assembly part 9, and the alignment structure body 1 is fixedly connected with the hanger rod 4.
The utility model discloses theory of operation and use flow: when the lamp body 8 is used, in order to facilitate the rapid alignment and installation of the lamp body 8, the butt joint disc 201 can be rotated at the lower end of the turntable 202, so that the angle of the lamp alignment installation can be adjusted conveniently, then the installation screw 204 on the butt joint piece 203 can be vertically screwed down to enable the butt joint piece to be in butt joint with the assembly piece 9 on the lamp body 8, so that the rapid alignment and installation of the lamp body 8 can be realized, the alignment installation becomes more flexible, in order to ensure the alignment and installation stability of the lamp body 8, after the lamp body 8 is installed, the stabilizing shaft disc 304 can be sleeved on the lamp body 8, then the position of the second connecting rod 305 on the second fixing rod 306 is adjusted, the stabilizing shaft disc 304 is arranged in the middle of the lamp body 8, then the fastener 302 on the stabilizing shaft disc 304 can be screwed down, the two sides of the lamp body 8 are stabilized through the stabilizing spring 303 on the fastener 302, through counterpointing the external well hollow plate 301 of main structure body 1 and the external firm reel 304 of the external of the lamp body 8, can increase its holistic structural strength, guarantee the stability of the butt joint installation of the lamp body 8, be favorable to people to use.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
