Abstract
The utility model discloses an universal material guiding mechanism that pushes away relates to and pushes away material adjustment technical field. The utility model discloses a base, the activity bolt, push away material bolt and fastening nut, the base upper surface is provided with the slip recess, install movable bolt in the slip recess, the surface all is provided with the screw hole about the activity bolt, the base upper surface is connected with and pushes away the material bolt, it is provided with the push-and-pull groove to push away material bolt upper surface, install fastening nut in the push-and-pull groove, and fastening nut runs through the push-and-pull groove and installs in the threaded hole of activity bolt, activity bolt and base sliding fit push away material bolt and fastening nut sliding fit, fastening nut and activity bolt screw-thread fit. The utility model designs a structure, the main structure is aluminum material, the weight is light, the adjusting mechanism is a straight-pull structure, the structure is simple and clear, safe and reliable; the utility model has the advantages of few parts, simple manufacturing process, simple assembly and convenient operation, and meets the production requirements of the existing companies.
Description
Technical Field
The utility model belongs to the technical field of push away the material adjustment, especially relate to an universal material guiding mechanism that pushes away.
Background
At present, on a general conveying line, a pushing mechanism in the conveying direction needs to move in two directions to push materials to a workbench position, and when products on a production line are operated, the products are mostly positioned by adopting the pushing mechanism.
Because the existing production equipment has complex mechanism, poor reliability and inconvenient operation, no related product is available in the market at present.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an universal pushing material guiding mechanism, it is complicated to solve current pushing material adjusting mechanism, and the reliability is poor, the problem of the inconvenient operation of operation.
In order to solve the technical problem, the utility model discloses a realize through following technical scheme:
the utility model relates to an universal pushing adjusting mechanism, include base, activity bolt, push away material bolt and fastening nut, the base upper surface is provided with the slip recess, install movable bolt in the slip recess, the surface all is provided with the screw hole about the activity bolt, the base upper surface is connected with and pushes away the material bolt, it is provided with the push-and-pull groove to push away material bolt upper surface, install fastening nut in the push-and-pull inslot, just fastening nut runs through the threaded hole that the push-and-pull groove was installed at activity bolt.
Preferably, the movable bolt is in sliding fit with the base, and the movable bolt is in sliding fit with the base, so that the left position and the right position of the bolt can be conveniently adjusted before a fastening screw is not arranged.
Preferably, the pushing bolt is in sliding fit with the fastening nut, and the pushing bolt is in sliding fit with the fastening nut, so that the front position and the rear position of the bolt can be conveniently adjusted before a fastening screw is not arranged.
Preferably, the fastening nut is in threaded fit with the movable bolt, and the fastening nut is in threaded fit with the movable bolt, so that the pushing bolt and the movable bolt are conveniently fastened together, the assembly is convenient, the assembly efficiency is effectively improved, and the cost is reduced.
The utility model discloses following beneficial effect has:
the utility model is provided with the movable bolt which is matched with the base in a sliding way, so that the left and right positions of the bolt can be conveniently adjusted before the fastening screw is not arranged; through the arrangement of the material pushing bolt in sliding fit with the fastening nut, the front and rear positions of the bolt can be conveniently adjusted before a fastening screw is not arranged; by arranging the fastening nut to be in threaded fit with the movable bolt, the material pushing bolt and the movable bolt are conveniently fastened together, the assembly is convenient, the assembly efficiency is effectively improved, and the cost is reduced; the utility model designs a structure, the main structure is aluminum material, the weight is light, the adjusting mechanism is a straight-pull structure, the structure is simple and clear, safe and reliable; the utility model has the advantages of few parts, simple manufacturing process, simple assembly and convenient operation, and meets the production requirements of the existing companies.
Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

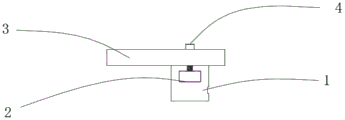

FIG. 1 is an exploded view of the components of the present invention;
FIG. 2 is a schematic diagram of the present invention;
FIG. 3 is a schematic diagram of the adjustment of the present invention;
fig. 4 is a schematic top view of the present invention.
In the drawings, the components represented by the respective reference numerals are listed below: 1. a base; 2. a movable bolt; 3. a pushing bolt; 4. and (5) tightening the nut.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "upper", "middle", "outer", "inner", and the like, indicate positional or positional relationships, are merely for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the referenced components or elements must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Please refer to fig. 1-4, the utility model relates to an universal pushing material guiding mechanism, including base 1, activity bolt 2, push away material bolt 3 and fastening nut 4, the base 1 upper surface is provided with the slip recess, installs activity bolt 2 in the slip recess, and activity bolt 2 upper and lower surface all is provided with the screw hole, and base 1 upper surface is connected with and pushes away material bolt 3, pushes away material bolt 3 upper surface and is provided with the push-and-pull groove, installs fastening nut 4 in the push-and-pull groove, and fastening nut 4 runs through the push-and-pull groove and installs in the screw hole of activity bolt 2.
Further, activity bolt 2 and base 1 sliding fit through setting up activity bolt 2 and base 1 sliding fit, before not having fastening screw, make things convenient for the regulation of the left and right sides position of bolt.
Furthermore, the pushing bolt 3 is in sliding fit with the fastening nut 4, and the pushing bolt 3 is in sliding fit with the fastening nut 4, so that the front position and the rear position of the bolt can be conveniently adjusted before a fastening screw is not arranged.
Further, the fastening nut 4 is in threaded fit with the movable bolt 2, and the fastening nut 4 is in threaded fit with the movable bolt 2, so that the pushing bolt 3 and the movable bolt 2 are conveniently fastened together, assembly is facilitated, assembly efficiency is effectively improved, and cost is reduced.
Example (b):
the following is a specific implementation method of the universal pushing material adjusting mechanism: when using the utility model discloses the time: firstly, the movable bolt 2 is placed in a sliding groove of the base 1, the movable bolt 2 is slid according to actual needs, the position of the movable bolt is adjusted, then the pushing bolt 3 is placed on the upper surface of the base 1, the push-pull groove of the pushing bolt 3 penetrates through the fastening nut 4 to the threaded hole of the movable bolt 2, and the push-pull bolt 3 is fastened.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
Claims (4)
1. The utility model provides an universal material pushing adjusting mechanism, includes base (1), activity bolt (2), pushes away material bolt (3) and fastening nut (4), its characterized in that: the improved bolt pushing device is characterized in that a sliding groove is formed in the upper surface of the base (1), a movable bolt (2) is installed in the sliding groove, threaded holes are formed in the upper surface and the lower surface of the movable bolt (2), the upper surface of the base (1) is connected with a pushing bolt (3), a push-pull groove is formed in the upper surface of the pushing bolt (3), a fastening nut (4) is installed in the push-pull groove, and the fastening nut (4) penetrates through the push-pull groove and is installed in the threaded hole of the movable bolt (2).
2. The universal pushing adjustment mechanism according to claim 1, wherein the movable latch (2) is slidably engaged with the base (1).
3. The universal pushing adjusting mechanism according to claim 1, wherein the pushing bolt (3) is in sliding fit with the fastening nut (4).
4. The universal pushing adjustment mechanism according to claim 1, wherein the fastening nut (4) is in threaded engagement with the movable bolt (2).
