Abstract
The utility model belongs to the technical field of generator maintenance equipment and specifically relates to a generator maintenance operation panel is including erecting roof beam, crossbeam and mobilizable bottom plate, the bottom plate is located two and erects between the roof beam, and two upper ends of erecting the roof beam are through crossbeam fixed connection, erect the roof beam and offer flutedly towards the rear side, the first motor of bottom surface fixedly connected with pivot up of recess, the pivot fixedly connected with lead screw of motor, the vertical slide rail of side inner wall fixedly connected with of recess, the cooperation is equipped with the slip table on the slide rail, set up the screw on the slip table, the lead screw pass the screw and with screw-thread fit, a side fixed connection backup pad of recess is kept away from to the slip. The use of this device can utilize the lift of backup pad to rise the operation workman to make things convenient for the workman to remove to generator upper portion or directly maintain generator upper portion in the backup pad, reduce time and physical power that the workman scrambleed the generator consumption, prevent the risk that falls to appear when the climbing simultaneously.
Description
Technical Field
The utility model belongs to generator maintenance equipment, specifically speaking are generator maintenance operation panel.
Background
The generator is mechanical equipment which converts other forms of energy into electric energy, is driven by a water turbine, a steam turbine, a diesel engine or other power machines, converts energy generated by water flow, air flow, fuel combustion or nuclear fission into mechanical energy and transmits the mechanical energy to the generator, and then the generator converts the mechanical energy into electric energy.
The power generator is classified into a small power generator and a large power generator, wherein the power generator in the power plant is generally mainly the large power generator. When the large-scale generator is maintained, the large-scale generator is often placed on an operation table for maintenance, part of workers, close to the ground, of objects can stand on the ground for maintenance, and to a higher place, workers are required to climb up for maintenance, the climbing process wastes time and physical force of the workers, and meanwhile, the large-scale generator stands on the generator and is maintained easily to cause falling danger.
SUMMERY OF THE UTILITY MODEL
The utility model provides a generator maintenance operation panel for solve the defect among the prior art.
The utility model discloses a following technical scheme realizes:
the utility model provides a generator maintenance operation panel, is including erecting roof beam, crossbeam and mobilizable bottom plate, the bottom plate is located two and erects between the roof beam, and crossbeam fixed connection is passed through to two upper ends of erecting the roof beam, erect the roof beam and set up flutedly towards the rear side, the bottom surface fixedly connected with pivot motor up of recess, the pivot fixedly connected with lead screw of motor, the vertical slide rail of side inner wall fixedly connected with of recess cooperates on the slide rail and is equipped with the slip table, set up the screw on the slip table, the lead screw pass the screw and with screw thread fit, a side fixed connection backup pad of recess is kept away from to the slip table.
This device is when using, move the generator to the bottom plate on, then remove the bottom plate and make the bottom plate place between erecting the roof beam, when needs maintain the generator eminence, the workman sits or stand in the backup pad, start first motor, the rotation of first motor shaft drives the rotation of lead screw, because screw thread fit and slip table on lead screw and the slip table slide from top to bottom along erecting the roof beam under the injecing of slide rail, thereby the rotation of lead screw drives the slip table and upwards removes, the rebound of slip table drives backup pad rebound, the rebound of backup pad drives workman rebound, reach required position after close the motor, thereby the workman can stand or sit maintenance generator corresponding side in the backup pad.
Preferably, the bottom plate is of a trapezoidal structure, the inclined planes are distributed at the front position and the rear position of the bottom plate, and lockable universal wheels are arranged at four corners of the bottom plate. The universal wheels are arranged at four corners of the bottom plate, so that the bottom plate can be conveniently moved back and forth and left and right between the vertical beams, the bottom plate is convenient to be close to workers, and the workers can conveniently move to the generator from the supporting plate.
Preferably, a transverse electric telescopic rod is arranged on the side face of the lower portion of the vertical beam, a connecting plate is arranged on the side face of the bottom plate, a sliding block is longitudinally connected to the connecting plate in a sliding mode, and the sliding block is fixedly connected with the movable end of the electric telescopic rod. The transverse movement of the sliding block can be driven by controlling the extension and the shortening of the electric telescopic rod so as to drive the transverse movement of the bottom plate, wherein the sliding block can move longitudinally along the connecting plate, so that the electric telescopic rod for the bottom plate can be ensured not to influence the longitudinal movement of the bottom plate.
Preferably, the bottom surface of the bottom plate is provided with a mounting groove with a downward opening, the inner wall of the top surface of the mounting groove is transversely provided with a rack with teeth facing downwards, the ground is provided with a second motor, a rotating shaft of the second motor is fixedly connected with a gear, and the gear is meshed with the rack. And the second motor is started, the rotation of a rotating shaft of the second motor drives the gear to rotate, and the rotation of the gear drives one end of the rack, so that the back and forth movement of the bottom plate is realized, the back and forth movement of the generator device is further driven, and the change of the maintenance position is realized.
Preferably, the width of the rack is larger than the distance that the electric telescopic rod can extend. When the electric telescopic rod drives the bottom plate to transversely move, the gear and the teeth are in a meshed state, so that the bottom plate can move back and forth conveniently.
Preferably, the baffle is vertically connected to the supporting plate. The baffle can play the effect of blockking to the workman, prevents that the workman from stepping on empty or sitting empty under the foot.
Preferably, the beam is provided with a hook device and a lighting lamp. The lifting hook device is convenient for workers to lift parts needing lifting, and the illuminating lamp provides light and is convenient to maintain.
The utility model has the advantages that: the use of this device can utilize the lift of backup pad to rise the operation workman to make things convenient for the workman to remove to generator upper portion or directly maintain generator upper portion in the backup pad, reduce time and physical power that the workman scrambleed the generator consumption, prevent the risk that falls to appear when the climbing simultaneously.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive labor.
Fig. 1 is a schematic structural diagram of the present invention;

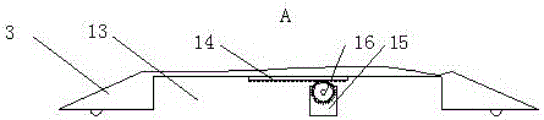

FIG. 2 is a view in the direction A of FIG. 1;
fig. 3 is a view from direction B of fig. 1.
Shown in the figure:
1. vertical beam, 2, crossbeam, 3, bottom plate, 4, recess, 5, first motor, 6, lead screw, 7, slide rail, 8, slip table, 9, backup pad, 10, universal wheel, 11, electric telescopic handle, 12, slider, 13, mounting groove, 14, rack, 15, second motor, 16, gear, 17, baffle, 18, hook assembly, 19, light.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
A generator service console, as shown in fig. 1-3. Including erecting roof beam 1, crossbeam 2 and mobilizable bottom plate 3, bottom plate 3 is located two and erects between the roof beam 1, and two upper ends of erecting roof beam 1 are through crossbeam 2 fixed connection, erect roof beam 1 and seted up recess 4 towards the hou mian side, the first motor 5 of bottom surface fixedly connected with pivot up of recess 4, the pivot fixedly connected with lead screw 6 of motor, the vertical slide rail 7 of side inner wall fixedly connected with of recess 4, the cooperation is equipped with slip table 8 on the slide rail 7, set up the screw on the slip table 8, lead screw 6 pass the screw and with screw thread fit, a side fixed connection backup pad 9 of recess 4 is kept away from to slip table 8.
The bottom plate 3 is in a trapezoidal structure, the inclined planes are distributed at the front and the rear positions of the bottom plate 3, and lockable universal wheels 10 are arranged at the four corners of the bottom plate 3. The side of the lower part of the vertical beam 1 is provided with a transverse electric telescopic rod 11, the side of the bottom plate 3 is provided with a connecting plate, the connecting plate is longitudinally connected with a sliding block 12 in a sliding manner, and the sliding block 12 is fixedly connected with the movable end of the electric telescopic rod 11. The bottom surface of the bottom plate 3 is provided with a mounting groove 13 with a downward opening, the inner wall of the top surface of the mounting groove 13 is transversely provided with a rack 14 with downward teeth, the ground is provided with a second motor 15, a rotating shaft of the second motor 15 is fixedly connected with a gear 16, and the gear 16 is meshed with the rack 14. Wherein the width of the rack 14 is larger than the distance that the electric telescopic rod 11 can extend.
When the device is used, the generator is moved to the bottom plate 3, wherein the front and the back of the bottom plate 3 are inclined planes, so that the generator can be conveniently conveyed to the bottom plate 3. The universal wheel 10 is enabled to be in a movable state, then the second motor 15 is started, the rotation of the rotating shaft of the second motor 15 drives the gear 16 to rotate, the rotation of the gear 16 drives the rack 14 to move, and further drives the bottom plate 3 to move back and forth, so that the bottom plate 3 is placed between the vertical beams 1 and is locked by the universal wheel 10. When needs maintain the generator eminence, the workman sits or stands in backup pad 9, start first motor 5, the rotation of first motor 5 pivot drives the rotation of lead screw 6, because screw thread fit and slip table 8 on lead screw 6 and slip table 8 are along erecting 1 vertical beams and sliding from top to bottom of injecing of slide rail 7, thereby the rotation of lead screw 6 drives slip table 8 rebound, the rebound of slip table 8 drives backup pad 9 rebound, the rebound of backup pad 9 drives workman rebound, close the motor after reacing required position, thereby the workman can stand or sit maintenance generator on backup pad 9 and correspond the side.
When a worker needs to maintain the generator, the universal wheel 10 is adjusted to be in a non-locking state, then the supporting plate 9 is lifted to a required height, the electric telescopic rod 11 is started, the electric telescopic rod 11 is extended and shortened to drive the bottom plate 3 to transversely move, so that the bottom plate 3 is close to the worker, and the worker can conveniently move to the upper part of the generator.
The width of the rack 14 is larger than the distance that the electric telescopic rod 11 can extend. When the electric telescopic rod 11 drives the bottom plate 3 to transversely move, the gear 16 and the teeth are in a meshed state, so that the bottom plate 3 can move back and forth conveniently. And the movable end of the electric telescopic rod 11 is fixedly connected on the sliding table 8 which can longitudinally slide, so that the electric telescopic rod 11 can not influence the longitudinal movement of the bottom plate 3.
The baffle 17 is vertically connected with the supporting plate. The baffle 17 can play the effect of stopping to the workman, prevents that the workman from stepping on empty or sitting empty under the foot.
The beam 2 is provided with a hook device 18 and a lighting lamp 19. The lifting hook device 18 is convenient for workers to lift the parts needing to be lifted, and the illuminating lamp 19 provides light to facilitate maintenance.
The use of this device can utilize the lift of backup pad 9 to rise the operation workman to make things convenient for the workman to remove to generator upper portion or directly maintain generator upper portion in backup pad 9, reduce time and physical power that the workman scrambleed the generator consumption, prevent the risk that falls simultaneously to appear when the climbing.
Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.
Claims (7)
1. A generator maintenance operation panel which characterized in that: including erecting roof beam, crossbeam and mobilizable bottom plate, the bottom plate is located two and erects between the roof beam, and crossbeam fixed connection is passed through to the upper end of two perpendicular roof beams, erect the roof beam and set up flutedly towards the hou mian side, the first motor of bottom surface fixedly connected with pivot up of recess, the pivot fixedly connected with lead screw of motor, the vertical slide rail of side inner wall fixedly connected with of recess, the cooperation is equipped with the slip table on the slide rail, set up the screw on the slip table, the lead screw pass the screw and with screw thread fit, a side fixed connection backup pad of recess is kept away from to the slip table.
2. The generator service console of claim 1, wherein: the bottom plate is of a trapezoidal structure, the inclined planes of the bottom plate are distributed at the front position and the rear position of the bottom plate, and lockable universal wheels are arranged at four corners of the bottom plate.
3. The generator service console of claim 2, wherein: the side of the lower portion of the vertical beam is provided with a transverse electric telescopic rod, the side of the bottom plate is provided with a connecting plate, the connecting plate is longitudinally connected with a sliding block in a sliding mode, and the sliding block is fixedly connected with the movable end of the electric telescopic rod.
4. The generator service console of claim 3, wherein: the bottom surface of bottom plate sets up the downward mounting groove of opening, the top surface inner wall of mounting groove transversely is provided with the rack that the tooth is down, and subaerial is provided with the second motor, and the pivot of second motor links firmly and connects the gear, gear and rack toothing.
5. The generator service console of claim 4, wherein: the width of the rack is larger than the distance that the electric telescopic rod can extend.
6. The generator service console of claim 1, wherein: the outer end of the supporting plate is vertically connected with a baffle.
7. The generator service console of claim 1, wherein: and the beam is provided with a lifting hook device and a lighting lamp.
