CN212887892U

CN212887892U - A cutting equipment for PVC plastic processing

Info

Publication number: CN212887892U
Application number: CN202021380343.2U
Authority: CN
Inventors: 王勇
Original assignee: Kunshan Yuhuihong Applied Materials Co ltd
Current assignee: Kunshan Yuhuihong Applied Materials Co ltd
Priority date: 2020-07-14
Filing date: 2020-07-14
Publication date: 2021-04-06
Anticipated expiration: 2030-07-14

Abstract

The utility model discloses a cutting device for PVC plastic processing, which comprises a workbench, the bottoms of the two sides of the workbench are fixedly connected with uprights, the bottoms of the uprights are fixedly connected with a base, and the top of the workbench is fixedly connected with a base. A support frame is fixedly connected, the gap of the support frame is fixedly connected with a first sliding rod and a second sliding rod, and a supporting device is slidably connected with the first sliding rod and the second sliding rod. The utility model relates to the technical field of plastic processing . The cutting equipment for PVC plastic processing achieves that a support device is arranged above the worktable, which is convenient for supporting the surface of the worktable, and the support device can slide, adjust the position of the support device, and squeeze the plastic plate. Press and fix, convenient for staff to cut, improve cutting efficiency, set up extrusion device, easy to lift up the plastic plate, convenient for staff to take, improve work efficiency, and meet the purpose of use.

Description

A cutting equipment for PVC plastic processing

Technical Field

The utility model relates to a plastic processing technology field specifically is a cutting equipment for PVC plastic processing.

Background

The PVC plastic floor is made of polyvinyl chloride serving as a base material, does not contain any radioactive element, and is excellent in environmental protection performance. The PVC plastic floor also has excellent wear resistance, and the surface of the PVC plastic floor is provided with a wear-resistant layer which is processed by high technology, and the wear-resistant revolution number can reach 30W. The PVC plastic floor has excellent fireproof performance, can reach B1 level, can not burn when exposed to fire, and has the fireproof performance second to that of stone. At present, current cutting equipment for PVC plastic processing is at the in-process that cuts, can not extrude fixedly to the PVC plastic slab, leads to whole at the in-process of cutting, takes place to rock easily, influences the cutting effect, and the plastic slab after the cutting, is not convenient for take, wastes time and energy, can't satisfy the user demand.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides a cutting equipment for PVC plastic processing has solved current cutting equipment for PVC plastic processing, at the in-process that cuts, can not extrude fixedly to the PVC plastic slab, leads to wholly at the in-process of cutting, takes place easily to rock, influences the cutting effect, and the plastic slab after the cutting, is not convenient for take, wastes time and energy, can't satisfy the problem of user demand.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a cutting equipment for PVC plastic processing, includes the workstation, the both sides bottom fixedly connected with stand of workstation, the bottom fixedly connected with base of stand, the top fixedly connected with support frame of workstation, first slide bar of clearance fixedly connected with, second slide bar of support frame, first slide bar, second slide bar sliding connection have strutting arrangement, strutting arrangement is corresponding with the top of workstation.

Preferably, the supporting device comprises a sliding block, the sliding block is connected with the first sliding rod and the second sliding rod in a sliding mode, the bottom fixedly connected with fixing frame of the sliding block is connected with a moving rod in a sliding mode, the top fixedly connected with stop block of the moving rod is connected with a pull ring, the bottom fixedly connected with connecting plate of the moving rod is connected with a supporting spring, the supporting spring is connected with the moving rod in a sleeved mode, the bottom fixedly connected with extrusion rod of the connecting plate is connected with an extrusion block, and the extrusion block corresponds to the surface of the workbench.

Preferably, a butterfly nut is arranged at the top of the sliding block, and the sliding block reinforces the first sliding rod through the butterfly nut.

Preferably, the surface of the workbench is provided with a squeezing device.

Preferably, the extrusion device includes the baffle, the top fixedly connected with push rod of baffle, push rod and workstation sliding connection, the top fixedly connected with layer board of push rod, the installation is inlayed with the workstation to the layer board, the top fixedly connected with reset spring of baffle, reset spring cup joints with the push rod.

(III) advantageous effects

The utility model provides a cutting equipment for PVC plastic processing, constitute a whole through workstation, the stand, a pedestal, the support frame, first slide bar, the second slide bar, strutting arrangement, set up strutting arrangement in the top of workstation, be convenient for support the workstation surface, and strutting arrangement can slide, adjust strutting arrangement's position, facilitate the use, when needs extrude the solid to the plastic slab, pulling the pull ring, drive the dog upward movement, drive the motion pole motion, drive the connecting plate motion, increase the elastic potential energy of supporting spring, drive the extrusion pole upward movement, drive the extrusion piece motion, lift the extrusion piece, and then remove the slider, adjust the position of extrusion piece, loosen the pull ring, supporting spring elastic potential energy turns into kinetic energy, drive the extrusion piece and reset, extrude the solid to the plastic slab, make things convenient for the staff to cut, improve work efficiency, set up the extrusion device, be convenient for jack-up the plastic slab at workstation top, make things convenient for the staff to take, upwards push away the baffle, drive the push rod motion, drive the layer board motion, increase reset spring's elastic potential energy, jack-up the plastic slab, make things convenient for the staff to take, improve work efficiency, reached and set up strutting arrangement in the top of workstation, be convenient for support the workstation surface, and strutting arrangement can slide, adjustment strutting arrangement's position, it is fixed to extrude the plastic slab, make things convenient for the staff to cut, improve cutting efficiency, set up the extrusion device, be convenient for jack-up the plastic slab, make things convenient for the staff to take, improve work efficiency, satisfy user demand's purpose.

Drawings

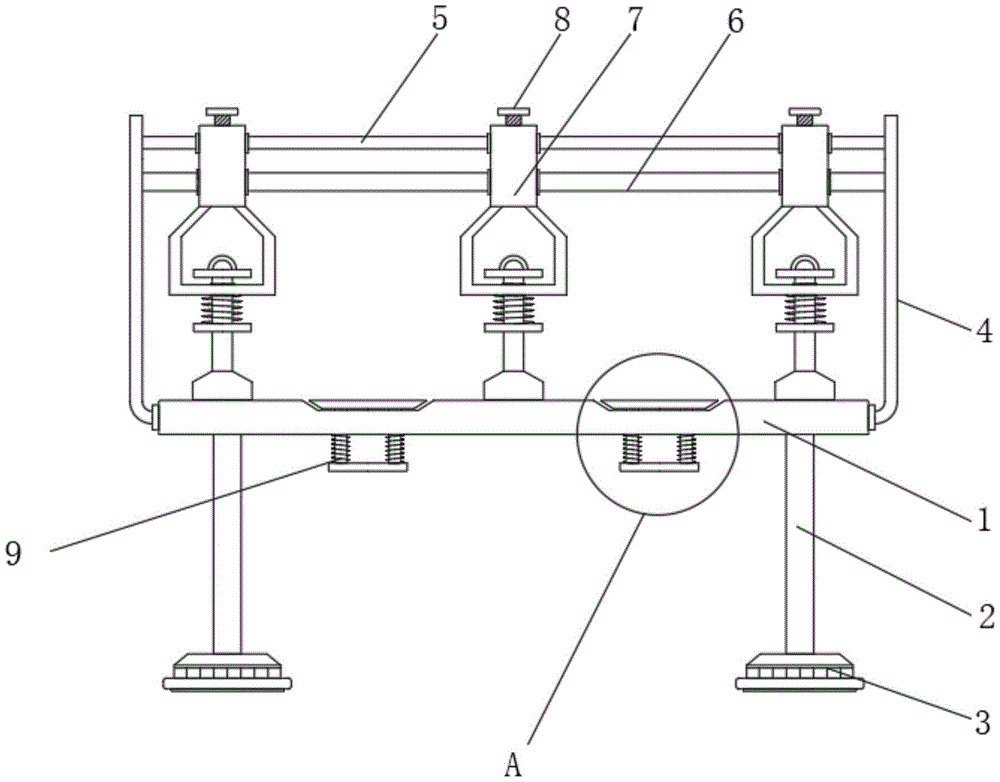

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic structural view of the supporting device of the present invention;

fig. 3 is a schematic view of a part of an enlarged structure of fig. 1 according to the present invention.

In the figure: 1. a work table; 2. a column; 3. a base; 4. a support frame; 5. a first slide bar; 6. a second slide bar; 7. a support device; 71. a slider; 72. a fixed mount; 73. a motion bar; 74. a stopper; 75. a pull ring; 76. a connecting plate; 77. a support spring; 78. an extrusion stem; 79. extruding the block; 8. a butterfly nut; 9. an extrusion device; 91. a baffle plate; 92. a push rod; 93. a support plate; 94. a return spring.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a cutting equipment for PVC plastic processing, includes workstation 1, the both sides bottom fixedly connected with stand 2 of workstation 1, the bottom fixedly connected with base 3 of stand 2, the top fixedly connected with support frame 4 of workstation 1, the first slide bar 5 of clearance fixedly connected with, second slide bar 6 of support frame 4,

first slide bar

5, 6 sliding connection of second slide bar have strutting arrangement 7, strutting arrangement 7 is corresponding with the top of workstation 1.

In this embodiment: workstation 1, stand 2, base 3, support frame 4, first slide bar 5, second slide bar 6, strutting arrangement 7 constitute a whole, set up strutting arrangement 7 in the top of workstation 1, are convenient for support 1 surface of workstation, and strutting arrangement 7 can slide, and adjustment strutting arrangement 7's position facilitates the use.

Specifically, the supporting device 7 includes a slider 71, the slider 71 is slidably connected to the first sliding rod 5 and the second sliding rod 6, the bottom fixedly connected to the fixing frame 72 of the slider 71, the bottom slidably connected to the fixing frame 72 is connected to the moving rod 73, the top fixedly connected to the stopper 74 of the moving rod 73 is connected to the pull ring 75, the bottom fixedly connected to the connecting plate 76 of the moving rod 73 is connected to the top fixedly connected to the supporting spring 77 of the connecting plate 76, the supporting spring 77 is connected to the moving rod 73 in a sleeved manner, the bottom fixedly connected to the extrusion rod 78 of the connecting plate 76 is connected to the bottom fixedly connected to the extrusion block 79 of the extrusion rod 78, and the extrusion block 79 is corresponding to the surface of the workbench 1.

In this embodiment: when the plastic plate needs to be extruded and fixed, the pull ring 75 is pulled, the stop block 74 is driven to move upwards, the moving rod 73 is driven to move, the connecting plate 76 is driven to move, the elastic potential energy of the supporting spring 77 is increased, the extrusion rod 78 is driven to move upwards, the extrusion block 79 is driven to move, the extrusion block 79 is lifted, the sliding block 71 is further moved, the position of the extrusion block 79 is adjusted, the pull ring 75 is loosened, the elastic potential energy of the supporting spring 77 is converted into kinetic energy, the extrusion block 79 is driven to reset, the plastic plate is extruded and fixed, a worker can cut conveniently, and the working efficiency is improved.

Specifically, a wing nut 8 is arranged at the top of the sliding block 71, and the sliding block 71 reinforces the first sliding rod 5 through the wing nut 8.

In this embodiment: the butterfly nut 8 is arranged, so that the sliding block 71 is convenient to fix, and the stability of the supporting device 7 is improved.

Specifically, the surface of the table 1 is provided with a pressing device 9.

In this embodiment: the extrusion device 9 is arranged, so that the plastic plate can be jacked up conveniently and can be taken conveniently.

Specifically, extrusion device 9 includes baffle 91, and the top fixedly connected with push rod 92 of baffle 91,

push rod

92 and 1 sliding connection of workstation, the top fixedly connected with layer board 93 of push rod 92, the installation is inlayed with workstation 1 to layer board 93, and the top fixedly connected with reset spring 94 of baffle 91, reset spring 94 cup joint with push rod 92.

In this embodiment: upwards push up baffle 91, drive the motion of push rod 92, drive layer board 93 and move, increase reset spring 94's elastic potential energy, jack-up the plastic slab, make things convenient for the staff to take, improve work efficiency.

When the plastic plate extruding device is used, the extruding block 79 is lifted, a plastic plate to be processed is placed, the pull ring 75 is pulled to drive the stop block 74 to move upwards, the moving rod 73 is driven to move, the connecting plate 76 is driven to move, the elastic potential energy of the supporting spring 77 is increased, the extruding rod 78 is driven to move upwards, the extruding block 79 is driven to move, the extruding block 79 is lifted, the sliding block 71 is further moved, the position of the extruding block 79 is adjusted, the pull ring 75 is loosened, the elastic potential energy of the supporting spring 77 is converted into kinetic energy, the extruding block 79 is driven to reset, the plastic plate is extruded and fixed, a worker can conveniently cut the plastic plate, the working efficiency is improved, the butterfly nut 8 is arranged to conveniently fix the sliding block 71, the stability of the supporting device 7 is improved, the extruding device 9 is arranged to conveniently jack the plastic plate and conveniently take the plastic plate, the baffle 91 is pushed upwards to drive, the plastic plate is jacked up, so that workers can conveniently take the plastic plate, and the working efficiency is improved.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation. The use of the phrase "comprising one of the elements does not exclude the presence of other like elements in the process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A cutting device for PVC plastic processing, comprising a workbench (1), characterized in that: the bottoms of both sides of the workbench (1) are fixedly connected with uprights (2), and the uprights (2) A base (3) is fixedly connected to the bottom of the workbench (1), a support frame (4) is fixedly connected to the top of the workbench (1), and a first sliding rod (5), a second A sliding rod (6), the first sliding rod (5) and the second sliding rod (6) are slidably connected with a support device (7), and the support device (7) corresponds to the top of the workbench (1).

2 . The cutting device for PVC plastic processing according to claim 1 , wherein the supporting device ( 7 ) comprises a sliding block ( 71 ), and the sliding block ( 71 ) is connected to the first sliding block ( 71 ). 3 . The rod (5) and the second sliding rod (6) are slidably connected, the bottom of the slider (71) is fixedly connected with a fixing frame (72), and the bottom of the fixing frame (72) is slidably connected with a movement rod (73) , the top of the movement rod (73) is fixedly connected with a stopper (74), the top of the stopper (74) is fixedly connected with a pull ring (75), and the bottom of the movement rod (73) is fixedly connected with a connection A plate (76), the top of the connecting plate (76) is fixedly connected with a support spring (77), the support spring (77) is sleeved with the movement rod (73), and the bottom of the connecting plate (76) is fixedly connected There is a pressing rod (78), and a pressing block (79) is fixedly connected to the bottom of the pressing rod (78), and the pressing block (79) corresponds to the surface of the workbench (1).

3. A cutting device for PVC plastic processing according to claim 2, characterized in that: a wing nut (8) is provided on the top of the slider (71), and the slider (71) The first sliding rod (5) is reinforced by the wing nut (8).

4 . The cutting device for PVC plastic processing according to claim 1 , wherein a pressing device ( 9 ) is provided on the surface of the working table ( 1 ). 5 .

5. A cutting device for PVC plastic processing according to claim 4, characterized in that: the pressing device (9) comprises a baffle plate (91), and the top of the baffle plate (91) is fixed A push rod (92) is connected, the push rod (92) is slidably connected with the workbench (1), a support plate (93) is fixedly connected to the top of the push rod (92), and the support plate (93) is connected with The worktable (1) is inlaid and installed, the top of the baffle plate (91) is fixedly connected with a return spring (94), and the return spring (94) is sleeved with the push rod (92).
