Abstract
The utility model discloses a novel table tennis table for teaching and training, which comprises a first panel, a first net surface and a fixed column, wherein the back of the first panel is movably connected with the first net surface, one end of the first panel is movably connected with a second net surface, the other end of the first panel is movably connected with a side panel, one side of the side panel is tightly jointed with a cushion, the bottom end of the first panel is fixedly connected with a connecting block, the bottom end of the connecting block is fixedly connected with a slide rail groove, one side of the side panel is fixedly connected with a recording display screen, the recording display screen can present the training record, the single-person training mode is changed into a double-person opposite playing mode, thereby increasing the training mode of a user, well solving the problem of material waste, thereby enabling the table tennis table to be integrally formed into a table tennis table capable of opposite playing, and facilitating the user to carry out opposite playing training of table, embodies the practicality of novel table tennis table, is applicable to the use of sports teaching technique, has extensive development prospect in the future.
Description
Technical Field
The utility model relates to the technical field of physical education, in particular to a novel table tennis table for teaching and training.
Background
Table tennis is originated in the united kingdom, is a popular sports item in the world at present, has the great name of the table tennis in China and has a very wide mass foundation, and the table tennis in China always occupies a dominating position in international tournaments for many years, so that the demand of more table tennis enthusiasts on competitions is stronger.
Because the table tennis table that current teaching training used generally and wire side fixed connection, can only carry out single training mode, because when the table tennis table leads to the panel to damage when wearing and tearing because the live time overlength, can generally change whole table tennis table now, because can frequently take the ball service in user training process, and general receipts ball bag capacity is limited, because most table tennis tables now need the other people to carry out the people when the user carries out single table tennis training and pass the ball for.
Therefore, how to design a novel table tennis table for teaching and training becomes a problem which needs to be solved currently.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a novel table tennis table of teaching training to solve the unable independent training of the user that provides in the above-mentioned background art, the whole unable independent change of mesa and the problem that the user needs the table tennis of picking up everywhere.
In order to achieve the above object, the utility model provides a following technical scheme: a novel table tennis table for teaching and training comprises a first panel, a first net surface and fixing columns, wherein the back of the first panel is movably connected with the first net surface, one end of the first panel is movably connected with a second net surface, the other end of the first panel is movably connected with a side panel, one side of the side panel is tightly attached with a cushion, the bottom end of the first panel is fixedly connected with a connecting block, the bottom end of the connecting block is fixedly connected with a slide rail groove, one side of the side panel is fixedly connected with a recording display screen, the inner side of the side panel is fixedly connected with a recording receiver, the bottom end of the recording receiver is fixedly connected with an information transmission pipe, the inner side of the first panel is fixedly connected with a pressure sensor, the bottom of the first panel is fixedly connected with a supporting column, the two sides of the first panel are fixedly connected with the fixing columns, and the two sides of the, one side of the top end of the first panel is fixedly connected with a middle partition plate.
Preferably, the bottom of the first panel is fixedly connected with a side panel fixing groove, and a transverse fixing bolt is embedded and connected inside the side panel fixing groove.
Preferably, a second panel is fixedly connected to the front of the first panel.
Preferably, the bottom of the first net surface is fixedly connected with a ball receiving pipeline, the bottom of the ball receiving pipeline is fixedly connected with a ball collecting net, and the front of the ball collecting net is fixedly connected with a baffle.
Preferably, the movable collecting device is composed of a first net surface behind the first panel, a second net surface at one end of the first panel, a side panel at the other end of the first panel, a soft pad at one side of the side panel, a connecting block at the bottom end of the first panel and a sliding rail groove at the bottom end of the connecting block.
Preferably, the recording display screen on one side of the side panel, the recording receiver on the inner side of the side panel, the information transmission pipe at the bottom end of the recording receiver and the pressure sensor on the inner side of the first panel jointly form a fixed-point recording device.
Compared with the prior art, the beneficial effects of the utility model are that:
1. according to the novel table tennis table for teaching training, the movable collecting device is arranged, when a user trains, the first net surface, the second net surface and the side panel can intercept balls hit no matter which direction the user hits, so that the trouble that the user needs to frequently pick up the balls when the user trains single table tennis is avoided, the fixed fixing bolt can be removed, the table tennis table is integrally formed into a table tennis table capable of double-person opposite hitting, the user can conveniently train double table tennis opposite hitting, and the practicability of the novel table tennis table is reflected;
2. this kind of novel table tennis table of teaching training, through setting up fixed point recorder, the pressure sensor who is in first panel inboard will record the ball and drop the position at first panel, pressure sensor can convey the record acceptor through the information transmission pipe with the positional information of gained after that, record acceptor rethread information transmission pipe presents information on the record display screen, coach can know its problem place through user's training record to carry out the training to the formula, the effectual training efficiency that has improved.
Drawings
Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic cross-sectional view of the side panel of the present invention;

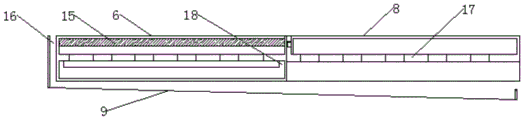

fig. 3 is a schematic cross-sectional view of a first panel according to the present invention;
fig. 4 is a schematic sectional structure view of the lateral fixing mechanism of the present invention;
fig. 5 is a schematic sectional structure view of the longitudinal fixing mechanism of the present invention.
In the figure: 1. the novel tennis ball receiving net comprises a first panel, a second panel, a first net surface, a second net surface, a side panel, a second panel, a recording display screen, a fixing column, a second net surface, a middle partition plate, a second panel, a ball receiving net, a supporting column, a baffle plate, a recording receiver, a recording display screen, a fixing column, a middle partition plate, a second panel, a ball receiving net, a supporting column, a baffle plate, a recording receiver, a recording display screen, an information transmission pipe, a.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, rather than all embodiments, and all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the protection scope of the present invention based on the embodiments of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a novel table tennis table for teaching and training comprises a first panel 1, a first net surface 2 and fixing columns 6, wherein the back of the first panel 1 is movably connected with the first net surface 2, one end of the first panel 1 is movably connected with a second net surface 3, the other end of the first panel 1 is movably connected with a side panel 4, one side of the side panel 4 is tightly attached with a cushion 14, the bottom end of the first panel 1 is fixedly connected with a connecting block 17, the bottom end of the connecting block 17 is fixedly connected with a slide rail groove 18, one side of the side panel 4 is fixedly connected with a recording display screen 5, the inner side of the side panel 4 is fixedly connected with a recording receiver 12, the bottom end of the recording receiver 12 is fixedly connected with an information transmission pipe 13, the inner side of the first panel 1 is fixedly connected with a pressure sensor 15, the bottom of the first panel 1 is fixedly connected with a supporting column 10, and, two sides of the fixing column 6 are fixedly connected with a net surface fixing groove 22, and one side of the top end of the first panel 1 is fixedly connected with a middle clapboard 7.
Preferably, the bottom fixedly connected with side board fixed slot 20 of first panel 1, the inside embedding of side board fixed slot 20 is connected with horizontal gim peg 19, because the table tennis table that current teaching training used generally and wire side fixed connection, can only carry out single training mode, through setting up horizontal gim peg 19 for side board 4 both can fix and can dismantle, becomes double table tennis to playing the training mode with single training mode, thereby has increased user's training mode.
Preferably, the preceding fixedly connected with second panel 8 of first panel 1, because when the table tennis table because live time overlength and lead to the panel to damage when wearing and tearing, now generally can change whole table tennis table, through setting up second panel 8, second panel 8 is changeable alone, only needs to be connected fixedly with new panel and connecting block 17 and can use to fine solution the extravagant problem of material.
Preferably, the bottom fixedly connected with of first wire side 2 receives ball pipeline 16, the bottom fixedly connected with of receiving ball pipeline 16 receives ball net 9, the preceding fixedly connected with baffle 11 of ball net 9, because can frequently take the ball service in user's training process, and general receipts ball bag capacity is limited, through setting up ball net 9, the table tennis that drops can get into along receiving ball pipeline 16 and receive ball net 9, the capacity of receiving ball net 9 is more than general receipts ball bag, and be in the lower convenient of desktop and take in user's the training of being absorbed, thereby let the user more concentrated in.
Preferably, the first net surface 2 behind the first panel 1, the second net surface 3 at one end of the first panel 1, the side panel 4 at the other end of the first panel 1, the cushion 14 at one side of the side panel 4, the connecting block 17 at the bottom end of the first panel 1 and the slide rail groove 18 at the bottom end of the connecting block 17 jointly form a movable collecting device, because most of table tennis tables need people to pass balls during single table tennis training of users, by arranging the movable collecting device, the first net surface 2, the second net surface 3 and the side panel 4 can intercept the balls hit in any direction during user training, even though the side panel 4 is not net-shaped, the cushion 14 is arranged on the surface of the first net surface, the balls can be intercepted by reducing the bounce force, thereby avoiding the trouble that users need to frequently pick up balls during single table tennis training, and when users need to perform double table tennis pair training, can demolish the gim peg of fixed first wire side 2 and second wire side 3 to and with side panel 4 through the slide rail recess gliding first panel 1 of connecting block 17 bottom, thereby make the whole 1 table tennis table become one can carry out double table tennis table to playing, convenient to use person carries out double table tennis to playing the training, has embodied novel table tennis table's practicality.
Preferably, the recording display screen 5 on one side of the side panel 4, the recording receiver 12 on the inner side of the side panel 4, the information transmission pipe 13 at the bottom end of the recording receiver 12 and the pressure sensor 15 on the inner side of the first panel 1 together form a fixed-point recording device, because a coach can not clearly know the problems of the user when the user does the targeted training, by arranging the fixed-point recording device, when the user hits and drops the ball on the first panel 1, the pressure sensor 15 on the inner side of the first panel 1 can record the position of the ball dropped on the first panel 1, then the pressure sensor 15 can transmit the obtained position information to the recording receiver 12 through the information transmission pipe 13, the recording receiver 12 presents the information on the recording display screen 5 through the information transmission pipe 13, and the coach can know the problems through the training records of the user, thereby performing the targeted training, the training efficiency is effectively improved.
The working principle is as follows: firstly, the lateral panel 4 can be fixed and disassembled by arranging the transverse fixing bolt 19, and a single-person training mode is changed into a double-person table tennis opposite-playing training mode, so that the training mode of a user is increased;
then, by arranging the second panel 8, the second panel 8 can be independently replaced, and the novel panel can be used only by connecting and fixing the new panel with the connecting block 17, so that the problem of material waste is well solved;
then, by arranging the ball collecting net 9, the dropped table tennis can enter the ball collecting net 9 along the ball receiving pipeline 16, the capacity of the ball collecting net 9 is much larger than that of a common ball collecting bag, and the ball collecting net is positioned below the table top, so that the table tennis is convenient for a user to take, and the user can concentrate on training;
next, by arranging the movable collecting device, when a user trains, the first net surface 2, the second net surface 3 and the side panel 4 can intercept a ball hit in any direction, although the side panel 4 is not net-shaped, the ball can be intercepted by reducing the bounce force through installing the cushion 14 on the surface of the side panel, so that the problem of material waste is well solved, and meanwhile, when the user needs to carry out double-person table tennis opposite-hitting training, a fixing bolt for fixing the first net surface 2 and the second net surface 3 can be detached, and the side panel 4 slides into the first panel 1 through a slide rail groove at the bottom end of the connecting block 17, so that the table tennis table whole 1 becomes a table capable of carrying out double-person opposite-hitting, the user can conveniently carry out double-person table tennis opposite-hitting training, and the practicability of the novel table is embodied;
finally, through setting up fixed point recorder, the user is when hitting the ball first panel 1 that drops, be in the position that the ball dropped at first panel 1 of pressure sensor 15 of first panel 1 inboard, pressure sensor 15 can convey the positional information who obtains to record acceptor 12 through information transmission pipe 13 after that, record acceptor 12 rethread information transmission pipe 13 presents information on record display screen 5, coach can know its problem place through user's training record to carry out the formula training, the effectual training efficiency that has improved, this is exactly this kind of novel teaching training's table tennis table's theory of operation.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202021659200.5U CN212880921U (en) | 2020-08-11 | 2020-08-11 | A new type of table tennis table for teaching and training |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202021659200.5U CN212880921U (en) | 2020-08-11 | 2020-08-11 | A new type of table tennis table for teaching and training |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN212880921U true CN212880921U (en) | 2021-04-06 |
Family
ID=75243125
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202021659200.5U Expired - Fee Related CN212880921U (en) | 2020-08-11 | 2020-08-11 | A new type of table tennis table for teaching and training |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN212880921U (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN115212538A (en) * | 2022-07-20 | 2022-10-21 | 山东财经大学 | Device for stimulating learning interest of students in physical education teaching management |
-
2020
- 2020-08-11 CN CN202021659200.5U patent/CN212880921U/en not_active Expired - Fee Related
Cited By (1)
