CN212872566U

CN212872566U - A conductive adhesive strip test module

Info

Publication number: CN212872566U
Application number: CN202022010041.2U
Authority: CN
Inventors: 龙志金; 林焕明; 林志谦
Original assignee: Huatong Precision Circuit Board Huizhou Co ltd
Current assignee: Huatong Precision Circuit Board Huizhou Co ltd
Priority date: 2020-09-14
Filing date: 2020-09-14
Publication date: 2021-04-02
Anticipated expiration: 2030-09-14

Abstract

This utility model discloses a conductive adhesive strip testing module, belonging to the field of testing equipment. It includes a module fixing plate, a connecting positioning component, an adjusting component, and a fixing component. The module fixing plate has a rectangular hole. The connecting positioning component is installed on the top of the module fixing plate, and its output end extends into the rectangular hole. The adjusting component is installed on one side of the module fixing plate, and the fixing component is installed on top of the connecting positioning component. This utility model uses a conductive adhesive strip to electrically connect the product to the testing device. Utilizing the flexibility and conductivity of the conductive adhesive strip, it prevents scratches at the connection point during product testing, thereby ensuring product quality.

Description

Conducting rubber strip test module

Technical Field

The utility model relates to a test equipment field especially relates to a conducting strip tests module.

Background

The conductive adhesive tape is commonly called as a conductive metal strip, is formed by implanting a tiny metal wire on a silica gel body by adopting a special technology, and is widely applied to a display screen functional module, a camera module, a battery protection board BMU, a mobile phone functional module, a tablet computer functional module, a Notebook functional module and the like. Conductive rubber connector stable performance is reliable, the simple and convenient high efficiency of production assembly, because very little that the electrode spacing can be done, so be fit for the product that the drive way is many, the price is cheap, can help to reduce the cost, soft and rich elasticity, the counterpoint is convenient easy, good electric conductivity and stability have, extensively be used for the game machine, the phone, the electronic watch, the calculator, the connection of products such as instrument and circuit board, what the connecting portion of present general testing arrangement and product adopted all is the probe, and adopt the probe can make the product junction cause fish tail or mar, thereby cause the influence to the product, need to design a testing arrangement that can not cause the mar to the junction of product now urgently.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a conducting strip test module to solve among the prior art testing arrangement junction and easily cause the technical problem of mar to the product.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a conducting resin strip test module, includes the module fixed plate, connects positioning element, adjusting part and fixed part, the rectangular hole has been seted up on the module fixed plate, it installs at the top of module fixed plate and connects positioning element's output and extend to in the rectangular hole to connect positioning element, adjusting part installs the one side at the module fixed plate, fixed part installs the top at connecting positioning element.

Further, connect the locating part and include keysets, support plate and conductive adhesive tape, the keysets is installed at the top of module fixed plate, and the bottom of keysets extends to in the rectangular hole, conductive adhesive tape sets up the top at the keysets, the support plate sets up the top at conductive adhesive tape to set up on the support plate with fixed part sliding fit's spout, still set up through-hole and the spacing hole that is used for connecting conductive adhesive tape on the support plate.

Further, the fixed part includes the adhesive tape fixed block, in advance briquetting, hand shifting block and two stoppers, the adhesive tape fixed block is installed at the top of keysets, and offers the hole of placing that is used for placing conductive adhesive tape on the adhesive tape fixed block, the pre-compaction piece slides and sets up the top at the support plate, hand shifting block cover is established at the top of briquetting in advance, two the stopper symmetry sets up in the both sides of briquetting in advance, and two stoppers all with support plate fixed connection.

Further, the adjusting part comprises a spring block and a spring rod, the spring block is installed on one side of the module fixing plate, and the spring rod is installed on the top of the spring block.

Compared with the prior art, the beneficial effects of the utility model reside in that:

when needs examine the product, at first put into spacing hole with the product, promote the spring beam, it slides to the product direction to drive briquetting in the spout in advance, carry out the pressfitting to the product fixed, the rethread through-hole makes the product be connected with conducting strip, then realize through the keysets that sets up in the conducting strip bottom that the product is connected with the keysets, at last through the keysets according to the corresponding circuit switching of product electrical principle design to test equipment, accomplish the test, the utility model discloses a conducting strip is with product and keysets electrical connection, has utilized conducting strip's compliance and electric conductivity for can not cause the mar during product detection, thereby ensured the quality of product.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the embodiments or the technical solutions in the prior art will be briefly described below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

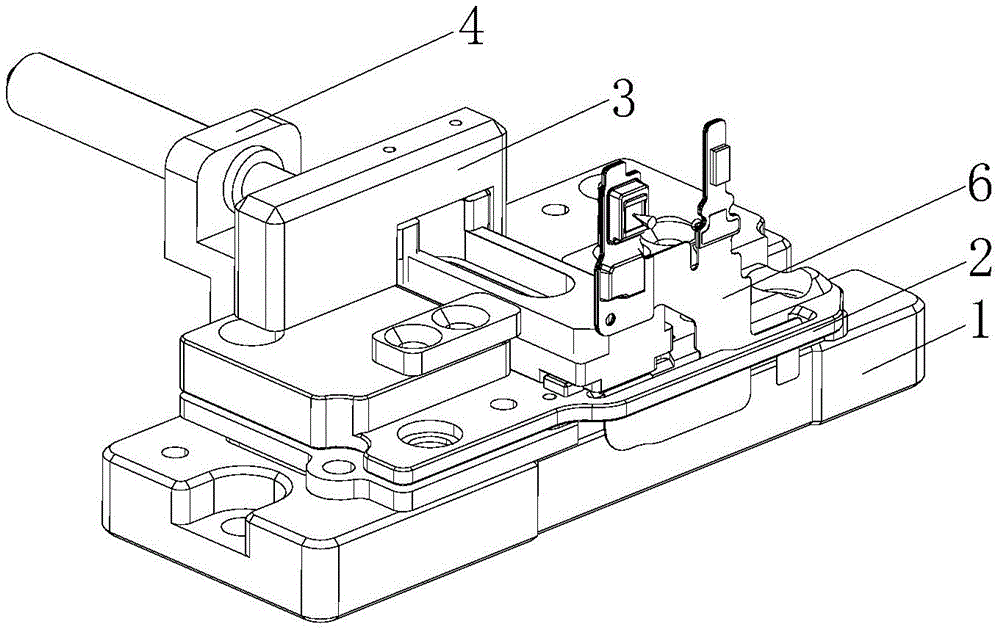

Fig. 1 is a schematic perspective view of the present invention;

FIG. 2 is a schematic perspective view of the connecting and positioning member of the present invention;

fig. 3 is a schematic perspective view of the module fixing plate, the fixing member and the adjusting member of the present invention.

Reference numerals:

the module fixing plate 1 is connected with the positioning part 2, the adapter plate 21, the carrier plate 22, the conductive rubber strip 23, the sliding groove 24, the through hole 25, the limiting hole 26, the fixing part 3, the rubber strip fixing block 31, the pre-pressing block 32, the hand shifting block 33, the limiting block 34, the placing hole 35, the adjusting part 4, the spring block 41, the spring rod 42, the rectangular hole 5 and the product 6.

Detailed Description

The technical solution of the present invention will be described clearly and completely with reference to the accompanying drawings, and obviously, the described embodiments are some, but not all embodiments of the present invention.

The components of the embodiments of the present invention, as generally described and illustrated in the figures herein, may be arranged and designed in a wide variety of different configurations. Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention.

Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or component to which the reference is made must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; the two components can be directly connected or indirectly connected through an intermediate medium, and the two components can be communicated with each other. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

The embodiment of the utility model provides a conducting strip test module, it is shown below with combination of fig. 1 to fig. 3, including module fixed plate 1, connection positioning element 2, adjusting part 4 and fixed part 3, rectangular hole 43 has been seted up on module fixed plate 1, connect positioning element 2 and install at the top of module fixed plate 1 and connect positioning element 2's output and extend to rectangular hole 43 in, adjusting part 4 installs the one side at module fixed plate 1, fixed part 3 installs the top at connection positioning element 2.

Specifically, connect locating part 2 and include keysets 21, carrier plate 22 and conducting strip 23, keysets 21 installs at the top of module fixed plate 1, and the bottom of keysets 21 extends to in rectangular hole 43, conducting strip 23 sets up the top at keysets 21, carrier plate 22 sets up the top at conducting strip 23 to offer on the carrier plate 22 with fixed part 3 sliding fit's spout 24, still offer on the carrier plate 22 and be used for connecting conducting strip 23 through-hole 25 and spacing hole 26, during the operation: the adapter plate 21 can be switched to the test equipment according to the electrical principle of the product 6, and the conductive adhesive tape 23 is used for electrical connection between the product 6 and the adapter plate 21.

Specifically, fixed part 3 includes adhesive tape fixed block 31, pre-compaction piece 32, hand shifting block 33 and two stopper 34, adhesive tape fixed block 31 is installed at the top of keysets 21, and offers the hole 35 of placing that is used for placing conducting strip 23 on the adhesive tape fixed block 31, pre-compaction piece 32 slides and sets up the top at support plate 22, hand shifting block 33 cover is established at the top of pre-compaction piece 32, two stopper 34 symmetry sets up the both sides at pre-compaction piece 32, and two stopper 34 all with support plate 22 fixed connection, during the operation: the pre-pressing block 32 is used for pressing the product 6 to ensure that the product 6 is not deviated, tilted and the like, the product 6 is prevented from being damaged after the upper die is pressed down, the rubber strip fixing block 31 is used for fixing the conductive rubber strip 23, and the product 6 is ensured to be electrically connected with the adapter plate 21.

Specifically, the adjusting component 4 comprises a spring block 41 and a spring rod 42, the spring block 41 is installed on one side of the module fixing plate 1, the spring rod 42 is installed on the top of the spring block 41, and in operation, the spring rod 42 is used for pushing the pre-pressing block 32 to slide in the sliding slot 24, so as to ensure that the pre-pressing block 32 presses the product 6.

The utility model discloses a theory of operation: when needs examine product 6, at first put into spacing hole 26 with product 6, promote spring beam 42, it slides to product 6 direction to drive briquetting 32 in spout 24, it is fixed to carry out the pressfitting to product 6, rethread through-hole 25 makes product 6 be connected with conductive adhesive tape 23, then realize through setting up at the keysets 21 of conductive adhesive tape 23 bottom that product 6 is connected with keysets 21, at last through keysets 21 according to the corresponding circuit switching of product 6 electrical principle design to test equipment, accomplish the test, the utility model discloses a with conductive adhesive tape 23 product 6 and keysets 21 electrical connection, utilized the compliance and the electric conductivity of conductive adhesive tape 23 for can not cause the mar when product 6 detects, thereby ensured product 6's quality.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention.

Claims

1. A conductive rubber strip test module is characterized in that: comprising a module fixing plate (1), a connection positioning part (2), an adjusting part (4) and a fixing part (3), the module fixing plate ( 1) A rectangular hole (43) is opened on it, the connection and positioning member (2) is installed on the top of the module fixing plate (1) and the output end of the connection and positioning member (2) extends into the rectangular hole (43), so The adjusting part (4) is installed on one side of the module fixing plate (1), and the fixing part (3) is installed on the top of the connecting and positioning part (2).

2. A conductive rubber strip test module according to claim 1, wherein the connection and positioning component (2) comprises an adapter plate (21), a carrier plate (22) and a conductive rubber strip (23) , the adapter plate (21) is installed on the top of the module fixing plate (1), and the bottom of the adapter plate (21) extends into the rectangular hole (43), and the conductive rubber strip (23) is arranged on the adapter plate (23). the top of the connecting plate (21), the carrier plate (22) is arranged on the top of the conductive rubber strip (23), and the carrier plate (22) is provided with a chute (24) slidingly matched with the fixing part (3), The carrier plate (22) is also provided with through holes (25) and limiting holes (26) for connecting the conductive rubber strips (23).

3. A conductive rubber strip test module according to claim 1, characterized in that: the fixing component (3) comprises a rubber strip fixing block (31), a pre-compression block (32), a hand dial block (33) ) and two limit blocks (34), the rubber strip fixing block (31) is installed on the top of the adapter plate (21), and the rubber strip fixing block (31) is provided with a space for placing the conductive rubber strip (23) The placement hole (35) is provided, the pre-pressing block (32) is slidably arranged on the top of the carrier plate (22), the hand dial (33) is sleeved on the top of the pre-pressing block (32), and the two said The limit blocks (34) are symmetrically arranged on both sides of the pre-compression block (32), and both limit blocks (34) are fixedly connected to the carrier plate (22).

4. A conductive rubber strip test module according to claim 1, characterized in that: the adjustment component (4) comprises a spring block (41) and a spring rod (42), and the spring block (41) is installed On one side of the module fixing plate (1), the spring rod (42) is installed on the top of the spring block (41).
