Abstract
一种竹炭装饰板材磨边装置，包括底座、支架和打磨机构，所述底座内侧上方固定连接有吸尘机，所述吸尘机右端上侧固定连接有吸尘罩，所述吸尘机左侧固定连接有集尘管，所述集尘管左侧固定连接有滤网，所述滤网左侧固定连接有集尘仓，所述集尘仓上方开设有通气孔，所述底座上端固定连接有传送带，所述传送带前后两侧设有固定圆筒，所述传送带上方固定连接有支架，所述支架内侧中央设有轨道，所述轨道内侧滑动连接有滑轮，所述轨道上方设有限位块，所述滑轮外侧设有移动板，所述移动板下方固定连接有打磨机构，通过设置的吸尘机和保护罩可以阻挡在打磨时产生的碎屑飞溅，提高装置的安全性，通过设置的双出轴电机，提高装置的生产效率。
A bamboo charcoal decorative plate edging device, comprising a base, a bracket and a grinding mechanism, a vacuum cleaner is fixedly connected to the upper side of the inner side of the base, a vacuum cleaner is fixedly connected to the upper side of the right end of the vacuum cleaner, and the left side of the vacuum cleaner is fixedly connected. A dust collection pipe is fixedly connected to the side, a filter screen is fixedly connected to the left side of the dust collection pipe, a dust collection bin is fixedly connected to the left side of the filter screen, a ventilation hole is opened above the dust collection bin, and the upper end of the base is fixed A conveyor belt is connected, fixed cylinders are arranged on the front and rear sides of the conveyor belt, a bracket is fixedly connected above the conveyor belt, a track is arranged in the center of the inner side of the bracket, a pulley is slidably connected to the inner side of the track, and a limit is arranged above the track A moving plate is arranged on the outside of the pulley, and a grinding mechanism is fixedly connected below the moving plate. The dust collector and protective cover provided can block the splashing of debris generated during grinding and improve the safety of the device. The double output shaft motor improves the production efficiency of the device.
Description
Technical Field
The utility model relates to a bamboo charcoal panel edging technical field specifically is a bamboo charcoal dalle edging device.
Background
The bamboo charcoal board is a flat rectangular building material board with standard size, is applied to the building industry, can be used as a component of a wall, a ceiling or a floor, has strong adsorbability due to the fine and porous structure, large specific surface area and countless pores on the surface, is used as a beating furniture or other living facilities, is widely applied to the modern bamboo charcoal board developed in science and technology, and has a plurality of bamboo charcoal boards in the furniture manufacturing, the building industry, the processing industry and the like.
In the panel trade, the application of bamboo charcoal panel is very extensive, therefore bamboo charcoal panel demand is very big, in bamboo charcoal panel course of working, because bamboo charcoal panel when polishing, the department of polishing can appear because the fixed unstability of polishing piece leads to producing the damage to other positions of bamboo charcoal panel when polishing, present edging operation is most directly to use grinding tool to carry out the edging to panel, but grinding tool is not good to the edge effect of polishing of panel, and can remain a large amount of pieces on the panel after the edging, because the high-speed rotation of abrasive disc, the piece splashes and causes the injury to the human body very easily.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a bamboo charcoal dalle edging device to solve the problem of proposing among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a bamboo charcoal dalle edging device, includes base, support and grinding machanism, the inboard top fixedly connected with dust catcher of base, dust catcher right-hand member upside fixedly connected with suction hood, the dust catcher left side fixedly connected with dust collecting tube, dust collecting tube left side fixedly connected with filter screen, filter screen left side fixedly connected with dust collection bin, the air vent has been seted up to dust collection bin top, base upper end fixedly connected with conveyer belt, both sides are equipped with fixed drum around the conveyer belt, conveyer belt top fixedly connected with support, the inboard central authorities of support are equipped with the track, the inboard sliding connection of track has the pulley, the track top is equipped with the stopper, the pulley outside is equipped with the movable plate, movable plate below fixedly connected with grinding machanism.
Preferably, grinding machanism includes two play axle motors, telescopic link and abrasive disc, telescopic link top fixedly connected with movable plate, telescopic link other end fixedly connected with motor fixed plate, two play axle motors of motor fixed plate top central authorities fixedly connected with, the first race of a belt of two play axle motor spindle fixedly connected with, the first race of a belt outside is rotated and is connected with the belt, the inboard fixedly connected with second race of a belt of the belt other end, the second race of a belt outside fixedly connected with abrasive disc, the abrasive disc outside fixedly connected with safety cover, motor fixed plate below fixedly connected with fixed slot.
Preferably, the inner side of the lower part of the support is fixedly connected with a supporting plate, the upper side of the supporting plate is fixedly connected with a fixed cylinder, the inner side of the fixed cylinder is fixedly connected with a spring, the upper part of the spring is fixedly connected with a fixed block, and the outer side of the fixed cylinder is fixedly connected with a stop lever.
Preferably, the number of the belts is 2 in total, the number of the first belt grooves is 2 in total, the number of the second belt grooves is 2 in total, the number of the grinding plates is 2 in total, and the grinding plates are fixedly connected to the front side and the rear side of the motor fixing plate.
Preferably, the number of the limiting blocks is 4, and the limiting blocks are fixedly connected with two ends of the track.
Compared with the prior art, the beneficial effects of the utility model are that:
1. in the utility model, the arranged dust collector, the conveyor belt and the fixed plate can effectively solve the scraps generated during polishing, protect the health and safety of production workers, improve the polishing efficiency through the conveyor belt, effectively prevent the displacement generated by vibration during polishing by fixing the plate in the middle of the fixed plate, and improve the production accuracy and safety;
2. the utility model discloses in, through two play axle motors, telescopic link and the gear that set up, can be through the double hinge of two play axle motors, efficiency when will polishing improves to can polish to the bamboo charcoal panel of different thickness through the regulation of telescopic link when polishing, improve the variety of device, rethread motor rolling gear drives the position of grinding machanism at the horizontal direction through the gear, improves the work efficiency and the stability of device.
Drawings

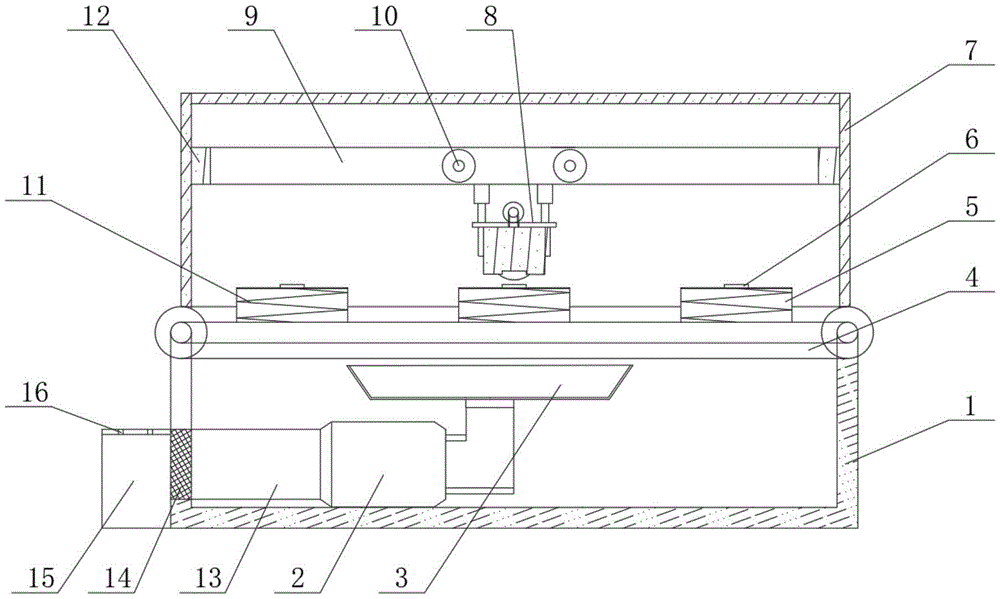

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is an installation diagram of the polishing mechanism of the present invention;
FIG. 3 is a side view of the structure of the present invention;
fig. 4 is a top view of the present invention.
In the figure: 1-base, 2-dust collector, 3-dust hood, 4-conveyor belt, 5-fixed cylinder, 6-fixed block, 7-bracket, 8-grinding mechanism, 81-telescopic rod, 82-double-output shaft motor, 83-belt, 84-fixed groove, 85-protective cover, 86-grinding disc, 87-motor fixed plate, 88-first belt groove, 89-second belt groove, 9-rail, 10-pulley, 11-spring, 12-limited block, 13-dust collecting pipe, 14-filter screen, 15-dust collecting bin, 16-vent hole, 17-support plate, 18-stop rod and 19-moving plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution:
the utility model provides a bamboo charcoal dalle edging device, the on-line screen storage device comprises a base 1, support 7 and grinding machanism 8, 1 inboard top fixedly connected with dust catcher 2 of base, 2 right-hand member upside fixedly connected with suction hood 3 of dust catcher, 2 left side fixedly connected with dust collecting tube 13 of dust catcher, dust collecting tube 13 left side fixedly connected with filter screen 14, filter screen 14 left side fixedly connected with dust collection bin 15, air vent 16 has been seted up to dust collection bin 15 top, 1 upper end fixedly connected with conveyer belt 4 of base, both sides are equipped with fixed drum 5 around the conveyer belt 4, 4 top fixedly connected with supports 7 of conveyer belt, 7 inboard central authorities of support are equipped with track 9, the inboard sliding connection of track 9 has pulley 10, the track 9 top is equipped with stopper 12, the pulley 10 outside is equipped with movable plate 19.
The grinding mechanism 8 comprises a double-output-shaft motor 82, a telescopic rod 81 and grinding discs 86, a movable plate 19 is fixedly connected to the top end of the telescopic rod 81, a motor fixing plate 87 is fixedly connected to the other end of the telescopic rod 81, the double-output-shaft motor 82 is fixedly connected to the center above the motor fixing plate 87, a first belt groove 88 is fixedly connected to the main shaft of the double-output-shaft motor 82, a belt 83 is rotatably connected to the outer side of the first belt groove 88, a second belt groove 89 is fixedly connected to the inner side of the other end of the belt 83, the grinding discs 86 are fixedly connected to the outer side of the second belt groove 89, a protective cover 85 is fixedly connected to the outer side of the grinding discs 86, and a fixing groove 84 is fixedly connected to the lower portion of the motor fixing plate 87, so that the efficiency of the grinding device during grinding can; a supporting plate 17 is fixedly connected to the lower inner side of the support 7, a fixing cylinder 5 is fixedly connected to the upper side of the supporting plate 17, a spring 11 is fixedly connected to the inner side of the fixing cylinder 5, a fixing block 6 is fixedly connected to the upper side of the spring 11, a blocking rod 18 is fixedly connected to the outer side of the fixing cylinder 5, the bamboo charcoal board can be fixed through the arranged blocking rod 18, when the polishing mechanism 8 is downward, the fixing block 6 is downwards extruded through a fixing groove 84, and the stability of the polishing mechanism 8 is enhanced; the number of the belts 83 is 2, the number of the first belt grooves 88 is 2, the number of the second belt grooves 89 is 2, the number of the grinding sheets 86 is 2, and the grinding sheets 86 are fixedly connected to the front side and the rear side of the motor fixing plate 87, so that two sides of the plate can be simultaneously ground conveniently, and the production efficiency of the plate is improved; the total number of stopper 12 is 4, and stopper 12 fixed connection and track 9's both ends prevent to produce the striking to grinding mechanism (8) when removing the side, improve the security.
The working process is as follows: starting the device, conveying the bamboo charcoal board to the upper surface of the conveying belt 4, fixing the bamboo charcoal board through the fixing plates 5 on two sides of the conveying belt 4, enabling the conveying belt 4 to rotate, conveying the bamboo charcoal board to the lower part of the grinding mechanism 8, conveniently grinding the bamboo charcoal board in the horizontal direction through the horizontal movement of the arranged moving plate 19 on the track 9, when moving to a proper position, the telescopic rod 81 in the grinding mechanism 8 starts to adjust the height, different heights are adjusted for boards with different thicknesses, meanwhile, the fixing groove 84 clamps the fixing block 6, the first belt groove 88 fixedly connected with the main shaft of the double-output shaft motor 82 drives the belt 83, the belt 83 drives the second belt groove 89, the second belt groove 89 drives the grinding sheet 86 to rotate, the protective cover 85 is fixed outside the 86, the sawdust is prevented from splashing, the fixing block 6 is clamped through the fixing groove 84, the spring 11 in the fixing cylinder 5 is extruded, convenient fixed grinding machanism 8 improves the stability when polishing, prevents to cause the injury to people, owing to can produce the piece when polishing, the dust catcher 2 of conveyer belt below begins work, and dust catcher 2 begins to absorb the piece that the top produced through suction hood 3, and dust catcher 2 transports the piece through dust collecting tube 13 to dust collection bin 15, prevents that the piece from splashing and hurting staff, improves the security of device.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a bamboo charcoal dalle edging device, includes base (1), support (7) and grinding machanism (8), its characterized in that: the dust collector (2) is fixedly connected to the upper side of the inner side of the base (1), a dust hood (3) is fixedly connected to the upper side of the right end of the dust collector (2), a dust collecting pipe (13) is fixedly connected to the left side of the dust collector (2), a filter screen (14) is fixedly connected to the left side of the dust collecting pipe (13), a dust collecting bin (15) is fixedly connected to the left side of the filter screen (14), an air vent (16) is formed in the upper side of the dust collecting bin (15), a conveying belt (4) is fixedly connected to the upper end of the base (1), fixed cylinders (5) are arranged on the front side and the rear side of the conveying belt (4), a support (7) is fixedly connected to the upper side of the conveying belt (4), a track (9) is arranged in the center of the inner side of the support (7), a pulley (10) is slidably connected to, and a polishing mechanism (8) is fixedly connected below the moving plate (19).
2. The bamboo charcoal dalle edging device according to claim 1, characterized in that: grinding machanism (8) are including two play axle motor (82), telescopic link (81) and abrasive disc (86), telescopic link (81) top fixedly connected with movable plate (19), telescopic link (81) other end fixedly connected with motor fixed plate (87), motor fixed plate (87) top central authorities fixedly connected with two play axle motor (82), two play axle motor (82) first race of belt (88) of main shaft fixedly connected with, first race of belt (88) outside is rotated and is connected with belt (83), belt (83) other end inboard fixedly connected with second race of belt (89), second race of belt (89) outside fixedly connected with abrasive disc (86), abrasive disc (86) outside fixedly connected with safety cover (85), motor fixed plate (87) below fixedly connected with fixed slot (84).
3. The bamboo charcoal dalle edging device according to claim 1, characterized in that: the support is characterized in that a support plate (17) is fixedly connected to the inner side of the lower portion of the support (7), a fixing cylinder (5) is fixedly connected to the upper side of the support plate (17), a spring (11) is fixedly connected to the inner side of the fixing cylinder (5), a fixing block (6) is fixedly connected to the upper side of the spring (11), and a blocking rod (18) is fixedly connected to the outer side of the fixing cylinder (5).
4. The bamboo charcoal dalle edging device according to claim 2, characterized in that: the number of the belts (83) is 2 in total, the number of the first belt grooves (88) is 2 in total, the number of the second belt grooves (89) is 2 in total, the number of the grinding sheets (86) is 2 in total, and the grinding sheets (86) are fixedly connected to the front side and the rear side of the motor fixing plate (87).
5. The bamboo charcoal dalle edging device according to claim 1, characterized in that: the number of the limiting blocks (12) is 4, and the limiting blocks (12) are fixedly connected with the two ends of the track (9).
