CN212821689U - A kind of dust removal device for rice processing - Google Patents
A kind of dust removal device for rice processing Download PDFInfo
- Publication number
- CN212821689U CN212821689U CN202021474009.3U CN202021474009U CN212821689U CN 212821689 U CN212821689 U CN 212821689U CN 202021474009 U CN202021474009 U CN 202021474009U CN 212821689 U CN212821689 U CN 212821689U
- Authority
- CN
- China
- Prior art keywords
- dust
- fixedly connected
- conveying mechanism
- rice processing
- dust removal
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Adjustment And Processing Of Grains (AREA)
Abstract
本实用新型公开了一种大米加工用除尘装置，包括输送机构，所述输送机构内侧的顶部固定连接有滤网组件，所述输送机构的顶部固定连接有除尘机构，所述输送机构包括机架，所述机架的底部固定连接有六个支腿，所述机架通过电机在机架的内部转动连接有输送带，所述输送机构和除尘机构之间的左侧固定连接有挡板，所述除尘机构包括多个防尘罩，且位于最左侧的防尘罩的顶部固定连接有进料槽，本实用新型涉及大米生产技术领域。该大米加工用除尘装置，通过设置有除尘机构，采用防尘罩对输送机构进行封闭，避免了糠粉及灰尘的外扬，同时在封闭空间内将灰尘通过抽风机收集排出，保证了室内环境的干净整洁，有利于工作人员的身体健康。
The utility model discloses a dust removal device for rice processing, comprising a conveying mechanism, a filter screen component is fixedly connected to the top of the inner side of the conveying mechanism, a dust removal mechanism is fixedly connected to the top of the conveying mechanism, and the conveying mechanism comprises a frame , the bottom of the frame is fixedly connected with six legs, the frame is connected with a conveyor belt through the motor in the interior of the frame, and the left side between the conveying mechanism and the dust removal mechanism is fixedly connected with a baffle plate, The dust-removing mechanism includes a plurality of dust-proof covers, and the top of the dust-proof cover located on the far left is fixedly connected with a feeding trough. The utility model relates to the technical field of rice production. The dust removal device for rice processing is provided with a dust removal mechanism, and a dust cover is used to seal the conveying mechanism, so as to avoid the bran powder and dust from being raised outward, and at the same time, the dust is collected and discharged by the exhaust fan in the enclosed space to ensure the indoor environment. Clean and tidy, it is good for the health of the staff.
Description
Technical Field
The utility model relates to a rice production technical field specifically is a dust collector is used in rice processing.
Background
The rice is a finished product prepared by rice through the procedures of cleaning, hulling, rice milling, finishing and the like, contains nearly 64 percent of nutrient substances in rice and more than 90 percent of nutrient elements required by human bodies, is a main food for people in most areas in China, is divided into three types, namely long-shaped rice, polished round-grained rice and glutinous rice, has the advantages of mild nature and sweet taste, and has the effects of tonifying middle-jiao and nourishing stomach, replenishing vital essence and strengthening mind, improving hearing and eyesight, regulating five internal organs, promoting blood circulation, relieving restlessness, quenching thirst, stopping diarrhea and the like.
The rice carries out the in-process of processing often along with flying upward of chaff powder and dust impurity, causes dirty in disorder of operational environment and staff's clothes, and is unfavorable for staff's healthy, for this reason, we design a dust collector for rice processing, solves above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides a dust collector is used in rice processing has solved the rice and has carried out the in-process of processing and often accompanies flying upward of chaff powder and dust impurity, causes dirty in disorder of operational environment and staff's clothes, and is unfavorable for the healthy problem of staff.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a dust collector for rice processing, includes conveying mechanism, the inboard top fixedly connected with filter screen subassembly of conveying mechanism, conveying mechanism's top fixedly connected with dust removal mechanism, conveying mechanism includes the frame, six landing legs of bottom fixedly connected with of frame, the frame is rotated in the inside of frame through the motor and is connected with the conveyer belt, left side fixedly connected with baffle between conveying mechanism and the dust removal mechanism, dust removal mechanism includes a plurality of dust covers, and is located the top fixedly connected with feed chute of leftmost dust cover, all the other the equal fixedly connected with dust cage in top of dust cover, the top fixedly connected with connecting pipe of dust cage, the right side fixedly connected with dust exhaust pipe of connecting pipe.
Preferably, the filter screen subassembly includes two support frames, two a plurality of filter screens of fixedly connected with between the support frame, two the support frame is the symmetric distribution.
Preferably, six the landing legs are the distribution of rectangle array, and the bottom of six landing legs is all fixed mounting has the gyro wheel.
Preferably, the rear side of the connecting pipe is communicated with the exhaust fan through a communicating pipeline, and a dust filtering net is arranged in the communicating pipeline.
Preferably, a plurality of the dust covers are spliced with each other, and a sealing gasket is arranged between the adjacent dust covers.
Preferably, both sides of the outer wall of the conveying belt are fixedly connected with skirt edges, and the skirt edges are perpendicular to the outer wall of the conveying belt.
Advantageous effects
The utility model provides a dust collector is used in rice processing. Compared with the prior art, the method has the following beneficial effects:
(1) this dust collector is used in rice processing through being provided with dust removal mechanism, adopts the dust cover to seal conveying mechanism, has avoided the outer of chaff powder and dust to raise, passes through the air exhauster with the dust simultaneously in the enclosure space and collects the discharge, has guaranteed that indoor environment's is clean and tidy, is favorable to that the staff's is healthy.
(2) This dust collector is used in rice processing through setting up the dust cover into the multistage formula structure that can splice, to the transfer chain of different length, can carry out nimble installation, uses the flexibility strong, is provided with the filter screen subassembly simultaneously, can avoid the rice to take out along with the air exhauster, has avoided the waste of resource.
Drawings

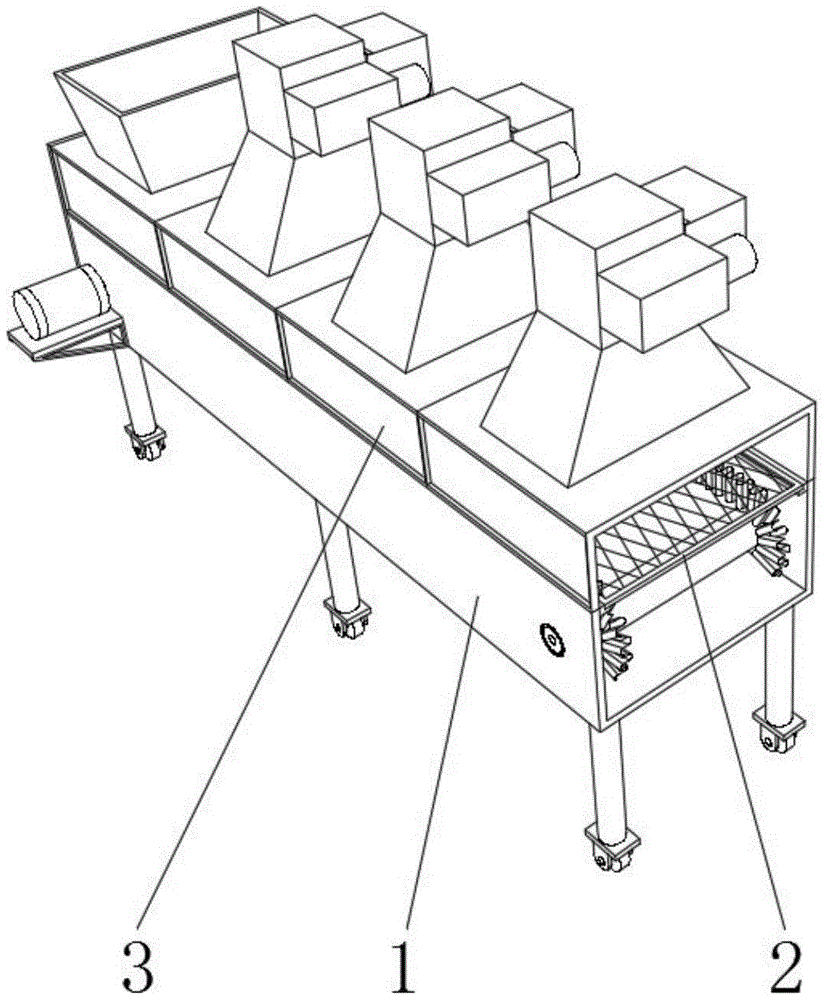

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the dust removing mechanism of the present invention;
FIG. 3 is a schematic structural view of the screen assembly of the present invention;
fig. 4 is a schematic structural view of the conveying mechanism of the present invention;
in the figure: 1. a conveying mechanism; 2. a screen assembly; 3. a dust removal mechanism; 4. a frame; 5. a support leg; 6. a motor; 7. a conveyor belt; 8. a baffle plate; 9. a dust cover; 10. a feed chute; 11. a dust collection cover; 12. a connecting pipe; 13. a dust exhaust pipe; 14. a support frame; 15. and (5) filtering by using a filter screen.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a dust removal device for rice processing comprises a conveying mechanism 1, wherein the top of the inner side of the conveying mechanism 1 is fixedly connected with a filter screen assembly 2, the top of the conveying mechanism 1 is fixedly connected with a dust removal mechanism 3, the conveying mechanism 1 comprises a frame 4, the bottom of the frame 4 is fixedly connected with six support legs 5, the frame 4 is rotatably connected with a conveying belt 7 in the frame 4 through a motor 6, the left side between the conveying mechanism 1 and the dust removal mechanism 3 is fixedly connected with a baffle 8, the dust removal mechanism 3 comprises a plurality of dust covers 9, the top of the dust cover 9 positioned at the leftmost side is fixedly connected with a feed chute 10, the tops of the rest of the dust covers 9 are fixedly connected with dust hoods 11, the top of each dust hood 11 is fixedly connected with a connecting pipe 12, the right side of the connecting pipe 12 is fixedly connected with a dust exhaust pipe 13, the filter screen assembly 2, two support frames 14 are the symmetric distribution, six landing legs 5 are the rectangular array and distribute, and the equal fixed mounting in bottom of six landing legs 5 has the gyro wheel, the rear side of connecting pipe 12 is linked together through communicating pipe and air exhauster, and the inside dirt screen that strains that is provided with of communicating pipe, amalgamation each other between a plurality of dust covers 9, and be provided with seal gasket between the adjacent dust cover 9, the equal fixedly connected with shirt rim in both sides of 7 outer walls of conveyer belt, and the outer wall of shirt rim perpendicular to conveyer belt 7, through being provided with dust removal mechanism 3, adopt dust cover 9 to seal conveying mechanism 1, the outer of chaff powder and dust is avoided raising, pass through the air exhauster collection discharge with the dust in the enclosure space simultaneously, the clean and tidy of indoor environment has been guaranteed.
In operation, the utility model discloses when using, at first operating personnel carries the rice in to conveying mechanism 1 through feed chute 10, and the rice falls on conveyer belt 7 and along with conveyer belt 7 removes, and simultaneously, the chaff powder that flies upward in the sealed cavity that dust cover 9 and conveying mechanism 1 formed, under the effect of fan, in being inhaled connecting pipe 12 through dust cage 11 to concentrate through dust exhaust pipe 13 and collect the discharge.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a dust collector for rice processing, includes conveying mechanism (1), its characterized in that: the top of the inner side of the conveying mechanism (1) is fixedly connected with a filter screen assembly (2), the top of the conveying mechanism (1) is fixedly connected with a dust removal mechanism (3), the conveying mechanism (1) comprises a rack (4), the bottom of the rack (4) is fixedly connected with six supporting legs (5), the rack (4) is rotatably connected with a conveying belt (7) in the rack (4) through a motor (6), a baffle (8) is fixedly connected to the left side between the conveying mechanism (1) and the dust removal mechanism (3), the dust removal mechanism (3) comprises a plurality of dust covers (9), the top of the dust cover (9) positioned at the leftmost side is fixedly connected with a feeding chute (10), the tops of the other dust covers (9) are fixedly connected with a dust collection cover (11), and the top of the dust collection cover (11) is fixedly connected with a connecting pipe (12), the right side of the connecting pipe (12) is fixedly connected with a dust exhaust pipe (13).
2. The dust removing device for rice processing according to claim 1, wherein: the filter screen subassembly (2) include two support frames (14), two a plurality of filter screens (15) of fixedly connected with between support frame (14), two support frame (14) are the symmetric distribution.
3. The dust removing device for rice processing according to claim 1, wherein: six landing leg (5) are the distribution of rectangle array, and the equal fixed mounting in bottom of six landing leg (5) has the gyro wheel.
4. The dust removing device for rice processing according to claim 1, wherein: the rear side of the connecting pipe (12) is communicated with the exhaust fan through a communicating pipeline, and a dust filtering net is arranged in the communicating pipeline.
5. The dust removing device for rice processing according to claim 2, wherein: the dust covers (9) are mutually spliced, and a sealing gasket is arranged between the adjacent dust covers (9).
6. The dust removing device for rice processing according to claim 1, wherein: both sides of the outer wall of the conveying belt (7) are fixedly connected with skirt edges, and the skirt edges are perpendicular to the outer wall of the conveying belt (7).
