Abstract
本实用新型属于医疗器械技术领域，尤其为一种手术室护理用医疗器械收纳箱，包括箱体和箱盖，所述箱体内设置有隔板，所述箱体内表面位于隔板左侧的位置固定连接有固定杆，所述固定杆穿设在盖板表面开设的通孔内，所述盖板的下表面与箱体内壁左侧设置的限位块搭接，所述箱体内隔板的右侧设置有放置箱；通过设置箱体、盖板、限位块、放置箱、放置盒、把手、扣槽、第一腔体和第二腔体，通过在箱体内设置活动的盖板，可以将一些必须但不是常用的器械放置到盖板下方，同时放置箱可以从箱体内抽出，且放置盒可以抽动，便于对放置盒内的器械进行拿取，将器械分别放置到第一腔体和第二腔体内，可以更好的便于对器械进行处理。
The utility model belongs to the technical field of medical devices, in particular to a medical device storage box for nursing care in an operating room, comprising a box body and a box cover, a partition plate is arranged in the box body, and the inner surface of the box is located on the left side of the partition plate A fixed rod is fixedly connected, and the fixed rod is inserted into the through hole opened on the surface of the cover plate, and the lower surface of the cover plate overlaps with the limit block set on the left side of the inner wall of the box. The right side is provided with a placing box; by setting the box body, cover plate, limit block, placing box, placing box, handle, buckle groove, first cavity and second cavity, and by arranging a movable cover in the box, Some necessary but not commonly used instruments can be placed under the cover. At the same time, the placing box can be pulled out from the box, and the placing box can be twitched, which is convenient for taking the instruments in the placing box and placing the instruments in the first cavity respectively. And in the second cavity, it can better facilitate the processing of the instrument.
Description
Technical Field
The utility model belongs to the technical field of medical instrument, concretely relates to medical instrument containing box is used in operating room nursing.
Background
Medical instruments refer to instruments, devices, appliances, in-vitro diagnostic reagents and calibrators, materials and other similar or related items used directly or indirectly on the human body, including the required computer software. The effects are obtained mainly by physical means, not by pharmacological, immunological or metabolic means, or they are involved but only as an aid. For the purpose of diagnosis, prevention, monitoring, treatment, or amelioration of a disease; diagnosis, monitoring, treatment, mitigation, or functional compensation of injury; examination, replacement, regulation or support of a physiological structure or physiological process; support or maintenance of life; controlling pregnancy; by examining a sample from a human body, information is provided for medical or diagnostic purposes.
The aspect of placing surgical instruments needs to be considered, different instruments need to be placed at different positions, and the existing placing device is divided into a plurality of chambers for placing the instruments, so that the later adjustment is inconvenient.
SUMMERY OF THE UTILITY MODEL
To solve the problems set forth in the background art described above. The utility model provides a medical instrument containing box is used in operating room nursing has the adjustment of being convenient for, is favorable to the characteristics of placing the apparatus.
In order to achieve the above object, the utility model provides a following technical scheme: a medical instrument containing box for nursing in an operating room comprises a box body and a box cover, wherein a partition plate is arranged in the box body, the inner surface of the box body is fixedly connected with a fixed rod at the left side of the clapboard, the fixed rod is arranged in a through hole arranged on the surface of the cover plate in a penetrating way, the lower surface of the cover plate is lapped with a limit block arranged on the left side of the inner wall of the box body, a placing box is arranged on the right side of the baffle plate in the box body, the right side surface of the placing box is fixedly connected with a sliding sleeve, a sliding rod is arranged in the sliding sleeve, the bottom end of the sliding rod is fixedly connected with the lower surface of the inner wall of the box body, the inner wall of the placing box is fixedly connected through a supporting plate, the upper surface of the supporting plate is fixedly connected with a fixing block, the surface of the fixed block is connected with a moving block in a sliding mode, the moving block is fixedly connected to the lower surface of the placing box, and the side face of the placing box is in lap joint with the inner surface of the placing box.
Preferably, the right side surfaces of the box body and the box cover are movably connected through hinges, and the upper surface of the placing box is fixedly connected with a handle.
Preferably, the upper surface of the cover plate is provided with a buckle groove.
Preferably, the left space of the partition board in the box body is divided into a first cavity and a second cavity by a cover board.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses, through setting up the box, the apron, the stopper, place the case, place the box, the handle, the catching groove, first cavity and second cavity, through set up the apron of activity in the box, can place the apron below with some must but not instruments commonly used, place the case simultaneously and can take out in the box, and place the box and can take out, be convenient for take the apparatus in placing the box, place first cavity and second cavity respectively with the apparatus in, can be better be convenient for handle the apparatus.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

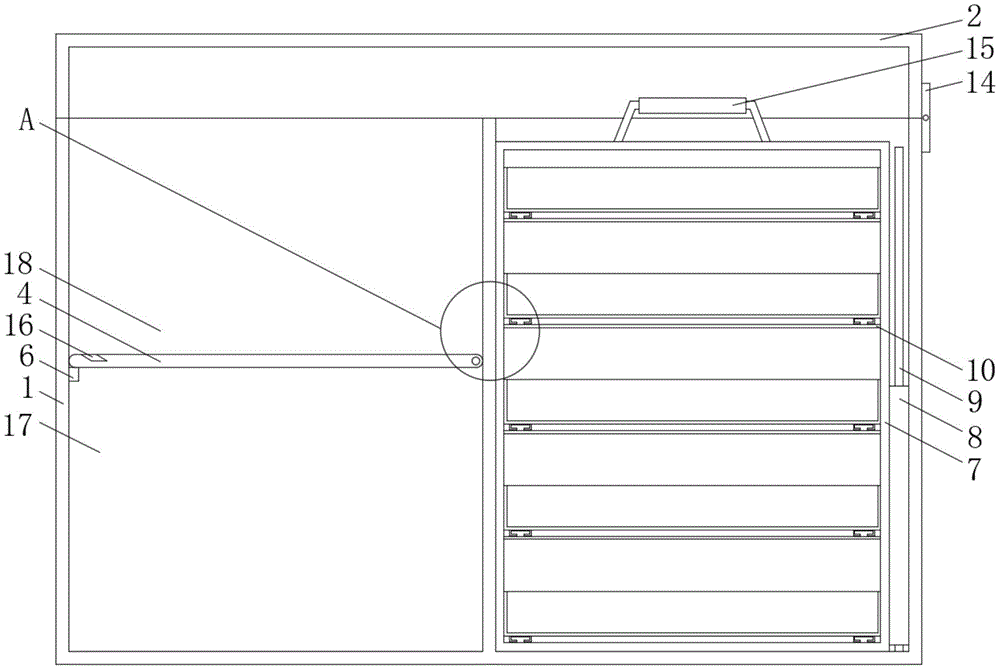

fig. 1 is a schematic front view of a cross-sectional structure of the present invention;
FIG. 2 is a schematic structural view of the position A of the present invention;
in the figure: 1. a box body; 2. a box cover; 3. fixing the rod; 4. a cover plate; 5. a through hole; 6. a limiting block; 7. placing a box; 8. a sliding sleeve; 9. a slide bar; 10. a support plate; 11. a fixed block; 12. a moving block; 13. placing the box; 14. a hinge; 15. a handle; 16. buckling grooves; 17. a first cavity; 18. a second cavity.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Examples
Referring to fig. 1-2, the present invention provides the following technical solutions: a medical instrument containing box for nursing in an operating room comprises a box body 1 and a box cover 2, wherein the box body 1 and the box cover 2 are arranged to form a closed box body 1, the security protection of instruments is facilitated, the influence of the external environment on the instruments is reduced, a partition plate is arranged in the box body 1, a fixed rod 3 is fixedly connected to the position, located on the left side of the partition plate, of the inner surface of the box body 1, the fixed rod 3 penetrates through a through hole 5 formed in the surface of a cover plate 4, the cover plate 4 can be flexibly opened by arranging the fixed rod 3 and the through hole 5, the instruments can be conveniently placed in a first cavity 17 and a second cavity 18, the lower surface of the cover plate 4 is in lap joint with a limiting block 6 arranged on the left side of the inner wall of the box body 1, a placing box 7 is arranged on the right side of the partition plate in the box body 1, a sliding sleeve 8 is fixedly connected to the, through setting up slide bar 9 and sliding sleeve 8, can fix placing case 7, make placing case 7 can be better place in box 1, place case 7 inner wall and pass through backup pad 10 fixed connection, the last fixed surface of backup pad 10 is connected with fixed block 11, the surperficial sliding connection of fixed block 11 has movable block 12, movable block 12 fixed connection is at the lower surface of placing box 13, the side of placing box 13 and the internal surface overlap joint of placing case 7.
Specifically, the right flank of box 1 and case lid 2 passes through hinge 14 swing joint, the last fixed surface who places case 7 is connected with handle 15, utilizes handle 15 conveniently to mention placing case 7, more is favorable to placing the apparatus.
Specifically, the upper surface of the cover plate 4 is provided with a buckle groove 16, so that the cover plate 4 can be conveniently opened to place an instrument.
Specifically, the left space of the partition board in the box body 1 is divided into a first cavity 17 and a second cavity 18 by the cover board 4.
The utility model discloses a theory of operation and use flow: when using, open case lid 2 and can place the apparatus to the left and right sides of baffle in the box 1, can open apron 4 in the box 1 simultaneously and place the apparatus, can upwards mention through handle 15 simultaneously and place case 7, then can stimulate and place box 13 and place the apparatus to placing in the box 13, and then accomplish the work of placing the apparatus.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
