CN212805442U

CN212805442U - Novel LED office lamp

Info

Publication number: CN212805442U
Application number: CN202022304179.3U
Authority: CN
Inventors: 陈杏荣
Original assignee: Jiangmen Yaliang Hardware Electrical Appliance Co ltd
Current assignee: Shanghai Zhesai Information Technology Co ltd
Priority date: 2020-10-16
Filing date: 2020-10-16
Publication date: 2021-03-26
Anticipated expiration: 2030-10-16

Abstract

The utility model relates to the technical field of office lamps, and discloses a novel LED office lamp, comprising a first lamp frame and a second lamp frame, a cover plate is detachably connected to the upper surface of the first lamp frame, and the first lamp frame The inside of the light frame is fixedly connected with a light board, the lower surface of the light board is detachably connected with LED light rods, the lower edge of the inner side wall of the first light frame is detachably connected with a bottom plate, and the left and right sides of the first light frame are detachably connected with a bottom plate. A plurality of first fixing blocks are fixedly connected on both sides, and the front surface and the rear surface of each first fixing block are respectively fixedly connected with magnetic sheets; a first fixing block is added outside the first light frame, and a second A second fixing block is added to the outside of the light frame. The first and second fixing blocks are completely the same. Magnetic sheets are installed at the front and rear of the fixing block. Because the fixing blocks are equally spaced, the staff can easily snap the second fixing block to the Between the two first fixing blocks, at this time, the two contacted magnetic sheets are adsorbed together, and the two light frames are combined together, and the operation is very simple.

Description

Novel LED office lamp

Technical Field

The utility model relates to an official working lamps and lanterns technical field specifically is a novel LED official working lamps and lanterns.

Background

The LED lighting fixture is a general term for LED lighting fixtures, and refers to a fixture capable of transmitting light, distributing and changing light distribution of an LED light source, including all parts and components required for fixing and protecting the LED light source except the LED light source, and circuit accessories necessary for connecting with a power supply. With the further maturity of LED technology, LEDs will make more and better developments in the field of design and development of household lighting fixtures. The design of the lamp in the room in the 21 st century takes the design of an LED lamp as the mainstream, and fully reflects the lighting development trends of energy conservation, health, artistic and humanization at the same time, so that the lamp becomes the leading factor of the lighting culture of the room.

The room office lamp on the market at present has the following problems:

(1) some office lamps on the market can be combined together for use, but the office lamps are inconvenient to operate when combined, and the structural elements used for combination are fine and many, so that a simple combination mode is to be improved;

(2) the LED office lamp is rectangular, is monotonous and has no characteristics.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides a novel LED official working lamps and lanterns has solved official working lamps and lanterns when the combination, and the operation is inconvenient, and the meticulous and many problem of structural element that the combination was used has still solved lamps and lanterns monotonously, does not have the problem of characteristics.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: a novel LED office lamp comprises a first lamp frame and a second lamp frame, wherein the upper surface of the first lamp frame is detachably connected with a cover plate, the inner part of the first lamp frame is fixedly connected with a lamp plate, the lower surface of the lamp plate is detachably connected with an LED lamp bar, the edge below the inner side wall of the first lamp frame is detachably connected with a bottom plate, the left side and the right side of the first lamp frame are fixedly connected with a plurality of first fixed blocks, the front surface and the rear surface of each first fixed block are respectively and fixedly connected with a magnetic sheet, the right side of the first lamp frame is provided with the second lamp frame, the left side and the right side of the second lamp frame are respectively and fixedly connected with a plurality of second fixed blocks, the front surface and the rear surface of each second fixed block are respectively and fixedly connected with the magnetic sheets, the magnetic sheets on the second fixed blocks are adsorbed with the magnetic sheets on the first fixed blocks, the bottoms of the first fixed blocks and the second fixed blocks are both fixedly connected with arc-, the inside integrated into one piece of arc strip has the thread groove, the inside wall threaded connection of thread groove has the pole setting, the bottom welded fastening of pole setting has the metal chain, the bottom fixedly connected with pendant of metal chain.

Preferably, the interior of the second lamp frame is identical to the interior of the first lamp frame.

Preferably, the number of the first fixed blocks is one more than that of the second fixed blocks, and the first fixed blocks are equidistantly distributed outside the first lamp frame, and similarly, the second fixed blocks are equidistantly distributed outside the second lamp frame.

Preferably, the outer side wall of the vertical rod is provided with threads, and the vertical rod is detachably connected with the thread groove.

Preferably, the pendant is made of crystal materials and is polygonal.

(III) advantageous effects

The utility model provides a novel LED official working lamps and lanterns possesses following beneficial effect:

(1) the utility model discloses in, through the first fixed block of outside newly-increased at first rim, newly-increased second fixed block in the outside of second rim, first, second fixed block complete shape is with, at the front and back end installation magnetic sheet of fixed block, because fixed block equidistance distributes, the staff is convenient with second fixed block card and between two first fixed blocks, at this moment, two magnetic sheets that contact adsorb together, two rims are put together, and the operation is very succinct.

(2) The utility model discloses in, through the internally mounted pole setting at first, second fixed block, the staff can be in the arc strip pole setting threaded fixation, because at the bottom of pole setting newly-increased metal chain, there is the pendant bottom of this metal chain, no matter lamps and lanterns exclusive use, still the combination is in the same place, and one row is arranged into to the pendant, and lamps and lanterns can flash, have the characteristic in office environment, can play decorative effect.

Drawings

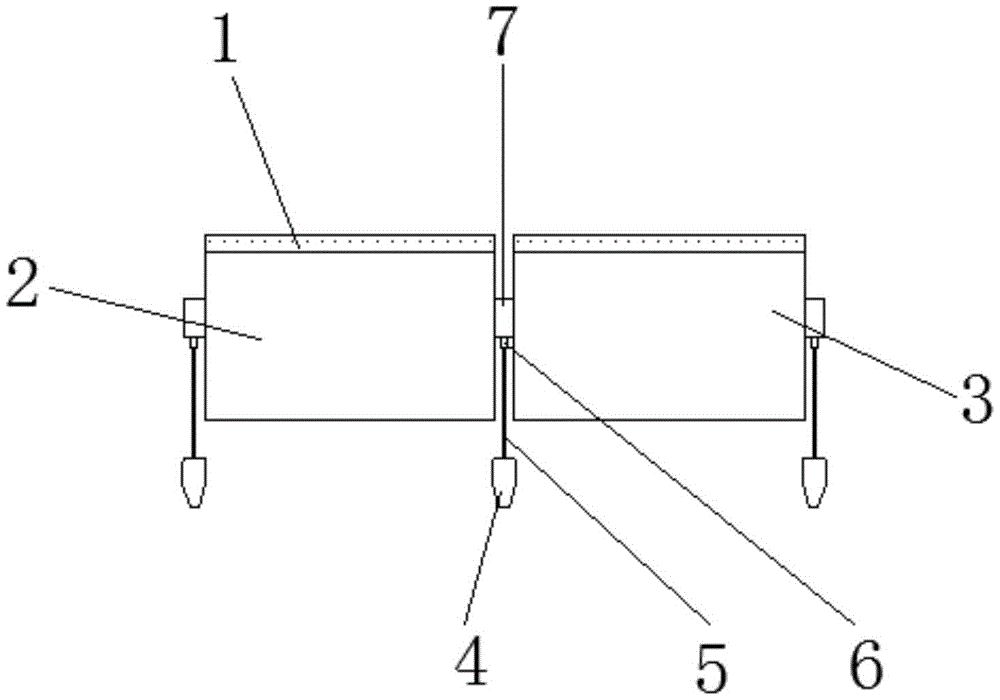

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic cross-sectional view of the first bezel of fig. 1 according to the present invention;

fig. 3 is a left side view of the structure of fig. 1 according to the present invention;

fig. 4 is a schematic right-view structural diagram of fig. 1 according to the present invention;

fig. 5 is a schematic view of the connection structure of the arc-shaped bar and the round bar in fig. 3 according to the present invention.

In the figure: 1. a cover plate; 2. a first lamp frame; 3. a second lamp frame; 4. a pendant; 5. a metal chain; 6. an arc-shaped strip; 7. a first fixed block; 8. a lamp panel; 9. an LED light bar; 10. a base plate; 11. erecting a rod; 12. a magnetic sheet; 13. a second fixed block; 14. a thread groove.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1-5, the utility model provides a technical solution: a novel LED office lamp comprises a first lamp frame 2 and a second lamp frame 3, wherein the upper surface of the first lamp frame 2 is detachably connected with a cover plate 1, the inner part of the first lamp frame 2 is fixedly connected with a lamp plate 8, the lower surface of the lamp plate 8 is detachably connected with an LED lamp rod 9, the lower edge of the inner side wall of the first lamp frame 2 is detachably connected with a bottom plate 10, the bottom plate 10 and the cover plate 1 can be detached, the detachment is the prior art, the detachment is the same as the detachment of the office lamp on the market, the left side and the right side of the first lamp frame 2 are fixedly connected with a plurality of first fixed blocks 7, the first fixed blocks 7 are cuboid-shaped, the front surface and the rear surface of each first fixed block 7 are respectively and fixedly connected with a magnetic sheet 12, the magnetic sheet 12 can attract a magnet of metal, the magnetic sheet 12 is a magnet in the shape of a flat cuboid, the second lamp frame 3 is placed on the right side of the first lamp frame 2, the, the front surface and the rear surface of every second fixed block 13 are fixedly connected with magnetic sheet 12 respectively, magnetic sheet 12 on the second fixed block 13 adsorbs with magnetic sheet 12 on the first fixed block 7 mutually, equal fixedly connected with arc 6 in the bottom of first fixed block 7 and second fixed block 13, the inside integrated into one piece of arc 6 has thread groove 14, the inside wall threaded connection of thread groove 14 has pole setting 11, the bottom welded fastening of pole setting 11 has metal chain 5, the bottom fixedly connected with pendant 4 of metal chain 5, two or even a plurality of lamps and lanterns can be put together, in addition, lamps and lanterns can the exclusive use, no matter be the lamps and lanterns of combination or exclusive use, the aesthetic property is strong and nevertheless in gorgeous, just, have characteristics in office environment.

Further, the inside of second rim 3 is the same with the inner structure of first rim 2, holds lamp plate 8 and LED lamp stick 9 in the rim, and first rim 2 and second rim 3 are the structure in two lamps and lanterns respectively.

Further, the number of the first fixing blocks 7 is one more than that of the second fixing blocks 13, the first fixing blocks 7 are equidistantly distributed outside the first lamp frame 2, similarly, the second fixing blocks 13 are equidistantly distributed outside the second lamp frame 3, the first fixing blocks 7 are completely identical to the second fixing blocks 13, the first fixing blocks 7 can be clamped with the second fixing blocks 13 between the two first fixing blocks 7, and at the moment, the magnetic sheets 12 which are in contact with each other are adsorbed together.

Furthermore, the thread is arranged above the outer side wall of the upright rod 11, the upright rod 11 is detachably connected with the thread groove 14, a worker holds the upright rod 11 to rotate, the upright rod 11 can be detached from the thread groove 14, and similarly, the worker inserts the upright rod 11 into the thread groove 14, rotates the upright rod 11 in the opposite direction, and the upright rod 11 can be fixed in the thread groove 14.

Further, the pendant 4 is quartzy material, and the pendant 4 is the polygon, and the quantity of pendant 4 is the same for the fixed block quantity of its top, and a plurality of pendant 4 equidistance distributes and arranges and be the font.

To sum up, the utility model discloses a work flow: firstly, the staff uses the connecting rope to install a lamps and lanterns in the office, and the lamps and lanterns are hanging, and at this moment, the staff can install another lamps and lanterns aside, then, peg graft second fixed block 13 between two first fixed blocks 7, and at this moment, two adjacent magnetic sheets 12 are laminated together, and two magnetic sheets 12 adsorb together, and same operation, the staff can be in the same place a plurality of lamps and lanterns group together, and in addition, the lamps and lanterns can not assemble together, separately exclusive use.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a novel LED office lamp, includes first rim (2) and second rim (3), its characterized in that: the upper surface of first rim (2) can be dismantled and be connected with apron (1), inside fixedly connected with lamp plate (8) of first rim (2), the lower surface of lamp plate (8) can be dismantled and be connected with LED lamp stick (9), the inside wall below edge of first rim (2) can be dismantled and be connected with bottom plate (10), a plurality of first fixed blocks (7) of left and right sides fixedly connected with of first rim (2), every the front surface and the rear surface of first fixed block (7) are fixedly connected with magnetic sheet (12) respectively, the right side of first rim (2) has been placed second rim (3), the left and right sides of second rim (3) is a plurality of second fixed blocks (13) of fixedly connected with respectively, every the front surface and the rear surface of second fixed block (13) are fixedly connected with magnetic sheet (12) respectively, on second fixed block (13) magnetic sheet (12) with on first fixed block (7) It adsorbs mutually to state magnetic sheet (12), first fixed block (7) with the equal fixedly connected with arc strip (6) in bottom of second fixed block (13), the inside integrated into one piece of arc strip (6) has thread groove (14), the inside wall threaded connection of thread groove (14) has pole setting (11), the bottom welded fastening of pole setting (11) has metal chain (5), the bottom fixedly connected with pendant (4) of metal chain (5).

2. The novel LED office light fixture as claimed in claim 1, wherein: the interior of the second lamp frame (3) is the same as the interior of the first lamp frame (2).

3. The novel LED office light fixture as claimed in claim 1, wherein: the quantity of the first fixed blocks (7) is one more than that of the second fixed blocks (13), the first fixed blocks (7) are distributed outside the first lamp frame (2) at equal intervals, and similarly, the second fixed blocks (13) are distributed outside the second lamp frame (3) at equal intervals.

4. The novel LED office light fixture as claimed in claim 1, wherein: the outer side wall of the vertical rod (11) is provided with threads, and the vertical rod (11) is detachably connected with the thread groove (14).

5. The novel LED office light fixture as claimed in claim 1, wherein: the pendant (4) is made of crystal materials, and the pendant (4) is polygonal.
