Abstract
本实用新型提供一种电动汽车充电桩，包括埋在地下的混凝土底座，在混凝土底座上设置有安装座，安装座上安装中空的遮阳棚支杆，遮阳棚支杆的顶端安装有遮阳棚，所述遮阳棚的上表面铺设有太阳能电池板，所述太阳能电池板通过蓄能导线连接到安装在充电机箱体内的蓄电池，所述充电机箱体内还安装有充电机，所述充电机通过充电电缆连接到充电枪，所述充电机箱体内的蓄电池和充电机还通过供电电缆与外接电网相连。本实用新型的整个充电桩结构简单，外露线缆少，安全性能高，充分利用清洁能源，能够减少电能的使用，节能环保。
The utility model provides an electric vehicle charging pile, which comprises a concrete base buried in the ground, a mounting seat is arranged on the concrete base, a hollow sunshade support rod is installed on the installation base, and a sunshade is installed at the top of the sunshade support rod. A solar panel is laid on the upper surface of the sunshade, and the solar panel is connected to a battery installed in a charging case through an energy storage wire. A charger is also installed in the charging case, and the charger is connected by a charging cable. Connected to the charging gun, the battery and the charger in the charging case are also connected to an external power grid through a power supply cable. The whole charging pile of the utility model has simple structure, few exposed cables, high safety performance, fully utilizes clean energy, can reduce the use of electric energy, saves energy and protects the environment.
Description
Technical Field
The utility model relates to a fill the electric pile field, specifically be an electric automobile fills electric pile suitable for public transit station.
Background
With the development of economy and the advancement of science and technology, more and more people realize that the environment is polluted more and more seriously by the combustion of fossil fuel, and particularly for urban public transport vehicles, the tail gas emission generated by buses is an important source of urban pollution. In order to reduce the emission of exhaust gas, more and more cities choose electric cars as public transportation means. However, due to the limitation of scientific and technological development, the cruising ability of the electric automobile battery is poorer than that of a fuel vehicle, the development of the electric automobile in the aspect of long-distance driving is restricted, and in order to solve the problem, a large number of charging piles are arranged at a bus station, so that the problem is very necessary.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an electric automobile fills electric pile, main line all passes from sunshade branch, concrete base and underground, reduces the cable and exposes the risk of stealing or hanging up at outer, improves the life of cable.
The technical scheme of the utility model:
an electric vehicle charging pile comprises a concrete base buried underground, wherein a mounting seat is arranged on the concrete base, a hollow sunshade supporting rod is arranged on the mounting seat, a sunshade is arranged at the top end of the sunshade supporting rod, a solar cell panel is paved on the upper surface of the sunshade, the solar cell panel is connected to a storage battery arranged in a charger box body through an energy storage wire, a charger is further arranged in the charger box body, the charger is connected to a charging gun through a charging cable, the storage battery and the charger in the charger box body are further connected with an external power grid through power supply cables, the energy storage wire penetrates through the top end of the sunshade supporting rod and then is connected to the storage battery through a pipeline reserved in the concrete base, one end of the charging cable is connected to the charger, and the other end of the charging cable enters a hollow pipeline of the sunshade supporting rod through a pipeline reserved in the concrete base, and penetrates out through a special opening arranged on the sunshade supporting rod.
The top end of the sunshade supporting rod is also provided with a spherical cap for preventing rainwater from gathering.
Still install the rifle rack that charges who conveniently places the rifle that charges on the sunshade branch.
The sunshade supporting rod is provided with a distance sensor used for sensing the distance between the vehicle and the sunshade supporting rod.
The charger box body is provided with heat dissipation holes for preventing internal temperature from being overheated.
Compared with the prior art, the beneficial effects of the utility model are that:
solar energy is converted into electric energy through a solar cell panel and stored in a storage battery, the solar energy can be utilized, clean energy is fully utilized, a pipeline is preset in a concrete base, an energy storage wire enters the preset pipeline in the concrete base through a cavity in a sunshade supporting rod and then is connected into the storage battery in a charger box through the ground, a charging cable enters a hollow pipeline of the sunshade supporting rod through the pipeline reserved in the concrete base and penetrates out of a street charging gun through a special opening formed in the sunshade supporting rod, cables of the whole charging pile are arranged through the ground, the exposure of the cables is reduced, the risk that the cables are stolen or hung up by external force is reduced, a distance sensor is arranged, the electric automobile is prevented from colliding with the sunshade supporting rod when backing, the safety of the charging pile is ensured, the whole charging pile is simple in structure, the number of exposed cables is small, the safety performance is high, and the clean energy can be fully utilized, the use of electric energy can be reduced, and the energy-saving and environment-friendly effects are achieved.
Drawings

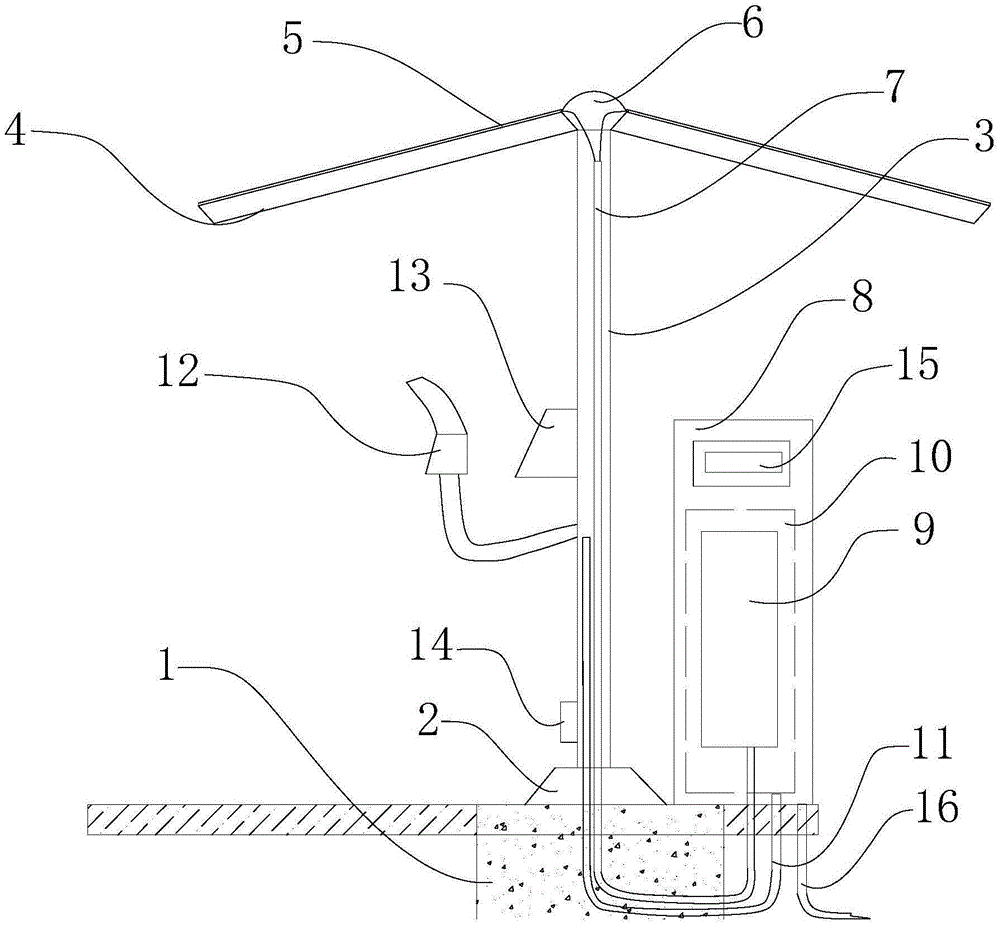

Fig. 1 is a schematic view of the overall structure of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1, an electric vehicle charging pile comprises a concrete base 1 buried underground, a mounting seat 2 is arranged on the concrete base 1, a hollow sunshade supporting rod 3 is mounted on the mounting seat 2, a sunshade 4 is mounted at the top end of the sunshade supporting rod 3, a solar cell panel 5 is laid on the upper surface of the sunshade 4, the solar cell panel 5 is connected to a storage battery 9 mounted in a charger box body 8 through an energy storage lead 7, a charger 10 is further mounted in the charger box body 8, the charger 10 is connected to a charging gun 12 through a charging cable 11, the storage battery 9 and the charger 10 in the charger box body 8 are further connected with an external power grid through a power supply cable 16, the energy storage lead 7 penetrates through the top end of the sunshade supporting rod 3 and then is connected to the storage battery 9 through a pipeline reserved in the concrete base 1, one end of the charging cable 11 is connected to the charger 10, the other end of the hollow pipe enters the hollow pipe of the sunshade supporting rod 3 through a pipeline reserved in the concrete base 1 and penetrates out through a special opening formed in the sunshade supporting rod 3.
The top end of the sunshade supporting rod 3 is also provided with a spherical cap 6 for preventing rainwater from gathering.
And a charging gun placing frame 13 for conveniently placing a charging gun 12 is further arranged on the sunshade supporting rod 3.
The sunshade supporting rod 3 is provided with a distance sensor 14 for sensing the distance between the vehicle and the sunshade supporting rod 3. The distance sensor 14 is a radar distance meter which is relatively conventional in the market, and the distance sensor 14 is also connected to an alarm to alarm and remind when the automobile is detected to be too close.
The charger box body 8 is provided with a heat dissipation hole 15 for preventing the internal temperature from being overheated.
The installation bolt is pre-buried on concrete base 1, sets up the screw that makes things convenient for the installation bolt to pass on the mount pad 2, and mount pad 2 is fixed through nut and installation bolt to with sunshade branch 3 fixed mounting on concrete base 1, simultaneously, mount pad 2 is the boss structure, can play the effect of keeping out the electric automobile striking.
The utility model discloses an electric automobile charging pile, solar energy is converted into electric energy through a solar cell panel and stored in a storage battery, solar energy can be utilized, clean energy is fully utilized, a pipeline is preset in a concrete base, an energy storage wire enters a preset pipeline in the concrete base through a cavity in a sunshade supporting rod and then is connected into a storage battery in a charging box body through the underground, a charging cable enters a hollow pipeline of the sunshade supporting rod through a pipeline reserved in the concrete base and penetrates out of a street charging gun through a special opening formed in the sunshade supporting rod, the cable of the whole charging pile is arranged through the underground, the cable exposure is reduced, the risk that the cable is stolen or hung up by external force is reduced, the electric automobile is prevented from colliding with the sunshade supporting rod when backing a car through arranging a distance inductor, the safety of the charging pile is ensured, the whole charging pile is simple in structure, few in exposed cable, high in safety performance, capable of reducing the use of electric energy and energy-saving and environment-friendly, and fully utilizes clean energy.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
