Abstract
本实用新型公开了一种多功能组合碾米机，包括操作箱，操作箱的一侧固定安装有输送管，输送管的内部设有输送组件，输送组件包括第一电机、转动辊、旋转叶和导料管，第一电机固定安装在输送管内部的底端，本实用新型的有益效果是：通过设置的第一电机驱动转动辊进行转动，同时配合旋转叶，从而便于稻米进行输送，同时通过设置的第二电机驱动弧形板进行转动，配合弧形板、转轴和摆动杆，使得筛板和矩形框对稻米进行筛分，使得合格的稻米进入碾米机本体的内部，使得不合格的稻米再次通过胶辊砻谷机进行脱壳，反复循环进行脱壳，从而便于有效的对稻谷表面的稻壳进行清理，降低了稻谷的含糠率，进而提高稻米的最终品质。
The utility model discloses a multifunctional combined rice milling machine, comprising an operation box, a conveying pipe is fixedly installed on one side of the operation box, a conveying assembly is arranged inside the conveying pipe, and the conveying assembly comprises a first motor, a rotating roller, a rotating blade The first motor is fixedly installed at the bottom end inside the conveying pipe, and the beneficial effect of the utility model is: the first motor is arranged to drive the rotating roller to rotate, and at the same time cooperate with the rotating blade, so as to facilitate the conveying of rice, and at the same time The arc-shaped plate is driven to rotate by the set second motor, and cooperates with the arc-shaped plate, the rotating shaft and the swing rod, so that the sieve plate and the rectangular frame sieve the rice, so that the qualified rice enters the inside of the rice milling machine body, making the unqualified rice The hulled rice is again hulled by the rubber roller husker, and the husk is repeatedly cycled, so that the rice husk on the surface of the rice can be cleaned effectively, the bran content of the rice is reduced, and the final quality of the rice is improved.
Description
Technical Field
The utility model relates to a rice mill, in particular to many function combination rice mill belongs to rice mill technical field.
Background
While rice processing enterprises gradually move to scale and group, the comprehensive utilization of rice resources, the development of products and quality brand awareness are necessarily more emphasized, and meanwhile, as the requirements of downstream enterprises on the quality of rice milling machinery products are increasingly improved, the rice milling machinery products also have higher requirements on the quality, supporting services and other aspects.
The existing rice mill has high bran content in rice, so that the produced bran can not be effectively cleaned, the rice residue rate is high, and the final quality of rice is influenced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a many function combination rice mill to the in-process that proposes in solving above-mentioned background art using is because the chaff content is high in the corn, can't effectual chaff to the production is cleared up, leads to the corn to remain the rate higher, thereby has influenced the problem of the final quality of rice.
In order to achieve the above object, the utility model provides a following technical scheme: a multifunctional combined rice mill comprises an operation box, wherein a conveying pipe is fixedly arranged on one side of the operation box, a conveying assembly is arranged inside the conveying pipe and comprises a first motor, a rotating roller, rotating blades and a material guide pipe, the first motor is fixedly arranged at the bottom inside the conveying pipe, the rotating roller is fixedly arranged on a transmission shaft of the first motor, a sealing plate is fixedly arranged at the bottom of the rotating roller and fixedly connected with the inner wall of the conveying pipe, a plurality of rotating blades are fixedly arranged on the outer portion of the rotating roller, the material guide pipe and a material conveying pipe are respectively fixedly arranged at the top of one side of the conveying pipe and the bottom of one side of the conveying pipe, a rice mill body is fixedly arranged at the bottom inside the operation box, a first feeding hopper is fixedly arranged at the top of the rice mill body, and a rectangular frame is slidably connected to the top end of the operation box, the bottom fixed mounting of rectangle frame has the sieve, the bottom fixed mounting of sieve has down the hopper, the inside of control box is equipped with adjusting part, adjusting part includes second motor, arc and swinging arms, second motor fixed mounting is on the top of control box one side inner wall, the transmission shaft fixed mounting of second motor has the arc, the one end of arc is rotated through the pivot and is connected with the swinging arms, the one end of swinging arms is rotated through the bottom of pivot and rectangle frame one side and is connected.
As a preferred technical scheme of the utility model, the inside fixed mounting of control box has the rubber roll rice huller, the top fixed mounting of rubber roll rice huller has the second feeder hopper, the discharge gate of rubber roll rice huller and the one end fixed connection of conveying pipe, the bottom fixed mounting of rubber roll rice huller has big chaff separator, one side fixed mounting on control box inner wall top has big chaff fan, the top of second feeder hopper is arranged in to the suction opening of big chaff fan, the air outlet of big chaff fan passes the control box and arranges the back of control box in, the positive middle part fixed mounting of second feeder hopper has the charge tank, the one end of charge tank is passed the control box and is arranged the outside of control box in.
As the utility model discloses a preferred technical scheme, first feeder hopper and lower hopper are located same vertical plane, the size of first feeder hopper is greater than the size of hopper down.
As a preferred technical scheme of the utility model, the discharge gate of rice mill body and the one end fixed connection of blown down tank, the outside of control box is arranged in to the one end of blown down tank is passed the control box.
As a preferred technical scheme of the utility model, the swing groove corresponding with the sieve has been seted up at the top of control box, one side fixed mounting of sieve has down the flitch, the position of flitch and second feeder hopper is corresponding down.
As an optimal technical scheme of the utility model, the positive top fixed mounting of control box has flush mounting plate of switch, flush mounting plate of switch's surface difference fixed mounting has first motor switch, rice mill body switch, rubber roll rice huller switch, chaff separator switch, second motor switch and chaff fan switch, first motor, rice mill body, rubber roll rice huller, chaff separator, second motor and chaff fan are respectively through first motor switch, rice mill body switch, rubber roll rice huller switch, chaff separator switch, second motor switch and chaff fan switch and power electric connection.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model relates to a many function combination rice mill rotates through the first motor drive live-rollers that sets up, cooperates the revolving leaf simultaneously, thereby the rice of being convenient for is carried, rotate through the second motor drive arc that sets up simultaneously, cooperation arc, pivot and swinging arms make sieve and rectangle frame sieve rice, make qualified rice get into the inside of rice mill body, make unqualified rice once more through the rubber roll rice huller shelling, the repeated cycle is shelled, thereby be convenient for effectually clear up the rice husk on rice surface, the chaff rate that contains of rice is reduced, and then improve the final quality of rice; the rice chaff that can effectually produce rice through the big chaff fan that sets up is discharged, mutually supports between rice mill body, rubber roll rice huller and the big chaff separator through setting up to be convenient for improve production efficiency, it is more convenient to use.
Drawings

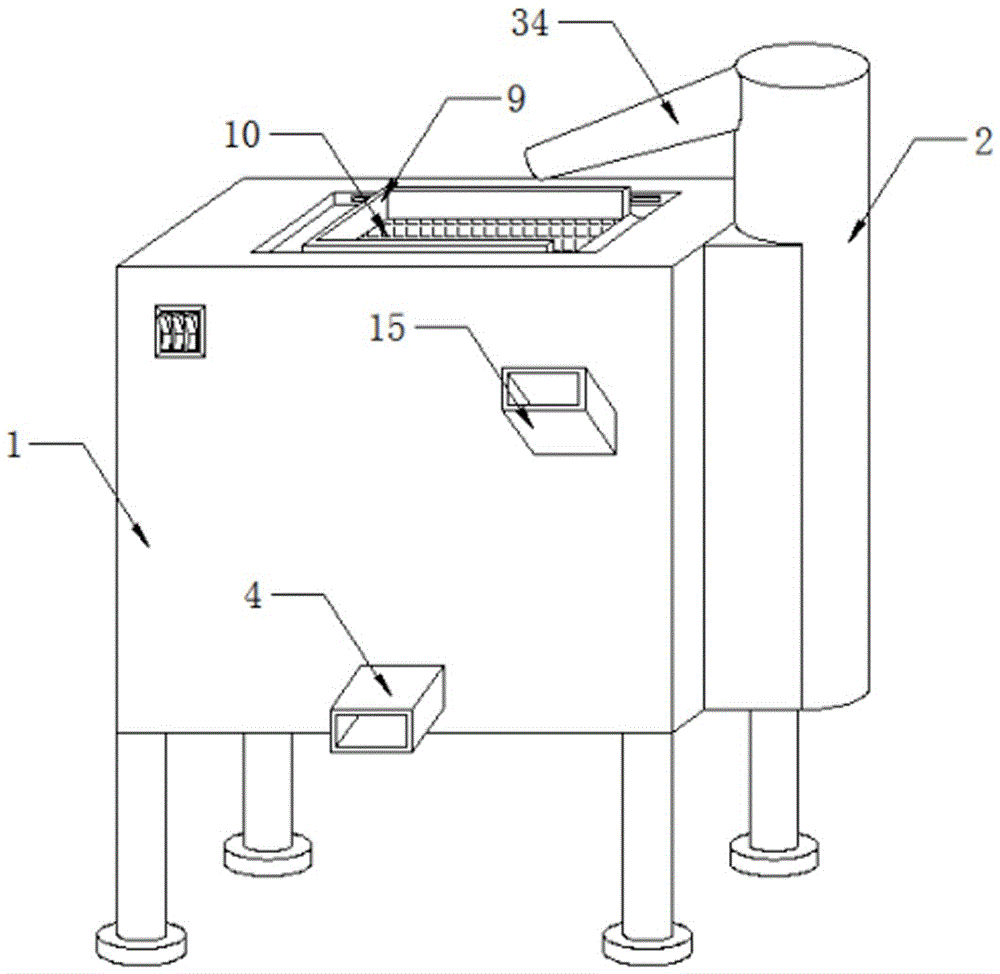

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic sectional structure of the present invention;
fig. 3 is an enlarged schematic structural diagram of the utility model a.
In the figure: 1. an operation box; 2. a delivery pipe; 3. a delivery assembly; 31. a first motor; 32. a rotating roller; 33. rotating the leaf; 34. a material guide pipe; 4. a discharge chute; 5. a rice mill body; 6. an adjustment assembly; 61. a second motor; 62. an arc-shaped plate; 63. a swing lever; 7. a rubber roller rice huller; 8. a feed pipe; 9. a rectangular frame; 10. a sieve plate; 11. feeding a hopper; 12. a first feed hopper; 13. a chaff separator; 14. a bran blower; 15. a feed tank.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the utility model provides a multifunctional combined rice mill, which comprises an operation box 1, a conveying pipe 2 is fixedly installed at one side of the operation box 1, a conveying component 3 is arranged inside the conveying pipe 2, the conveying component 3 comprises a first motor 31, a rotating roller 32, rotating blades 33 and a material guide pipe 34, the first motor 31 is fixedly installed at the bottom end inside the conveying pipe 2, the rotating roller 32 is fixedly installed at the transmission shaft of the first motor 31, a sealing plate is fixedly installed at the bottom of the rotating roller 32 and fixedly connected with the inner wall of the conveying pipe 2, a plurality of rotating blades 33 are fixedly installed outside the rotating roller 32, the material guide pipe 34 and a material feeding pipe 8 are respectively fixedly installed at the top of one side and the bottom of one side of the conveying pipe 2, a rice mill body 5 is fixedly installed at the bottom end inside the operation box 1, a first feeding hopper 12 is fixedly installed at the top of, there is rectangular frame 9 on the top of control box 1 through slider sliding connection, rectangular frame 9's bottom fixed mounting has sieve 10, hopper 11 under the bottom fixed mounting of sieve 10, the inside of control box 1 is equipped with adjusting part 6, adjusting part 6 includes second motor 61, arc 62 and swinging arms 63, second motor 61 fixed mounting is on the top of 1 one side inner wall of control box, the transmission shaft fixed mounting of second motor 61 has arc 62, the one end of arc 62 is rotated through the pivot and is connected with swinging arms 63, the one end of swinging arms 63 is rotated through the bottom of pivot and rectangular frame 9 one side and is connected.
Preferably, a rubber roll rice huller 7 is fixedly installed inside the operation box 1, a second feed hopper is fixedly installed at the top end of the rubber roll rice huller 7, a discharge port of the rubber roll rice huller 7 is fixedly connected with one end of the feeding pipe 8, a large bran separator 13 is fixedly installed at the bottom of the rubber roll rice huller 7, a large bran fan 14 is fixedly installed at one side of the top end of the inner wall of the operation box 1, an air suction port of the large bran fan 14 is arranged at the top of the second feed hopper, an air outlet of the large bran fan 14 penetrates through the operation box 1 and is arranged on the back surface of the operation box 1, a feeding groove 15 is fixedly installed in the middle of the front surface of the second feed hopper, one end of the feeding groove 15 penetrates through the operation box 1 and is arranged outside the operation box 1, rice husks can; the first feeding hopper 12 and the lower hopper 11 are positioned on the same vertical plane, and the size of the first feeding hopper 12 is larger than that of the lower hopper 11, so that rice milling is convenient to accept, and the rice milling falls into the lower hopper 11; a discharge port of the rice mill body 5 is fixedly connected with one end of a discharge chute 4, and one end of the discharge chute 4 penetrates through the operation box 1 and is arranged outside the operation box 1, so that the rice mill is convenient to discharge; the top of the operation box 1 is provided with a swing groove corresponding to the sieve plate 10, one side of the sieve plate 10 is fixedly provided with a blanking plate, and the blanking plate corresponds to the second feed hopper, so that the rectangular frame 9 and the sieve plate 10 are not limited in the moving process; the positive top fixed mounting of control box 1 has switch panel, switch panel's surface respectively fixed mounting has first motor switch, rice mill body switch, rubber roll rice huller switch, big chaff separator switch, second motor switch and big chaff fan switch, first motor 31, rice mill body 5, rubber roll rice huller 7, big chaff separator 13, second motor 61 and big chaff fan 14 are respectively through first motor switch, rice mill body switch, rubber roll rice huller switch, big chaff separator switch, second motor switch and big chaff fan switch and power electric connection, be convenient for better each electrical apparatus of control work operation.
When the multifunctional combined rice mill is used, the utility model relates to a multifunctional combined rice mill, when the multifunctional combined rice mill is needed to be used, firstly, the multifunctional combined rice mill is placed at a working place, then the multifunctional combined rice mill is respectively operated through a first motor switch, a rice mill body switch, a rubber roller rice mill switch, a big chaff separator switch, a second motor switch and a big chaff fan switch to control a first motor 31, a rice mill body 5, a rubber roller rice mill 7, a big chaff separator 13, a second motor 61 and a big chaff fan 14, a feeding groove 15 is matched with the second feeding hopper to feed materials, the rice hulls are separated from the brown rice through the arranged rubber roller rice mill 7 and the big chaff separator 13, the generated rice hulls are cleared through the big chaff fan 14, then a transmission shaft of the first motor 31 drives a rotating roller 32 and a rotating blade 33 to rotate simultaneously, a guide pipe 34 is matched to enable the brown rice and the surface of a rice hull sieve plate 10 for being cleared, screening it through second motor 61 cooperation arc 62 and swinging arms 63 for qualified brown rice gets into rice mill body 5 and grinds white can brown rice, makes unqualified rice and rice husk reenter rubber roll rice huller 7 and chaff separator 13, handles it once more, repeats above-mentioned step, and then is convenient for effectually clear up the rice husk on rice surface, has reduced the chaff rate of rice, and then improves the final quality of rice.
In the description of the present invention, it should be understood that the indicated orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, and is only for convenience of description and simplification of description, and does not indicate or imply that the indicated device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus should not be construed as limiting the present invention.
In the present invention, unless otherwise explicitly specified or limited, for example, it may be fixedly connected, detachably connected, or integrated; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
