Abstract
一种输液加药便捷的盛药容器，包括盛装药液的主体容腔，主体容腔设有进药管和输注端盖，输注端盖密封设有刺破区，用于插接输液器插头，进药管进口端设有硬质尖管，硬质尖管匹配设有可开合的密封套；输注端盖设有与刺破区连通的插接管，插接管内径和长度与输液器插头匹配。在进药管进口端增设硬质尖管，配药时，直接用硬质尖管刺入药品包装瓶，挤压使药品进入主体容腔，加药操作便捷、减少浪费；在输注端盖增设插接管，输液器插头插紧连通于插接管，插头尖端未伸入主体容腔，输液时几乎没有药液残留，避免浪费和药量不足。
A medicine container convenient for infusion and medicine addition, comprising a main body cavity for holding medicine liquid, the main body cavity is provided with a medicine feeding tube and an infusion end cap, and the infusion end cap is sealed with a puncture area for inserting the infusion solution The inlet end of the drug inlet tube is provided with a rigid tip tube, and the rigid tip tube is matched with a sealable sleeve that can be opened and closed; the infusion end cover is provided with a plug tube that communicates with the puncture area, and the inner diameter and length of the plug tube are the same as those of the puncture area. Infusion set plugs match. A rigid pointed tube is added at the inlet end of the drug feeding tube. When dispensing, directly pierce the drug packaging bottle with the rigid pointed tube, and squeeze the drug into the main body cavity, which is convenient for adding medicine and reduces waste. Plug tube, the infusion set plug is tightly connected to the plug tube, the tip of the plug does not extend into the main body cavity, and there is almost no liquid residue during infusion, avoiding waste and insufficient dose.
Description
Technical Field
The utility model relates to the technical field of medical appliances, in particular to a medicine container for transfusion.
Background
The infusion is one of the commonly used treatment methods in medical clinic, the medicine containers needed by the infusion are also diversified, disposable plastic bottles or bags are common, and the bottom of the infusion is provided with an infusion nozzle and a dispensing joint which are communicated with a liquid medicine containing cavity.
When adding medicine in the process of dispensing, firstly, the medicine is extracted and temporarily stored by the injector, and then the medicine liquid is injected into the medicine liquid cavity by the injector through the dispensing connector, so that the operation is complex, the disposable injector is consumed, and the medicine is remained in the injector. During infusion, the plug of the infusion apparatus is inserted into the infusion nozzle, the existing infusion nozzle is directly connected to the bottom end of the liquid medicine containing cavity, in order to ensure that an infusion tube is communicated with the liquid medicine, the plug can extend into the liquid medicine containing cavity for a certain distance after being inserted, and the liquid medicine is wasted due to the fact that the liquid medicine in the liquid medicine containing cavity is lower than the partial liquid medicine on the top end of the plug, and the infusion amount is inaccurate.
SUMMERY OF THE UTILITY MODEL
To the technical problem, the utility model provides a medicine container that infusion adds medicine is convenient adds the stereoplasm sharp tube advancing the pencil entrance point, directly switches on medicine packing bottle and main part and holds the chamber, adds medicine simple operation, reduces and remains the waste.
In order to solve the technical problem, the utility model discloses a following scheme:
a medicine container convenient for infusion and medicine adding comprises a main body cavity for containing liquid medicine, wherein the main body cavity is provided with a medicine inlet pipe and an infusion end cover, the infusion end cover is provided with a puncture area in a sealing mode and used for inserting a plug of an infusion apparatus, the inlet end of the medicine inlet pipe is provided with a hard pointed pipe, and the hard pointed pipe is provided with a sealing sleeve capable of being opened and closed in a matching mode;
the infusion end cover is provided with an insertion pipe communicated with the puncture area, and the inner diameter and the length of the insertion pipe are matched with the infusion apparatus plug.
Furthermore, the infusion end cover is integrally arranged in the main body cavity, a rubber sheet is sealed in the center of the infusion end cover in a hot melting mode to form a puncture area, and the medicine inlet pipe and the insertion pipe are integrally arranged on the infusion end cover.
Furthermore, the insertion pipe adopts a rubber hose, and the edge of a socket of the insertion pipe is in an outwards-turned suction disc shape.
Preferably, the main part holds the chamber overcoat and is equipped with the insulation cover, insulation cover bottom edge with infusion end cover body coupling, the insulation cover top is equipped with the water inlet, and the bottom is equipped with the outlet pipe.
Furthermore, the water inlet is a hard plastic cylinder integrally connected with the heat insulation sleeve; the water inlet is set as a funnel-shaped telescopic pipe.
Furthermore, a hanging rope is arranged at the top end of the heat insulation sleeve.
Furthermore, the sealing sleeve and the hard sharp tube are arranged in a split manner, and the sealing sleeve is connected to the infusion end cover through an elastic rope; the hard sharp tube is made of hard plastics, and the sealing sleeve is a rubber soft sleeve.
The utility model discloses beneficial effect who has:
the hard pointed tube is additionally arranged at the inlet end of the medicine inlet tube, and when dispensing, the hard pointed tube is directly used for puncturing a medicine packaging bottle and extruding the medicine into the main cavity, so that the medicine adding operation is convenient and the waste is reduced; the infusion end cover is additionally provided with the insertion pipe, the plug of the infusion apparatus is inserted and tightly communicated with the insertion pipe, the tip of the plug does not extend into the cavity of the main body, and almost no liquid medicine is left during infusion, so that waste and insufficient medicine quantity are avoided.
The heat insulation sleeve is sleeved outside the main cavity, hot water is injected from the water inlet during infusion to preheat and insulate liquid medicine, cold water discharged from the water outlet pipe during infusion can be injected into the hot water again, the infusion set can be used anytime and anywhere, and the infusion set is convenient to operate and low in cost.
The water inlet sets up to hopper-shaped flexible pipe, and the water inlet shrink fits in the insulation cover top surface when not using, and occupation space is very little, stretches the water inlet and erects when using and can pour into hot water into, and the water inlet adopts stereoplasm plastic cylinder shapable, is convenient for change hot water midway.
Drawings

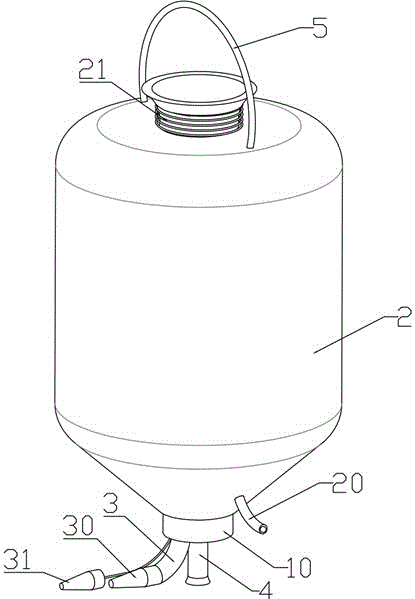

Fig. 1 is a schematic structural diagram of an embodiment of the present invention.
Fig. 2 is a schematic structural diagram of a main body cavity for containing liquid medicine.
Reference numerals: 1-main body cavity, 10-infusion end cover, 2-heat preservation sleeve, 20-water outlet pipe, 21-water inlet, 3-medicine inlet pipe, 30-hard sharp pipe, 31-sealing sleeve, 4-insertion pipe and 5-hanging rope.
Detailed Description
The present invention will be described in further detail with reference to the following examples and drawings, but the present invention is not limited thereto.
It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures. In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate the position or positional relationship based on the position or positional relationship shown in the drawings, or the position or positional relationship which is usually placed when the product of the present invention is used, and are only for convenience of description and simplification of the description, but do not indicate or imply that the device or element referred to must have a specific position, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. It should also be noted that, unless expressly stated or limited otherwise, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may for example be fixedly connected, detachably connected, or integrally connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Examples
As shown in fig. 1 and 2, the present embodiment provides a medicine container for conveniently adding medicine in infusion, including a main body cavity 1 for containing medicine liquid, where the main body cavity 1 is provided with a medicine inlet tube 3 and an infusion end cap 10, the infusion end cap 10 is hermetically provided with a puncture region for plugging a plug of an infusion apparatus, an inlet end of the medicine inlet tube 3 is provided with a hard tip tube 30, and the hard tip tube 30 is provided with a sealing sleeve 31 which can be opened and closed in a matching manner;
the infusion end cover 10 is provided with a plug tube 4 communicated with the puncture area, and the inner diameter and the length of the plug tube 4 are matched with the infusion apparatus plug.
The specific implementation process and principle are as follows:
the hard pointed tube 30 is additionally arranged at the inlet end of the medicine inlet tube 3, and when medicines packaged by a plastic bottle are dispensed, the hard pointed tube 30 is directly used for penetrating a medicine packaging bottle, and the medicine packaging bottle is extruded to enable the medicines to enter the main cavity 1; for a medicine packaging bottle which cannot be extruded, if the main body cavity 1 adopts a plastic bottle, the main body cavity 1 can be extruded first, then the hard sharp tube 30 is inserted, and the medicine is sucked by slowly loosening the hand; in the case that the medicine packaging bottle and the main body cavity 1 can not be extruded, the medicine can be only pumped and injected through a syringe. Add grafting pipe 4 at infusion end cover 10, the transfusion system plug is inserted and is tightly linked to in grafting pipe 4, and 4 inner walls of grafting pipe compress tightly with the transfusion system plug, and grafting pipe 4 length is not less than transfusion system plug length, and the plug point end does not stretch into main part and holds the chamber 1, and the liquid medicine gets into the transfusion system plug through grafting pipe 4 again, and there is not the liquid medicine to remain almost, avoids extravagant and dose not enough.
Further, the infusion end cover 10 is integrally arranged in the main body cavity 1, a rubber sheet is sealed in the center of the infusion end cover 10 in a hot melting mode to form a puncture area, and the medicine inlet pipe 3 and the insertion pipe 4 are integrally arranged in the infusion end cover 10. The infusion end cover 10, the medicine inlet pipe 3 and the inserting pipe 4 are integrally arranged, so that the sealing performance is enhanced, and the infusion operation process is prevented from being carelessly dropped.
Further, as shown in fig. 2, the insertion tube 4 is a rubber hose, the edge of the insertion opening is arranged in an outward-turned sucker shape, the rubber hose with larger elasticity is adopted, and the inner diameter can be slightly smaller than the outer diameter of the infusion apparatus plug, so that the insertion tube is tightly attached to the infusion apparatus plug and is prevented from falling off; the rubber hose is thin, so that the insertion is convenient due to the special arrangement of the edge of the socket.
The liquid medicine is preheated before being infused into human body, so that the discomfort of the patient can be relieved, and the crystallization and precipitation of some medicines due to the low temperature can be avoided. However, some existing transfusion heating methods adopt additional electric heating sleeves, the positions of the transfusion heating methods are inconvenient to move due to the fact that electricity needs to be inserted, and other heat source methods are inconvenient to use anytime and anywhere due to the fact that the existing transfusion heating methods are arranged separately from a transfusion bottle. As a preferred embodiment, as shown in fig. 1, a thermal insulation sleeve 2 is sleeved outside a main body cavity 1, the bottom edge of the thermal insulation sleeve 2 is integrally connected with an infusion end cap 10, a water inlet 21 is arranged at the top end of the thermal insulation sleeve 2, and a water outlet pipe 20 is arranged at the bottom end of the thermal insulation sleeve. The insulating sleeve 2 can be a cheap plastic soft sleeve, and the insulating sleeve 2 is attached outside the main body cavity 1 when not in use, so that the occupied space is small and the function of the main body is not influenced. When the hot water bottle is used, hot water is injected from the water inlet 21, the heat insulation sleeve 2 can be filled, liquid medicine in the cavity 1 of the main body is preheated and insulated, the liquid medicine is discharged from the water outlet pipe 20 when the temperature of the hot water is too low, and the water outlet pipe 20 is knotted and sealed after new hot water is injected again.
Further, in order to facilitate the replacement and injection of new hot water in the infusion process, the water inlet 21 is a hard plastic cylinder integrally connected to the heat-insulating sleeve 2; the water inlet 21 is provided as a funnel-shaped telescopic tube. When the water heater is not used, the water inlet 21 is shrunk and attached to the top surface of the heat insulation sleeve 2, the occupied space is small, hot water can be injected by stretching and erecting the water inlet 21 when the water heater is used, and the water inlet 21 is a funnel-shaped hard plastic cylinder, so that the hot water can be conveniently replaced midway.
Furthermore, a hanging rope 5 is arranged at the top end of the heat-insulating sleeve 2 and is used for hanging the heat-insulating sleeve at a high position for transfusion.
Furthermore, the sealing sleeve 31 and the hard sharp tube 30 are arranged in a split manner, the sealing sleeve 31 is connected to the infusion end cover 10 through an elastic rope, the sealing sleeve 31 is prevented from being lost, and the split arrangement is more convenient to open and close; the hard sharp tube 30 is made of hard plastics and is convenient to pierce into a medicine packaging bottle opening, the sealing sleeve 31 is a rubber soft sleeve, and the high-elasticity sleeve is convenient to operate and tight in sealing.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention in any way, and the technical essence of the present invention is that within the spirit and principle of the present invention, any simple modification, equivalent replacement, and improvement made to the above embodiments are all within the protection scope of the technical solution of the present invention.
