CN212781948U - Ergonomic keyboard convenient to place

Info

Publication number: CN212781948U
Application number: CN202021972468.4U
Authority: CN
Inventors: 赖柳南
Original assignee: Shenzhen Shengji Technology Co ltd
Current assignee: Shenzhen Shengji Technology Co ltd
Priority date: 2020-09-10
Filing date: 2020-09-10
Publication date: 2021-03-23
Anticipated expiration: 2030-09-10

Abstract

The utility model discloses an ergonomic keyboard convenient to place, including the keyboard body, the arc is installed to keyboard body bottom, and the inside equidistance of arc installs first magnetite, the keyboard body includes vice keyboard and main keyboard, and vice keyboard rotates through the pivot with main keyboard and is connected, it has the wrist pad to adsorb on the arc of main keyboard bottom, it leaks the board to adsorb on the arc of vice keyboard bottom, the second magnetite is installed to the bottom impartial distance of wrist pad and the board of leaking, the adjustment tank has all been seted up to the back both sides of keyboard body. The utility model divides the keyboard body into a main keyboard and an auxiliary keyboard through a rotating shaft, realizes that the keyboard is folded and is convenient to carry and place, and the sucking disc at the back of the auxiliary keyboard is adsorbed at the back of the main keyboard to realize that the folded keyboard can not be disordered; the wrist pad adsorbed on the arc-shaped plate supports the wrist during typing, so that the ache caused by long-time lifting of the wrist is avoided; through the key cap sunken processing in the keyboard body.

Description

Ergonomic keyboard convenient to place

Technical Field

The utility model relates to an ergonomic keyboard technical field especially relates to an ergonomic keyboard convenient to place.

Background

The computer, the keyboard and the mouse are used for the longest time on duty in the information-based era, wherein the keyboard is the most extensive, information is sent, the keyboard is needed to be used for typing and the like, the wrist is in a suspended state when the common office keyboard is used on the market, the wrist is ache due to long-time use, the keyboard is not in accordance with ergonomics, the full-size keyboard is longer in length and inconvenient to carry, the portable keyboard on the market is a non-full-size keyboard and a soft keyboard, the two keyboards are comfortable to type without a complete keyboard, keycaps of the common full-size keyboard for office use are easy to slip, the keyboard placed on a desktop is easy to shake in disorder, the position is changed, the comfortable posture is adjusted before typing every time, the keyboard is angry due to failure when the keyboard is used for playing, and the keyboard is damaged due to carelessness.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing an ergonomic keyboard convenient to place.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides an ergonomic keyboard convenient to place, includes the keyboard body, the arc is installed to keyboard body bottom, and the inside equidistance of arc installs first magnetite, the keyboard body includes auxiliary keyboard and main keyboard, and auxiliary keyboard and main keyboard rotate through the pivot to be connected, adsorb on the arc of main keyboard bottom and have the wrist pad, adsorb on the arc of auxiliary keyboard bottom and give out the board of letting out, the second magnetite is installed to the impartial distance in bottom of wrist pad and the board of letting out, the adjustment tank has all been seted up to the back both sides of keyboard body, and all rotates in the adjustment tank and be connected with the regulating block, is located the welding has the dog on the keyboard at the top of regulating block, main keyboard and auxiliary keyboard back all install two sucking discs, the both ends at the keyboard back all bond there is the antislip strip.

Preferably, the space key in the keyboard body is of a trapezoidal structure, the keycaps in the keyboard are all inwards recessed, and the front edge thickness of the keyboard is 30mm-50 mm.

Preferably, hanging holes are formed in two sides of the top of the keyboard body, a mobile phone placing groove is formed in the top of the main keyboard, and a rubber ring is arranged inside the mobile phone placing groove.

Preferably, a stop strip is arranged on one side of the main keyboard close to the auxiliary keyboard.

Preferably, the wrist pad and the abreaction plate are made of skin-friendly materials, foam is filled in the wrist pad, and memory cotton is filled in the abreaction plate.

Preferably, the number of the adjusting grooves on the back of the keyboard body is three, and adjusting blocks with different lengths are respectively connected in the adjusting grooves in a rotating manner.

The utility model has the advantages that:

1. the keyboard body is divided into a main keyboard and an auxiliary keyboard through the rotating shaft, so that the size of the keyboard is reduced, the keyboard is convenient to carry and place, and the sucking disc on the back of the auxiliary keyboard is adsorbed on the back of the main keyboard, so that the folded keyboard cannot be disturbed; hanging holes at two sides of the top of the keyboard body can be used for hanging the keyboard body at other positions in an idle mode;

2. the wrist pad adsorbed on the arc-shaped plate supports the wrist during typing, so that the ache caused by long-time lifting of the wrist is avoided;

3. through the concave treatment of the keycaps in the keyboard body, each key position can be accurately pressed by fingers during typing;

4. the keyboard placed on the desk cannot be randomly changed in position through the anti-slip strips and the suckers at the bottom of the keyboard body;

5. the leakage plate adsorbed on the arc-shaped plate at the bottom of the auxiliary keyboard is used for avoiding the lower hand of the keyboard during the air generation;

6. the keyboard can be adjusted to different angles to adapt to typing modes of different people through adjusting blocks and stop blocks with different lengths in an adjusting groove at the bottom of the keyboard body;

7. the front edge thickness of the keyboard body is 30-50 mm, the wrist does not excessively upwarp during typing according with human engineering, and the phenomenon of mistaken touch and touch failure during key pressing can be avoided by the enlarged space key.

Drawings

Fig. 1 is a schematic top view of an ergonomic keyboard of the present invention, which is convenient to place;

fig. 2 is a schematic view of a foldable top view structure of the ergonomic keyboard of the present invention, which is convenient for placement;

fig. 3 is a schematic view of a folding structure of the ergonomic keyboard of the present invention, which is convenient for placement;

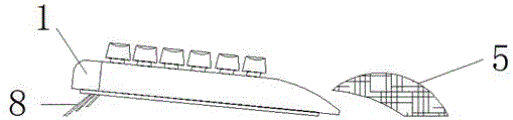

fig. 4 is a schematic side view of an ergonomic keyboard of the present invention, which is convenient to place;

fig. 5 is a schematic diagram of a abreaction plate structure of the ergonomic keyboard convenient for placement.

In the figure: the mobile phone comprises a keyboard 1, a secondary keyboard 2, a main keyboard 3, an arc-shaped plate 4, a wrist pad 5, a first magnet 6, a rotating shaft 7, an adjusting block 8, a stop block 9, a space key 10, a sucking disc 11, an anti-slip strip 12, a stop strip 13, a hanging hole 14, a mobile phone placing groove 15 and a abreaction plate 16.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-5, an ergonomic keyboard convenient to place comprises a keyboard body 1, wherein hanging holes 14 are formed in two sides of the top of the keyboard body 1, a mobile phone placing groove 15 is formed in the top of a main keyboard 3, a rubber ring is arranged inside the mobile phone placing groove 15, an arc plate 4 is installed at the bottom of the keyboard body 1, first magnets 6 are installed inside the arc plate 4 at equal intervals, the keyboard body 1 comprises an auxiliary keyboard 2 and the main keyboard 3, the auxiliary keyboard 2 is rotatably connected with the main keyboard 3 through a rotating shaft, the size of the keyboard is reduced by enabling the keyboard to comprise the main keyboard and the auxiliary keyboard through the rotating shaft, the keyboard is convenient to carry and place, and a sucker on the back of the auxiliary keyboard is adsorbed on the back of the main keyboard to enable the folded keyboard not to move; the wrist pad 5 is adsorbed on the arc plate 4 at the bottom of the main keyboard 3, the wrist pad adsorbed on the arc plate supports the wrist when typing to avoid the ache caused by long-time wrist lifting, the abreaction plate 16 is adsorbed on the arc plate 4 at the bottom of the auxiliary keyboard 2, the abreaction plate adsorbed on the arc plate at the bottom of the auxiliary keyboard is used for avoiding the lower hand of the keyboard when generating qi, the bottom parts of the wrist pad 5 and the abreaction plate 16 are provided with second magnets at equal distance, the surfaces of the wrist pad 5 and the abreaction plate 16 are made of skin-friendly materials, the wrist pad 5 is filled with foam cotton, the abreaction plate 16 is filled with memory cotton, the two sides of the back of the keyboard body 1 are both provided with adjusting grooves, the adjusting blocks 8 are rotatably connected in the adjusting grooves, the back of the keyboard body 1 is provided with three adjusting grooves, adjusting blocks 8 with different lengths are respectively and rotatably connected in the adjusting grooves, a stop block 9 is welded on the keyboard body 1 positioned at the top of the adjusting block 8, the adjusting blocks and the stop blocks with different lengths in the adjusting grooves at the bottom of the keyboard are used for realizing that the keyboard can adjust different angles to adapt to the typing modes of different personnel, two suckers 11 are respectively arranged at the back sides of the main keyboard 2 and the auxiliary keyboard 3, the keyboard placed on a desk can not randomly change the position through anti-slip strips and the suckers at the bottom of the keyboard, anti-slip strips 12 are respectively bonded at two ends of the back side of the keyboard body 1, a space key 10 in the keyboard body 1 is of a trapezoidal structure, key caps in the keyboard body 1 are all sunken inwards, the front edge thickness of the keyboard body 1 is 30mm-50mm, and accurate pressing of each key position by fingers during typing is ensured through the sunken treatment of the key caps in the keyboard, the front edge thickness of the keyboard is 30-50 mm, the wrist does not excessively upwarp during typing according to human engineering, the phenomenon that the key is mistakenly touched and cannot be touched is avoided when the key is pressed by the enlarged space key, and the stop bar 13 is installed on one side, close to the auxiliary keyboard 2, of the main keyboard 3.

The working principle is as follows: through putting keyboard body 1 on the desktop, the antislip strip 12 and the sucking disc 11 fixed keyboard body 1's at the 1 back of keyboard body position, long-time work adsorbs wrist pad 5 and slows down fatigue on main keyboard 3, change the regulating block 8 at the 1 back of posture adjustment keyboard body, select the angle that is fit for oneself, sunken processing has all been done to the key cap in keyboard body 1 and space key 10 has done to increase and has handled the official working of being convenient for, take away in putting into the package with keyboard body 1 is folding through pivot 7 when going off duty, will send out board 16 and adsorb in the 2 bottoms of auxiliary keyboard when returning home to play.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The ergonomic keyboard convenient to place comprises a keyboard body (1), wherein an arc-shaped plate (4) is installed at the bottom of the keyboard body (1), first magnets (6) are installed inside the arc-shaped plate (4) at equal intervals, the ergonomic keyboard is characterized in that the keyboard body (1) comprises an auxiliary keyboard (2) and a main keyboard (3), the auxiliary keyboard (2) is rotatably connected with the main keyboard (3) through a rotating shaft, a wrist pad (5) is adsorbed on the arc-shaped plate (4) at the bottom of the main keyboard (3), a leakage plate (16) is adsorbed on the arc-shaped plate (4) at the bottom of the auxiliary keyboard (2), second magnets are installed at equal distances between the wrist pad (5) and the bottom of the leakage plate (16), adjusting grooves are formed in both sides of the back of the keyboard body (1), adjusting blocks (8) are rotatably connected in the adjusting grooves, and stop blocks (9) are welded on the keyboard body (1) at the top of the adjusting blocks (8), two suckers (11) are installed on the back of the main keyboard (3) and the back of the auxiliary keyboard (2), and anti-slip strips (12) are bonded to the two ends of the back of the keyboard body (1).

2. The ergonomic keyboard convenient to place as claimed in claim 1, wherein the hollow grid keys (10) in the keyboard body (1) are in a trapezoid structure, the keycaps in the keyboard body (1) are all recessed inwards, and the front edge thickness of the keyboard body (1) is 30mm-50 mm.

3. The ergonomic keyboard convenient to place as claimed in claim 1, wherein hanging holes (14) are formed in two sides of the top of the keyboard body (1), a mobile phone placing groove (15) is formed in the top of the main keyboard (3), and a rubber ring is arranged inside the mobile phone placing groove (15).

4. An ergonomic keyboard for easy placement according to claim 1, characterized in that a stop strip (13) is mounted on the side of the main keyboard (3) close to the auxiliary keyboard (2).

5. The ergonomic keyboard of claim 1, wherein the wrist pad (5) and the abreaction board (16) are made of skin-friendly material, the wrist pad (5) is filled with foam, and the abreaction board (16) is filled with memory foam.

6. The ergonomic keyboard convenient for placement as claimed in claim 1, wherein the number of the adjusting grooves on the back of the keyboard body (1) is three, and the adjusting grooves are respectively connected with adjusting blocks (8) with different lengths in a rotating manner.
