CN212757121U

CN212757121U - Hand-operated basketball training device

Info

Publication number: CN212757121U
Application number: CN202021384843.3U
Authority: CN
Inventors: 王娜
Original assignee: Fujian Normal University
Current assignee: Fujian Normal University
Priority date: 2020-07-14
Filing date: 2020-07-14
Publication date: 2021-03-23
Anticipated expiration: 2030-07-14

Abstract

The utility model relates to a hand-cranked basketball training device, which comprises: a support frame, the upper part of the support frame is connected with a rotating assembly, the lower part of the support frame is connected with a net, and the net is located below the rotating assembly ; The rotating assembly includes a rotating cavity, a first cavity and a second cavity are formed in the rotating cavity through an inner partition, a first ball outlet is provided in the center of the inner partition, and the first cavity is It communicates with the second cavity through the first ball outlet; the first cavity is provided with a pitching port, and the second cavity is provided with a second ball outlet. When the second ball outlet is communicated with the net When the ball comes out of the second ball outlet, the ball will fall into the net; the rotating cavity is connected with a rotating shaft, and the rotating shaft is rotatable relative to the support frame. The utility model has the advantages of simple and reasonable structure, low production cost, easy use, and can be used by a single person or by a plurality of people, and the hand-eye coordination ability can be exercised in the training process.

Description

Hand-operated basketball training device

Technical Field

The utility model relates to a trainer field especially relates to a hand formula basketball trainer.

Background

Basketball training can exercise the hand-eye coordination ability of children, but at present, many basketball training is completed by dribbling, pitching and the like on a certain field by using a basketball stand with a reduced size. The basketball stand occupies a large space, and the basketball is easy to hit objects, so that the basketball stand is not suitable for being used in a room with a small area.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

In order to solve the above problems in the prior art, the utility model provides a hand formula basketball training device can single use, also can regard as many people to use, tempers children's hand eye coordination ability at the in-process of training and amusement.

(II) technical scheme

In order to achieve the above object, the utility model discloses a main technical scheme include:

a hand formula basketball training device, it includes: the upper part of the support frame is connected with a rotating assembly, the lower part of the support frame is connected with a basketball net, and the basketball net is positioned below the rotating assembly; the rotating assembly comprises a rotating cavity, a first cavity and a second cavity are formed in the rotating cavity through an inner partition plate, a first ball outlet is formed in the center of the inner partition plate, and the first cavity is communicated with the second cavity through the first ball outlet; the first cavity is provided with a ball throwing port, the second cavity is provided with a second ball outlet, and when the second ball outlet is communicated with the basket net, balls coming out of the second ball outlet fall into the basket net; the rotating cavity is connected with a rotating shaft, and the rotating shaft can rotate relative to the supporting frame.

Furthermore, a spiral track for a basketball travelling track is formed in the first cavity through a spiral baffle, and the tail end of the spiral track is communicated with the first ball outlet.

Furthermore, a rubber band is connected to the ball throwing port through a screw.

Furthermore, the rotating shaft is connected with the mounting through hole on the supporting frame.

Furthermore, a crank is connected to the rotating shaft.

Furthermore, the basketball net is connected to the support frame through the support plate.

(III) advantageous effects

The utility model has the advantages that: the hand-eye coordination training device has the advantages of simple and reasonable structure, low manufacturing cost, easiness in use, capability of being used by a single person or multiple persons, and capability of training hand-eye coordination.

Drawings

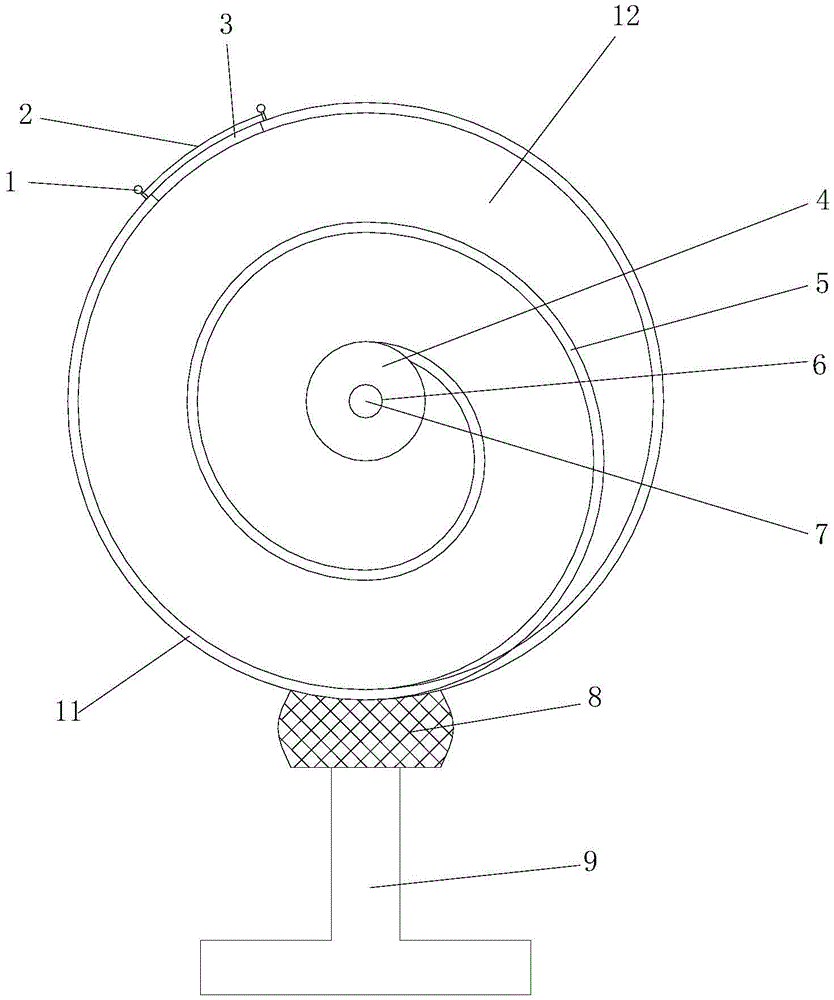

FIG. 1 is a front view of the overall structure of an embodiment of the present invention;

fig. 2 is a side view of the overall structure of an embodiment of the present invention.

Detailed Description

For a better understanding of the present invention, reference will now be made in detail to the present invention, examples of which are illustrated in the accompanying drawings.

The utility model discloses a hand formula basketball training device of an embodiment, as shown in fig. 1, fig. 2, it includes: the upper part of the support frame 9 is connected with a rotating assembly, the lower part of the support frame 9 is connected with a basket net 8, and the basket net 8 is positioned below the rotating assembly; the rotating assembly comprises a rotating cavity 11, a first cavity 101 and a second cavity 102 are formed in the rotating cavity 11 through an inner partition plate 12, a first ball outlet 4 is formed in the center of the inner partition plate 12, and the first cavity 101 is communicated with the second cavity 102 through the first ball outlet 4; a spiral track for a basketball travelling track is formed in the first cavity 101 through a spiral baffle 5, and the tail end of the spiral track is communicated with the first ball outlet 4; a ball throwing port 3 is arranged on the first cavity 101, and a rubber band 2 is connected to the ball throwing port 3 through a screw 1, so that the ball throwing port 3 is in a closed state; the second cavity 102 is provided with a second ball outlet, and when the second ball outlet is communicated with the basketball net 8, balls coming out of the second ball outlet fall into the basketball net 8 and finally fall to the ground.

Specifically, be connected with pivot 7 on the rotatory cavity 11, pivot 7 is connected with the installation through-hole 6 on the support frame 9, and pivot 7 is rotatable for support frame 9, be connected with crank 10 on the pivot 7, make things convenient for rocking of pivot 7.

Further, to facilitate the connection of net 8, net 8 is connected to support frame 9 by support plate 103.

During the implementation, the user puts into first cavity 101 with the basketball through throwing ball mouth 3 in, and when the basketball got into and throws ball mouth 3, rubber band 2 took place deformation and forms the opening and make the basketball pass through, when treating that the basketball is whole to get into first cavity 101 in, rubber band 2 kick-backs, blocks and throws ball mouth 3 to prevent that the basketball from dropping at rotatory in-process.

Then the user shakes the crank 10, the rotating cavity 11 rotates, the basketball moves in the spiral track formed in the first cavity 101 through the spiral baffle 5 and used for the basketball to travel on, under the condition that the rotating speed is fast enough, the basketball enters the second cavity 102 through the first ball outlet 4, due to the gravity effect, when the second ball outlet is communicated with the net 8, the ball coming out of the second ball outlet falls into the net 8 and finally falls onto the ground, the winning or losing is determined by calculating the number of goals in unit time, if the user A enters fifteen balls in ten minutes, and the user B enters only eight balls in equal time, the user A wins. Or fewer users will win if equal numbers of balls are dropped.

The above is only the preferred embodiment of the present invention, and all the equivalent changes and modifications made according to the claims of the present invention should be covered by the present invention.

Claims

1. The utility model provides a hand formula basketball trainer which characterized in that, it includes: the upper part of the support frame (9) is connected with a rotating assembly, the lower part of the support frame (9) is connected with a basket net (8), and the basket net (8) is positioned below the rotating assembly; the rotating assembly comprises a rotating cavity (11), a first cavity (101) and a second cavity (102) are formed in the rotating cavity (11) through an inner partition plate (12), a first ball outlet (4) is formed in the center of the inner partition plate (12), and the first cavity (101) is communicated with the second cavity (102) through the first ball outlet (4); a ball throwing port (3) is arranged on the first cavity (101), a second ball outlet is arranged on the second cavity (102), and when the second ball outlet is communicated with the basketball net (8), balls coming out of the second ball outlet fall into the basketball net (8); the rotating cavity (11) is connected with a rotating shaft (7), and the rotating shaft (7) can rotate relative to the supporting frame (9).

2. The hand-operated basketball training device of claim 1, wherein: a spiral track for a basketball travelling track is formed in the first cavity (101) through a spiral baffle (5), and the tail end of the spiral track is communicated with the first ball outlet (4).

3. The hand-operated basketball training device of claim 1, wherein: the ball throwing port (3) is connected with a rubber band (2) through a screw (1).

4. The hand-operated basketball training device of claim 1, wherein: the rotating shaft (7) is connected with the mounting through hole (6) on the supporting frame (9).

5. The hand-operated basketball training device of claim 1, wherein: the rotating shaft (7) is connected with a crank (10).

6. The hand-operated basketball training device of claim 1, wherein: the net (8) is connected to the support frame (9) through the support plate (103).
