Abstract
本实用新型公开了一种自生长式的自立装置，包括支撑架，支撑架的顶端侧壁开设有第一通孔，第一通孔的内部滑动套装有第一自立杆，第一自立杆的底端侧壁通过法兰连接有第二自立杆，第二自立杆的外侧壁安装有与支撑架滑动连接的卡盘，支撑架的顶端侧壁安装有对称设置的滑轮组，支撑架的底端侧壁安装有支撑座，支撑架的顶端一侧安装有与支撑座顶端侧壁连接的保护架，保护架的顶端侧壁安装有卷扬机。本实用新型能够打破传统基站的架设方式，采用逐节顶升的自生长方式进行安装，搭建的基站高度更高，稳定性强，目前实现了15米高度的温度搭建，提高了抗风、抗震能力，同时，拆卸和运输方便，各组件之间采用插接式设计，操作便捷，使用寿命长，可达20年。
The utility model discloses a self-growing self-supporting device, comprising a support frame, a first through hole is opened on the top side wall of the support frame, and a first self-supporting rod is slidably sleeved inside the first through-hole. The bottom side wall is connected with a second self-supporting rod through a flange, the outer side wall of the second self-supporting rod is installed with a chuck that is slidably connected with the support frame, the top side wall of the support frame is installed with a symmetrically arranged pulley group, and the bottom end of the support frame is installed A support base is installed on the side wall, a protection frame connected with the top side wall of the support base is installed on the top side of the support frame, and a hoist is installed on the top side wall of the protection frame. The utility model can break the erection method of the traditional base station, and adopts the self-growing method of jacking up section by section for installation, the base station built is higher in height and has strong stability, and currently, the temperature construction at a height of 15 meters is realized, and the wind resistance and earthquake resistance are improved. At the same time, it is easy to disassemble and transport, and the plug-in design is adopted between the components, which is convenient to operate and has a long service life of up to 20 years.
Description
Technical Field
The utility model relates to a basic station erects technical field, especially relates to a self-growing formula self-reliance device.
Background
When the existing base station is erected, because each section of equipment is heavy in weight and large in length-diameter ratio, the base station can be installed only by adopting various auxiliary tools such as a crane and a steel rope, and the installation is inconvenient.
Disclosure of Invention
The utility model aims at solving the defects existing in the prior art and providing a self-growing self-supporting device.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a from self-reliance device of growth formula, includes the support frame, first through-hole has been seted up to the top lateral wall of support frame, and the inside slip cover of first through-hole is equipped with first from the pole setting, first bottom lateral wall from the pole setting has the second from the pole setting through flange joint, the second from the lateral wall of pole setting install with support frame sliding connection's chuck, the assembly pulley that the symmetry set up is installed to the top lateral wall of support frame, the supporting seat is installed to the bottom lateral wall of support frame, the fender bracket of being connected with supporting seat top lateral wall is installed to top one side of support frame, and the hoist engine is installed to the top lateral wall of.
Preferably, the winch is connected with two groups of traction steel ropes, and one end of each traction steel rope, which is far away from the winch, penetrates through the pulley block and is connected with the chuck.
Preferably, the chuck includes the annular plate, annular plate and support frame lateral wall sliding connection, and the second self-reliance pole passes the annular plate, the internally mounted of annular plate has the arc of symmetry setting.
Preferably, the annular plate is provided with a second through hole penetrating through the annular plate from front to back, the inner sliding connection of the second through hole is provided with an adjusting plate, one end of the adjusting plate extends to the outside of the second through hole and is fixed with the side wall of the arc-shaped plate, the adjusting plate is provided with a third through hole, and one side wall of the third through hole is provided with a plurality of racks.
Preferably, the bottom lateral wall of second through-hole rotates and is connected with first axis body, and the one end of first axis body passes the third through-hole and extends to second through-hole external fixation and has changeed the board, and sets up perpendicularly between first axis body and the commentaries on classics board.
Preferably, the gear is sleeved on the outer side wall of the first shaft body in a tight fit mode, the gear and the rack are in meshed transmission connection, and the bolt is installed on the side wall, away from the first shaft body, of the rotating plate.
Compared with the prior art, the beneficial effects of the utility model are that:
the top side wall of the support frame is provided with a first through hole, the inside of the first through hole is slidably sleeved with a first self-standing rod, the bottom side wall of the first self-standing rod is connected with a second self-standing rod through a flange, the outer side wall of the second self-standing rod is provided with a chuck which is slidably connected with the support frame, the top side wall of the support frame is provided with symmetrically arranged pulley blocks, the bottom side wall of the support frame is provided with a support seat, one side of the top end of the support frame is provided with a protection frame which is connected with the top side wall of the support seat, the top side wall of the protection frame is provided with a winch, the traditional base station erection mode can be broken, the base station is installed in a self-growing rectangular mode of lifting section by section, the erected base station is higher in height and strong in stability, the temperature erection at the height of 15 meters is realized at, the operation is convenient and fast, and the service life is long and can reach 20 years.
Drawings

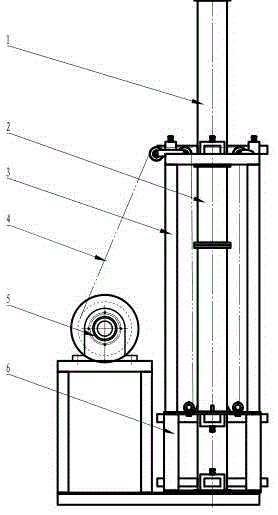

Fig. 1 is a front view of a self-growing self-standing device according to the present invention.
Fig. 2 is a top view of a self-growing self-standing device according to the present invention.
Fig. 3 is a top view of an adjusting plate structure of a self-growing self-standing device according to the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a self-growing type self-supporting device comprises a support frame 3, a first through hole is formed in the top side wall of the support frame 3, a first self-standing rod 1 is sleeved on the inner sliding sleeve of the first through hole, the bottom side wall of the first self-standing rod 1 is connected with a second self-standing rod 2 through a flange, a chuck 6 which is connected with the support frame 3 in a sliding mode is installed on the outer side wall of the second self-standing rod 2, pulley blocks which are symmetrically arranged are installed on the top side wall of the support frame 3, a supporting seat is installed on the bottom side wall of the support frame 3, a protection frame which is connected with the top side wall of the supporting seat is installed on one side of the top end of.
Be connected with two sets of traction steel cable 4 on the hoist engine 5, traction steel cable 4 passes the assembly pulley and is connected with chuck 6 far away from the one end of hoist engine 5, chuck 6 includes annular plate 601, annular plate 601 and 3 lateral wall sliding connection of support frame, and the second passes annular plate 601 from pole setting 2, the internally mounted of annular plate 601 has arc 7 that the symmetry set up, set up the second through-hole 8 that runs through around on the annular plate 601, the inside sliding connection of second through-hole 8 has regulating plate 9, and regulating plate 9's one end extends to the outside of second through-hole 8 and is fixed with 7 lateral walls of arc, the third through-hole 10 has been seted up on regulating plate 9, and a plurality of racks 11 have been seted up to one side lateral wall of third through-hole 10.
The bottom lateral wall of second through-hole 8 rotates and is connected with the first axle body 12, and the one end of the first axle body 12 passes third through-hole 10 and extends to 8 external fixation of second through-hole and has changeed board 14, and sets up perpendicularly between the first axle body 12 and the commentaries on classics board 14, gear 13 has been cup jointed in the lateral wall tight fit of the first axle body 12, and meshes the transmission between gear 13 and the rack 11 and be connected, change one side lateral wall that board 14 kept away from the first axle body 12 and install bolt 15.
The weight of the device is lighter, the weight of monomer equipment of other similar devices is larger than 400kg, the total weight is larger than 5 tons, the mass of the monomer equipment reaches 50kg, the base station is within 250kg, the total weight of the device is 1.3 tons, the base station is within 500kg, and the total weight of the device is smaller than 1.8 tons.
The working principle is as follows: hoist engine 5 can adopt drive modes such as manual and electronic to drive, hoist engine 5 starts to drive traction steel cable 4 and removes, traction steel cable 4 passes through assembly pulley pulling chuck 6, chuck 6 drives the second from pole setting 2 and first carry out the upwards promotion operation of festival one by one from pole setting 1, when adding new self-reliance pole at every turn, pass annular slab 7 with new self-reliance pole, then through rotating rotor 14, rotor 14 drives first axis body 12 and rotates, first axis body 12 drives gear 13 and rotates, meshing transmission drives regulating plate 9 and removes between gear 13 and the rack 11, regulating plate 9 drives arc 7 and extrudees fixedly to the self-reliance pole lateral wall, tighten bolt 15 at last, it can to fix arc 7 position, because the connection can be dismantled in the adoption between the device, wholly be convenient for dismantle and transport.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a from self-reliance device of growth formula, includes support frame (3), its characterized in that, first through-hole has been seted up to the top lateral wall of support frame (3), and the inside slip cover of first through-hole is equipped with first from pole setting (1), first from the bottom lateral wall of pole setting (1) has the second from pole setting (2) through flange joint, and chuck (6) with support frame (3) sliding connection are installed from the lateral wall of pole setting (2) to the second, the assembly pulley that the symmetry set up is installed to the top lateral wall of support frame (3), the supporting seat is installed to the bottom lateral wall of support frame (3), the fender bracket of being connected with supporting seat top lateral wall is installed to the top one side of support frame (3), and hoist engine (5) are installed to the top lateral wall of fender.
2. A self-growing self-standing device according to claim 1, wherein two sets of traction cables (4) are connected to said windlass (5), and wherein the end of said traction cables (4) remote from said windlass (5) is connected to said chuck (6) through a pulley block.
3. A self-growing self-standing device according to claim 1, wherein said chuck (6) comprises an annular plate (601), said annular plate (601) being slidably connected to the side wall of the support frame (3) and the second self-standing rod (2) passing through the annular plate (601), said annular plate (601) being internally fitted with symmetrically arranged arc-shaped plates (7).
4. The self-growing type self-standing device according to claim 3, wherein the annular plate (601) is provided with a second through hole (8) penetrating through the annular plate in the front and back direction, the inside of the second through hole (8) is slidably connected with an adjusting plate (9), one end of the adjusting plate (9) extends to the outside of the second through hole (8) and is fixed with the side wall of the arc-shaped plate (7), the adjusting plate (9) is provided with a third through hole (10), and one side wall of the third through hole (10) is provided with a plurality of racks (11).
5. A self-growing self-standing device according to claim 4, wherein the side wall of the bottom end of the second through hole (8) is rotatably connected with a first shaft body (12), one end of the first shaft body (12) extends to the outside of the second through hole (8) through a third through hole (10) and is fixed with a rotating plate (14), and the first shaft body (12) and the rotating plate (14) are vertically arranged.
6. A self-growing self-standing device according to claim 5, wherein the gear (13) is sleeved on the outer side wall of the first shaft body (12) in a tight fit manner, the gear (13) is in meshed transmission connection with the rack (11), and the bolt (15) is installed on the side wall of the rotating plate (14) far away from the first shaft body (12).
