CN212726628U - Be applied to motor fixed bolster of cooling tower equipment - Google Patents
Be applied to motor fixed bolster of cooling tower equipment Download PDFInfo
- Publication number
- CN212726628U CN212726628U CN202021281280.5U CN202021281280U CN212726628U CN 212726628 U CN212726628 U CN 212726628U CN 202021281280 U CN202021281280 U CN 202021281280U CN 212726628 U CN212726628 U CN 212726628U
- Authority
- CN
- China
- Prior art keywords
- support
- base body
- motor
- mounting
- cooling tower
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/70—Wind energy
- Y02E10/72—Wind turbines with rotation axis in wind direction
Landscapes
- Motor Or Generator Frames (AREA)
Abstract
本实用新型涉及一种应用于冷却塔设备的电机固定支架，包括：基体；以及与所述基体连接固定的第一支座，所述第一支座上设有用于安装电机的安装面且安装面上设有若干第一安装孔；和第二支座，所述第二支座上设有用于安装减速机的安装面且安装面上设有若干第二安装孔，第二支座与第一支座位于基体的同一侧设置；本实用新型结构设计合理，通过该电机固定支架可以将电机和减速机安装在同一基础上，并通过安装孔实现轴向和径向的微调，减少减速机和电机的现场调节工作量，确保电机中心和减速机中心在同一条轴向上，保障最终的装配效果。
The utility model relates to a motor fixing bracket applied to cooling tower equipment, which comprises: a base body; There are several first mounting holes on the surface; and a second support, the second support is provided with a mounting surface for installing the reducer and a number of second mounting holes are provided on the mounting surface, and the second support is connected with the first mounting surface. The support is arranged on the same side of the base body; the structure of the utility model is reasonable in design, the motor and the reducer can be installed on the same foundation through the motor fixing bracket, and the fine adjustment in the axial direction and the radial direction can be realized through the installation hole, so as to reduce the reduction of the reducer. And the on-site adjustment workload of the motor ensures that the center of the motor and the center of the reducer are on the same axis to ensure the final assembly effect.
Description
Technical Field
The utility model relates to a cooling tower technical field especially relates to a be applied to motor fixed bolster of cooling tower equipment.
Background
In the installation of cooling tower, motor and speed reducer among the fan drive assembly are for installing respectively fixedly, in order to ensure transmission efficiency and transmission stability between motor and the speed reducer, need debug the relative position of motor and speed reducer, still need the start test after the debugging, cause like this that to adjust work load big, inefficiency, increased the installation cycle of cooling tower.
Disclosure of Invention
In order to solve the deficiencies in the prior art, the utility model aims to provide a be applied to motor fixed bolster of cooling tower equipment, the installation that can quick effectual completion motor and speed reducer is fixed.
The utility model provides a technical scheme that its technical problem adopted is:
a motor fixing bracket applied to cooling tower equipment is characterized by comprising:
a substrate; and fixedly connected with the base body
The motor mounting device comprises a first support, a second support and a motor, wherein the first support is provided with a mounting surface for mounting a motor, and the mounting surface is provided with a plurality of first mounting holes; and
the second support is provided with a mounting surface for mounting the speed reducer, a plurality of second mounting holes are formed in the mounting surface, and the second support and the first support are arranged on the same side of the base body.
The first mounting hole and the second mounting hole are respectively long holes, and the length directions of the first mounting hole and the second mounting hole are mutually perpendicular.
The fixing seat is fixedly connected with the base body and is positioned on two sides of the base body respectively with the first support and the second support.
The connecting plate is characterized by further comprising a connecting plate, one end of the connecting plate is fixedly connected with the base body, and the other side of the connecting plate is fixedly connected with the corresponding inner sides of the fixed seat, the first support and the second support.
The base body is characterized by further comprising a reinforcing rib plate, wherein one side of the reinforcing rib plate is fixedly connected with the connecting plate, and the other side of the reinforcing rib plate is fixedly connected with the base body.
The mounting surfaces of the first support and the second support are distributed in parallel.
The matrix adopts a columnar or tubular structure.
To sum up, the beneficial effects of the utility model are that: structural design is reasonable, can install motor and speed reducer on same basis through this motor fixed bolster to realize axial and radial fine setting through the mounting hole, reduce the field control work load of speed reducer and motor, ensure that motor center and speed reducer center are at same axial, ensure final assembly effect.
Drawings
The present invention will be further explained with reference to the drawings and examples.

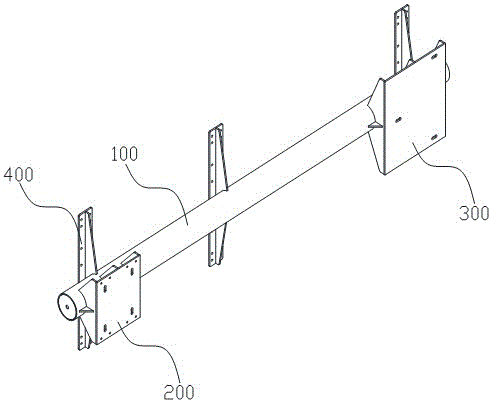

Fig. 1 and fig. 2 are schematic views of the axial measurement structure of the present invention.
Fig. 3 is a partially enlarged structural schematic view of the first support.
Fig. 4 is a partially enlarged structural view of the second support.
In the figure: 100 basal bodies, 200 first supports, 201 first mounting holes, 300 second supports, 301 second mounting holes, 400 fixing seats, 500 connecting plates and 600 reinforcing rib plates.
Detailed Description
The following description is provided for illustrative purposes, and other advantages and features of the present invention will become apparent to those skilled in the art from the following detailed description.
As shown in fig. 1 to 4: the embodiment provides a motor fixing bracket applied to cooling tower equipment, which comprises a base body 100, a fixing seat 400, a first support 200 and a second support 300, wherein the fixing seat 400 is installed on the base body 100, the fixing seat 400 is used for installing and fixing the base body 100 on a cooling tower, the first support 200 and the second support 300 are respectively used for installing and fixing a motor and a speed reducer, and the specific implementation structures of the components are described as follows.
The substrate 100 is a circular tube, and the pipe orifices at two ends of the substrate are welded, fixed and sealed through blocking plates;
the first support 200 is provided with a mounting surface for mounting the motor, four first mounting holes 201 are formed in the mounting surface, the first mounting holes 201 are pre-processed and molded according to the assembling position and requirements of the motor, and the first mounting holes can be well matched with the motor to mount and fix the motor;
the second support 300 is provided with a mounting surface for mounting the speed reducer, the mounting surface is provided with three second mounting holes 301, the second mounting holes 301 are pre-processed and molded according to the assembly position and requirements of the speed reducer, and can be well matched with the speed reducer and enable the speed reducer to be mounted and fixed; meanwhile, the second support 300 and the first support 200 are arranged on the same side of the base 100, so that the motor and the speed reducer are arranged on the same side and are matched with each other;
further, the mounting surfaces of the first support 200 and the second support 300 are distributed in parallel, so that the mounting and fixing effects of the motor and the speed reducer can be expected, and the problem of deviation of mounting angles can not occur;
further, first mounting hole 201 and second mounting hole 301 adopt rectangular hole respectively, and the length direction mutually perpendicular of first mounting hole 201 and second mounting hole 301 distributes, after motor and speed reducer installation are fixed, need ensure that motor center and speed reducer center are at same axial, at this moment, first mounting hole 201 vertical distribution, the adjustment of radial position can be realized through first mounting hole 201 to the motor, second mounting hole 301 horizontal distribution, the adjustment of axial position can be realized through second mounting hole 301 to the speed reducer, the installation effect of motor and speed reducer has finally been ensured, the regulation work load in the field installation process has been reduced.
The inner sides of the fixed seat 400, the first support 200 and the second support 300 are respectively connected and fixed with the base 100 through two or more groups of connecting plates 500, one side of each connecting plate 500 is a straight edge and is welded and fixed with the fixed seat 400, the first support 200 and the second support 300, the other side of each connecting plate 500 is an arc-shaped opening edge and is welded and fixed after being in surface contact with the base 100, and therefore all components are connected into a whole by taking the base 100 as a base.
Further, a reinforcing rib plate 600 is further arranged on the outer side of the connecting plate 500 for connecting the base body 100 with the first support 200 and the second support 300, one side of the reinforcing rib plate 600 is fixedly connected with the connecting plate 500, the other side of the reinforcing rib plate 600 is fixedly connected with the base body 100, the reinforcing rib plate 600 is selectively assembled according to the structural strength of the connecting plate 500, and the reinforcing rib plate 600 is mainly suitable for increasing the overall structural strength, so that the reinforcing rib plate is not easy to deform or break in the using process, and the product is more stable in use.
The above is only the preferred embodiment of the present invention, as long as the preferred embodiment is realized by the same means, the objective technical solution of the present invention all belongs to the protection scope of the present invention.
