CN212714019U

CN212714019U - Vertical taping machine of efficient cloth

Info

Publication number: CN212714019U
Application number: CN202020821733.2U
Authority: CN
Inventors: 刘珈岐
Original assignee: Hebei Bolixin Home Textile Co ltd
Current assignee: Hebei Bolixin Home Textile Co ltd
Priority date: 2020-05-18
Filing date: 2020-05-18
Publication date: 2021-03-16
Anticipated expiration: 2030-05-18

Abstract

The utility model discloses a high-efficiency fabric longitudinal hemming machine, which comprises a base plate, a frame is arranged on the upper surface of the rear side of the base plate, one end of the frame is fixedly installed with an organic head, and the upper surface of the base plate is close to the machine Guiding mechanisms are provided on both sides of the head, wherein the front surface of one of the guiding mechanisms is provided with a dust removal mechanism, and the lower inner front and rear surfaces of the concave frame are provided with sliding grooves. The utility model relates to the technical field of cloth hemming processing. In the high-efficiency cloth longitudinal hemming machine, sliding blocks are sleeved on the outer surfaces of both ends of a rotating shaft; Adjusting rods are respectively connected to the two sliders by rotation. When the fabric is hemmed, turn the handle to clamp the fabric on both sides of the machine head, and play a limiting and guiding role for the fabric without manual use. The hand supports the fabric to prevent the hand of the personnel from being stabbed by the machine head, which improves the safety performance.

Description

Vertical taping machine of efficient cloth

Technical Field

The utility model relates to a processing technology field that bordures of cloth specifically is a vertical taping machine of efficient cloth.

Background

The serging machine is composed of machine head, table board, electric control system and foot rest, mainly for serging the longitudinal edge of some cloth, the working principle of serging machine is an industrial sewing machine which uses one or more stitches to form serging chain stitch, and can sew two or more layers of sewing material, in which at least one stitch wraps the edge of sewing material, or only wraps and reinforces the edge of one layer of sewing material, the serging chain stitch has larger elasticity, so it is especially suitable for making the underwear which needs to be expanded and restored when wearing, it is one of the main machines for knitting clothes processing.

However, when the existing edge covering machine is used for covering the cloth, the cloth needs to be fixed manually, and then the edge of the cloth is placed below the machine head of the edge covering machine, so that the edge covering machine is easy to prick the hands of workers, has certain danger, and does not improve the defect correspondingly.

SUMMERY OF THE UTILITY MODEL

The utility model provides a not enough to prior art, the utility model provides a vertical taping machine of efficient cloth has solved the taping machine and when borduring to the cloth, needs the manual work to fix the cloth, then puts the limit of cloth in the aircraft nose below of taping machine, and the taping machine gives the problem of pricking the staff's hand easily like this.

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a vertical taping machine of efficient cloth, includes the base plate, the rear side upper surface of base plate is provided with the frame, the one end fixed mounting of frame has the aircraft nose, the both sides position department that the upper surface of base plate is close to the aircraft nose all is provided with guiding mechanism, one of them guiding mechanism's front surface is provided with dust removal mechanism.

Guiding mechanism is including the concave frame, the spout has all been seted up, two to the inside front and back surface in below of concave frame horizontal sliding mounting has the slide-shaft between the spout, cup joint between the both ends surface of slide-shaft and be provided with the notch plate, and the surface of slide-shaft is located the inside position department of notch plate and cup joints and rotate and install the compression roller, the upper surface intermediate position department symmetry of notch plate is provided with two installed parts, the top front surface embedding of concave frame rotates and installs the handle, the one end horizontally connected with pivot of handle, the other end of pivot is rotated with the inside front surface of concave frame and is connected, and the both ends surface of pivot all cup joints and is provided with the slider, the both ends surface of pivot all is provided with the screw thread, two rotate respectively between installed part and two sliders and be connected with the regulation pole.

Preferably, the threads on the outer surfaces of the two ends of the rotating shaft are opposite, and threaded holes matched with the two threads are formed in one side of each of the two sliding blocks.

Preferably, the press roll is a stainless steel member.

Preferably, both ends of the concave frame are provided with convex plates, and the convex plates are fixedly connected with the base plate through screws.

Preferably, the dust removal mechanism comprises two convex blocks, the two convex blocks are fixedly connected with one side face of the front side and the back side of the concave frame respectively, springs are vertically connected to the lower surfaces of the two convex blocks, and a scraper is connected between the lower ends of the two springs.

Preferably, the lower side of the scraper is lower than the lower surface of the press roll, and the height difference between the lower side of the scraper and the lower surface of the press roll is 1 CM.

Preferably, the upper surface of one side of the base plate is symmetrically provided with two vertical plates corresponding to the guide mechanism, the rear surface of one of the vertical plates is embedded with a winding motor, one end of the winding motor is horizontally connected with a winding roller, and one end of the winding roller is rotatably connected with the rear surface of the other vertical plate.

Preferably, the outer surfaces of the two ends of the winding roller are respectively sleeved with a check block, the check blocks are arranged on the upper surfaces of the check blocks in a sleeved and sliding mode, fixing bolts are arranged on the upper surfaces of the check blocks in an embedded mode, and bolt holes matched with the fixing bolts are formed in the upper surfaces of the two check blocks.

Advantageous effects

The utility model provides a vertical taping machine of efficient cloth, compare with prior art and possess following beneficial effect:

(1) this vertical taping machine of efficient cloth, one end horizontally connect with the pivot through the handle, the other end of pivot rotates with the inside front surface of concave frame to be connected, and the both ends surface of pivot all cup joints and is provided with the slider, the both ends surface of pivot all is provided with the screw thread, it is connected with the regulation pole to rotate respectively between two installed parts and two sliders, when borduring to the cloth, the handle rotates, can give the centre gripping with the cloth that is located the aircraft nose both sides, play spacing guide effect to the cloth, need not artifical hand-held cloth, prevent that the aircraft nose from giving personnel's hand and prick, and the safety performance is improved.

(2) This vertical taping machine of efficient cloth through two lugs respectively with a front and back side fixed connection of concave frame, and the lower surface of two lugs all is connected with the spring perpendicularly, is connected with the scraper blade between the lower extreme of two springs, when borduring to the cloth, along with the removal of cloth, utilizes the elasticity of spring, and the scraper blade can be given the bits of broken glass on the cloth and scrape and remove, and then can improve the effect of borduring of cloth.

Drawings

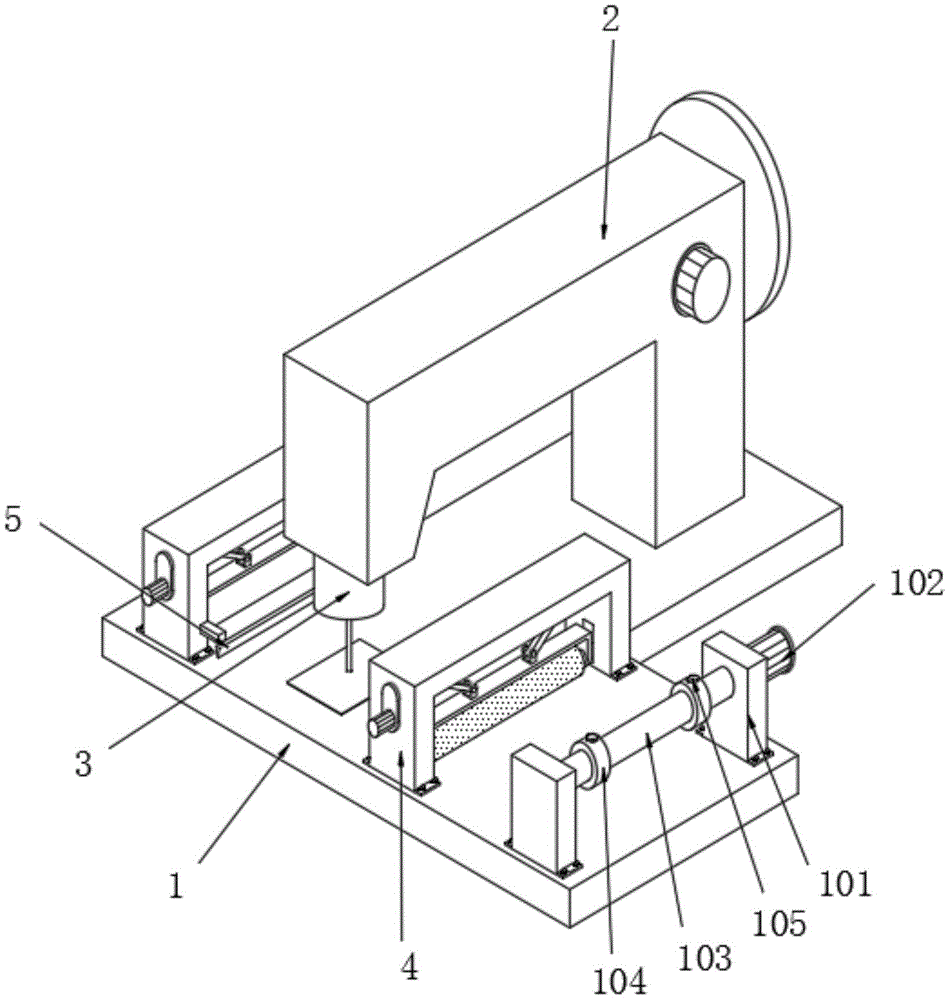

FIG. 1 is a perspective view of the structure of the present invention;

fig. 2 is a schematic view of the guide mechanism of the present invention;

fig. 3 is a schematic structural diagram of the dust removing mechanism of the present invention.

In the figure: 1. a substrate; 101. a vertical plate; 102. a winding motor; 103. a wind-up roll; 104. a stopper; 105. fixing the bolt; 2. a frame; 3. a machine head; 4. a guide mechanism; 41. a concave frame; 4101. a convex plate; 42. a chute; 43. a slide shaft; 44. a concave plate; 45. a compression roller; 46. a mounting member; 47. a handle; 48. a rotating shaft; 49. a slider; 410. a thread; 411. adjusting a rod; 5. a dust removal mechanism; 51. a bump; 52. a spring; 53. a scraper.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a vertical taping machine of efficient cloth, includes base plate 1, and the rear side upper surface of base plate 1 is provided with frame 2, and the one end fixed mounting of frame 2 has aircraft nose 3, and the both sides position department that the upper surface of base plate 1 is close to aircraft nose 3 all is provided with guiding mechanism 4, and the front surface of one of them guiding mechanism 4 is provided with dust removal mechanism 5.

Guiding mechanism 4 is including concave frame 41, spout 42 has all been seted up to the inside front and back surface in below of concave frame 41, horizontal slidable mounting has slide shaft 43 between two spout 42, it is provided with concave plate 44 to cup joint between the both ends surface of slide shaft 43, and the surface of slide shaft 43 is located the inside position department of concave plate 44 and cup joints the rotation and installs compression roller 45, the upper surface intermediate position department symmetry of concave plate 44 is provided with two installed parts 46, the embedding of the top front surface of concave frame 41 is rotated and is installed handle 47, the one end horizontally connected with pivot 48 of handle 47, the other end of pivot 48 is connected with the inside front surface rotation of concave frame 41, and the both ends surface of pivot 48 all cup joints and is provided with slider 49, the both ends surface of pivot 48 all is provided with screw thread 410, it is connected with regulation pole 411 to rotate respectively between two installed parts 46 and two sliders 49.

Referring to fig. 1, two vertical plates 101 corresponding to the guide mechanism 4 are symmetrically arranged on the upper surface of one side of the substrate 1, a winding motor 102 is embedded in the rear surface of one vertical plate 101, one end of the winding motor 102 is horizontally connected with a winding roller 103, one end of the winding roller 103 is rotatably connected with the rear surface of the other vertical plate 101, the winding motor 102 drives the winding roller 103 to rotate, the fabric can be wound, stoppers 104 are slidably mounted on the outer surfaces of the two ends of the winding roller 103, fixing bolts 105 are embedded in the upper surfaces of the two stoppers 104, bolt holes matched with the fixing bolts 105 are formed in the upper surfaces of the two stoppers 104, and when the fabric is wound, the fabric is limited, and the fabric is prevented from being dislocated.

Referring to fig. 2, the screw threads 410 on the outer surfaces of the two ends of the rotating shaft 48 are opposite, one side of each of the two sliding blocks 49 is provided with a threaded hole matching with the two screw threads 410, when the rotating shaft 48 rotates, in order to drive the two sliding blocks 49 to move and make the moving directions of the two sliding blocks opposite, the pressing roller 45 is a stainless steel member, the stainless steel can play a role in rust prevention, the side surfaces of the two ends of the concave frame 41 are both provided with the convex plates 4101, the convex plates 4101 are fixedly connected with the base plate 1 through screws, and the concave frame 41 is fixed conveniently.

Referring to fig. 3, the dust removing mechanism 5 includes two protrusions 51, the two protrusions 51 are respectively fixedly connected to a front side and a rear side of the concave frame 41, the lower surfaces of the two protrusions 51 are vertically connected with springs 52, a scraper 53 is connected between the lower ends of the two springs 52, the lower side of the scraper 53 is lower than the lower surface of the press roller 45, the height difference between the lower side of the scraper 53 and the lower surface of the press roller 45 is 1CM, when the cloth is bound, in order to clean the lint on the cloth, the effect of binding is improved.

And those not described in detail in this specification are well within the skill of those in the art.

When in use, firstly the handle 47 is rotated, the handle 47 drives the rotating shaft 48 to rotate, because the threads 410 on the outer surfaces of the two ends of the rotating shaft 48 are arranged oppositely, and one side surface of each of the two sliding blocks 49 is respectively provided with a threaded hole matched with the two threads 410, the sliding blocks 49 are driven to move when the rotating shaft 48 rotates, when the sliding blocks 49 move, the adjusting rod 411 drives the sliding shaft 43 on the concave plate 44 to slide up and down in the sliding groove 42, the sliding shaft 43 slides upwards, then the cloth passes through the lower parts of the compression rollers 45 on the two guide mechanisms 4, then one end of the cloth is fixed on the winding roller 103, the edge of the cloth is aligned with the lower end of the head 3, after alignment, the fixing bolt 105 on the block 104 is loosened, the two blocks 104 are slid to clamp the two sides of one end of the cloth, after clamping, the fixing bolt 105 is screwed down, the block 104 is fixed on the winding roller 103, and the, then, the handle 47 is continuously rotated to enable the sliding shaft 43 on the concave plate 44 to slide downwards, so that the lower surface of the pressing roller 45 is firmly contacted with the upper surface of the cloth, the cloth on two sides of the machine head 3 can be clamped, then the power supply of the winding motor 102 is switched on, the winding motor 102 drives the winding roller 103 to rotate, the winding roller 103 can wind the cloth, the stop block 104 can prevent the cloth from being dislocated during winding, the edge of the cloth is always positioned below the machine head 3, the cloth can be guided under the rotation of the mounting piece 46 without being fixed and supported by hands manually, the machine head 3 on the rack 2 can carry out edge covering work on the edge of the cloth during winding, because the lower side of the scraping plate 53 is lower than the lower surface of the pressing roller 45, and the height difference between the lower side of the scraping plate 53 and the lower surface of the pressing roller 45 is CM 1, under the elasticity of the spring 52, the lower side of the scraping plate 53 can be firmly contacted with the upper, along with the removal of cloth, the downside of scraper blade 53 can strike off the flock on the cloth, and then improves the effect of borduring of cloth.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a vertical taping machine of efficient cloth, includes base plate (1), the rear side upper surface of base plate (1) is provided with frame (2), the one end fixed mounting of frame (2) has aircraft nose (3), its characterized in that: the upper surface of the base plate (1) is provided with guide mechanisms (4) at positions close to two sides of the machine head (3), and the front surface of one guide mechanism (4) is provided with a dust removal mechanism (5);

the guide mechanism (4) comprises a concave frame (41), sliding grooves (42) are formed in the front surface and the rear surface of the inside of the lower portion of the concave frame (41), two sliding shafts (43) are horizontally and slidably mounted between the sliding grooves (42), concave plates (44) are sleeved between the outer surfaces of the two ends of the sliding shafts (43), pressing rollers (45) are rotatably mounted in the positions, located inside the concave plates (44), of the outer surfaces of the sliding shafts (43), two mounting pieces (46) are symmetrically arranged in the middle positions of the upper surface of the concave plates (44), a handle (47) is rotatably mounted in the embedded mode of the front surface of the upper portion of the concave frame (41), a rotating shaft (48) is horizontally connected to one end of the handle (47), the other end of the rotating shaft (48) is rotatably connected with the front surface of the inside of the concave frame (41), and sliding blocks (49) are rotatably mounted on the outer surfaces of the two ends of the rotating, both ends surface of pivot (48) all is provided with screw thread (410), two be connected with regulation pole (411) between installed part (46) and two slider (49) respectively rotate.

2. A highly efficient fabric longitudinal taping machine as claimed in claim 1, wherein: the threads (410) on the outer surfaces of the two ends of the rotating shaft (48) are arranged oppositely, and threaded holes matched with the two threads (410) are formed in one side of each of the two sliding blocks (49).

3. A highly efficient fabric longitudinal taping machine as claimed in claim 1, wherein: the press roll (45) is a stainless steel member.

4. A highly efficient fabric longitudinal taping machine as claimed in claim 1, wherein: the side surfaces of two ends of the concave frame (41) are respectively provided with a convex plate (4101), and the convex plates (4101) are fixedly connected with the base plate (1) through screws.

5. A highly efficient fabric longitudinal taping machine as claimed in claim 1, wherein: the dust removal mechanism (5) comprises two convex blocks (51), the two convex blocks (51) are fixedly connected with one side face of the front side and the rear side of the concave frame (41) respectively, springs (52) are perpendicularly connected to the lower surfaces of the two convex blocks (51), and scraping plates (53) are connected between the lower ends of the springs (52).

6. An efficient cloth longitudinal taping machine according to claim 5, wherein: the lower side of the scraper (53) is lower than the lower surface of the press roller (45), and the height difference between the lower side of the scraper (53) and the lower surface of the press roller (45) is 1 CM.

7. A highly efficient fabric longitudinal taping machine as claimed in claim 1, wherein: the upper surface of one side of the base plate (1) is symmetrically provided with two vertical plates (101) corresponding to the guide mechanism (4), the rear surface of one vertical plate (101) is embedded with a winding motor (102), one end of the winding motor (102) is horizontally connected with a winding roller (103), and one end of the winding roller (103) is rotatably connected with the rear surface of the other vertical plate (101).

8. An efficient cloth longitudinal taping machine according to claim 7, wherein: the outer surfaces of two ends of the winding roller (103) are respectively sleeved with a stop block (104), two fixing bolts (105) are respectively embedded into the upper surfaces of the stop blocks (104), and bolt holes matched with the fixing bolts (105) are formed in the upper surfaces of the two stop blocks (104).
