CN212698508U

CN212698508U - Breakfast machine

Info

Publication number: CN212698508U
Application number: CN202021012269.9U
Authority: CN
Inventors: 何泉华
Original assignee: Zhongshan Huaxiang Home Appliances Co ltd
Current assignee: Zhongshan Huaxiang Home Appliances Co ltd
Priority date: 2020-06-05
Filing date: 2020-06-05
Publication date: 2021-03-16
Anticipated expiration: 2030-06-05

Abstract

The utility model discloses a breakfast machine, which comprises an outer box body, an inner box body is detachably connected inside the outer box body, a cooking pot fixing groove is opened on the upper end surface of the outer box body, and the inside of the cooking pot fixing groove is A cooking pot is placed, a lid is placed on the upper end of the cooking pot, a frying pan is arranged on one side of the cooking pot, a heating component is detachably connected inside the inner box, and a baking pan is slidably connected to the inner wall of the inner box A grill is arranged above the grill, the grill is slidably connected to the inner wall of the inner box, and a front cover is detachably connected to one side of the outer box through bolts. Racks, skillets, and frying pans, the griddle can make pasta such as baked bread, biscuits, the grill can make chicken wings, the skillet can cook soup and porridge, and the skillet can fry eggs and hot dishes, allowing the breakfast machine to work at the same time. , soup, baking and frying, etc. and can also be used alone, thus greatly enriching the functions of the breakfast machine and making it more user-friendly.

Description

Breakfast machine

Technical Field

The utility model relates to the technical field of kitchen appliances, in particular to a breakfast machine.

Background

In modern life, the pace of life of people is faster and faster. Research shows that breakfast is the most important one of three meals a day, breakfast with one nutrition is the beginning of one day life, and the insufficient intake of the nutrition of breakfast is difficult to supplement in lunch and dinner. Healthy living habits, a nutritional breakfast habit from the morning each day, is a lesson that everyone must work with each day. Without eating breakfast, the body is easy to be damaged for a long time, the situation of insufficient supply of various nutrients is easy to occur, the nutrient imbalance is caused, gastrointestinal diseases are caused, and various problems of body discomfort, easy aging, mental disorder and the like are caused.

However, in modern families, in order to meet the diet requirements of people, various electric appliances are needed for cooking, particularly, small electric appliances such as a soybean milk machine, a bread machine and an egg frying machine are needed for making breakfast separately, and the breakfast machine has a single function and cannot meet the daily requirements of people. To this end, we propose a breakfast machine.

Disclosure of Invention

An object of the utility model is to provide a breakfast machine to provide in solving above-mentioned background art and in the modern family, in order to satisfy people's diet requirement, all need multiple electrical apparatus to cook, especially small household appliances are various, and breakfast all needs small-size household appliances such as soybean milk machine, bread machine, egg frying machine separately to make, and breakfast machine function singleness has not satisfied the problem of people's daily demand.

In order to achieve the above object, the utility model provides a following technical scheme: a breakfast machine comprises an outer box body, an inner box body is detachably connected in the outer box body, a saucepan fixing groove is arranged on the upper end surface of the outer box body, a saucepan is arranged in the saucepan fixing groove, a saucepan cover is arranged at the upper end of the saucepan, a frying pan is arranged at one side of the saucepan, the inner part of the inner box body is detachably connected with a heating component, the inner wall of the inner box body is connected with a baking tray in a sliding way, a gridiron is arranged above the baking tray, the gridiron is connected with the inner wall of the inner box body in a sliding way, one side of the outer box body is detachably connected with a front cover plate through a bolt, the surface of the front cover plate is movably connected with a knob, the other side of the front cover plate is detachably connected with a temperature controller, the surface of the front cover plate is movably connected with a box door, the lower end of the outer box body is detachably connected with a lower bottom plate, the lower end of the lower bottom plate is detachably connected with a bottom shell, and the other side of the outer box body is detachably connected with a rear cover plate.

Preferably, the inner wall of the inner box body is provided with sliding grooves, the sliding grooves are provided with a plurality of groups in number, and the grill and the baking tray are connected inside the sliding grooves in a sliding mode.

Preferably, the box door is made of high-temperature resistant tempered glass.

Preferably, the four corners of the lower end surface of the lower bottom shell of the outer box body can be detachably connected with supporting legs.

Preferably, a frying pan fixing groove is formed in one side of the boiling pan fixing groove, and the frying pan is placed inside the frying pan fixing groove.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses a be provided with overware, gridion, saucepan and frying pan, make its use of mutually supporting also exclusive use, the overware can make wheaten food such as baking bread biscuit, and the gridion can make the chicken wings, and the saucepan can boil soup and cook porridge, and the frying pan can fry in shallow oil egg and heat dish to make breakfast machine can carry out simultaneously, a kind of deep pot soup, bake and fry in shallow oil roast etc. and also can exclusive use, thereby great function that has richened breakfast machine makes it more humanized.

Drawings

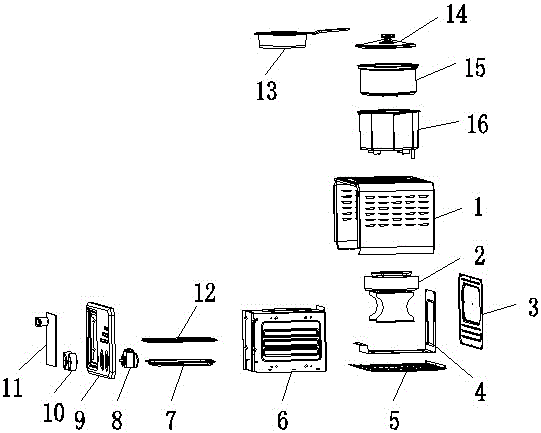

Fig. 1 is a schematic diagram of the overall explosion structure of the present invention.

Fig. 2 is a schematic view of the overall structure of the present invention.

In the figure: 1. an outer case; 2. a heat generating component; 3. a rear cover plate; 4. a lower base plate; 5. a bottom case; 6. an inner box body; 7. baking trays; 8. a temperature controller; 9. a front cover plate; 10. a knob; 11. a box door; 12. a grill; 13. frying pan; 14. a pot cover; 15. boiling the pot; 16. a boiler fixing groove.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end" and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to which the reference is made must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, and for example, "connected" may be either fixedly connected or detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1-2, the present invention provides a technical solution: a breakfast machine comprises an outer box body 1, wherein an inner box body 6 is detachably connected inside the outer box body 1, a saucepan fixing groove 16 is arranged on the upper end surface of the outer box body 1, a saucepan 15 is placed inside the saucepan fixing groove 16, a pot cover 14 is placed on the upper end of the saucepan 15, a frying pan 13 is arranged on one side of the saucepan 15, a heating component 2 is detachably connected inside the inner box body 6, a baking tray 7 is slidably connected to the inner wall of the inner box body 6, a baking frame 12 is arranged above the baking tray 7, the baking frame 12 is slidably connected to the inner wall of the inner box body 6, a front cover plate 9 is detachably connected to one side of the outer box body 1 through bolts, a knob 10 is movably connected to the surface of the front cover plate 9, a temperature controller 8 is detachably connected to the other side of the front cover plate 9, a box, the lower end of the lower bottom plate 4 is detachably connected with a bottom shell 5, and the other side of the outer box body 1 is detachably connected with a rear cover plate 3.

The inner wall of the inner box body 6 is provided with sliding grooves, the specific number of the sliding grooves is provided with a plurality of groups, the grill 12 and the baking tray 7 are connected inside the sliding grooves in a sliding mode, the grill 12 and the baking tray 7 can freely slide in the inner box body 6 due to the fact that the sliding grooves are formed, the box door 11 is made of high-temperature-resistant tempered glass, food in the baking trays 7 and the grill 12 can be checked conveniently, supporting legs can be detachably connected to four corners of the lower end face of the lower bottom shell 5 of the outer box body 1, the breakfast machine can be prevented from being stable, frying pan fixing grooves are formed in one side of the boiling pan fixing grooves 16, the frying pans 13 are placed inside the frying pan fixing grooves.

Specifically, when the breakfast machine is used, the baking tray 7, the grill 12, the cooking pot 15 and the frying pot 13 are arranged, so that the breakfast machine can be mutually combined and used independently, the baking tray 7 can be used for making cooked wheaten foods such as baked bread and biscuits, the grill 12 can be used for making chicken wings, the cooking pot 15 can be used for cooking soup and cooking porridge, and the frying pot 13 can be used for frying eggs and hot dishes, so that the breakfast machine can be used for cooking soup, baking, frying and the like simultaneously and can be used independently, and the functions of the breakfast machine are greatly enriched, so that the breakfast machine is more humanized.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A breakfast machine, includes outer box (1), its characterized in that: the inner box body (6) is detachably connected to the inner side of the outer box body (1), a saucepan fixing groove (16) is formed in the upper end face of the outer box body (1), a saucepan (15) is placed in the saucepan fixing groove (16), a pan cover (14) is placed at the upper end of the saucepan (15), a frying pan (13) is arranged on one side of the saucepan (15), a heating assembly (2) is detachably connected to the inner side of the inner box body (6), a baking tray (7) is slidably connected to the inner wall of the inner box body (6), a baking frame (12) is arranged above the baking tray (7), the baking frame (12) is slidably connected to the inner wall of the inner box body (6), a front cover plate (9) is detachably connected to one side of the outer box body (1) through bolts, a knob (10) is movably connected to the surface of the front, the surface of the front cover plate (9) is movably connected with a box door (11), the lower end of the outer box body (1) is detachably connected with a lower bottom plate (4), the lower end of the lower bottom plate (4) is detachably connected with a bottom shell (5), and the other side of the outer box body (1) is detachably connected with a rear cover plate (3).

2. A breakfast machine as claimed in claim 1, characterized in that: the inner wall of the inner box body (6) is provided with sliding grooves, the sliding grooves are provided with a plurality of groups, and the grill (12) and the baking tray (7) are connected inside the sliding grooves in a sliding mode.

3. A breakfast machine as claimed in claim 1, characterized in that: the box door (11) is made of high-temperature resistant toughened glass.

4. A breakfast machine as claimed in claim 1, characterized in that: the four corners of the lower end surface of the lower bottom shell (5) of the outer box body (1) can be detachably connected with supporting legs.

5. A breakfast machine as claimed in claim 1, characterized in that: a frying pan fixing groove is formed in one side of the boiling pan fixing groove (16), and the frying pan (13) is placed inside the frying pan fixing groove.
