CN212694335U

CN212694335U - quality server

Info

Publication number: CN212694335U
Application number: CN202021742804.6U
Authority: CN
Inventors: 魏朋飞
Original assignee: Shenzhen Shunying Information Technology Co ltd
Current assignee: Shenzhen Shunying Information Technology Co ltd
Priority date: 2020-08-20
Filing date: 2020-08-20
Publication date: 2021-03-12
Anticipated expiration: 2030-08-20

Abstract

The utility model relates to the technical field of servers, and discloses a quality server, comprising a box body and a cooling pipe. A desiccant placement box is installed at the edge of the lower side of the outer wall, a control panel is arranged in the middle of the outer wall of the front end of the box, a suction fan is arranged in the upper middle of the outer wall of the front end of the box, and a circuit is arranged in the upper middle of the rear of the box. Placement slot, multiple rows of wiring ports are arranged under the line placement slot, and an exhaust fan is arranged on the outer wall of the rear side of the box near the bottom surface. Holes, reduce the heat inside the server by various heat dissipation methods, and achieve the effect of efficient heat dissipation. Secondly, because the utility model is provided with a desiccant storage box and is detachable, the humidity inside the server can be effectively reduced and the desiccant can be replaced easily. device security.

Description

Quality server

Technical Field

The utility model relates to a server technical field especially relates to quality server.

Background

In recent years, due to the progress of information technology and the popularization of networks, the applications of servers are increasing, basically, the servers serve core computers of computers in a network system, and can provide functions such as disks and printing services required by network users, and simultaneously provide clients to share various resources in a network environment.

For a computer network server, an operating environment is very important, wherein the environment mainly includes two aspects of operating temperature and air humidity, the relationship between the server and power is very tight, the power is an energy support basis for ensuring normal operation of the server, the temperature and humidity requirements of power equipment for the operating environment are generally strict, the overall temperature of the network server and a power supply thereof can be continuously increased under the condition of high temperature, if the temperature exceeds a temperature tolerance critical value, the equipment can be damaged in different degrees, a serious person can even cause a fire, if the humidity in the environment is too high, a large amount of water vapor can be collected in the network server, a leakage accident can be easily caused, and the personal safety of a user can be seriously threatened.

SUMMERY OF THE UTILITY MODEL

The utility model discloses a quality server aims at solving the problem of mentioning in the above-mentioned background art.

The utility model discloses a realize like this, quality server, including box and cooling tube, its characterized in that: the box body is characterized in that cooling pipes are arranged on the outer walls of the left side and the right side of the box body respectively, sealing plugs are arranged at the head end and the tail end of each cooling pipe respectively, radiating fins are arranged at the central positions of the left side surface and the right side surface of the box body respectively, a drying agent placing box is arranged at the lower side edge position of the outer wall of the front end surface of the box body, a semiconductor thermoelectric power generation plate is arranged above the drying agent placing box and on the outer wall of the front end surface of the box body, a control panel is arranged at the middle position of the outer wall of the front end surface of the box body, an air suction fan is arranged at the middle upper position of the outer wall of the front end surface of the box body, a plurality of rows of radiating holes are arranged at the central position of the upper end surface of the box body, a circuit placing groove is arranged at the middle upper position of the, the bottom surface symmetry of box is equipped with four mounting grooves, install the walking wheel in the mounting groove, semiconductor thermoelectric generation board control panel the fan of breathing in and the air discharge fan is connected with external power source, and receives control panel's control.

Furthermore, filter screens are arranged outside the air suction fan and the air exhaust fan.

Furthermore, rubber gaskets are arranged on the edges of the upper end face and the lower end face of the box body.

Furthermore, the material of the cooling fin and the cooling pipe is aluminum.

Furthermore, the desiccant storage box and the box body are connected through bolts.

Furthermore, the upper end face and the lower end face of the drying agent placing box are provided with a plurality of rows of vent holes, and silica gel drying agents are placed in the drying agent placing box.

The utility model has the advantages that: at first because the utility model discloses be equipped with air suction fan, air discharge fan, cooling tube, fin and louvre to multiple radiating mode reduces the inside heat of server, has reached high-efficient radiating effect, secondly because the utility model discloses it places the box and can dismantle to be equipped with the drier, reduces the inside humidity of server effectively and is convenient for change the drier, has improved the security of equipment.

Drawings

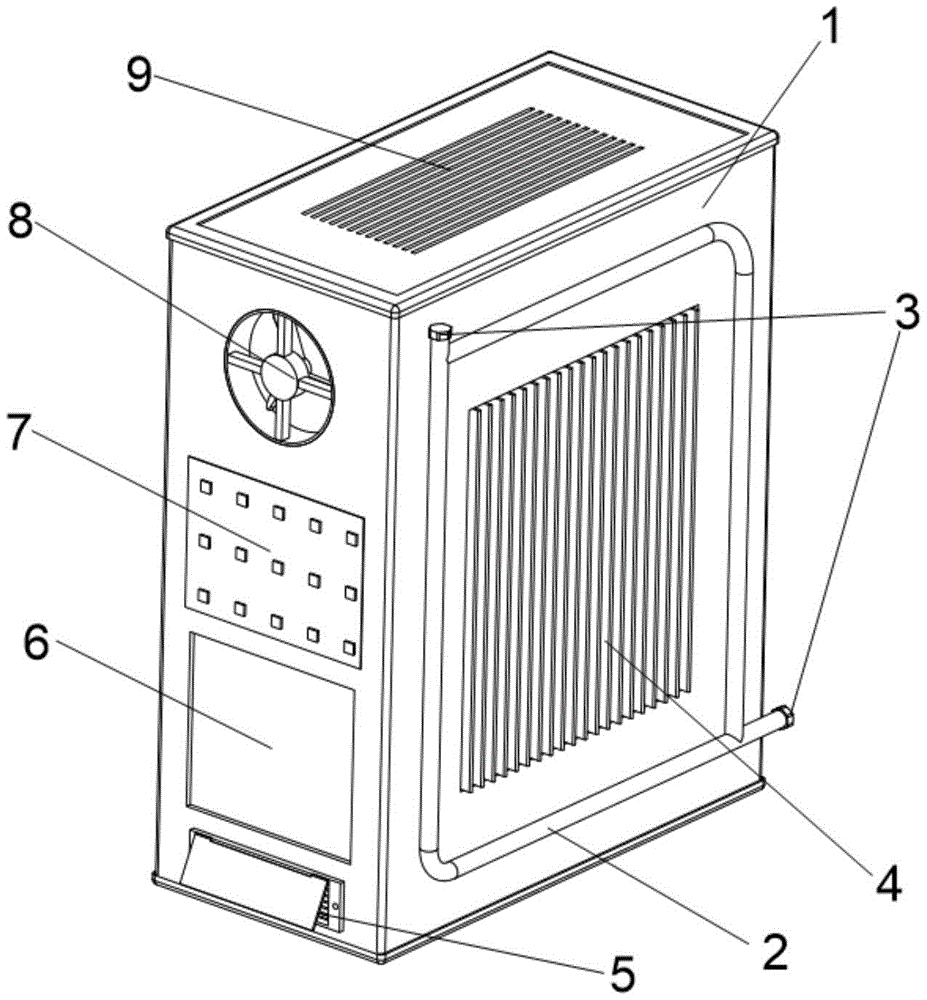

Fig. 1 is a schematic view of a first view structure of the present invention;

fig. 2 is a schematic view of a second view structure of the present invention;

fig. 3 is a schematic view of a desiccant storage case.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

Referring to fig. 1-3, the quality server comprises a box body 1 and cooling pipes 2, the cooling pipes 2 are mounted on the outer walls of the left and right sides of the box body 1, the closing plugs 3 are mounted on the ends of the cooling pipes 2, cooling liquid can be filled in the two cooling pipes 2 to improve cooling efficiency, heat radiating fins 4 are mounted on the center positions of the left and right sides of the box body 1 to dissipate heat inside the server, a desiccant placing box 5 is mounted on the lower side edge position of the outer wall of the front end face of the box body 1 and can be used for placing desiccant to reduce humidity inside the server, a semiconductor thermoelectric generation plate 6 is mounted above the desiccant placing box 5 and positioned on the outer wall of the front end face of the box body 1, the semiconductor thermoelectric generation plate 6 can be used for generating electricity to save energy to a certain degree, a control panel 7 is arranged in the middle position of the outer wall of the front end face of the box, can be with inside the outer wall cold air suction server, 1 up end central point of box puts and is equipped with multirow louvre 9, do benefit to the heat dissipation, it is equipped with circuit standing groove 10 to lean on last position in the middle of the 1 rear side of box, be used for placing the circuit, the terminal surface is equipped with two through wires holes 11 under the circuit standing groove 10, circuit standing groove 10 below is equipped with multirow wiring mouth 12, every wiring mouth 12 top all is equipped with a mark groove 13, a circuit that the correspondence of 12 for every wiring mouth that is used for marking needs connects, 1 rear side outer wall of box is close to the bottom surface position and is equipped with air discharge fan 14, be used for discharging the inside hot-air of server, the bottom surface symmetry of box 1 is equipped with four mounting grooves 15, install walking wheel 16 in the mounting groove 15, be convenient for moving, semiconductor thermoelectric generation board 6, control panel 7, air suction fan 8 and.

The filter screens are arranged outside the air suction fan 8 and the air exhaust fan 14, so that external garbage is prevented from entering the server, and the safety of the server is improved.

The edges of the upper end face and the lower end face of the box body 1 are provided with rubber gaskets, so that collision is prevented, and the service life of the server is prolonged.

The material of the cooling fins 4 and the cooling tubes 2 is aluminum, so that the heat dissipation efficiency of the server is improved.

The upper and lower terminal surface that box 5 was placed to the drier dose is equipped with the multirow air vent, is convenient for absorb the inside moisture of server, and the silica gel drier has been placed in box 5 is placed to the drier for absorb the inside moisture of server, reduce the inside humidity of server.

The desiccant storage box 5 is connected with the box body 1 through bolts, so that the desiccant can be replaced conveniently.

Use the utility model discloses the time, with equipment circular telegram back, with external lines access wiring mouth 12, paste the line label that every wiring mouth 12 corresponds in mark groove 13, inject the coolant liquid in left and right sides cooling tube 2, place the drier box 5 and dismantle, place the silica gel drier in box 5 at the drier, install it again, reduce the inside humidity of server, open through control panel 7 that the fan 8 of breathing in with outside cold air suction server inside, open exhaust fan 14 and discharge the inside hot-air of server.

The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.

Claims

1. A quality server, comprising a box body (1) and a cooling pipe (2), characterized in that: cooling pipes (2) are installed on the left and right outer walls of the box body (1), and the cooling pipes (2) Closure plugs (3) are installed on both ends of the box body (1), cooling fins (4) are installed on the center positions of the left and right sides of the box body (1), and the lower edge of the outer wall of the front end surface of the box body (1) A desiccant placing box (5) is installed at the position, and a semiconductor thermoelectric power generation board (6) is installed on the outer wall of the front end face of the box body (1) above the desiccant placing box (5). ) A control panel (7) is arranged in the middle of the outer wall of the front end face, a suction fan (8) is arranged in the upper middle position of the outer wall of the front end face of the box body (1), and a central position of the upper end face of the box body (1) is provided with a suction fan (8). There are multiple rows of heat dissipation holes (9), a circuit placement slot (10) is provided at the upper middle position of the rear side of the box body (1), and two thread holes (11) are provided on the lower end surface of the circuit placement slot (10), A plurality of rows of wiring ports (12) are arranged below the circuit placement slot (10), and a marking slot (13) is arranged above each of the wiring ports (12), and the rear outer wall of the box body (1) is close to An exhaust fan (14) is arranged on the bottom surface, and four installation grooves (15) are symmetrically arranged on the bottom surface of the box body (1), and a traveling wheel (16) is installed in the installation groove (15). The thermoelectric power generation panel (6), the control panel (7), the suction fan (8) and the exhaust fan (14) are connected to an external power source and controlled by the control panel (7).

2 . The quality server according to claim 1 , wherein a filter screen is installed on the outside of the suction fan ( 8 ) and the exhaust fan ( 14 ). 3 .

3 . The quality server according to claim 1 , wherein rubber gaskets are provided on the edges of the upper end surface and the lower end surface of the box body ( 1 ). 4 .

4. The quality server according to claim 1, wherein the material of the heat sink (4) and the cooling pipe (2) is aluminum.

5 . The quality server according to claim 1 , wherein the connection between the desiccant placing box ( 5 ) and the box body ( 1 ) is a bolt connection. 6 .

6. The quality server according to claim 1, characterized in that: the upper and lower end surfaces of the desiccant placing box (5) are provided with multiple rows of ventilation holes, and silica gel desiccant is placed in the desiccant placing box (5). .
