The utility model discloses a convenient abluent aluminum alloy door and window relates to aluminum alloy door and window technical field, including the frame main part, the frame main part includes left framework and right framework, left side framework and right framework fixed connection, the equal fixedly connected with cardboard in both ends about the right side of left side framework, spacing hole has been seted up to the inside of cardboard, the draw-in groove has all been seted up at both ends about the left side of right side framework. This convenient abluent al-alloy door & window, al-alloy door & window's of being convenient for installation and dismantlement, be favorable to the maintenance and the maintenance in later stage, life has been prolonged, use cost is reduced, the stability and the fastness of glass installation have been improved, avoided because vibrations cause glass's damage, the indirect production that reduces the noise simultaneously, al-alloy door & window's noise control performance has been improved, al-alloy door & window's sealing performance has been improved, prevent that external rainwater from permeating to inside, the performance that al-alloy door & window reciprocated has been realized, the cleaning efficiency is improved.
Description
Technical Field
The utility model relates to an aluminum alloy door and window technical field specifically is a convenient abluent aluminum alloy door and window.
Background
An Al-alloy door or window is made up of extruded Al-alloy sections as frame, stile and sash through combining the base material with wood or plastics, or Al-wood or Al-plastic, and features that its quality can be determined from the selection of raw material (Al-alloy), surface and internal processing quality of Al-alloy, and the price of Al-alloy door or window.
At present, the existing aluminum alloy doors and windows convenient to clean are inconvenient to use and are not beneficial to popularization and use.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides a convenient abluent aluminum alloy door and window has solved current convenient abluent aluminum alloy door and window and has appeared wasing the dead angle easily, washs inhomogeneously, inconvenient installation and dismantlement, the leakproofness is very poor and the poor problem of noise control effect.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a convenient abluent aluminum alloy door and window, includes the frame main part, the frame main part includes left framework and right framework, left side framework and right framework fixed connection, the equal fixedly connected with cardboard in both ends about the right side of left side framework, spacing hole has been seted up to the inside of cardboard, the draw-in groove has all been seted up at both ends about the left side of right framework, the mounting hole has been seted up to the inner wall of draw-in groove, the spout has all been seted up at the positive one side middle part of left side framework and right framework, equal fixed mounting has the reference column about the positive one side of left side framework and right framework, the surface slip of reference column has cup jointed the installation cover, two fixedly connected with slide bar between the installation cover, the surface slidable mounting of slide bar has a slide cartridge, the bottom fixedly connected with slider of slide cartridge, two.
Optionally, the mounting hole runs through the inside of the right frame body, the mounting hole is matched with the limiting hole, bolts are fixedly mounted on the left side of the front face of the right frame body from top to bottom, the bolts are matched with the mounting hole, and the left frame body is fixedly connected with the right frame body through the bolts.
Optionally, the equal fixedly connected with card strip in the inboard of left side framework and right framework, the card strip sets up to two, one side fixedly connected with sealing strip of card strip, two fixed mounting has glass between the card strip.
Optionally, the bottom of the mounting sleeve is slidably mounted with a baffle, the baffle is fixedly sleeved on the outer surface of the positioning column, and the top of the positioning column is threadedly mounted with a nut.
Optionally, one side of the sliding cylinder is fixedly connected with a spring, the spring is sleeved on the outer surface of the sliding rod, the top end of the spring is fixedly connected with the mounting sleeve, and the bottom end of the sliding block is slidably connected with the sliding groove.
Optionally, a grab handle is fixedly connected to the middle of the top of the bearing plate, brushes arranged at equal intervals are fixedly mounted at the bottom of the bearing plate, and the cross section of each brush is in a T shape.
(III) advantageous effects
The utility model provides a convenient abluent aluminum alloy door and window possesses following beneficial effect:
(1) this convenient abluent aluminum alloy door and window, on the one hand through setting up the bolt, be convenient for aluminum alloy door and window's installation and dismantlement, be favorable to the maintenance and the maintenance in later stage, service life has been prolonged, whole change has been avoided simultaneously, use cost is reduced, on the other hand is through setting up the card strip, the stability and the fastness of glass installation have been improved, the phenomenon that the pine takes off prevents to appear, avoided because vibrations cause glass's damage, the production of noise has been indirectly reduced simultaneously, aluminum alloy door and window's noise control performance has been improved, secondly through setting up the sealing strip, the sealing performance of aluminum alloy door and window has been improved, external rainwater infiltration has been prevented inside, aluminum alloy door and window's practicality has been strengthened, in addition through setting up the slide cartridge, the performance that aluminum alloy door and window reciprocated has been realized, aluminum alloy door and window's cleaning.
(2) This convenient abluent al-alloy door & window, on the one hand through setting up the spring, the reverse effort that the spring produced can play the performance that resets, staff's intensity of labour has been reduced, al-alloy door & window's convenience has been improved, on the other hand is through setting up the slider, the effect of direction has been played, abluent stationarity has further been guaranteed, cleaning efficiency has been improved, secondly through setting up grab handle and brush, the inconvenient abluent problem of al-alloy door & window has been solved, al-alloy door & window's clean and tidy nature has been guaranteed, abluent thoroughness and homogeneity have been realized, avoid appearing wasing the dead angle, and easy operation is swift, al-alloy door & window's aesthetic property has.
Drawings

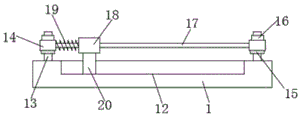

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the structure of the clamping plate of the present invention;
FIG. 3 is a schematic view of the structure of the slot of the present invention;
FIG. 4 is a side view of the right frame structure of the present invention;
FIG. 5 is a side view of the left frame structure of the present invention;
FIG. 6 is a schematic view of the slider structure of the present invention;
fig. 7 is a schematic view of the brush structure of the present invention.
In the figure: the frame comprises a frame body 1, a left frame body 2, a right frame body 3, a clamping plate 4, a limiting hole 5, a clamping groove 6, a mounting hole 7, a bolt 8, a clamping strip 9, a sealing strip 10, glass 11, a sliding groove 12, a positioning column 13, a mounting sleeve 14, a baffle 15, a nut 16, a sliding rod 17, a sliding cylinder 18, a spring 19, a sliding block 20, a bearing plate 21, a grab handle 22 and a brush 23.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "central," "longitudinal," "lateral," "up," "down," "front," "back," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," "radial," and the like are used in the orientation or positional relationship indicated in the drawings for ease of description and simplicity of description, and are not intended to be construed as limiting the invention since the indicated device must have a particular orientation, be constructed and operated in a particular orientation, and so forth.
In the present invention, unless otherwise expressly stated or limited, the terms "disposed," "mounted," "connected," and "fixed" are to be construed broadly, e.g., as meaning either a fixed connection or a removable connection; may be a mechanical connection. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Referring to fig. 1-7, the present invention provides a technical solution: the utility model provides a convenient abluent aluminum alloy door and window, including frame main part 1, frame main part 1 includes left framework 2 and right framework 3, left framework 2 and right framework 3 fixed connection, equal fixedly connected with cardboard 4 in both ends about the right side of left framework 2, spacing hole 5 has been seted up to inside of cardboard 4, draw-in groove 6 has all been seted up at both ends about the left side of right framework 3, mounting hole 7 has been seted up to the inner wall of draw-in groove 6, spout 12 has all been seted up at the positive one side middle part of left framework 2 and right framework 3, equal fixed mounting has reference column 13 about the positive one side of left framework 2 and right framework 3, the surface slip of reference column 13 has cup jointed the installing sleeve 14, fixedly connected with slide bar 17 between two installing sleeves 14, slide bar 17's surface slidable mounting has slide cartridge 18, slide cartridge 18's bottom fixedly connected with slider 20, fixedly connected with loading.
As an optional technical solution of the utility model: mounting hole 7 runs through the inside of right framework 3, mounting hole 7 and the cooperation of spacing hole 5 set up, equal fixed mounting has bolt 8 from top to bottom in the front left side of right framework 3, bolt 8 and the cooperation of mounting hole 7 set up, left side framework 2 passes through bolt 8 and the 3 fixed connection of right framework, through setting up bolt 8, be convenient for al-alloy door & window's installation and dismantlement are favorable to the maintenance and the maintenance in later stage, have prolonged life, the while has avoided whole change, use cost is reduced.
As an optional technical solution of the utility model: the equal fixedly connected with card strip 9 in inboard of left framework 2 and right framework 3, through setting up card strip 9, the stability and the fastness of glass 11 installation have been improved, the phenomenon that the pine takes off is prevented to appear, the damage of glass 11 has been avoided because vibrations cause, the production of noise has been reduced indirectly simultaneously, aluminum alloy door and window's noise control performance has been improved, card strip 9 sets up to two, one side fixedly connected with sealing strip 10 of card strip 9, through setting up sealing strip 10, the sealing performance of aluminum alloy door and window has been improved, external rainwater infiltration to inside has been prevented, aluminum alloy door and window's practicality has been strengthened, fixed mounting has glass 11 between two card strips 9.
As an optional technical solution of the utility model: the bottom of the mounting sleeve 14 is slidably provided with a baffle 15, the baffle 15 is fixedly sleeved on the outer surface of the positioning column 13, and the top of the positioning column 13 is provided with a nut 16 in a threaded manner.
As an optional technical solution of the utility model: one side fixedly connected with spring 19 of slide cartridge 18, spring 19 cup joints the surface at slide bar 17, through setting up slide cartridge 18, aluminum alloy door and window's performance that reciprocates has been realized, aluminum alloy door and window's cleaning work has been promoted, the cleaning efficiency has been improved, spring 19's top and 14 fixed connection of installation cover, through setting up spring 19, the reverse acting force that spring 19 produced can play the performance that resets, staff's intensity of labour has been reduced, aluminum alloy door and window's convenience has been improved, slider 20's bottom and spout 12 sliding connection, through setting up slider 20, the effect of direction has been played, abluent stationarity has further been guaranteed, the high efficiency of cleaning work has been improved.
As an optional technical solution of the utility model: fixedly connected with grab handle 22 in the middle of the top of loading board 21, the bottom fixed mounting of loading board 21 has brush 23 that the equidistance was arranged, and the cross-section of brush 23 is T type form, through setting up grab handle 22 and brush 23, has solved the inconvenient abluent problem of al-alloy door & window, has guaranteed al-alloy door & window's clean and tidy nature, has realized abluent thoroughness and homogeneity, avoids appearing wasing the dead angle, and easy operation is swift, has improved al-alloy door & window's aesthetic property.
To sum up, under the condition of use, the aluminum alloy door and window convenient to clean is convenient to mount and dismount by arranging the bolt 8, is beneficial to later maintenance and maintenance, prolongs the service life, avoids integral replacement and reduces the use cost, and on the other hand, by arranging the clamping strip 9, the mounting stability and firmness of the glass 11 are improved, the phenomenon of loosening is prevented, the damage of the glass 11 caused by vibration is avoided, the generation of noise is indirectly reduced, the noise resistance of the aluminum alloy door and window is improved, and then by arranging the sealing strip 10, the sealing performance of the aluminum alloy door and window is improved, external rainwater is prevented from permeating into the interior, the practicability of the aluminum alloy door and window is enhanced, in addition, the up-and-down movement performance of the aluminum alloy door and window is realized by arranging the sliding barrel 18, and the cleaning work of the aluminum alloy door and window is promoted, improved the cleaning efficiency, on the one hand through setting up spring 19, the reverse acting force that spring 19 produced can play the performance that resets, staff's intensity of labour has been reduced, aluminum alloy door and window's convenience has been improved, on the other hand is through setting up slider 20, the effect of direction has been played, abluent stationarity has further been guaranteed, the high efficiency of cleaning work has been improved, secondly through setting up grab handle 22 and brush 23, the inconvenient abluent problem of aluminum alloy door and window has been solved, aluminum alloy door and window's clean and tidy nature has been guaranteed, abluent thoroughness and homogeneity have been realized, avoid appearing wasing the dead angle, and the operation is simple and fast, the aesthetic property of aluminum alloy door and window has been improved.
It is noted that in the present disclosure, unless otherwise explicitly specified or limited, a first feature "on" or "under" a second feature may be directly contacting the first and second features or indirectly contacting the first and second features through an intermediate. Also, a first feature "on," "over," and "above" a second feature may be directly or diagonally above the second feature, or may simply indicate that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature may be directly under or obliquely under the first feature, or may simply mean that the first feature is at a lesser elevation than the second feature.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a convenient abluent aluminum alloy door and window, includes frame main part (1), its characterized in that: the frame main body (1) comprises a left frame body (2) and a right frame body (3), the left frame body (2) and the right frame body (3) are fixedly connected, clamping plates (4) are fixedly connected to the upper and lower two ends of the right side of the left frame body (2), limiting holes (5) are formed in the clamping plates (4), clamping grooves (6) are formed in the upper and lower two ends of the left side of the right frame body (3), mounting holes (7) are formed in the inner walls of the clamping grooves (6), sliding grooves (12) are formed in the middle portions of the front sides of the left frame body (2) and the right frame body (3), positioning columns (13) are fixedly mounted on the upper and lower sides of the front sides of the left frame body (2) and the right frame body (3), mounting sleeves (14) are sleeved on the outer surfaces of the positioning columns (13) in a sliding mode, sliding rods (17) are fixedly connected between the two mounting sleeves (14), the bottom of the sliding cylinders (18) is fixedly connected with a sliding block (20), and a bearing plate (21) is fixedly connected between the two sliding cylinders (18).
2. The aluminum alloy door and window convenient to clean as claimed in claim 1, wherein: the mounting hole (7) runs through the inside of the right frame body (3), the mounting hole (7) and the limiting hole (5) are matched and arranged, bolts (8) are fixedly mounted on the left side of the front face of the right frame body (3) from top to bottom, the bolts (8) and the mounting hole (7) are matched and arranged, and the left frame body (2) is fixedly connected with the right frame body (3) through the bolts (8).
3. The aluminum alloy door and window convenient to clean as claimed in claim 1, wherein: the inboard equal fixedly connected with card strip (9) of left side framework (2) and right framework (3), card strip (9) set up to two, one side fixedly connected with sealing strip (10) of card strip (9), two fixed mounting has glass (11) between card strip (9).
4. The aluminum alloy door and window convenient to clean as claimed in claim 1, wherein: the bottom slidable mounting of installation cover (14) has baffle (15), the fixed cover of baffle (15) is connected in the surface of reference column (13), nut (16) are installed to the top screw thread of reference column (13).
5. The aluminum alloy door and window convenient to clean as claimed in claim 1, wherein: one side of the sliding barrel (18) is fixedly connected with a spring (19), the spring (19) is sleeved on the outer surface of the sliding rod (17), the top end of the spring (19) is fixedly connected with the mounting sleeve (14), and the bottom end of the sliding block (20) is in sliding connection with the sliding groove (12).
6. The aluminum alloy door and window convenient to clean as claimed in claim 1, wherein: fixedly connected with grab handle (22) in the middle of the top of loading board (21), the bottom fixed mounting of loading board (21) has brush (23) that the equidistance was arranged, the cross-section of brush (23) is the T type form.
