Abstract

The utility model provides an inner wall leveling device for building decoration, which comprises a fixed supporting leg, a bracket, a horizontal bubble, a guide rail and a caliper; the fixed supporting legs are screwed into the two ends of the bracket through threads; the horizontal bubble is embedded in the middle of the bracket; the guide rail penetrates through the bracket and is fixed at the reserved hole of the bracket by two screws; the caliper is sleeved into the guide rail through the preformed hole. The arrangement of the horizontal bubbles and the guide rails ensures that the bubbles in the two horizontal bubbles are placed in the middle by adjusting the supporting legs at the bottom end of each support, the perpendicularity of the supports is ensured, the moving track of the caliper is ensured by the guide rails, the construction is standardized, and the flatness of a construction wall body is improved.

Description

A interior wall leveling device for building decoration

Technical Field

The utility model belongs to the technical field of the building decoration apparatus, more specifically say, in particular to an interior wall leveling device for building decoration.

Background

The leveling of the inner wall is realized by using cement mortar on the added building blocks, and the currently common method is that a constructor throws the cement mortar on the wall surface and then uses a caliper for leveling.

The inventor finds that the previous construction method is not comprehensive in overall smoothness of the wall surface due to the fact that a single caliper is used by a single person, most of the previous construction method is visual inspection when the wall surface is leveled, the size requirement is not standard, and the phenomenon that the inspection and acceptance standard cannot be met after leveling is finished and potholes are uneven is caused.

Therefore, in view of the above, research and improvement are made for the existing structure and defects, and an inner wall leveling device for building decoration is provided, so as to achieve the purpose of higher practical value.

SUMMERY OF THE UTILITY MODEL

In order to solve the technical problem, the utility model provides an interior wall levelling device for building decoration to the whole smoothness of wall is not taken care of roundly when solving current construction, problem that construction technology is irregular.

The utility model is used for building decoration's interior wall leveling device's purpose and efficiency are reached by following specific technological means:

an inner wall leveling device for building decoration comprises a fixed supporting leg, a bracket, a horizontal bulb, a guide rail and a caliper; the fixed supporting legs are screwed into the two ends of the bracket through threads; the horizontal bubble is embedded in the middle of the bracket; the guide rail penetrates through the bracket and is fixed at the reserved hole of the bracket by two screws; the caliper is sleeved into the guide rail through the preformed hole.

Furthermore, the number of the supporting legs above the support is one, and the number of the supporting legs below the support is two.

Furthermore, the support is provided with reserved holes which are uniformly distributed.

Furthermore, two horizontal bubbles are reserved on each bracket, and the horizontal bubbles are distributed on the adjacent vertical surfaces of the brackets.

Furthermore, the number of the guide rails is four.

Compared with the prior art, the utility model discloses following beneficial effect has:

the setting of landing leg through establishing a landing leg above the support, two landing legs are established to the support below, and landing leg accessible screw freely adjusts the length of going out, has increased the device's stability, is favorable to the support to settle normally on uneven subaerial height.

The arrangement of the preformed hole on the support meets the requirement of normal construction of the device on the wall body with uneven height and length, and improves the working efficiency.

The arrangement of the horizontal bubbles and the guide rails ensures that the bubbles in the two horizontal bubbles are placed in the middle by adjusting the supporting legs at the bottom end of each support, the perpendicularity of the supports is ensured, the moving track of the caliper is ensured by the guide rails, the construction is standardized, and the flatness of a construction wall body is improved.

Drawings

Fig. 1 is a front view of the present invention.

Fig. 2 is a side view of the present invention.

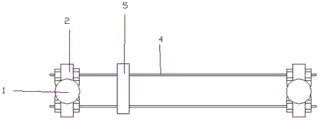

Fig. 3 is a plan view of the present invention.

In the drawings, the corresponding relationship between the component names and the reference numbers is as follows:

1. fixing the supporting legs; 2. a support; 3. horizontal bubble; 4. a guide rail; 5. a caliper;

Detailed Description

The following describes embodiments of the present invention in further detail with reference to the accompanying drawings and examples. The following examples are intended to illustrate the invention, but are not intended to limit the scope of the invention.

In the description of the present invention, "a plurality" means two or more unless otherwise specified; the terms "upper", "lower", "left", "right", "inner", "outer", "front", "rear", "head", "tail", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," "third," and the like are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "connected" and "connected" are to be interpreted broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; may be directly connected or indirectly connected through an intermediate. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Example (b):

as shown in figures 1 to 3:

the utility model provides an inner wall leveling device for building decoration, which comprises a fixed supporting leg 1, a bracket 2, a horizontal bubble 3, a guide rail 4 and a caliper 5; the fixed supporting legs 1 are screwed into the two ends of the bracket 2 through threads; the horizontal bubble 3 is embedded in the middle of the bracket 2; the guide rail 4 penetrates through the bracket 2, and the guide rail 4 is fixed at a reserved hole of the bracket 2 by two screws; the caliper 4 is sleeved into the guide rail 4 through a reserved hole.

Wherein, landing leg 1 is located the top of support 2 and is one, and landing leg 1 is located the below of support 2 and is two, has improved the topography adaptability of the device, has guaranteed to construct normally on the uneven subaerial of height.

Wherein, evenly distributed's preformed hole is left to support 2, and the accessible is adjusted the fixed position of preformed hole and guide rail 4, deals with length, uneven wall, has improved work efficiency.

Wherein, level bubble 3 leaves two at every support 2, and level bubble 3 distributes at the adjacent facade of support 2, makes the bubble placed in the middle through adjusting two level bubbles 3, can ensure the straightness that hangs down of support 2, has standardized the construction.

The four guide rails 4 enable the caliper 5 to move vertically and transversely along the guide rails 4, so that the wall surface is kept vertical, and the engineering quality is improved.

The specific use mode and function of the embodiment are as follows:

the utility model discloses in, lean on support 2 in the one side of waiting to wipe the wall, make support 2 keep comparing in wall vertically state through adjustment level bubble 3, push up 1 extension one end of support 2 upper portion landing leg at cast-in-place board, and 1 tops of the landing leg of the 2 other ends of support subaerial, fixed bolster 2, pass slide caliper rule 5 with guide rail 4 and fix on support 2, after having waited to beat the bed charge, promote slide caliper rule 5 with the hand, make slide caliper rule 5 begin to strickle the wall, promote slide caliper rule 5 several backs repeatedly, this wall is made level and is accomplished.

The embodiments of the present invention have been presented for purposes of illustration and description, and are not intended to be exhaustive or limited to the invention in the form disclosed. Many modifications and variations will be apparent to those of ordinary skill in the art. The embodiment was chosen and described in order to best explain the principles of the invention and the practical application, and to enable others of ordinary skill in the art to understand the invention for various embodiments with various modifications as are suited to the particular use contemplated.

Claims

1. an inner wall leveling device for building decoration, it is characterized in that: this inner wall leveling device for building decoration comprises fixed outriggers (1), brackets (2), horizontal bubbles (3), guide rails (4) ) and a caliper (5); the fixing legs (1) are screwed into both ends of the bracket (2) through threads; the horizontal bubble (3) is embedded in the middle of the bracket (2); the guide rail (4) runs through the bracket (2) ), and the guide rail (4) is fixed at the reserved hole of the bracket (2) by two screws; the caliper (5) is sleeved into the guide rail (4) through the reserved hole.

2. The inner wall leveling device for building decoration according to claim 1, characterized in that: the outrigger (1) is one above the bracket (2), and the outrigger (1) is located at the bracket (2) Below are two.

3 . The inner wall leveling device for building decoration according to claim 1 , wherein the bracket ( 2 ) is provided with evenly distributed reserved holes. 4 .

4. The inner wall leveling device for building decoration as claimed in claim 1, wherein two of the horizontal bubbles (3) are left on each bracket (2), and the horizontal bubbles (3) are distributed on the brackets. (2) Adjacent facades.

5 . The inner wall leveling device for building decoration according to claim 1 , wherein the number of the guide rails ( 4 ) is four. 6 .
