The utility model discloses a building safety warning sign, comprising an installation base, on which a square hollow tube is fixedly connected, and a lamp installation seat surrounding the square hollow tube is arranged on the upper end surface of the installation base and a ring light is arranged on the upper end surface of the lamp mounting seat. The utility model relates to the technical field of warning signs. By arranging a square hollow tube, a square telescopic rod, a first limit screw and a nut, the height adjustment function of the warning sign is realized to cope with different warning positions. The rotating connection between the telescopic rods can adjust the warning direction of the warning sign, and at the same time can play a certain protective role when there is wind. The sliding or rotating connection between them realizes the installation of different warning sign carriers, which greatly expands the use range of the warning sign.

Description

Building safety warning sign tablet

Technical Field

The utility model relates to a warning sign tablet technical field especially relates to a building safety warning sign tablet.

Background

The safety of building site is the first big thing of relation property and staff's life, warns the placard and warns equipment wide application in building site in a large number for this, nevertheless, general warning sign simple structure, the warning words carrier form that can install is single, and warning effect is relatively poor night simultaneously, and can not adjust the height of warning pole.

Therefore, a building safety warning sign is provided to solve the problems.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problems existing in the prior art and providing a building safety warning sign board.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a building safety warning signboard comprises a mounting base, wherein a square hollow tube is fixedly connected to the mounting base, a lamp mounting base is arranged on the upper end face of the mounting base, an annular lamp is arranged on the upper end face of the lamp mounting base, a plurality of first limiting holes are formed in the square hollow tube in a penetrating mode, a square telescopic rod is inserted into the square hollow tube, a plurality of second limiting holes are formed in the square telescopic rod, one end, away from the square hollow tube, of the square telescopic rod is rotatably connected with a cross rod, a storage battery is arranged in the middle of the upper end face of the cross rod, a solar cell panel is arranged on the storage battery, rotary rods are rotatably connected to two sides of the cross rod through a locking device, a guide rail is welded to the lower end face of each rotary rod, a slide block is arranged in the guide rail and is rotatably connected with a first, one end of the second mounting rod is rotatably connected with the rotating rod, and a plurality of mounting holes are formed in the first mounting rod and the second mounting rod.

Preferably, a first limit screw is arranged between the first limit hole in the square hollow tube and the second limit hole on the square telescopic rod, and nuts are connected to two ends of the first limit screw in a threaded manner.

Preferably, the side wall of the sliding block is welded with an L-shaped fixing block, and a second limiting screw is arranged on the L-shaped fixing block.

Preferably, the annular lamp, the storage battery and the solar panel are electrically connected.

Preferably, the locking device comprises a rotary installation piece fixedly arranged on the side wall of the rotary rod close to one end of the transverse rod, the rotary installation piece is rotatably connected with a buckle, U-shaped clamping grooves are symmetrically arranged on two sides of the upper end face of the transverse rod, and one end of the buckle far away from the rotary installation piece is connected with the U-shaped clamping grooves in a clamped mode.

Compared with the prior art, the beneficial effects of the utility model are that:

beneficial effect 1, through setting up square hollow tube, square telescopic link, first stop screw, nut, realized the height-adjustable function of warning sign to deal with different warning positions.

Beneficial effect 2, be connected through the rotation between horizontal pole and the square telescopic link, can adjust the direction of the warning of warning sign, can play certain guard action simultaneously in windy.

Beneficial effect 3, through setting up guide rail, slider, first installation pole and second installation pole to and the slip or rotate between them and connect, realized the installation to different warning slogan carriers, make the application range of this warning sign expand greatly.

Beneficial effect 4, through setting up U-shaped draw-in groove, buckle and rotation installation piece, not only guaranteed the normal work of bull stick, make when this warning sign does not use moreover, the warning sign can fold and deposit, practices thrift storage space.

Beneficial effect 5, through L shape fixed block and the second stop screw of setting on the slider, can make the slider fixed after the installation warning slogan.

Beneficial effect 6, through setting up solar cell panel, battery and annular lamp for this warning sign also can play fine warning effect in night, need not take the line power supply simultaneously, the energy saving.

Drawings

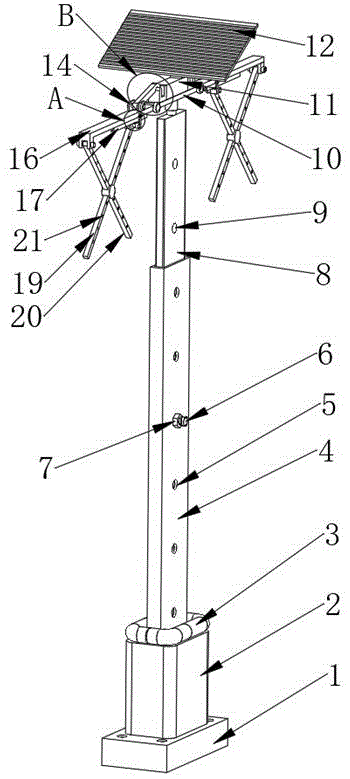

Fig. 1 is a schematic structural view of a building safety warning sign provided by the present invention;

fig. 2 is a schematic structural view of a place B of the building safety warning sign plate provided by the utility model;

fig. 3 is the utility model provides a building safety warning sign tablet's a structural schematic.

In the figure: 1. mounting a base; 2. a lamp mounting seat; 3. an annular lamp; 4. a square hollow tube; 5. a first limit hole; 6. a first limit screw; 7. a nut; 8. a square telescopic rod; 9. a second limiting hole; 10. a cross bar; 11. a storage battery; 12. a solar panel; 13. a U-shaped clamping groove; 14. rotating the mounting plate; 15. buckling; 16. a rotating rod; 17. a guide rail; 18. a slider; 19. a first mounting bar; 20. a second mounting bar; 21. mounting holes; 22. an L-shaped fixed block; 23. and a second limit screw.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Referring to fig. 1-3, a building safety warning signboard comprises a mounting base 1, a square hollow tube 4 is fixedly connected to the mounting base 1, a lamp mounting seat 2 surrounding the square hollow tube 4 is arranged on the upper end face of the mounting base 1, an annular lamp 3 is arranged on the upper end face of the lamp mounting seat 2, a plurality of first limiting holes 5 are formed in the square hollow tube 4 in a penetrating manner, a square telescopic rod 8 is inserted into the square hollow tube 4, a plurality of second limiting holes 9 are formed in the square telescopic rod 8, a first limiting screw 6 is arranged between the first limiting holes 5 and the second limiting holes, nuts 7 are in threaded connection with two ends of the first limiting screw 6, the first limiting screw 6 penetrates through the first limiting holes 5 and the second limiting holes 9 and is fastened by the nuts 7, the structure can enable a worker to conveniently adjust the mounting height of the warning signboard, and has adaptability to uneven building sites, the square telescopic rod 8 is rotatably connected with a cross rod 10 at one end far away from the square hollow tube 4, a storage battery 11 is arranged in the middle of the upper end face of the cross rod 10, a solar cell panel 12 is arranged on the storage battery 11, an annular lamp 3, the storage battery 11 and the solar cell panel 12 are electrically connected, in daytime, the solar cell panel 12 supplies power to the storage battery 11, the annular lamp 3 can be turned on at night to illuminate warning signs, and therefore the warning sign can work all day long, two sides of the cross rod 10 are rotatably connected with rotating rods 16 through locking devices, each locking device comprises a rotating installation sheet 14 fixedly arranged on the side wall of the rotating rod 16 close to one end of the cross rod 10, two sides of the upper end face of the cross rod 10 are symmetrically provided with U-shaped clamping grooves 13, each rotating installation sheet 14 is rotatably connected with a buckle 15, one end of each buckle 15 far away from each rotating installation sheet 14 is connected, be provided with slider 18 in the guide rail 17, slider 18's lateral wall welding has L shape fixed block 22, be provided with second stop screw 23 on the L shape fixed block 22, twist and move second stop screw 23 and be used for restricting slider 18's slip, play the fixed action, slider 18 rotates and is connected with first installation pole 19, first installation pole 19 middle part rotates and is connected with second installation pole 20, the one end and the bull stick 16 of second installation pole 20 rotate and are connected, a plurality of mounting holes 21 have been seted up with second installation pole 20 to first installation pole 19.

In the utility model, the square telescopic rod 8 with the moving function is arranged on the mounting base 1, so that the warning board can adapt to various warning positions, because the cross rod 10 is rotationally connected with the square telescopic rod 8, therefore, the warning direction of the warning board can be easily adjusted, and the rotating structure can protect the warning board to a certain extent in windy weather, in addition, the first mounting rod 19 and the second mounting rod 20 are arranged in an X shape and can freely rotate at the intersection, warning slogan carriers with different sizes and shapes can be conveniently mounted, the application range is greatly expanded, when the warning board is not used, the buckle 15 can be opened to enable the rotating rod 16 to be folded downwards, thereby saving the storage space, in addition, the solar cell panel 12, the storage battery 11 and the annular lamp 3 which are arranged on the warning board ensure that the warning board still can play a warning role at night.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A building safety warning sign, comprising an installation base (1), characterized in that a square hollow tube (4) is fixedly connected to the installation base (1), and the installation base (1) A lamp mounting seat (2) is arranged on the upper end surface, a ring light (3) is arranged on the upper end surface of the lamp mounting seat (2), and a plurality of first limiting holes (5) are formed through the square hollow tube (4). ), the square hollow tube (4) is inserted with a square telescopic rod (8), the square telescopic rod (8) is provided with a plurality of second limit holes (9), and the square telescopic rod (8) One end away from the square hollow tube (4) is rotatably connected with a crossbar (10), a battery (11) is arranged in the middle of the upper end face of the crossbar (10), and a solar cell panel (11) is arranged on the battery (11). 12), a rotating rod (16) is rotatably connected on both sides of the cross rod (10) through a locking device, and a guide rail (17) is welded on the lower end surface of the rotating rod (16), and a guide rail (17) is provided in the guide rail (17). A slider (18), a first installation rod (19) is rotatably connected to the slider (18), and a second installation rod (20) is rotatably connected to the middle of the first installation rod (19). One end of the rod (20) is rotatably connected with the rotating rod (16), and the first installation rod (19) and the second installation rod (20) are provided with a plurality of installation holes (21).

2. A building safety warning sign according to claim 1, characterized in that the first limit hole (5) in the square hollow tube (4) and the first limit hole (5) on the square telescopic rod (8) A first limit screw (6) is arranged between the two limit holes (9), and both ends of the first limit screw (6) are screwed with nuts (7).

3. The building safety warning sign according to claim 1, wherein an L-shaped fixing block (22) is welded to the side wall of the slider (18), and the L-shaped fixing block (22) A second limit screw (23) is arranged thereon.

4 . The building safety warning sign according to claim 1 , wherein the ring light ( 3 ), the battery ( 11 ) and the solar panel ( 12 ) are electrically connected. 5 .

5. A building safety warning sign according to claim 1, characterized in that the locking device comprises a rotating installation fixedly arranged on the side wall of the rotating rod (16) close to one end of the transverse rod (10). A plate (14), the rotating mounting plate (14) is rotatably connected with a buckle (15), and the upper end surface of the cross bar (10) is symmetrically provided with a U-shaped slot (13) on both sides, and the buckle (15) ) is connected with the U-shaped slot (13) at one end away from the rotating mounting piece (14).
