CN212669118U - An electric flat car that lifts and rotates - Google Patents
An electric flat car that lifts and rotates Download PDFInfo
- Publication number
- CN212669118U CN212669118U CN201922407357.2U CN201922407357U CN212669118U CN 212669118 U CN212669118 U CN 212669118U CN 201922407357 U CN201922407357 U CN 201922407357U CN 212669118 U CN212669118 U CN 212669118U
- Authority
- CN
- China
- Prior art keywords
- electric flat
- power cylinder
- lifting platform
- chassis
- flat carriage
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 230000003028 elevating effect Effects 0.000 claims 1
- 238000004519 manufacturing process Methods 0.000 abstract description 3
- 229910000831 Steel Inorganic materials 0.000 description 3
- 239000010959 steel Substances 0.000 description 3
- 238000000034 method Methods 0.000 description 2
- 230000002093 peripheral effect Effects 0.000 description 2
- 238000010586 diagram Methods 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
Images
Landscapes
- Handcart (AREA)
Abstract
本实用新型提供一种升降旋转的电动平车，包括电动平车底盘，其特征在于电动平车底盘上设有升降平台，该升降平台通过动力缸与电动平车底盘相连接，并且动力缸上设有旋转机构。通过主动力缸上的旋转机构驱动升降平台进行360°旋转，然后通过主动力缸及副动力缸带动升降平台实现升与降，进而带动构件进行升降、旋转，以便作业员对构件进行吊运。避免了现有技术中需要通过人工行车二次吊运进行构件的旋转和转运，避免了构件转运时的不安全因素，同时减少了构件的变形率，保证了产品和稳定性，缩短了工时，提高了生产效率。
The utility model provides a lifting and rotating electric flat car, comprising an electric flat car chassis, which is characterized in that a lifting platform is arranged on the electric flat car chassis, the lifting platform is connected with the electric flat car chassis through a power cylinder, and the power cylinder is mounted on the electric flat car chassis. Equipped with a rotating mechanism. The lifting platform is driven by the rotating mechanism on the main power cylinder to rotate 360°, and then the main power cylinder and the auxiliary power cylinder are used to drive the lifting platform to achieve lifting and lowering, and then drive the components to lift and rotate, so that the operator can lift the components. It avoids the need to perform the rotation and transfer of the component through the secondary hoisting of manual driving in the prior art, avoids the unsafe factor during the transfer of the component, reduces the deformation rate of the component at the same time, ensures the product and stability, and shortens the man-hours. Improved production efficiency.
Description
Technical Field
The utility model relates to an electronic flatcar, especially a rotatory electronic flatcar goes up and down belongs to mechanical design and makes technical field.
Background
In the industrial product manufacturing, taking the logistics transportation of H-shaped steel and rectangular pipes as an example, the direction of a component needs to be adjusted and the component needs to be lifted to a flat car by a crane in the transportation process, while the existing electric flat car needs to be adjusted in direction manually due to a fixed structure, and the quality of the H-shaped steel and the rectangular pipes is higher, so that the efficiency is low and the safety risk is higher in the operation process. This is particularly true for bulk transfers. There is therefore a need for improvements in the prior art.
Disclosure of Invention
For solving current electric flat carriage when transporting members such as shaped steel, tubular product, there is direction and position adjustment to the influence is transported efficiency and is increased the problem of safe risk, the utility model provides a lift, rotatory electric flat carriage.
The utility model discloses a following technical scheme accomplishes: the electric flat carriage capable of lifting and rotating comprises an electric flat carriage chassis and is characterized in that a lifting platform is arranged on the electric flat carriage chassis and is connected with the electric flat carriage chassis through a power cylinder, a rotating mechanism is arranged on the power cylinder, so that the lifting platform is driven to rotate horizontally through the rotating mechanism, and the lifting platform is lifted or lowered through the power cylinder.
The lifting platform is a horizontal rectangular body or a horizontal round body which is matched with the chassis of the electric flat car, so that workpieces can be stably placed.
The power cylinder is including locating the main power cylinder at electronic flatcar chassis center to and locate the peripheral a plurality of vice power cylinders of main power cylinder, wherein: the main power cylinder base is connected with the chassis of the electric flat carriage, the top of the piston rod is connected with the rotating mechanism, and the rotating mechanism is connected with the lifting platform; the auxiliary power cylinders are at least three and symmetrically arranged on the periphery of the main power cylinder, cylinder seats of the auxiliary power cylinders are connected with a chassis of the electric flat car, and the tops of the piston rods are connected with the bottom surface of the lifting platform and are not connected with the bottom surface of the lifting platform, so that the lifting platform can be lifted or lowered through the main power cylinders and the auxiliary power cylinders simultaneously, and when the lifting platform needs to rotate, the piston rods of the auxiliary power cylinders are lowered to leave the lifting platform, and then the lifting platform is driven to rotate through the.
The rotary mechanism is a rotary motor, the rotary motor is arranged at the top of the piston rod of the main power cylinder through a bearing with a seat, and the rotary motor is connected with the lifting platform so as to drive the lifting platform to rotate under the driving of the rotary motor.
The electric flat carriage chassis is an existing self-driven electric flat carriage chassis.
The utility model has the advantages of it is following and effect: by adopting the scheme, the lifting platform can be driven to rotate for 360 degrees through the rotating mechanism on the main power cylinder, then the lifting platform is driven to lift and descend through the main power cylinder and the auxiliary power cylinder, and then the component is driven to lift and rotate, so that an operator can hoist the component. The rotation and the transportation of the component are carried out through the secondary hoisting of the manual travelling crane in the prior art, unsafe factors during the transportation of the component are avoided, the deformation rate of the component is reduced, products and stability are guaranteed, the working time is shortened, and the production efficiency is improved. The electric flat car is an ideal electric flat car.
Drawings

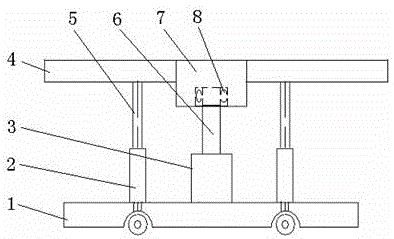

Fig. 1 is a structural diagram of the present invention.
Detailed Description
The present invention will be further described with reference to the accompanying drawings.
The utility model provides a lifting and rotating electric flat carriage, which comprises a conventional electric flat carriage chassis 1, wherein a lifting platform 4 is arranged on the electric flat carriage chassis 1, the lifting platform 4 is connected with the electric flat carriage chassis 1 through a power cylinder, and a rotating mechanism 5 is arranged on the power cylinder; the lifting platform 4 is a horizontal rectangular body which is matched with the chassis 1 of the electric flat carriage, so that a workpiece can be stably placed; the power cylinder is including locating the main power cylinder 3 at 1 center in electronic flatcar chassis to and locate the peripheral four vice power cylinders 2 of main power cylinder 3, wherein: the main power cylinder 3 is connected with the electric flat car chassis 1, the top of the piston rod 6 is connected with the rotating mechanism 7, and the rotating mechanism 7 is connected with the lifting platform 4; the four auxiliary power cylinders 2 are symmetrically arranged around the main power cylinder 3, cylinder seats of the auxiliary power cylinders are connected with the electric flat car chassis 1, the top of a piston rod 5 is connected with and disconnected with the bottom surface of the lifting platform 4, so that the lifting platform 4 can be lifted or lowered through the main power cylinder 3 and the auxiliary power cylinder 2 simultaneously, and when the auxiliary power cylinders 2 need to rotate, the piston rod 5 of the auxiliary power cylinders 2 is lowered to leave the lifting platform 4, and then the lifting platform 4 is driven to rotate through the rotating mechanism 5; the rotating mechanism 5 is a rotating motor, the rotating motor is arranged at the top of the piston rod 6 of the main power cylinder 3 through a bearing 8 with a seat, and the rotating motor is connected with the lifting platform 4 so as to enable the lifting platform 4 to rotate around the piston rod 6 of the main power cylinder 3 under the driving of the rotating motor; the electric flat carriage chassis 1 is an existing electric flat carriage chassis with a driving motor and moving wheels.
Claims (4)
1. The electric flat carriage capable of lifting and rotating comprises an electric flat carriage chassis and is characterized in that a lifting platform is arranged on the electric flat carriage chassis, the lifting platform is connected with the electric flat carriage chassis through a power cylinder, and a rotating mechanism is arranged on the power cylinder.
2. The lift-and-rotate electric flat carriage according to claim 1, wherein the lift platform is configured as a horizontal rectangular body adapted to the chassis of the electric flat carriage, or as a horizontal circular body.
3. The elevating and rotating electric flat carriage according to claim 1, wherein the power cylinder comprises a main power cylinder disposed at the center of the chassis of the electric flat carriage, and a plurality of auxiliary power cylinders disposed at the periphery of the main power cylinder, wherein: the main power cylinder base is connected with the chassis of the electric flat carriage, the top of the piston rod is connected with the rotating mechanism, and the rotating mechanism is connected with the lifting platform; the number of the auxiliary power cylinders is at least three, the auxiliary power cylinders are symmetrically arranged on the periphery of the main power cylinder, cylinder seats of the auxiliary power cylinders are connected with a chassis of the electric flat car, and the top of a piston rod is connected with the bottom surface of the lifting platform and is not connected with the bottom surface of the lifting platform.
4. The lifting and drop rotating electric flat carriage according to claim 1, wherein the rotating mechanism is a rotating motor, the rotating motor is arranged on the top of the piston rod of the main power cylinder through a bearing with a seat, and the rotating motor is connected with the lifting platform.
