Abstract
本实用新型公开了一种新型多功能双向倒角机，包括底座和操作台，底座为内部中空的长方体结构，底座内侧底部中心处竖直固定液压缸，液压缸顶部输出端固定连接操作台，底座内侧底部环绕液压缸四周竖直固定支撑管，支撑管顶部与操作台贴合设置，操作台底部位于支撑管内竖直固定滑杆，底座顶部位于操作台外侧转动设置旋转台。本实用新型的有益效果是通过电机驱动弧形齿条实现了对倒角打磨电机角度的调整，电动伸缩杆和旋转台可对打磨电机打磨的位置进行调整，减少了人工搬动的次数，提高了产品精度，同时也提高了工作效率，降尘喷头与吸尘器实现双重保护，将加工产生的粉尘吸附，防止其漂浮在空中对人体造成危害。
The utility model discloses a novel multifunctional two-way chamfering machine, comprising a base and an operation table. The base is a hollow cuboid structure, a hydraulic cylinder is vertically fixed at the center of the inner bottom of the base, and an output end of the top of the hydraulic cylinder is fixedly connected to the operation table. The bottom of the inner side of the base is vertically fixed around the hydraulic cylinder, and the top of the support pipe is fitted with the operating table. The beneficial effect of the utility model is that the angle of the chamfering grinding motor can be adjusted by the motor-driven arc-shaped rack, and the electric telescopic rod and the rotary table can adjust the grinding position of the grinding motor, which reduces the number of manual movements and improves the The product accuracy is improved, and the work efficiency is also improved. The dust suppression nozzle and the vacuum cleaner realize double protection, and absorb the dust generated by processing to prevent it from floating in the air and causing harm to the human body.
Description
Technical Field
The utility model belongs to the technical field of machining, especially, relate to a novel multi-functional two-way beveler.
Background
In the machining industry, many parts are in order to reduce wearing and tearing after the machine-shaping, prolong its life and need carry out the chamfer processing to it, but the precision of chamfer can influence the precision of part on setting up, consequently, need to improve the precision of beveler, present beveler needs equipment operating personnel to rotate many times to the work piece when processing shape part, it can all cause the influence to its machining precision to rotate once at operating personnel every time, and most bevelers can only unilateral limit chamfer, machining efficiency is lower, can't fully satisfy the demand of modernized industrial production, equipment can produce a large amount of dusts when processing, if do not handle then can cause the influence to equipment operator's health.
SUMMERY OF THE UTILITY MODEL
The to-be-solved problem of the utility model is to provide a novel multi-functional two-way beveler is particularly suitable for carrying out chamfer processing to various parts.
In order to solve the technical problem, the utility model discloses a technical scheme is:
a novel multifunctional bidirectional chamfering machine comprises a base and an operating platform, wherein the base is of a hollow cuboid structure, a vertical fixed hydraulic cylinder is arranged at the center of the bottom of the inner side of the base, the output end of the top of the hydraulic cylinder is fixedly connected with the operating platform, the bottom of the inner side of the base surrounds a vertical fixed supporting tube around the hydraulic cylinder, the top of the supporting tube is attached to the operating platform, second mounting blocks are symmetrically arranged at the top of the operating platform along the center, air cylinders are fixedly arranged on opposite surfaces of the two second mounting blocks, the output end of the air cylinder is rotatably connected with a clamping block, the bottom of the operating platform is positioned in the vertical fixed sliding rod in the supporting tube, the top of the base is positioned at the outer side of the operating platform and is rotatably provided with a rotating platform, a first gear is fixedly arranged at the bottom of the rotating platform and a rotating motor is, the output end of the top of the rotating motor is fixedly connected with a rotating gear, the rotating gear is meshed with the first gear, slide rails are symmetrically arranged at the top of the rotating table along the center of the operating table, a connecting block is arranged at the top of the slide rails in a sliding manner, an adjusting bracket is fixedly arranged at the top of the connecting block, a sliding groove is arranged on the side wall of the adjusting bracket in a penetrating manner, a mounting plate is arranged in the sliding groove in a sliding manner, polishing motors are fixedly arranged at two sides of the adjusting bracket on the mounting plate, the output end of each polishing motor is fixedly connected with a cutter head, a limiting groove is arranged below the adjusting bracket inside the connecting block, an arc-shaped rack is arranged in the limiting groove in a sliding manner, one end of the arc-shaped rack is rotatably connected with the mounting plate, a second gear, the top of the sliding rail is located on one side of the connecting block, a first installation block is fixedly arranged on one side of the connecting block, an electric telescopic rod is arranged in the middle of one side wall of the first installation block in a rotating mode, and the output end of the electric telescopic rod is connected with the connecting block in a rotating mode.
Preferably: the water tank is fixedly arranged on the lower portion of one side wall of the base, the water pump motor is fixedly arranged on the top of the water tank, the output end of the water pump motor is fixedly connected with the water pump main body, the input end of the water pump main body is communicated with the water tank, the output end of the water pump main body is fixedly connected with the second connecting pipe, the free end of the second connecting pipe is fixedly connected with the dust falling sprayer, and the dust falling sprayer is fixedly connected with the adjusting support.
So set up, adsorb the dust that produces in the course of working.
Preferably: the dust collector is characterized in that a first connecting pipe is fixedly arranged on the upper portion of one side wall of the outer side, the free end of the first connecting pipe is fixedly connected with the dust collector, a protective door is arranged on one side of the shell and is connected with the shell in a sliding mode through a guide rail, an observation window is arranged in the middle of the side wall of the protective door, a handle is fixedly arranged on one side of the observation window on the protective door, and a controller is fixedly arranged on one side of the protective door on the side wall of the shell.
So set up, protect chamfering mechanism, seal the processing space simultaneously and prevent that dust iron fillings from splashing.
Preferably: the slide rail is connected with the connecting block in a sliding mode through a dovetail groove.
So set up, connect reliable and stable, the fault rate is low and easy access.
Preferably: the first mounting block is fixedly connected with the slide rail through a bolt, the second mounting block is fixedly connected with the operating platform through a bolt, and the mounting plate is rotatably connected with the arc-shaped rack through a connecting shaft.
So set up, firm in connection and convenient to detach overhaul.
Preferably: the bottom of the sliding rod is positioned in the supporting tube, a limiting block is fixedly arranged in the supporting tube, and a limiting ring is fixedly arranged on the upper portion of the inner side wall of the supporting tube.
So set up, can carry out spacing fixed to the operation panel.
Preferably: the second connecting pipe is a spiral pipe and is made of rubber.
So set up, can lengthen and shorten along with the removal of equipment, excellent in use effect.
Preferably: and a sealing gasket is arranged at the joint of the protective door and the shell.
So set up, reduce the collision between guard gate and the shell, can seal simultaneously and prevent the dust departure.
The utility model has the advantages and positive effects that:
the utility model discloses a mounting panel and the arc spout that will install the motor combine, have realized the adjustment to chamfer grinding motor angle through motor drive arc rack, and electric telescopic handle and revolving stage can adjust the position that grinding motor polished, have reduced the number of times of artifical removal, have improved the product precision, have also improved work efficiency simultaneously, and dust fall shower nozzle realizes duplicate protection with the dust catcher, adsorbs the dust that will process the production, prevents that it from floating and causing harm to the human body aloft.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive exercise.

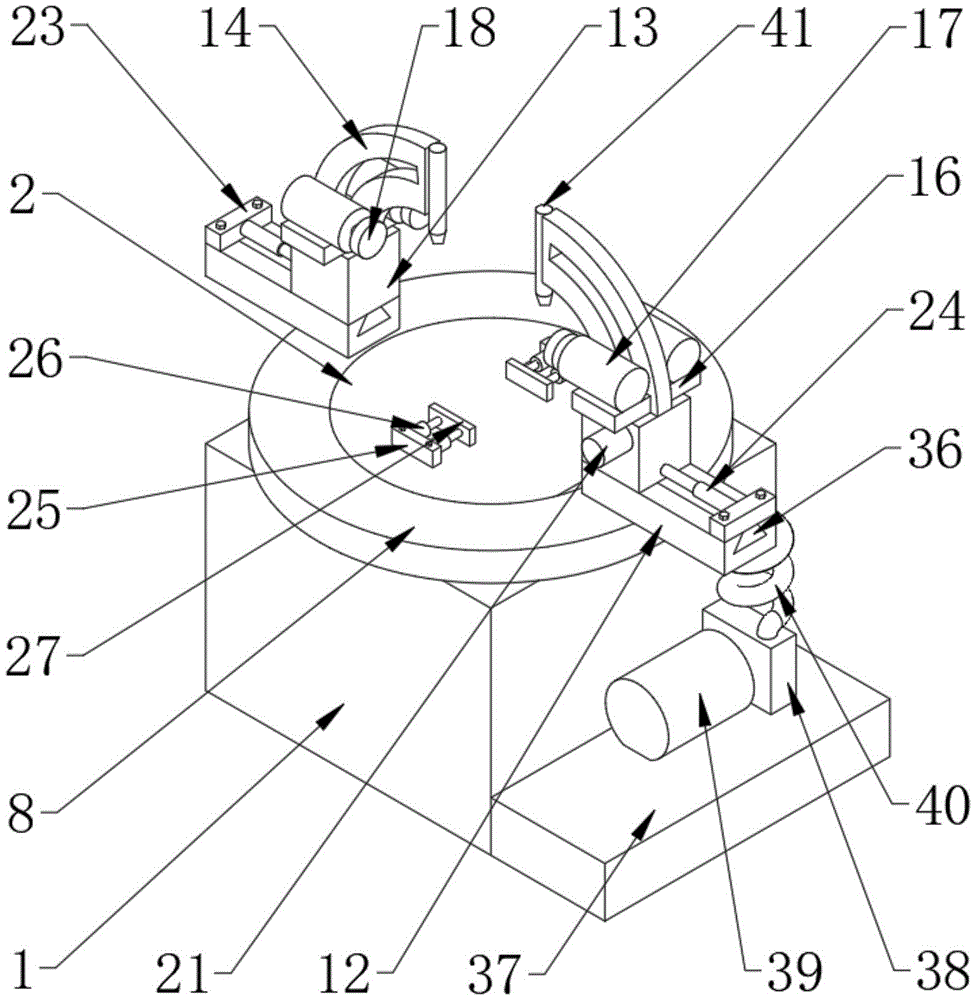

Fig. 1 is an axonometric view of the novel multifunctional bidirectional chamfering machine of the present invention;
FIG. 2 is a structural diagram of an internal chamfering mechanism of the novel multifunctional bidirectional chamfering machine of the present invention;
FIG. 3 is a sectional view of the internal chamfering structure of the novel multifunctional bidirectional chamfering machine of the present invention;
fig. 4 is an enlarged view of a structure at a position a of the novel multifunctional bidirectional chamfering machine of the present invention;
fig. 5 is a structure enlarged view of B position of the novel multifunctional bidirectional chamfering machine.
The reference numerals are explained below:
1. a base; 2. an operation table; 3. supporting a tube; 4. a slide bar; 5. a limiting block; 6. a limiting ring; 7. a hydraulic cylinder; 8. a rotating table; 9. a first gear; 10. a rotating electric machine; 11. a rotating gear; 12. a slide rail; 13. Connecting blocks; 14. adjusting the bracket; 15. a chute; 16. mounting a plate; 17. polishing the motor; 18. a cutter head; 19. an arc-shaped rack; 20. a second gear; 21. adjusting the motor; 22. a connecting shaft; 23. a first mounting block; 24. an electric telescopic rod; 25. a second mounting block; 26. a cylinder; 27. a clamping block; 28. a housing; 29. A guide rail; 30. a protective door; 31. a handle; 32. an observation window; 33. a first connecting pipe; 34. a vacuum cleaner; 35. a controller; 36. a dovetail groove; 37. a water tank; 38. a water pump main body; 39. a water pump motor; 40. a second connecting pipe; 41. a dust fall sprayer; 42. a limiting groove.
Detailed Description
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are used merely for convenience of description and for simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention. Furthermore, the terms "first", "second", etc. are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first," "second," etc. may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.
The present invention will be further explained with reference to the accompanying drawings:
example 1
As shown in figures 1-5, a novel multifunctional bidirectional chamfering machine comprises a base 1 and an operating platform 2, wherein the base 1 is of a hollow cuboid structure, a hydraulic cylinder 7 is vertically fixed at the center of the bottom of the inner side of the base 1, the output end of the top of the hydraulic cylinder 7 is fixedly connected with the operating platform 2, a support tube 3 is vertically fixed at the bottom of the inner side of the base 1 around the hydraulic cylinder 7, the top of the support tube 3 is attached to the operating platform 2, second mounting blocks 25 are symmetrically arranged at the top of the operating platform 2 along the center, air cylinders 26 are fixedly arranged on the opposite surfaces of the two second mounting blocks 25, the output end of the air cylinder 26 is rotatably connected with a clamping block 27, a slide bar 4 is vertically fixed in the support tube 3 at the bottom of the operating platform 2, a rotating platform 8 is rotatably arranged at the outer side of the operating platform 2 at the top of the base 8, a first gear 9 is fixedly arranged, the output end of the top of a rotating motor 10 is fixedly connected with a rotating gear 11, the rotating gear 11 is meshed with a first gear 9, the top of a rotating table 8 is symmetrically provided with slide rails 12 along the center of an operating table 2, the top of the slide rail 12 is provided with a connecting block 13 in a sliding manner, the top of the connecting block 13 is fixedly provided with an adjusting bracket 14, the side wall of the adjusting bracket 14 is provided with a sliding chute 15 in a penetrating manner, a mounting plate 16 is arranged in the sliding chute 15 in a sliding manner, a polishing motor 17 is fixedly arranged on the two sides of the adjusting bracket 14 on the mounting plate 16, the output end of the polishing motor 17 is fixedly connected with a cutter head 18, a limiting groove 42 is arranged below the adjusting bracket 14 in the connecting block 13, an arc-shaped rack 19 is arranged in the limiting groove 42 in a sliding manner, one end of the arc-shaped rack 19 is rotatably connected with the mounting plate 16, a, the middle part of one side wall of the first mounting block 23 is rotatably provided with an electric telescopic rod 24, and the output end of the electric telescopic rod 24 is rotatably connected with the connecting block 13.
The working process of the embodiment: the operating personnel steadily places the work piece on the operation panel, then the tight piece of control cylinder extension promotion clamp steps up the work piece, then control rotating electrical machines according to the processing demand and rotate the revolving stage, control adjusting electrical machines rotates and drives arc rack and mounting panel removal, control electric telescopic rod adjusts grinding motor's position, close the guard gate at last, start water pump motor and dust catcher earlier, restart grinding motor and process the work piece again, the operating personnel closes grinding motor earlier after the processing is accomplished, reset rotating electrical machines through the controller, adjusting electrical machines and electric telescopic handle, close water pump motor again, close the dust catcher at last, open the guard gate, the work piece is taken out after control cylinder shortens, accomplish processing.
Preferably: a water tank 37 is fixedly arranged at the lower part of one side wall of the base 1, a water pump motor 39 is fixedly arranged at the top of the water tank 37, the output end of the water pump motor 39 is fixedly connected with a water pump main body 38, the input end of the water pump main body 38 is communicated with the water tank 37, the output end of the water pump main body 38 is fixedly connected with a second connecting pipe 40, the free end of the second connecting pipe 40 is fixedly connected with a dust fall sprayer 41, the dust fall sprayer 41 is fixedly connected with an adjusting bracket 14 and adsorbs dust generated in the processing process, a first connecting pipe 33 is fixedly arranged at the upper part of one side wall of the outer side, a dust collector 34 is fixedly connected with the free end of the first connecting pipe 33, a protective door 30 is arranged at one side of the shell 28, the protective door 30 is slidably connected with the shell 28 through a guide rail 29, an observation window 32 is arranged at, the chamfering mechanism is protected, meanwhile, the processing space is sealed to prevent dust and scrap iron from splashing, the slide rail 12 is in sliding connection with the connecting block 13 through a dovetail groove 36, the connection is stable and reliable, the failure rate is low, and the overhaul is convenient, the first installation block 23 is fixedly connected with the slide rail 12 through a bolt, the second installation block 25 is fixedly connected with the operating platform 2 through a bolt, the installation plate 16 is rotatably connected with the arc-shaped teeth 19 through a connecting shaft 22, the connection is firm, the disassembly and the overhaul are convenient, a limit block 5 is fixedly arranged at the bottom of the slide bar 4 in the supporting tube 3, a limit ring 6 is fixedly arranged at the upper part of the inner side wall of the supporting tube 3, the operating platform can be limited and fixed, the second connecting tube 40 is a spiral tube made of rubber, can be extended and shortened along with the movement of equipment, the use effect is good, a sealing, meanwhile, the device can be sealed to prevent dust from flying out.
While one embodiment of the present invention has been described in detail, the description is only a preferred embodiment of the present invention, and should not be considered as limiting the scope of the present invention. All the equivalent changes and improvements made according to the application scope of the present invention should still fall within the patent coverage of the present invention.
Claims (8)
1. The utility model provides a novel multi-functional two-way beveler, includes base (1) and operation panel (2), base (1) is inside hollow cuboid structure, its characterized in that: the automatic clamping device is characterized in that a vertical fixed hydraulic cylinder (7) is arranged at the center of the bottom of the inner side of the base (1), the output end of the top of the hydraulic cylinder (7) is fixedly connected with the operating platform (2), the bottom of the inner side of the base (1) surrounds the hydraulic cylinder (7) and the peripheral vertical fixed supporting pipes (3), the tops of the supporting pipes (3) are arranged in a laminating manner with the operating platform (2), the top of the operating platform (2) is provided with second mounting blocks (25) along the central symmetry, two cylinders (26) are fixedly arranged on the opposite surfaces of the second mounting blocks (25), the output end of each cylinder (26) is rotatably connected with a clamping block (27), the bottom of the operating platform (2) is positioned in the supporting pipes (3) and is provided with a vertical fixed sliding rod (4), the top of the base (1) is positioned in the outer side of the operating platform (2) and is rotatably provided with, the automatic grinding machine is characterized in that a rotating motor (10) is fixedly arranged below the first gear (9) on one side wall of the inner side of the base (1), an output end fixed connection rotating gear (11) at the top of the rotating motor (10), the rotating gear (11) is meshed with the first gear (9), a sliding rail (12) is symmetrically arranged at the center of the operating platform (2) at the top of the rotating platform (8), a connecting block (13) is slidably arranged at the top of the sliding rail (12), an adjusting bracket (14) is fixedly arranged at the top of the connecting block (13), a sliding groove (15) is penetratingly arranged on the side wall of the adjusting bracket (14), a mounting plate (16) is slidably arranged in the sliding groove (15), a grinding motor (17) is fixedly arranged at two sides of the adjusting bracket (14) on the mounting plate (16), and a cutter head (18) is fixedly connected, connecting block (13) inside is located adjust support (14) below and set up spacing groove (42), it sets up arc rack (19) to slide in spacing groove (42), arc rack (19) one end with mounting panel (16) rotate and connect, lie in on connecting block (13) inside wall spacing groove (42) one side is rotated and is set up second gear (20), second gear (20) with arc rack (19) mesh mutually, slide rail (12) top is located connecting block (13) one side is fixed and is set up first installation piece (23), rotate in the middle part of a side wall of first installation piece (23) and set up electric telescopic handle (24), electric telescopic handle (24) output with connecting block (13) rotate and connect.
2. The novel multifunctional bidirectional chamfering machine according to claim 1, wherein: base (1) a fixed water tank (37) that sets up in lateral wall lower part, water tank (37) top is fixed to be set up water pump motor (39), water pump motor (39) output fixed connection water pump main part (38), water pump main part (38) input with water tank (37) intercommunication, water pump main part (38) output fixed connection second connecting pipe (40), second connecting pipe (40) free end fixed connection dust fall shower nozzle (41), dust fall shower nozzle (41) with adjust support (14) fixed connection.
3. The novel multifunctional bidirectional chamfering machine according to claim 1, wherein: base (1) outside sets up shell (28), a fixed first connecting pipe (33) that sets up in outside lateral wall upper portion, first connecting pipe (33) free end fixed connection dust catcher (34), shell (28) one side sets up guard gate (30), guard gate (30) with shell (28) pass through guide rail (29) sliding connection, guard gate (30) lateral wall middle part sets up observation window (32), lie in on guard gate (30) observation window (32) one side is fixed and is set up handle (31), lie in on shell (28) lateral wall guard gate (30) one side is fixed and is set up controller (35).
4. The novel multifunctional bidirectional chamfering machine according to claim 1, wherein: the sliding rail (12) is connected with the connecting block (13) in a sliding mode through a dovetail groove (36).
5. The novel multifunctional bidirectional chamfering machine according to claim 1, wherein: first installation piece (23) with slide rail (12) pass through bolt fixed connection, second installation piece (25) with operation panel (2) pass through bolt fixed connection, mounting panel (16) with arc rack (19) are connected through connecting axle (22) rotation.
6. The novel multifunctional bidirectional chamfering machine according to claim 1, wherein: the bottom of the sliding rod (4) is positioned inside the supporting tube (3) and is fixedly provided with a limiting block (5), and the upper part of the inner side wall of the supporting tube (3) is fixedly provided with a limiting ring (6).
7. The novel multifunctional bidirectional chamfering machine according to claim 2, wherein: the second connecting pipe (40) is a spiral pipe and is made of rubber.
8. The novel multifunctional bidirectional chamfering machine according to claim 3, wherein: and a sealing gasket is arranged at the joint of the protective door (30) and the shell (28).
