Mouth device is scraped to cutter blade
Technical Field
The utility model relates to a mouth technical field is scraped to the cutter, especially relates to a mouth device is scraped to cutter blade.
Background
In prior art, the cutter is the indispensable instrument among the daily life, and uses and just to have wearing and tearing to make its passivation, at this moment need polish the cutter, makes the cutter sharper so that use, and the general people of traditional hand skill of polishing hardly master, wastes time and energy, still can be injured if the misoperation, must not pay attention to, and the master of the hand skill of can whetting a knife can not be often on hand again, and the useless mixed water that produces of whetting a knife is not cleared up again simultaneously.
Through retrieval, the Chinese patent with the application number of CN201610025567.3 discloses a food knife edge polishing device and a polishing method, and the food knife edge polishing device comprises a workbench, a grinding wheel motor, a grinding wheel and a knife disc seat; the grinding wheel motor is vertically arranged on the workbench; the grinding wheel is arranged at the lower end of the grinding wheel motor; the cutter head seat is arranged on one side of the grinding wheel on the workbench, and a fine adjustment disc is arranged on the cutter head seat; a fine adjustment shaft is fixedly arranged at the center of the fine adjustment disc and is in threaded connection with a rotary shaft sleeve arranged on the cutter disc seat; a locking device is arranged at the joint of the fine tuning shaft and the rotating shaft sleeve; the rotary shaft sleeve is connected with the cutter head seat through a bearing. The food knife edge polishing device and the polishing method in the patent have the following defects: when the cutter is polished, the cutter is directly contacted with a polishing stone manually, protective measures are lacked during polishing, and the four-shot fragments easily cause injury to operators and are low in safety.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a cutter cutting edge scraping device.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a mouth scraping device for a cutting edge of a cutter comprises a machine body, wherein an exhaust fan is arranged on the outer wall of the top of the machine body, and the input end of the exhaust fan is connected with the outer wall of the top of the machine body through a conveying pipe; the outer wall of the top of the machine body is provided with a dust collection box, and the output end of the exhaust fan is connected with the outer wall of one side of the dust collection box through a guide pipe.
As a further aspect of the present invention: the top inner wall of organism is provided with electronic flexible post, and the bottom outer wall of electronic flexible post is provided with the fixing base, and the bottom outer wall of fixing base is provided with two electronic spouts.
As a further aspect of the present invention: the inner walls of the electric chutes are provided with clamping seats, and the outer wall of one electric side of each clamping seat is provided with a non-slip mat.
As a further aspect of the present invention: the inner wall of one side of organism is provided with two electronic slide rails, and the inner wall of two electronic slide rails all is provided with the support, and the top outer wall of two supports all is provided with the motor, and the top outer wall that two supports are close to the motor all is provided with the speed reducer, and the output of two motors is connected with the input of two speed reducers through the shaft coupling respectively, and the output of two speed reducers all rotates through the connecting axle and is connected with the emery wheel.
As a further aspect of the present invention: the inner wall of one side of the machine body is provided with a filter screen plate, and the inner wall of one side of the machine body, which is far away from the filter screen plate, is provided with a blanking plate which is inclined.
As a further aspect of the present invention: a discharge chute is arranged on the inner wall of one side of the machine body, and a baffle is arranged on the inner wall of the discharge chute.
As a further aspect of the present invention: the bottom outer wall of organism is provided with four supporting legs, and one side outer wall of organism is provided with the chamber door.
Compared with the prior art, the utility model provides a mouth device is scraped to cutter blade possesses following beneficial effect:
1. this mouthful device is scraped to cutter blade through being provided with dust-collecting box and air exhauster isotructure, when scraping mouthful operation, starts the air exhauster switch, and the dust piece that the operation produced passes through the conveyer pipe and the pipe gets into the dust-collecting box is collected, avoids the piece to fly to penetrate and causes the injury to people, the unified processing in people's later stage of being convenient for.
2. This mouth device is scraped to cutter blade through being provided with speed reducer and emery wheel isotructure, and the starter motor drives the emery wheel rotation, adjusts the distance of two supports in electronic slide rail respectively to be convenient for polish cutter blade department, reduce the rotational speed of emery wheel through the speed reducer, scrape the blade edge and only clear away and drape over one's shoulders the cutting edge, can not injure the blade and influence the sharpness, thereby improve the sharpening quality.
3. This mouthful device is scraped to cutter blade through being provided with grip slipper and electronic flexible post isotructure, places the cutter back of a knife blade simultaneously between two grip slippers, starts electronic spout switch for two grip slippers remove to the centre respectively, carry out the centre gripping to the cutter, start electronic flexible post switch, make the fixing base reciprocate, the upper and lower distance when being convenient for adjust and scrape a mouthful operation.
Drawings

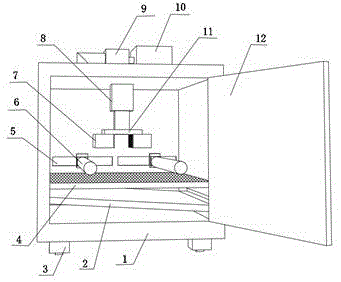

Fig. 1 is a schematic view of a front-view unfolding structure of a cutting edge scraping device of a cutter provided by the utility model;
fig. 2 is a schematic diagram of a left-side expanded structure of the cutting edge scraping device of the utility model;
fig. 3 is the utility model provides a right side of mouthful device is scraped to cutter blade looks expanded structure schematic diagram.
In the figure: 1-machine body, 2-blanking plate, 3-supporting legs, 4-filter screen plate, 5-electric slide rail, 6-grinding wheel, 7-clamping seat, 8-electric telescopic column, 9-exhaust fan, 10-dust collection box, 11-fixing seat, 12-box door, 13-electric sliding groove, 14-discharge groove, 15-motor and 16-baffle.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
A mouth scraping device for a cutting edge of a cutter is used for avoiding injury to people caused by fragment flying, and comprises a machine body 1, wherein an exhaust fan 9 is fixed on the outer wall of the top of the machine body 1 through a bolt, and the input end of the exhaust fan 9 is connected with the outer wall of the top of the machine body 1 through a conveying pipe; the top outer wall of organism 1 has dust collection box 10 through the bolt fastening, and the output of air exhauster 9 is connected with one side outer wall of dust collection box 10 through the pipe, when scraping the operation, starts the switch of air exhauster 9, and the dust piece that the operation produced passes through conveyer pipe and gets into collection in the dust collection box 10, avoids the piece to fly to penetrate and causes the injury to people, the unified processing in people's later stage of being convenient for.
For the convenience of adjusting the upper and lower distance when scraping mouthful operation, as shown in fig. 1 and fig. 2, the top inner wall of organism 1 has electronic flexible post 8 through the bolt fastening, and the bottom outer wall of electronic flexible post 8 has fixing base 11 through the bolt fastening, and two electronic spouts 13 have been seted up to the bottom outer wall of fixing base 11, start the switch of electronic flexible post 8 for fixing base 11 reciprocates, is convenient for adjust the upper and lower distance when scraping mouthful operation.
In order to facilitate clamping of the cutter, as shown in fig. 1 and fig. 2, the inner walls of the electric sliding grooves 13 are connected with the clamping seats 7 through sliding blocks in a sliding mode, the outer wall of one electric side of each of the two clamping seats 7 is bonded with an anti-slip pad, one side of the cutter back of the cutter is placed between the two clamping seats 7, the electric sliding grooves 13 are started to be opened and closed, the two clamping seats 7 move towards the middle respectively, the cutter is clamped, and the operation of scraping the cutter is facilitated.
In order to improve the sharpening quality, as shown in fig. 1 and fig. 2, two electric slide rails 5 are arranged on the inner wall of one side of the machine body 1, the inner walls of the two electric slide rails 5 are connected with supports in a sliding manner through sliders, motors 15 are fixed on the outer walls of the tops of the two supports through bolts, speed reducers are fixed on the outer walls of the tops, close to the motors 15, of the two supports through bolts, the output ends of the two motors 15 are respectively connected with the input ends of the two speed reducers through couplers, the output ends of the two speed reducers are respectively connected with grinding wheels 6 through connecting shafts in a rotating manner, the motors 15 are started to drive the grinding wheels 6 to rotate, thereby be convenient for polish to cutter blade department, reduce emery wheel 6's rotational speed through the speed reducer, the low-speed edge of scraping is only clear away and is draped over one's shoulders the cutting edge, can not injure the blade and influence the sharpness to improve the sharpening quality.
In order to collect part of the cutter debris, as shown in fig. 1, a filter screen plate 4 is fixed on the inner wall of one side of the machine body 1 through bolts, a blanking plate 2 is fixed on the inner wall of one side of the machine body 1, which is far away from the filter screen plate 4, through bolts, the blanking plate 2 is inclined, and part of the cutter debris polished by a grinding wheel 6 falls onto the blanking plate 2 through the filter screen plate 4, so that the debris can be collected conveniently.
In order to facilitate people to process the chips, as shown in fig. 2 and 3, a discharge chute 14 is formed in the inner wall of one side of the machine body 1, a baffle 16 is clamped on the inner wall of the discharge chute 14, and after the operation is finished, the baffle 16 is moved away, so that the polished partial cutter chips slide out through the discharge chute 14, and people can conveniently process the chips.
In order to facilitate taking and placing of the cutter, as shown in fig. 1, the outer wall of the bottom of the machine body 1 is fixedly provided with four supporting legs 3 through bolts, the outer wall of one side of the machine body 1 is connected with a box door 12 through a hinge, and equipment is pushed to move through the supporting legs 3, so that the box door 12 is opened, and the cutter is convenient to take and place.
The working principle is as follows: the equipment is pushed to move through the supporting legs 3, the box door 12 is opened to facilitate the taking and placing of the cutter, the cutter back is placed between the two clamping seats 7, the electric chute 13 switch is started to enable the two clamping seats 7 to move towards the middle respectively to clamp the cutter, the electric telescopic column 8 switch is started to enable the fixing seat 11 to move up and down, the motor 15 is started to drive the grinding wheel 6 to rotate during the edge scraping operation, the distances of the two supports in the electric sliding rail 5 are adjusted respectively, the cutter edge is convenient to polish, the rotating speed of the grinding wheel 6 is reduced through the speed reducer, only the flash of the low-speed scraping edge is removed, the cutting edge is not damaged, the sharpness is not influenced, the cutter grinding quality is improved, the switch 9 of the exhaust fan is started, dust fragments generated by the operation enter the dust collection box 10 through the conveying pipe and the guide pipe to be collected, and the injury of people caused, the unified processing in people's later stage of being convenient for, the part cutter piece of polishing through emery wheel 6 falls to lower flitch 2 on through filter plate 4, after the operation, moves away baffle 16 for the part cutter piece of polishing is through discharge chute 14 roll-off, and the people of being convenient for handle the piece.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims (7)

1. A mouth scraping device for a cutting edge of a cutter comprises a machine body (1) and is characterized in that an exhaust fan (9) is arranged on the outer wall of the top of the machine body (1), and the input end of the exhaust fan (9) is connected with the outer wall of the top of the machine body (1) through a conveying pipe; the outer wall of the top of the machine body (1) is provided with a dust collection box (10), and the output end of the exhaust fan (9) is connected with the outer wall of one side of the dust collection box (10) through a guide pipe.
2. The mouth scraping device for the cutting edge of the cutter according to claim 1, wherein the top inner wall of the machine body (1) is provided with an electric telescopic column (8), the bottom outer wall of the electric telescopic column (8) is provided with a fixed seat (11), and the bottom outer wall of the fixed seat (11) is provided with two electric sliding chutes (13).
3. The scraping device for the cutting edge of a cutter as claimed in claim 2, wherein the inner walls of the two electric chutes (13) are provided with the clamping seats (7), and the outer walls of the electric sides of the two clamping seats (7) are provided with the non-slip mats.
4. The scraping device for the cutting edge of the cutter as claimed in claim 3, wherein two electric slide rails (5) are arranged on one side of the inner wall of the machine body (1), the inner walls of the two electric slide rails (5) are provided with supports, the top outer walls of the two supports are provided with motors (15), the top outer walls of the two supports close to the motors (15) are provided with speed reducers, the output ends of the two motors (15) are respectively connected with the input ends of the two speed reducers through couplings, and the output ends of the two speed reducers are respectively connected with the grinding wheel (6) in a rotating manner through connecting shafts.
5. The scraping device for the cutting edge of the cutter as claimed in claim 1, wherein the inner wall of one side of the machine body (1) is provided with the filter screen plate (4), the inner wall of one side of the machine body (1) far away from the filter screen plate (4) is provided with the blanking plate (2), and the blanking plate (2) is inclined.
6. The knife edge scraping device according to claim 5, characterized in that a discharge chute (14) is arranged on the inner wall of one side of the machine body (1), and a baffle (16) is arranged on the inner wall of the discharge chute (14).
7. The scraping device for the cutting edge of the cutter as claimed in claim 6, wherein the outer wall of the bottom of the machine body (1) is provided with four supporting legs (3), and the outer wall of one side of the machine body (1) is provided with a box door (12).
