Waste treatment device for plastic production

Technical Field

The utility model relates to a plastics production technical field specifically is a waste material processing apparatus is used in plastics production.

Background

With the rapid development of social economy, the acceleration of urbanization process and the rapid improvement of the living standard of people in China, the garbage generated in the urban production and living process is rapidly increased, and the conditions of land occupation, environmental pollution and the influence on the health of people by household garbage are more obvious. In daily life, can produce a large amount of plastic bottles, and at the in-process of handling the plastic bottle, because contain unclear liquid in the bottle, generally the manual work is poured liquid, but this method is wasted time and energy, and the plastic bottle occupies a large amount of spaces easily, is unfavorable for the storage, can't satisfy the user demand.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides a waste material processing apparatus is used in plastics production has solved the in-process that current plastic bottle handled, because contain unclear liquid in the bottle, generally the manual work is poured liquid, but this method wastes time and energy, and the plastic bottle occupies a large amount of spaces easily, is unfavorable for the storage, can't satisfy user demand's problem.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a waste material processing apparatus for plastics production, includes the main part, the bottom fixedly connected with bottom plate of main part, the bottom fixedly connected with universal wheel of bottom plate, the top fixedly connected with strengthening rib of bottom plate, the one end of bottom plate and the lateral wall fixed connection of main part are kept away from to the strengthening rib.

Preferably, the surface of the main body is provided with a hinge, the main body is fixedly connected with a box door through the hinge, the surface of the box door is provided with a handle lock, the surface of the box door is provided with an observation window, and the side wall of the main body is provided with a feeding port.

Preferably, the top fixedly connected with mount of main part, the main part passes through mount fixedly connected with motor, the output shaft fixedly connected with shaft coupling of motor, the motor passes through shaft coupling fixedly connected with and rotates the lead screw, it rotates with the main part and is connected to rotate the lead screw, the inside fixedly connected with fixed plate of main part, it rotates with the fixed plate and is connected, it has the lead screw slider to rotate lead screw threaded connection, the inside fixedly connected with of main part leads positive pole, the lead screw slider with lead positive pole sliding connection, the bottom fixedly connected with stripper bar of lead screw slider, stripper bar and fixed plate sliding connection, the bottom fixedly connected with stripper plate of stripper bar.

Preferably, the bottom of the inner wall of the main body is fixedly connected with a baffle, and a filter screen is arranged in the middle of the baffle.

Preferably, the inside of main part is located the below of baffle and is provided with the waste liquid and collects the frame, the waste liquid is collected the frame and is corresponding with the filter screen.

(III) advantageous effects

The utility model provides a waste treatment device for plastic production, which comprises a main body, a bottom plate, universal wheels and reinforcing ribs, wherein the whole body is convenient to move, the reinforcing ribs are arranged to improve the stability of the main body, a box door is arranged to facilitate the cleaning of the main body, a worker can conveniently manage the device, a fixing frame is arranged at the top of the main body for installing a motor, the motor works to drive a shaft coupling to rotate, a rotating lead screw is driven to rotate, a lead screw slider is driven to move, an extrusion rod is driven to move, an extrusion plate is driven to move, the plastic in the main body is extruded, the plastic volume is reduced, the device is convenient to store, a baffle and a filter screen are arranged, the baffle is matched with the extrusion plate to extrude the plastic bottle, the filter screen filters the generated liquid in the extrusion process of the plastic bottle, the later-stage collection is convenient, the, and the plastic bottle volume is compressed, convenient storage, has reached the main part, the bottom plate, universal wheel, strengthening rib constitution is whole, and the whole removal of being convenient for sets up the strengthening rib, improves the stability of main part, and in will treating the plastic bottle of processing and throwing into the main part, extrude the plastic bottle, extrude the liquid in the bottle, need not the manual work and pour out liquid, improve work efficiency, compress the plastic bottle simultaneously, convenient storage satisfies user demand's purpose.

Drawings

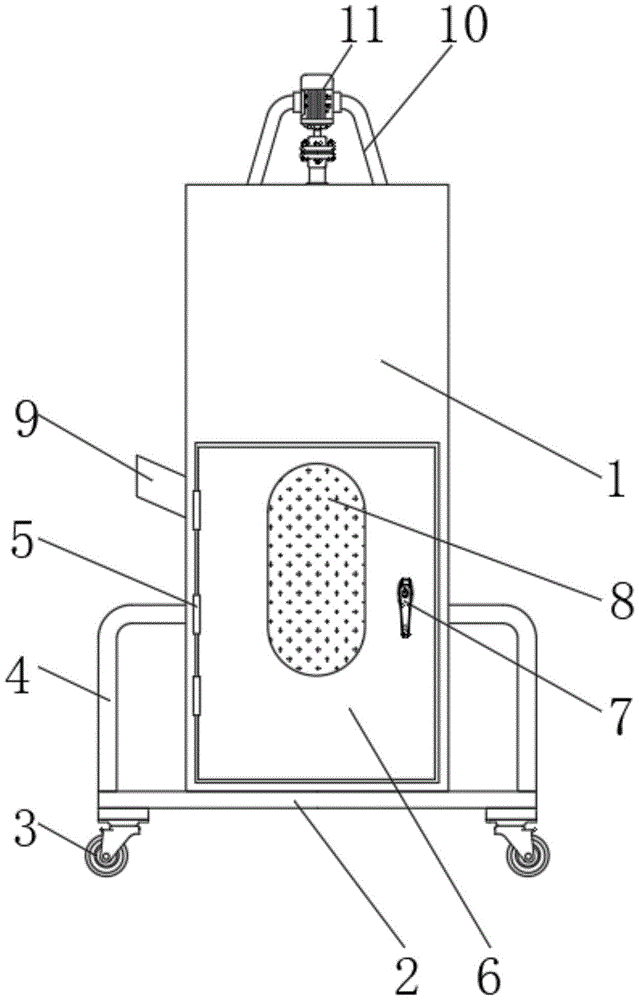

FIG. 1 is a schematic view of the overall external structure of the present invention;

FIG. 2 is a schematic view of the overall internal structure of the present invention;

fig. 3 is a schematic view of a part of an enlarged structure of fig. 2 according to the present invention.

In the figure: 1. a main body; 2. a base plate; 3. a universal wheel; 4. reinforcing ribs; 5. a hinge; 6. a box door; 7. a handle lock; 8. an observation window; 9. a feeding port; 10. a fixed mount; 11. a motor; 12. a coupling; 13. rotating the screw rod; 14. a lead screw slider; 15. a guide rod; 16. an extrusion stem; 17. a pressing plate; 18. a baffle plate; 19. filtering with a screen; 20. a waste liquid collection frame; 21. and (7) fixing the plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a waste treatment device for plastics production, includes main part 1, the bottom fixedly connected with bottom plate 2 of main part 1, the bottom fixedly connected with universal wheel 3 of bottom plate 2, the top fixedly connected with strengthening rib 4 of bottom plate 2, the one end that bottom plate 2 was kept away from to strengthening rib 4 and the lateral wall fixed connection of main part 1.

In this embodiment: main part 1, bottom plate 2, universal wheel 3, strengthening rib 4 constitute a whole, and the whole removal of being convenient for sets up strengthening rib 4, improves the stability of main part 1.

Specifically, the surface of the main body 1 is provided with a hinge 5, the main body 1 is fixedly connected with a box door 6 through the hinge 5, the surface of the box door 6 is provided with a handle lock 7, the surface of the box door 6 is provided with an observation window 8, and the side wall of the main body 1 is provided with a feeding port 9.

In this embodiment: set up chamber door 6, be convenient for clear up main part 1 is inside, set up observation window 8, be convenient for observe the compression condition in the main part 1.

Specifically, top fixedly connected with mount 10 of main part 1, main part 1 passes through mount 10 fixedly connected with motor 11, motor 11's output shaft fixedly connected with shaft coupling 12, motor 11 passes through shaft coupling 12 fixedly connected with and rotates lead screw 13, it rotates lead screw 13 and main part 1 to rotate to be connected, main part 1's inside fixedly connected with fixed plate 21, it rotates lead screw 13 and fixed plate 21 to rotate to be connected, it has lead screw slider 14 to rotate lead screw 13 threaded connection, main part 1's inside fixedly connected with leads positive pole 15, lead screw slider 14 with lead positive pole 15 sliding connection, lead screw slider 14's bottom fixedly connected with stripper rod 16, stripper rod 16 and fixed plate 21 sliding connection, the bottom fixedly connected with stripper plate 17 of stripper rod 16.

In this embodiment: the top of the main body 1 is provided with a fixing frame 10 for installing a motor 11, the motor 11 works to drive the shaft coupling 12 to rotate, the rotary screw 13 is driven to rotate, the screw sliding block 14 is driven to move, the extrusion rod 16 is driven to move, the extrusion plate 17 is driven to move, the plastic in the main body 1 is extruded, the plastic volume is reduced, and the storage is convenient.

Specifically, the bottom of the inner wall of the main body 1 is fixedly connected with a baffle 18, and the middle part of the baffle 18 is provided with a filter screen 19.

In this embodiment: set up baffle 18 and filter screen 19, baffle 18 and stripper plate 17 cooperate, extrude the plastic bottle, and filter screen 19 extrudees the in-process to the plastic bottle, and the liquid that produces filters, and the later stage of being convenient for is collected, need not artifically pour out liquid, improves work efficiency, and the plastic bottle volume is compressed, convenient storage.

Specifically, a waste liquid collecting frame 20 is arranged inside the main body 1 below the baffle 18, and the waste liquid collecting frame 20 corresponds to the filter screen 19.

In this embodiment: the liquid filtered by the filter screen 19 is collected, so that the later treatment is convenient.

During the use, drop into main part 1 with pending plastic bottle, motor 11 works, it rotates to drive shaft coupling 12, it rotates to drive rotation lead screw 13, drive the motion of lead screw slider 14, drive the motion of stripper bar 16, drive the motion of stripper plate 17, extrude the plastics in the main part 1, reduce the plastics volume, the storage of being convenient for, collect the liquid after filtering filter screen 19, the later stage of being convenient for is handled, main part 1, bottom plate 2, the universal wheel 3, the whole of strengthening rib 4 constitution, be convenient for wholly remove, set up strengthening rib 4, improve the stability of main part 1, make things convenient for the staff to use, and the user demands are satisfied.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation. The use of the phrase "comprising one of the elements does not exclude the presence of other like elements in the process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A waste treatment device for plastic production comprises a main body (1), and is characterized in that: the bottom fixedly connected with bottom plate (2) of main part (1), the bottom fixedly connected with universal wheel (3) of bottom plate (2), the top fixedly connected with strengthening rib (4) of bottom plate (2), the one end that bottom plate (2) were kept away from in strengthening rib (4) and the lateral wall fixed connection of main part (1).

2. The waste treatment apparatus for plastic production according to claim 1, wherein: the surface of main part (1) is provided with hinge (5), main part (1) is through hinge (5) fixedly connected with chamber door (6), the surface of chamber door (6) is provided with handle lock (7), the surface of chamber door (6) is provided with observation window (8), the lateral wall of main part (1) is provided with pan feeding mouth (9).

3. The waste treatment apparatus for plastic production according to claim 1, wherein: the top of the main body (1) is fixedly connected with a fixing frame (10), the main body (1) is fixedly connected with a motor (11) through the fixing frame (10), an output shaft of the motor (11) is fixedly connected with a coupler (12), the motor (11) is fixedly connected with a rotating lead screw (13) through the coupler (12), the rotating lead screw (13) is rotatably connected with the main body (1), a fixing plate (21) is fixedly connected inside the main body (1), the rotating lead screw (13) is rotatably connected with the fixing plate (21), a lead screw slider (14) is in threaded connection with the rotating lead screw (13), a guide rod (15) is fixedly connected inside the main body (1), the lead screw slider (14) is slidably connected with the guide rod (15), an extrusion rod (16) is fixedly connected at the bottom of the lead screw slider (14), and the extrusion rod (16) is slidably connected with the fixing plate (21), the bottom of the extrusion rod (16) is fixedly connected with an extrusion plate (17).

4. The waste treatment apparatus for plastic production according to claim 1, wherein: the inner wall bottom fixedly connected with baffle (18) of main part (1), the middle part of baffle (18) is provided with filter screen (19).

5. The waste treatment apparatus for plastic production according to claim 4, wherein: the inside of main part (1) is located the below of baffle (18) and is provided with waste liquid collection frame (20), waste liquid collection frame (20) are corresponding with filter screen (19).
