CN212632184U - A dust-proof device for garden construction - Google Patents

Abstract

The utility model discloses a dust-proof device for garden construction, which comprises a case, a ventilation duct is movably connected to the top of the case through a ball bearing, a dust-absorbing channel is communicated with the top of the ventilation duct, and an inner part of the dust-absorbing channel is connected. The cavity is fixedly connected with a dust suction mechanism, the left and right sides of the dust suction channel are connected with a feeding hopper, and the bottom of the dust suction channel is provided with a support mechanism. The utility model adopts the cooperation of the ventilation duct, the dust suction channel, the dust suction mechanism, the feeding hopper and the transmission mechanism, the output shaft of the rotating motor drives the driving gear to rotate, and the driving gear drives the ventilation duct to rotate through the driven gear, so that the dust removal can be adjusted according to the needs. Angle, dust removal around, the dust removal effect is good, the dust suction mechanism makes the air pressure in the inner cavity of the dust suction channel lower than the external air pressure, so that the external dust enters the ventilation duct through the air flow, and the dust removal efficiency is high, thereby improving the dust removal effect and solving the problem. The problem of poor dust removal effect of the existing device is solved.

Description

Dust keeper is used in gardens construction

Technical Field

The utility model relates to a gardens construction technical field specifically is a dust keeper is used in gardens construction.

Background

In order to respond to the call of environmental greening, more and more gardens are built, can make in the air produce a large amount of dusts in the garden construction, the dust that spreads in the air is inhaled by constructor more easily, and this too much dust produces very big injury to the people's realization in the past, consequently needs dust keeper in the gardens work progress, current dust keeper dust collection efficiency is lower, the dust removal angle is fixed, can not adjust the dust removal angle as required moreover, the dust removal effect is poor.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a dust keeper is used in gardens construction possesses the good advantage of dust removal effect, has solved the poor problem of current device dust removal effect.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a dust keeper for garden construction, includes quick-witted case, there is air pipe at the top of machine case through ball bearing swing joint, air pipe's top intercommunication has the dust absorption passageway, the inner chamber fixedly connected with dust absorption mechanism of dust absorption passageway, the left and right sides of dust absorption passageway all communicates there is the feeder hopper, the bottom of dust absorption passageway is provided with supporting mechanism, the right side fixedly connected with rotating electrical machines at machine incasement chamber top, rotating electrical machines's output shaft fixedly connected with drive mechanism, air pipe's bottom intercommunication has out the hopper, machine incasement chamber's bottom is provided with the water tank, the left and right sides at water tank top all is provided with the outlet duct, the inner chamber of outlet duct is provided with the filter screen, the bottom fixedly connected.

Preferably, the dust collection mechanism comprises a connecting rod, a driving motor and fan blades, the inner cavity of the dust collection channel is fixedly connected with the connecting rod, one side of the connecting rod is fixedly connected with the driving motor, and the output shaft of the driving motor is fixedly connected with the fan blades.

Preferably, the supporting mechanism comprises a supporting rod, a pulley and a sliding groove, the bottom of the dust collection channel is fixedly connected with the supporting rod, the bottom of the supporting rod is fixedly connected with the pulley, the bottom of the pulley is slidably connected with the sliding groove, and the sliding groove is formed in the top of the case.

Preferably, the transmission mechanism includes a driving gear and a driven gear, the output shaft of the rotating electrical machine is fixedly connected with the driving gear, and the surface of the driving gear is engaged with the driven gear.

Preferably, the top of the inner cavity of the dust collection channel is fixedly connected with an air deflector, and the front surface of the case is hinged with a turnover door through a hinge.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses an air pipe, the dust absorption passageway, dust absorption mechanism, feeder hopper and drive mechanism's cooperation, the output shaft of rotating electrical machines drives the driving gear rotatory, it is rotatory that the driving gear drives air pipe through the driven gear, can adjust the dust removal angle as required, remove dust all around, the dust removal effect is good, dust absorption mechanism makes the atmospheric pressure at dust absorption passageway inner chamber center be less than external atmospheric pressure, make external dust enter into air pipe through the air current, the dust collection efficiency is higher, thereby improve the dust removal effect, the poor problem of current device dust removal effect has been solved.

2. The utility model discloses a cooperation of bracing piece, pulley and spout is convenient for support dust absorption channel, improves the security of device, through designing the aviation baffle, is convenient for guide the air current, avoids both sides air current to form the convection current and influences dust removal effect, through designing the filter screen, filters gas, avoids exhausting to have the dust.

Drawings

FIG. 1 is a schematic structural view of the present invention;

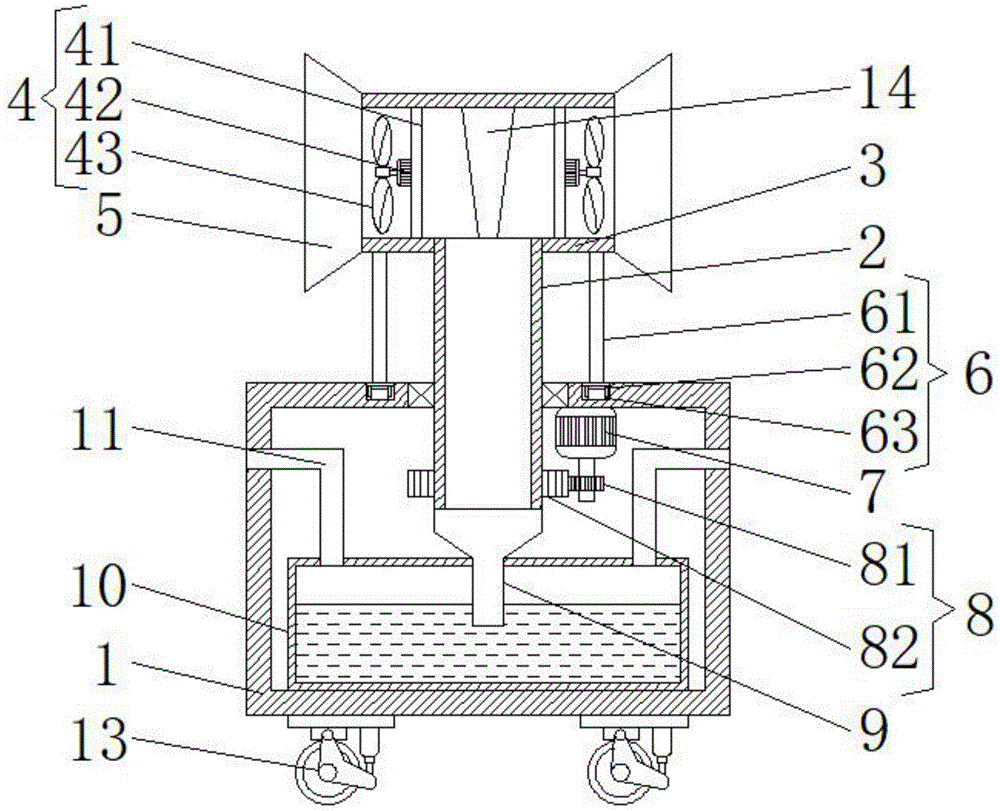

FIG. 2 is a front view of the structure of the present invention;

fig. 3 is a front view section of the structure of the air outlet pipe box of the present invention.

In the figure: 1. a chassis; 2. a ventilation duct; 3. a dust collection channel; 4. a dust suction mechanism; 41. a connecting rod; 42. a drive motor; 43. a fan blade; 5. a feed hopper; 6. a support mechanism; 61. a support bar; 62. a pulley; 63. a chute; 7. a rotating electric machine; 8. a transmission mechanism; 81. a driving gear; 82. a driven gear; 9. a discharge hopper; 10. a water tank; 11. an air outlet pipe; 12. a filter screen; 13. a universal wheel; 14. an air deflector; 15. the door is turned over.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, a dustproof device for garden construction comprises a case 1, the top of the case 1 is movably connected with a ventilating duct 2 through a ball bearing, the top of the ventilating duct 2 is communicated with a dust suction channel 3, the top of the inner cavity of the dust suction channel 3 is fixedly connected with an air deflector 14, the front of the case 1 is hinged with a turnover door 15 through a hinge, the dust suction channel 3 is conveniently supported through the matching of a support rod 61, a pulley 62 and a chute 63, the safety of the device is improved, the air deflector 14 is designed to conveniently guide air flow and prevent the air flow at two sides from forming convection to influence the dust removal effect, the air is filtered through the design of a filter screen 12 to prevent the exhaust air from being accompanied by dust, the inner cavity of the dust suction channel 3 is fixedly connected with a dust suction mechanism 4, the dust suction mechanism 4 comprises a connecting rod 41, a driving motor 42 and, one side of the connecting rod 41 is fixedly connected with a driving motor 42, an output shaft of the driving motor 42 is fixedly connected with fan blades 43, the left side and the right side of the dust absorption channel 3 are both communicated with a feed hopper 5, the bottom of the dust absorption channel 3 is provided with a supporting mechanism 6, the supporting mechanism 6 comprises a supporting rod 61, a pulley 62 and a chute 63, the bottom of the dust absorption channel 3 is fixedly connected with the supporting rod 61, the bottom of the supporting rod 61 is fixedly connected with the pulley 62, the bottom of the pulley 62 is slidably connected with the chute 63, the chute 63 is arranged at the top of the case 1, the right side of the top of the inner cavity of the case 1 is fixedly connected with a rotating motor 7, the output shaft of the rotating motor 7 is fixedly connected with a transmission mechanism 8, the transmission mechanism 8 comprises a driving gear 81 and a driven gear 82, the output shaft of the, the bottom of 1 inner chamber of machine case is provided with water tank 10, the left and right sides at water tank 10 top all is provided with outlet duct 11, the inner chamber of outlet duct 11 is provided with filter screen 12, the bottom fixedly connected with universal wheel 13 of machine case 1, through air pipe 2, dust absorption passageway 3, dust absorption mechanism 4, feeder hopper 5 and drive mechanism 8's cooperation, the output shaft of rotating electrical machines 7 drives driving gear 81 rotatory, driving gear 81 drives air pipe 2 through driven gear 82 and rotates, can adjust the dust removal angle as required, to removing dust all around, the dust removal effect is good, dust absorption mechanism 4 makes the atmospheric pressure at 3 inner chamber centers of dust absorption passageway be less than external atmospheric pressure, make external dust enter into air pipe 2 through the air current, the dust collection efficiency is higher, thereby the dust removal effect is improved, the problem that.

During the use, make the rotating electrical machines 7 work through the peripheral hardware controller, the output shaft of rotating electrical machines 7 drives driving gear 81 rotatory, driving gear 81 drives air pipe 2 through driven gear 82 and rotates, can adjust the dust removal angle as required, remove dust all around, the dust removal effect is good, make driving motor 42 work through the peripheral hardware controller, driving motor 42's output shaft drives flabellum 43 rotatory, make the atmospheric pressure at 3 inner chamber centers of dust absorption passageway be less than external atmospheric pressure, make external dust enter into air pipe 2 through the air current, gaseous entering water tank 10 filters, the dust collection efficiency is higher, through designing filter screen 12, filter gas, avoid exhaust with the dust, thereby improve the dust removal effect.

In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent. In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.

The control mode of the present application is automatically controlled by a controller, the control circuit of the controller can be realized by simple programming by those skilled in the art, and the present application belongs to the common knowledge in the field, and the present application mainly protects the mechanical device, so the present application does not explain the control mode and the circuit connection in detail.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (5)

1. The utility model provides a dust keeper for garden construction, includes quick-witted case (1), its characterized in that: the top of the machine case (1) is movably connected with a ventilation pipeline (2) through a ball bearing, the top of the ventilation pipeline (2) is communicated with a dust collection channel (3), the inner cavity of the dust collection channel (3) is fixedly connected with a dust collection mechanism (4), the left side and the right side of the dust collection channel (3) are both communicated with a feed hopper (5), the bottom of the dust collection channel (3) is provided with a support mechanism (6), the right side of the top of the inner cavity of the machine case (1) is fixedly connected with a rotating motor (7), an output shaft of the rotating motor (7) is fixedly connected with a transmission mechanism (8), the bottom of the ventilation pipeline (2) is communicated with a discharge hopper (9), the bottom of the inner cavity of the machine case (1) is provided with a water tank (10), the left side and the right side of the top of the water tank (, the bottom of the case (1) is fixedly connected with universal wheels (13).

2. The dustproof device for garden construction according to claim 1, wherein: dust absorption mechanism (4) are including connecting rod (41), driving motor (42) and flabellum (43), the inner chamber fixedly connected with connecting rod (41) of dust absorption passageway (3), one side fixedly connected with driving motor (42) of connecting rod (41), the output shaft fixedly connected with flabellum (43) of driving motor (42).

3. The dustproof device for garden construction according to claim 1, wherein: the supporting mechanism (6) comprises a supporting rod (61), a pulley (62) and a sliding groove (63), the bottom of the dust collection channel (3) is fixedly connected with the supporting rod (61), the bottom of the supporting rod (61) is fixedly connected with the pulley (62), the bottom of the pulley (62) is slidably connected with the sliding groove (63), and the sliding groove (63) is arranged at the top of the case (1).

4. The dustproof device for garden construction according to claim 1, wherein: the transmission mechanism (8) comprises a driving gear (81) and a driven gear (82), the output shaft of the rotating motor (7) is fixedly connected with the driving gear (81), and the surface of the driving gear (81) is meshed with the driven gear (82).

5. The dustproof device for garden construction according to claim 1, wherein: the top of the inner cavity of the dust collection channel (3) is fixedly connected with an air deflector (14), and the front surface of the case (1) is hinged with a turnover door (15) through a hinge.
