Abstract
A cabinet-type toilet mirror with a toilet disinfecting chamber comprises a frame as a carrier, and a toilet mirror, a storage rack and a toilet disinfecting chamber arranged in the frame, which can help people to comb, put articles, dry, disinfect and sterilize toilet utensils such as a mouth jar and a toothbrush, and protect the health of human bodies.
Description
Technical field the utility model relates to a household daily necessity, in particular to a cabinet type dressing mirror with a gargle disinfection room.
Background art a cabinet type toilet glass sold in the market at present is only provided with the toilet glass and a storage rack, a mouth jar and a toothbrush used as a gargling tool are exposed in the environment of a toilet, the gargling tool is easily polluted by odor and germs generated when people defecate, and the germs can pollute the oral cavity of the people when people brush the teeth and threaten the health of the human body.
The invention aims to provide a cabinet type toilet mirror with a gargling disinfection chamber, which is provided with a toilet mirror, a storage rack and a gargling tool disinfection chamber, is convenient for people to comb and place articles when washing, can also be used for accommodating gargling tools such as a mouth jar, a toothbrush and the like and drying and disinfecting the gargling tools, avoids the gargling tools from being polluted by germs, and protects the health of human bodies.
The utility model provides a technical scheme as follows of above-mentioned problem: the design one kind is equipped with cabinet type toilet mirror of the sterilizing chamber of the washing tools, including as frame, toilet mirror, time switch, ozone generator, electric fan heater, power cord plug, air inlet, gas outlet, sterilizing chamber door, washing tools, supporter, washing tools sterilizing chamber, power indicator, netted thing board, toothbrush stores pylon of putting, its characterized in that of carrier: the frame used as the carrier is provided with a dressing mirror, a storage rack and a disinfection chamber of the rinsing tool. The gargling tool disinfection chamber and the storage rack are arranged on one side of the toilet mirror, an ozone generator, a fan heater, a power line plug, a time switch, a net-shaped storage plate, a toothbrush hanging frame, an air inlet, an air outlet, a disinfection chamber door, the gargling tool and a power indicator lamp are arranged in the gargling tool disinfection chamber, the net-shaped storage plate can be used for storing the gargling tool and dividing the gargling tool disinfection chamber into a plurality of layers, the ozone generator, the fan heater and the power indicator lamp are electrically connected and arranged on the upper portion of the gargling tool disinfection chamber, and the time switch is arranged on the lower portion of the disinfection chamber door; the air inlet is arranged at the upper part of the side wall frame of the sterilizing chamber of the washing tool, and the air outlet is arranged on the bottom panel of the sterilizing chamber of the washing tool.
The utility model has the advantages that: the utility model discloses an implement above technical scheme, make traditional cabinet type toilet glass not only be convenient for people's dressing and placing object article, can also accomodate the oral siphon, toothbrush etc. and rinse the utensil to weather and disinfect it, avoid rinsing the utensil and receive the pollution of germ, protect human health.
Drawings

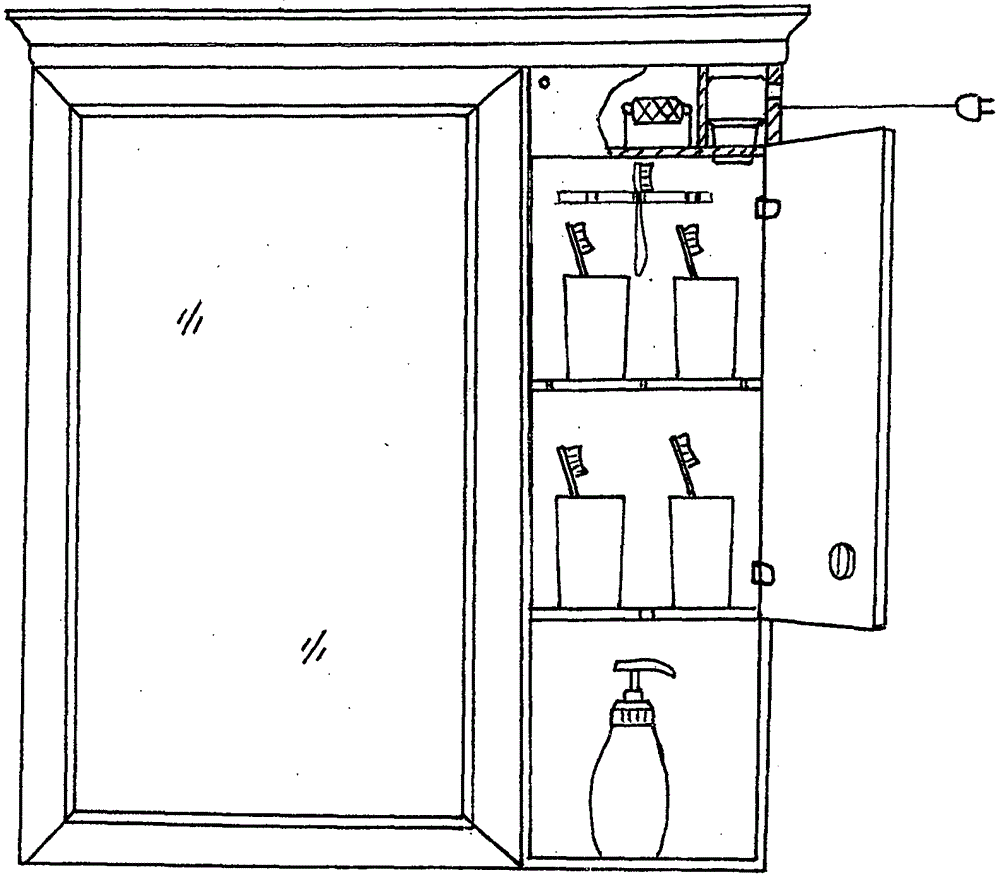

FIG. 1 is a front view partially sectional view of a cabinet type dressing mirror with a disinfection chamber for a rinsing tool of the present invention.
Fig. 2 is a schematic circuit diagram of the cabinet type dressing mirror with the gargle disinfection chamber of the utility model.
Detailed description of the drawings embodiments of the present invention will be further described with reference to the accompanying drawings.
As can be seen in FIG. 1, the cabinet type toilet mirror with a disinfecting chamber for a rinsing tool comprises: the toilet bowl comprises a frame 1, a toilet mirror 2, a time control switch 3, an ozone generator 4, a warm air blower 5, a power cord plug 6, an air inlet 7, an air outlet 8, a disinfection chamber door 9, a washing tool 10, a storage rack 11, a washing tool disinfection chamber 12, a power indicator lamp 13, a net-shaped storage plate 14 and a toothbrush hanging rack 15.
When in use, the cabinet type toilet mirror provided with the toilet disinfecting chamber is fixed on the wall of a washing room, the power cord plug 6 is communicated with an external power supply, the power indicator lamp 13 is electrified to emit light at the moment, the disinfecting chamber door 9 is opened after the teeth are brushed, the toilet 10 is placed on the reticular object placing plate 14 in the toilet disinfecting chamber 12, the disinfecting chamber door 9 is closed, the timing switch 3 is closed, the working time is set, the ozone generator 4 and the warm air blower 5 are simultaneously electrified and work, air enters from the air inlet 7 and is heated by the warm air blower 5 to blow dry moisture on the toilet 10, and then the air is discharged from the air outlet 8; ozone generated by the ozone generator 4 enters the gargle disinfection chamber 12 and disinfects the gargle 10, then is discharged from the exhaust port 8, when the preset disinfection time is reached, the timing switch 3 automatically breaks off the circuit, the ozone generator 4 and the warm air blower 5 stop working, and the drying and disinfection of the gargle 10 are completed. The rack 11 can be used for placing articles such as bath foam, the dressing mirror 2 can be used for observing the instruments of people, the reticular object placing plate 14 is convenient for indoor air circulation and placing the gargle 10, and the toothbrush hanging rack 15 can be used for hanging a toothbrush.
As can be seen from figure 1, the cabinet type dressing mirror with the gargling tool disinfection chamber is provided with the gargling tool disinfection chamber 12 which can be divided into a plurality of layers by the reticular object placing plate 14.
As can be seen from figure 1, the ozone generator 4, the warm air blower 5 and the power indicator lamp 13 in the gargling tool disinfection chamber 12 are arranged at the upper part of the gargling tool disinfection chamber 12 and are electrically connected, the air inlet 7 is arranged at the upper part of the side wall frame 1 of the gargling tool disinfection chamber 12, and the air outlet 8 is arranged at the bottom panel of the gargling tool disinfection chamber 12.
As can be seen from fig. 2, the time control switch 3 controls the ozone generator 4 and the warm air blower 5, and the power cord plug, the time control switch 3, the power indicator 13, the ozone generator 4 and the warm air blower 5 are electrically connected.
As can be seen from fig. 1, the time-controlled switch 3 in the disinfection chamber 12 of the rinsing utensil is arranged at the lower part of the disinfection chamber door 9.
As can be seen in figure 1, the described disinfection chamber 12 for mouthwashes is provided with a toothbrush hanger.
As can be seen from fig. 1, the disinfection chamber 12 and the storage rack 11 are arranged on one side of the toilet mirror 2.
Claims (6)
1. The utility model provides a cabinet type toilet mirror with wash tools disinfection room, includes frame (1), toilet mirror (2), time switch (3), ozone generator (4), electric fan heater (5), power cord plug (6), air inlet (7), gas vent (8), disinfection room door (9), washes one's teeth or teeth ware (10), supporter (11), washes one's teeth or teeth ware disinfection room (12), power indicator (13), netted thing board (14), toothbrush stores pylon (15) of putting, its characterized in that: the frame (1) used as a carrier is internally provided with a dressing mirror (2), a storage rack (11) and a washing tool disinfection room (12).
2. The cabinet type vanity mirror provided with a rinsing utensil disinfection room according to claim 1, wherein: the cleaning tool disinfection room (12) and the storage rack (11) are arranged at one side of the dressing mirror (2).
3. The cabinet type vanity mirror provided with a rinsing utensil disinfection room according to claim 1, wherein: the washing tool disinfection chamber (12) is internally provided with an ozone generator (4), a fan heater (5), a power cord plug (6), a time control switch (3), a net-shaped object placing plate (14), a toothbrush hanging frame (15), an air inlet (7), an air outlet (8), a disinfection chamber door (9) and a washing tool (10).
4. The cabinet type vanity mirror provided with a rinsing utensil disinfection room according to claim 1, wherein: the net-shaped object placing plate (14) can be used for placing the gargling tool (10) and dividing the gargling tool disinfection chamber (12) into a plurality of layers.
5. The cabinet type vanity mirror provided with a rinsing utensil disinfection room according to claim 1, wherein: the ozone generator (4), the warm air blower (5) and the power indicator lamp (13) are electrically connected and arranged at the upper part of the washing and disinfecting chamber (12), and the time control switch (3) is arranged at the lower part of the disinfecting chamber door (9) and is electrically connected with the ozone generator (4), the warm air blower (5), the power indicator lamp (13) and the power cord plug (6).
6. The cabinet type vanity mirror provided with a rinsing utensil disinfection room according to claim 1, wherein: the air inlet (7) is arranged on the side wall frame (1) at the upper part of the gargle disinfection chamber (12), and the air outlet (8) is arranged on the bottom panel of the gargle disinfection chamber (12).
