The utility model belongs to the antenna processing field, concretely relates to antenna capper, including front end mould drive assembly and rear end work piece locating component, front end mould drive assembly including the cylinder that has the push rod with set up the mould on the push rod, the mould has the bell mouth that is used for sealing, rear end work piece locating component is including the work piece seat that is used for inserting the joining in marriage the antenna. The utility model relates to a rationally, compact structure has set up cylinder, mould, work piece seat isotructure, can seal the antenna fast, high-efficiently, and the clamping is convenient moreover, and the disability rate is low.
Description
Technical Field
The utility model belongs to the antenna processing field, concretely relates to antenna capper.
Background
The traditional antenna sealing adopts a spinning type, the sealing mode has the defects of lower clamping trouble efficiency and higher rejection rate due to the unidirectional stress of a workpiece, and thus the sealing effect is poor.
Based on the problems, the applicant provides a sealing machine with simultaneously stressed circumferences and formed in one step, and the design not only can enable workers to operate conveniently and have extremely low rejection rate, but also can improve the effect almost by one time.
SUMMERY OF THE UTILITY MODEL
In order to compensate for the deficiencies of the prior art, the utility model provides an antenna capper's technical scheme.
The antenna sealing machine is characterized by comprising a front-end die driving assembly and a rear-end workpiece positioning assembly, wherein the front-end die driving assembly comprises an air cylinder with a push rod and a die arranged on the push rod, the die is provided with a conical opening used for sealing, the rear-end workpiece positioning assembly comprises an adjusting seat and a workpiece seat inserted on the adjusting seat, and the workpiece seat is used for inserting an antenna.
The antenna sealing machine is characterized in that the front-end die driving assembly further comprises a die sleeve and a locking nut which are in threaded connection with the push rod, and the die is arranged in the die sleeve.
The rear-end workpiece positioning assembly further comprises a base, the adjusting seat is arranged on the base, a stepped hole matched with the shape of the antenna is formed in the workpiece seat, and the adjusting seat can adjust the position of the adjusting seat on the base in a front-back mode.
The antenna sealing machine is characterized in that the base is in sliding fit with the adjusting seat through a first concave-convex structure, and the base and the adjusting seat are fixed through a first screw.
The antenna sealing machine is characterized in that the first concave-convex structure comprises a first groove arranged at the upper end of the base and a first convex block arranged at the lower end of the adjusting seat, and the first convex block is embedded into the first groove and is in sliding fit with the first groove.
The antenna sealing machine is characterized by further comprising a bottom plate, a front-end die driving assembly and a rear-end workpiece positioning assembly are arranged at the front end and the rear end of the bottom plate, and a V-shaped support is further arranged in the middle of the bottom plate.
The antenna sealing machine is characterized in that a first waist-shaped hole is formed in the bottom plate, a supporting shaft of the V-shaped support is inserted into the first waist-shaped hole, planes matched with the first waist-shaped hole are arranged on two sides of the supporting shaft, and the upper end and the lower end of the supporting shaft respectively lock the supporting shaft on the bottom plate through the arranged adjusting nut and the nut.
The antenna sealing machine is characterized in that the base and the bottom plate are in sliding fit through the arranged second concave-convex structure, and the base and the bottom plate are fixed through the arranged second screws.
The antenna sealing machine is characterized in that the second concave-convex structure comprises a second groove arranged on the bottom plate and a second convex block arranged at the lower end of the base, and the second convex block is embedded into the second groove and is in sliding fit with the second groove.
Compared with the prior art, the utility model relates to a rationally, compact structure, set up cylinder, mould, work piece seat isotructure, can seal the antenna fast, high-efficiently, the clamping is convenient moreover, and the disability rate is low.
Drawings

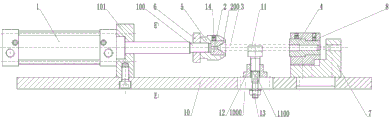

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a cross-sectional view taken along line E-E of FIG. 1;
FIG. 3 is a schematic top view of the present invention;
FIG. 4 is a cross-sectional view taken along line B-B of FIG. 3;
FIG. 5 is a cross-sectional view taken along line C-C of FIG. 3;
fig. 6 is a schematic view of the connection structure of the V-shaped support on the bottom plate according to the present invention.
Detailed Description
The present invention will be further explained with reference to the accompanying drawings.
As shown in the figure, an antenna capper, includes front end mould drive assembly and rear end work piece locating component, and front end mould drive assembly is including the cylinder 1 that has push rod 100 and set up mould 2 on push rod 100, and mould 2 has the bell mouth 200 that is used for sealing, and rear end work piece locating component is including adjusting seat 8 and inserting the work piece seat 4 of joining in marriage on adjusting seat 8, and work piece seat 4 is used for inserting and joins in marriage antenna 3.
As the utility model discloses an optimize structure: the front-end die driving assembly further comprises a locking nut 6 and a die sleeve 5 which are sequentially screwed on the push rod 100 from front to back, and the die 2 is fixed in the die sleeve 5 through a set screw 14.
As the utility model discloses an optimize structure: the rear-end workpiece positioning assembly further comprises a base 7, an adjusting seat 8 is arranged on the base 7, a stepped hole matched with the shape of the antenna 3 is formed in the workpiece seat 4, the antenna can be limited to move backwards, and the adjusting seat 8 can adjust the position of the base 7 forwards and backwards.
As the utility model discloses an optimize structure: base 7 and regulation seat 8 between through the first concave-convex structure sliding fit who sets up, both still are fixed through the first screw 9 that sets up, in addition, for make adjust seat 8 can be on base 7 front and back adjusting position, set up corresponding second waist type hole on adjusting seat 8, set up corresponding screw on the base 7, first screw 9 passes second waist type hole and is connected with the screw, comes adjusting position through second waist type hole. Wherein, the rear end spiro union stop screw 15 of base 7, stop screw 15 withstands regulation seat 8.
As the utility model discloses an optimize structure: the first concave-convex structure comprises a first groove 700 arranged at the upper end of the base 7 and a first bump 800 arranged at the lower end of the adjusting seat 8, and the first bump 800 is embedded into the first groove 700 and is in sliding fit with the first groove 700.
As the utility model discloses an optimize structure: the utility model discloses still include bottom plate 10, front end mould drive assembly and rear end work piece locating component set up in the front and back end of bottom plate 10, and the middle part of bottom plate 10 still sets up V-arrangement and supports 11. Further, a cylinder block 101, in which the cylinder 1 is elevated, is fixed to the base plate 10.
As the utility model discloses an optimize structure: a first waist-shaped hole 1000 is formed in the bottom plate 10, a supporting shaft 1100 of the V-shaped support 11 is inserted into the first waist-shaped hole 1000, planes matched with the first waist-shaped hole 1000 are arranged on two sides of the supporting shaft 1100, and the supporting shaft 1100 is locked on the bottom plate 10 through an adjusting nut 12 and a nut 13 which are arranged at the upper end and the lower end of the supporting shaft 1100 respectively.
As the utility model discloses an optimize structure: through the second concave-convex structure sliding fit who sets up between base 7 and the bottom plate 10, both still are fixed through the second screw 16 that sets up, in addition, for the realization makes base 7 can be on bottom plate 10 front and back adjusting position, set up corresponding third waist type hole on base 7, set up corresponding screw on the bottom plate 10, second screw 16 passes third waist type hole and is connected with the screw, comes adjusting position through third waist type hole.
As the utility model discloses an optimize structure: the second concave-convex structure comprises a second groove 1001 arranged on the bottom plate 10 and a second bump 701 arranged at the lower end of the base 7, and the second bump 701 is embedded in the second groove 1001 and is in sliding fit with the second groove 1001.
The utility model has the following characteristics:
1) before the die sleeve is installed, the locking nut must be screwed in, and the die sleeve is locked by the locking nut after being positioned.
2) The die is made of conventional superhard materials, can be replaced, and only needs to screw and loosen the set screw during replacement.
3) The regulation of V-arrangement support has 2 kinds, and first fore-and-aft direction, second is altitude mixture control, and fore-and-aft regulation only needs the unscrew nut just can, and altitude mixture control is rotatory adjusting nut behind the unscrew nut, and the V type supports just can reciprocate.
4) The V type has been milled 2 planes on one section cylinder both sides of the well lower part of support shaft, has 2 effects, and V type support rotation is prevented to the first waist type groove of embedding bottom plate, and second prevents the off normal.
5) The workpiece seat can be replaced, and the workpiece seat can be taken out by screwing and tightening the first screw.
6) The bottom of the adjusting seat is provided with a first bump, so that the adjusting seat can move back and forth on the base and can be adjusted according to different lengths of workpieces.
7) The middle of the base and the bottom of the adjusting seat are respectively designed with concave-convex matching to prevent the adjusting seat from deviating.
Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention.
Claims (9)
1. The utility model provides an antenna capper, its characterized in that includes front end mould drive assembly and rear end work piece locating component, front end mould drive assembly including cylinder (1) that have push rod (100) with set up mould (2) on push rod (100), mould (2) have be used for sealing cone mouth (200), rear end work piece locating component is including adjusting seat (8) and inserting work piece seat (4) of joining in marriage on adjusting seat (8), work piece seat (4) are used for inserting and join in marriage antenna (3).
2. The antenna sealing machine according to claim 1, characterized in that the front end mold driving assembly further comprises a mold sleeve (5) screwed on the push rod (100) and a lock nut (6), and the mold (2) is disposed in the mold sleeve (5).
3. The antenna sealing machine according to claim 1, characterized in that the rear end workpiece positioning assembly further comprises a base (7), the adjusting seat (8) is arranged on the base (7), the workpiece seat (4) is provided with a stepped hole matching with the antenna (3), and the adjusting seat (8) can be adjusted in position on the base (7) back and forth.
4. The antenna sealing machine according to claim 3, characterized in that the base (7) and the adjusting base (8) are in sliding fit through a first concave-convex structure, and the two are fixed through a first screw (9).
5. The antenna sealing machine according to claim 4, wherein the first concave-convex structure comprises a first groove (700) formed at the upper end of the base (7) and a first protrusion (800) formed at the lower end of the adjusting base (8), and the first protrusion (800) is embedded in the first groove (700) and is in sliding fit with the first groove (700).
6. The antenna sealing machine according to claim 3, characterized by further comprising a base plate (10), wherein the front mold driving assembly and the rear workpiece positioning assembly are arranged at the front and rear ends of the base plate (10), and a V-shaped support (11) is further arranged in the middle of the base plate (10).
7. The antenna sealing machine according to claim 6, characterized in that the bottom plate (10) is provided with a first kidney-shaped hole (1000), a support shaft (1100) of the V-shaped support (11) is inserted into the first kidney-shaped hole (1000), two sides of the support shaft (1100) are provided with planes matched with the first kidney-shaped hole (1000), and the upper end and the lower end of the support shaft (1100) respectively lock the support shaft (1100) on the bottom plate (10) through the arranged adjusting nut (12) and the nut (13).
8. An antenna sealing machine according to claim 6, characterized in that the base (7) and the bottom plate (10) are slidably engaged by a second concave-convex structure, and are fixed by a second screw (16).
9. An antenna sealing machine according to claim 8, characterized in that the second concave-convex structure comprises a second groove (1001) arranged on the bottom plate (10) and a second bump (701) arranged at the lower end of the base (7), and the second bump (701) is embedded in the second groove (1001) and is in sliding fit with the second groove.
