Abstract
本实用新型公开了一种用于矿石开采用钻孔机，包括工作台、固定在工作台中间位置的钻孔机、设置在工作台底部的预固定机构和用于对工作台进行固定的定位栓，所述预固定机构包括多个连接在工作台底部两侧的电动伸缩杆，所述电动伸缩杆的底端铰接用于连接矿石开采处的底座，所述底座上方放置有用于压住底座的配重块。本一种用于矿石开采用钻孔机可以先放下预固定机构，然后通过观察水平仪调节预固定机构的电动伸缩杆，将斜坡上倒工作台调整水平，之后再将定位栓同步刺入斜坡中，完成对工作台和其上的钻孔设备进行固定，工作台可以在斜坡上水平安装，保证平台工作台上的钻孔机的钻孔效果。
The utility model discloses a drilling machine for ore mining, comprising a workbench, a drilling machine fixed at the middle position of the workbench, a pre-fixing mechanism arranged at the bottom of the workbench, and a positioning device for fixing the workbench The pre-fixing mechanism includes a plurality of electric telescopic rods connected to both sides of the bottom of the workbench, the bottom ends of the electric telescopic rods are hinged for connecting to the base of the ore mining place, and a base for pressing the base is placed above the base of counterweights. This kind of drilling machine for ore mining can first put down the pre-fixing mechanism, then adjust the electric telescopic rod of the pre-fixing mechanism by observing the level, adjust the level of the upside-down working table on the slope, and then synchronously pierce the positioning bolt into the slope , Complete the fixing of the workbench and the drilling equipment on it, and the workbench can be installed horizontally on the slope to ensure the drilling effect of the drilling machine on the platform workbench.
Description
Technical Field
The utility model relates to an ore mining technical field especially relates to a be used for drilling machine for ore mining.
Background
Need punch the ore in ore mining usually and put into the expanding agent, carry out the stope to the ore, just need carry out relatively accurate drilling to the ore this moment, the position of mining department all goes on the horizontal plane, also can need drill on slope, hardly with platform installation level when drilling on slope to influence the drilling effect of drill bit on the platform.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem of the stability of drill bit, and the drilling machine for ore mining that proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a drilling machine for ore mining, includes the workstation, fixes at the drilling machine of workstation intermediate position, sets up in the workstation bottom the fixed establishment in advance and be used for carrying out the gim peg fixed to the workstation, fixed establishment includes a plurality of electric telescopic handle of connection in workstation bottom both sides in advance, electric telescopic handle's bottom is articulated to be used for connecting the base of ore mining department, the balancing weight that is used for pushing down the base has been placed to the base top.
Further, the pilot bolt is located the both sides of workstation, be provided with first screw thread seat on the pilot bolt, the pilot bolt surface offer with first screw thread seat complex thread groove, first screw thread seat rotates to inlay and locates on the workstation, be equipped with the gear box of a plurality of cooperation pilot bolts work on the workstation, install driving motor on the gear box, driving motor's output shaft and first gear connection, the second gear meshing on first gear and the first screw thread seat surface.
Further, the pre-fixing mechanism comprises a level gauge fixed in the middle of the workbench.
Furthermore, the positioning bolt is rotatably connected with a second threaded seat, the second threaded seat is located below the workbench, and the second threaded seat is connected with the workbench through a support frame.
Further, electric telescopic handle accomodates in supplying the workstation bottom through the jump ring, and the groove of accomodating that the electric telescopic handle of being convenient for placed is seted up to the workstation bottom.
Compared with the prior art, the utility model discloses possess following beneficial effect:
this a be used for ore to open and adopt drilling machine can put down fixing mechanism in advance earlier, then adjusts fixing mechanism's electric telescopic handle in advance through observing the spirit level, with the workstation adjustment level of falling on the slope, later with the pilot pin in stabbing the slope in step again, accomplish and fix workstation and drilling equipment on it, the workstation can be at the horizontal installation that slopes, guarantees the drilling effect of the drilling machine on the platform workstation.
Drawings

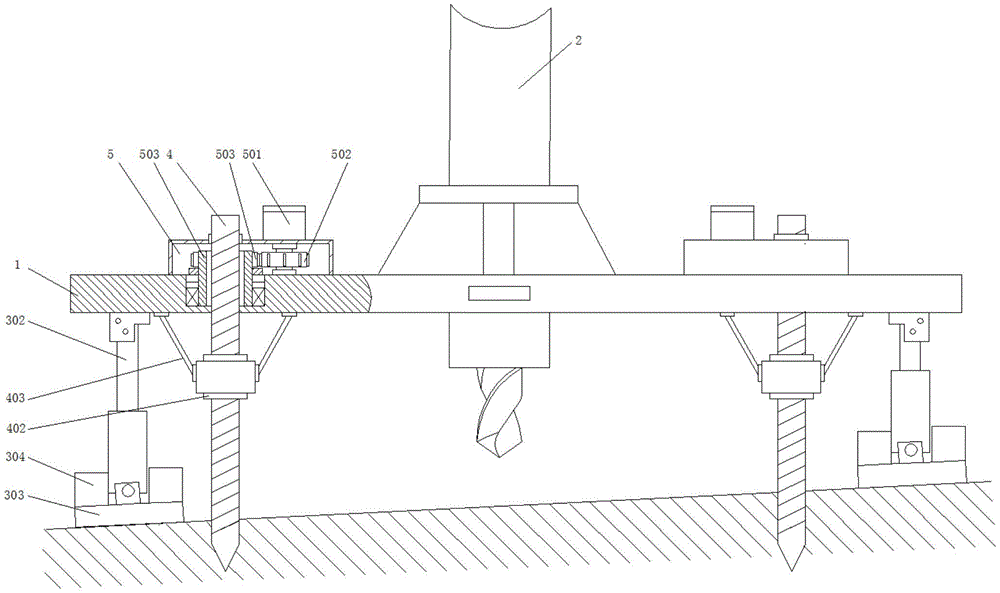

Fig. 1 is a schematic structural diagram of a drilling machine for ore mining according to the present invention;
fig. 2 is the utility model provides a structure schematic diagram that is arranged in electric telescopic handle to accomodate in drilling machine for ore mining.
In the figure: 1. a work table; 2. a drilling machine; 3. a pre-fixing mechanism; 301. a level gauge; 302. an electric telescopic rod; 303. a base; 304. a balancing weight; 4. positioning bolts; 401. a first threaded seat; 402. a second threaded seat; 403. a support frame; 5. a gear case; 501. a drive motor; 502. a first gear; 503. a second gear.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-2, a drilling machine for ore mining, including workstation 1, fix drilling machine 2 in the workstation 1 intermediate position, set up in the workstation 1 bottom in advance fixed establishment 3 and be used for carrying out the gim peg 4 fixed to workstation 1, in advance fixed establishment 3 includes a plurality of electric telescopic handle 302 of connecting in workstation 1 bottom both sides, electric telescopic handle 302's bottom is articulated to be used for connecting the base 303 of ore mining department, base 303 top is placed and is used for pushing down the balancing weight 304 of base 303.
Further, the stop cock 4 is located the both sides of workstation 1, be provided with first screw thread seat 401 on the stop cock 4, the screw thread groove with first screw thread seat 401 complex is seted up on the stop cock 4 surface, first screw thread seat 401 rotates to inlay and locates on workstation 1, be equipped with the gear box 5 of a plurality of cooperation stop cocks 4 work on the workstation 1, install driving motor 501 on the gear box 5, driving motor 501's output shaft and first gear 502 are connected, first gear 502 meshes with the second gear 503 on first screw thread seat 401 surface.
Further, the pre-fixing mechanism 3 includes a level 301 fixed in the middle of the table 1.
Further, a second threaded seat 402 is rotatably connected to the positioning bolt 4, the second threaded seat 402 is located below the workbench 1, and the second threaded seat 402 is connected with the workbench 1 through a support frame 403.
Further, electric telescopic handle 302 is accomodate in supplying 1 bottoms of workstation through the jump ring, and the groove of accomodating that electric telescopic handle 302 was placed of being convenient for is seted up to 1 bottoms of workstation.
The working principle is as follows: put electric telescopic handle 302 from workstation 1 when using, level gauge 301 on the cooperation workstation 1, until making workstation 1 be in horizontal position through adjusting electric telescopic handle 302, put balancing weight 304 on electric telescopic handle 302's base 303 this moment, realize the preliminary fixed of workstation 1, start driving motor 501, driving motor 501's output shaft drives first gear 502, first gear 502 meshes to be fixed second gear 503 on first screw thread seat 401 and rotates, first screw thread seat 401 drives the gim peg 4 and rotates downwards until gim peg 4 is fixed in the ore exploitation department, even make workstation 1 fixed, fix drilling machine 2 on workstation 1 this moment, begin drilling work.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. The utility model provides a be used for drilling machine for ore mining, its characterized in that, including workstation (1), fix drilling machine (2) at workstation (1) intermediate position, set up in workstation (1) bottom fixed establishment (3) in advance and be used for carrying out the gim peg (4) fixed to workstation (1), fixed establishment (3) in advance includes a plurality of electric telescopic handle (302) of connecting in workstation (1) bottom both sides, the articulated base (303) that are used for connecting ore mining department in bottom of electric telescopic handle (302), balancing weight (304) that are used for pushing down base (303) are placed to base (303) top.
2. The drilling machine for ore mining according to claim 1, characterized in that the positioning bolts (4) are located on two sides of the workbench (1), a first threaded seat (401) is arranged on each positioning bolt (4), a threaded groove matched with the first threaded seat (401) is formed in the surface of each positioning bolt (4), the first threaded seat (401) is rotatably embedded in the workbench (1), a plurality of gear boxes (5) matched with the positioning bolts (4) to work are arranged on the workbench (1), a driving motor (501) is installed on each gear box (5), an output shaft of each driving motor (501) is connected with a first gear (502), and the first gear (502) is meshed with a second gear (503) on the surface of the first threaded seat (401).
3. A drilling machine for ore extraction according to claim 1, characterized in that the pre-fixing mechanism (3) comprises a level (301) fixed in the middle of the working table (1).
4. A drilling machine for ore extraction according to claim 2, characterized in that a second threaded seat (402) is rotatably connected to the positioning bolt (4), the second threaded seat (402) being located below the working platform (1), the second threaded seat (402) being connected to the working platform (1) by means of a support bracket (403).
5. The drilling machine for ore mining according to claim 1, characterized in that the electric telescopic rod (302) is accommodated at the bottom of the working platform (1) through a clamp spring, and the bottom of the working platform (1) is provided with an accommodating groove for the electric telescopic rod (302) to be placed conveniently.
