Abstract
本实用新型公开了一种绿色建筑的集成节能屋，包括屋顶和墙壁，屋顶顶部安装有预设顶，预设顶上通过电动气缸和转轴安装有太阳能电池板，电动气缸和转轴分别位于太阳能电池板的两端，通过电动气缸上的伸缩杆与转轴的配合对太阳能电池板进行高度与倾斜角度的调整；预设顶内部设置有储水箱，储水箱一侧设置有雨水收集槽，预设顶上设置有凹槽，凹槽将收集的雨水通过雨水收集槽收集至储水箱内，储水箱底部设置有引流管，引流管设置在墙壁内，其另一端设置在节能屋的室内。本实用新型利用太阳能电池板收集太阳能再将其转化为电能以及通过雨水收集槽收集自然降水并将其用于室内的日常居家生活，达到节约资源的目的。
The utility model discloses an integrated energy-saving house for a green building, which comprises a roof and a wall. A preset roof is installed on the top of the roof, and a solar battery panel is installed on the preset roof through an electric cylinder and a rotating shaft. At both ends of the board, the height and inclination angle of the solar panel are adjusted through the cooperation of the telescopic rod on the electric cylinder and the rotating shaft; the preset top is provided with a water storage tank, and one side of the water storage tank is provided with a rainwater collection tank. There is a groove on the groove, the groove collects the collected rainwater into the water storage tank through the rainwater collection tank, and a drainage pipe is arranged at the bottom of the water storage tank. The utility model utilizes solar panels to collect solar energy and converts it into electrical energy, and collects natural precipitation through a rainwater collection tank and uses it for daily home life indoors, so as to achieve the purpose of saving resources.
Description
Technical Field
The utility model relates to a green ecological building field, in particular to integrated energy-conserving room of green building.
Background
The green building is a building which is built under the condition of not destroying ecological balance, can save resources to the maximum extent, comprises energy conservation, water conservation, material conservation and the like, can protect the environment and reduce pollution, provides healthy and comfortable use space for people, is harmonious with the nature, and is a sustainable development form. The green building can solve the air quality problem, the indoor temperature problem and the sunlight illumination problem by depending on natural resources; the green building energy-saving roof is taken as an emerging roof structure and is continuously updated and improved.
Most of the current traditional roofing structural forms are flat roofs and sloping roofs, concrete materials are adopted, the structure is single, natural resources such as rainfall and sunlight in the nature cannot be effectively utilized, and the natural resources are greatly wasted.
SUMMERY OF THE UTILITY MODEL
Aiming at the problems in the prior art, the invention provides an integrated energy-saving house of a green building, which utilizes a solar cell panel to collect solar energy and then convert the solar energy into electric energy, and utilizes a rainwater collecting tank to collect natural rainfall and use the rainfall for indoor daily household life, thereby achieving the purpose of saving resources.
In order to achieve the above purpose, the technical scheme of the utility model is as follows:
an integrated energy-saving house of a green building comprises a roof and a wall, wherein a preset roof is installed at the top of the roof, a solar cell panel is installed on the preset roof through an electric cylinder and a rotating shaft, the electric cylinder and the rotating shaft are respectively located at two ends of the solar cell panel, and the height and the inclination angle of the solar cell panel are adjusted through the matching of a telescopic rod on the electric cylinder and the rotating shaft; a water storage tank is arranged in the preset roof, a rainwater collecting tank is arranged on one side of the water storage tank, a groove is formed in the preset roof, the groove collects collected rainwater into the water storage tank through the rainwater collecting tank, a drainage pipe is arranged at the bottom of the water storage tank and is arranged in a wall, and the other end of the drainage pipe is arranged in a room of the energy-saving house; a purification structure is arranged in the water storage tank.
Preferably, the side surface of the water storage tank is provided with a first maintenance door, and the first maintenance door is arranged at a position matched with the purification structure.
Preferably, a second maintenance door matched with the first maintenance door in position is arranged on the side face of the preset top.
Preferably, the groove is inclined and is positioned at the lower end of the rainwater collecting groove, so that drainage is facilitated.
Preferably, the electric cylinder is electrically connected with a power line in the energy-saving room, so that the electric cylinder is controlled to drive the solar cell panel to adjust the height and the angle.
Preferably, a sand and stone filter layer, an active carbon adsorption layer and a bacteria filter layer are arranged in the purification structure.
Preferably, one end of the solar cell panel is connected with the controller, the storage battery and the inverter through wires, and solar energy is converted into electric energy to be connected to an indoor power line.
Through the technical scheme, the integrated energy-saving house of the green building, provided by the utility model, utilizes the solar cell panel to collect solar energy and then convert the solar energy into electric energy, provides electric energy for family life, can efficiently utilize the solar energy, and saves electric power resources; natural rainfall is collected through the rainwater collecting tank and collected in the water storage tank, and the collected rainwater is used for indoor daily household life through the drainage tube, so that water sources are saved, and resources are utilized to the maximum extent; the application has simple integral design structure and facilities, is operable and strong, collects resources such as sunlight and rainwater by means of natural force, can create more valuable wealth by utilizing limited space resources and environmental resources, and has great application value in the aspects of improving urban life quality and urban appearance.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below.

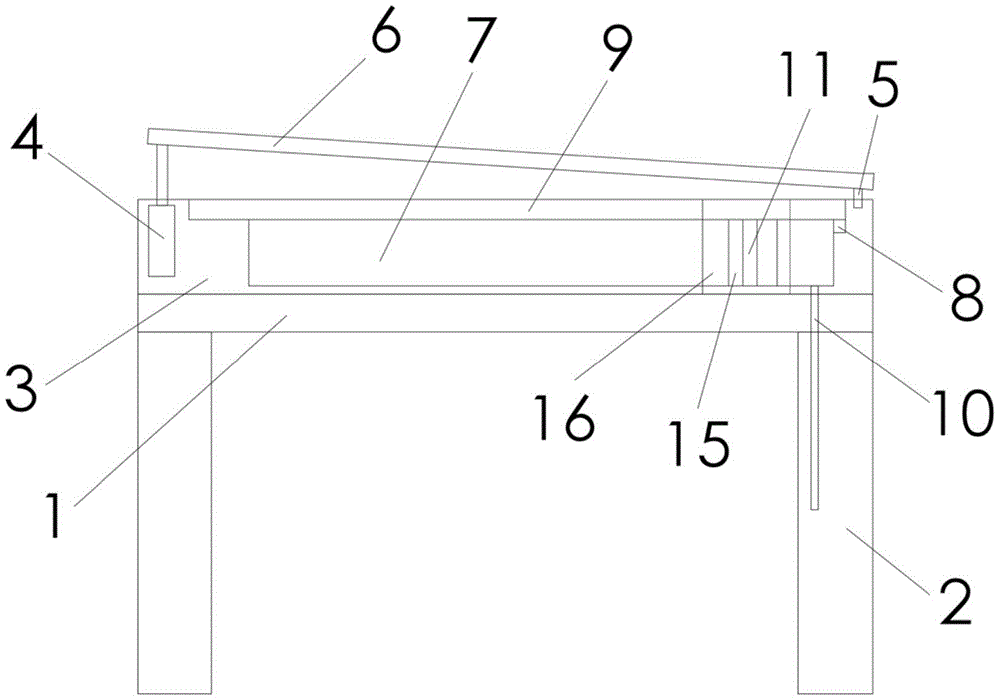

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the purification structure of the present invention;
in the figure: 1. a roof; 2. a wall; 3. presetting a top; 4. an electric cylinder; 5. a rotating shaft; 6. a solar panel; 7. a water storage tank; 8. a rainwater collection tank; 9. a groove; 10. a drainage tube; 11. a purification structure; 12. a sand and stone filter layer; 13. an activated carbon adsorption layer; 14. a bacterial filter layer; 15. a first maintenance door; 16. and (7) repairing the door in a second dimension.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
In this embodiment, as shown in fig. 1-2, an integrated energy-saving house of a green building includes a roof 1 and a wall 2, a preset roof 3 is installed on the top of the roof 1, a solar panel 6 is installed on the preset roof 3 through an electric cylinder 4 and a rotating shaft 5, the electric cylinder 4 and the rotating shaft 5 are respectively located at two ends of the solar panel 6, the solar panel 6 is adjusted in height and inclination angle through the matching of an expansion link on the electric cylinder 4 and the rotating shaft 5, the electric cylinder 4 is electrically connected with a power line in the energy-saving house, and the electric cylinder 4 drives the solar panel 6 to adjust in height and angle through the rotation of the rotating shaft 5 by indoor power supply; a water storage tank 7 is arranged inside the preset roof 3, a rainwater collecting tank 8 is arranged on one side of the water storage tank 7, a groove 9 is formed in the preset roof 3, the groove 9 collects collected rainwater into the water storage tank 7 through the rainwater collecting tank 8, the groove 9 is inclined, the lower end is positioned at the end of the rainwater collecting tank 8, drainage of the rainwater is facilitated, a drainage pipe 10 is arranged at the bottom of the water storage tank 7, the drainage pipe 10 is arranged in a wall, and the other end of the drainage pipe is arranged in a room of the energy-saving house; be provided with purification structure 11 in the storage water tank 7, be provided with gravel and sand filter layer 12, active carbon adsorption layer 13 and bacterium filter layer 14 in the purification structure 11, be convenient for filter the impurity in the rainwater.
The side of the water storage tank 7 is provided with a first maintenance door 15, the first maintenance door 15 is arranged at the position matched with the position of the purification structure 11, the side of the preset roof 3 is provided with a second maintenance door 16 matched with the position of the first maintenance door 15, the water storage tank 7 can be checked and maintained through the second maintenance door 16, the purification structure 11 in the water storage tank 7 can be replaced and impurities can be removed through the first maintenance door 15, and the purification structure 11 can be replaced regularly.
One end of the solar cell panel 6 is connected with the controller, the storage battery and the inverter through wires, and solar energy is converted into electric energy to be connected to an indoor power line.
The sand and stone filtering layer 12 can filter impurities such as sand and stone and soil particles, the activated carbon adsorption layer 13 is used for adsorbing impurity ions, and the bacteria filtering layer 14 can filter and absorb common bacteria in rainwater.
The previous description of the disclosed embodiments is provided to enable any person skilled in the art to make or use the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the invention. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.
