The utility model discloses a pin-connected panel frame of encorbelmenting that stability is high, including the loose axle, loose axle outside swing joint has outer knob and interior knob, interior knob sets up between outer knob, outer knob left end fixedly connected with first cantilever presss from both sides, interior knob left end fixedly connected with second cantilever presss from both sides, first cantilever presss from both sides and establishes in second cantilever clamp top, fixedly connected with spring between first cantilever clamp and the second cantilever clamp, first cantilever clamp and the inboard left end swing joint of second cantilever clamp have the frame roof beam. This pin-connected panel cantilever that stability is high utilizes first cantilever to press from both sides and the interlock fixed frame roof beam of second cantilever clamp, through the elastic deformation of spring, easy to assemble and dismantlement, can freely adjust the opening size in the face of not unidimensional frame roof beam, utilizes backup pad and frame roof beam to form the fixed angle, prevents to face to establish the board atress and tumbles, utilizes the wedge nail to pass anti-skidding hole simultaneously, prevents that personnel from being faced when establishing on the board construction because of facing to establish the board and slide and cause the accident.

Description

Pin-connected panel frame of encorbelmenting that stability is high
Technical Field
The utility model relates to an engineering equipment technical field specifically is a pin-connected panel cantilever frame that stability is high.
Background
With the rapid development of urban construction, the number of high-rise and super high-rise buildings is increasing, the construction environment is becoming more and more complex, and in order to meet the requirements of structural construction and external decoration construction, the cantilever type steel pipe fastener external scaffold is widely applied due to the characteristics of wide adaptability, strong bearing capacity, convenience in erection and detachment and the like.
The length in the cantilever frame building in the past is greatly longer than the length of encorbelmenting, makes the material obtain effectual utilization, causes the waste, and the installation is complicated simultaneously, and extravagant man-hour has also brought inconvenience for subsequent construction simultaneously.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a pin-connected panel cantilever frame that stability is high to propose the material and can not obtain effectual utilization in solving above-mentioned background art, cause the waste, the installation is complicated simultaneously, and extravagant man-hour also brings inconvenient problem for subsequent construction simultaneously.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a high pin-connected panel frame of encorbelmenting of stability, includes the loose axle, loose axle outside swing joint has outer knob and interior knob, interior knob sets up between outer knob, outer knob left end fixedly connected with first cantilever presss from both sides, interior knob left end fixedly connected with second cantilever presss from both sides, first cantilever presss from both sides and establishes in second cantilever and presss from both sides the top, first cantilever presss from both sides fixedly connected with spring between the clamp of second cantilever, first cantilever presss from both sides and presss from both sides inboard left end swing joint with the second cantilever and has the frame roof beam.
Preferably, the equal fixedly connected with lifting rod in both ends outside around the first cantilever presss from both sides, lifting rod lower extreme fixedly connected with balancing pole, the regulation hole has been seted up in the balancing pole right-hand member outside, lifting rod length is greater than the thickness of frame roof beam, the length of lifting rod left side balancing pole is greater than the width of frame roof beam.
Preferably, the outer side of the right end of the balancing rod is movably connected with a configuration rod, the outer side of the left end of the configuration rod is provided with an anchor hole, the inner sides of the adjusting hole and the anchor hole are in threaded connection with a bolt, wedge nails are distributed at the upper end of the configuration rod, the upper ends of the balancing rod and the configuration rod are provided with temporary plates, and the height of the wedge nails is greater than the thickness of the temporary plates.
Preferably, it all has seted up with the groove to face to establish board right-hand member both sides, face and establish all seted up the butt joint hole in the middle of the board left and right both ends, face and establish board left end both sides and all seted up the activity groove, the inboard swing joint of activity groove has the backup pad, the backup pad is installed between the hoist and mount pole.
Preferably, face the butt joint hole female connection who establishes the board left end and have the atress screw rod, face and establish board upper end equidistance and distribute and have the antiskid hole, wedge nail swing joint is inboard in the antiskid hole, atress screw rod length is greater than the width of frame roof beam.
Compared with the prior art, the beneficial effects of the utility model are that:
1. according to the high-stability assembled cantilever frame, the first cantilever clamp and the second cantilever clamp are used for clamping and fixing the frame beam, the assembly and disassembly are convenient through the elastic deformation of the spring, the size of the opening can be freely adjusted when the frame beam faces different sizes, and the adaptability is high;
2. according to the high-stability assembled cantilever frame, the balance rod is fixed through the hoisting rod, a fixed included angle is formed between the hoisting rod and the balance rod, and a component is prevented from tipping when the front end is stressed downwards;
3. this pin-connected panel cantilever frame that stability is high installs additional through the distance between the hoist and mount pole and faces and establish the board, utilizes backup pad and frame roof beam to form the fixed angle, prevents to face and establishes the board atress and tumbles, utilizes the wedge to bind the nail to pass anti-skidding hole simultaneously, prevents that personnel from establishing the board when constructing on facing and sliding to cause the accident because of facing.
Drawings

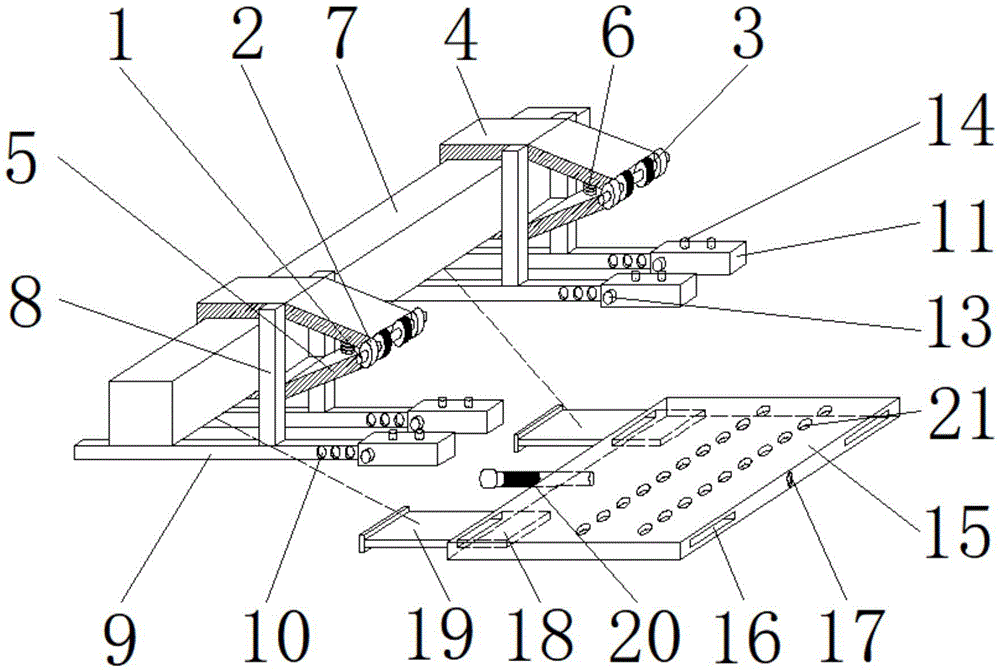

FIG. 1 is a schematic view of a three-dimensional mounting structure of a frame beam and an adjacent plate of the present invention;
FIG. 2 is a schematic perspective view of the present invention;
FIG. 3 is a schematic side view of the present invention;
fig. 4 is a schematic view of the top view structure of the present invention.
In the figure: 1. a movable shaft; 2. an outer knob; 3. an inner knob; 4. a first cantilever clamp; 5. a second cantilever clamp; 6. a spring; 7. a frame beam; 8. hoisting the rod; 9. a balancing pole; 10. an adjustment hole; 11. a configuration lever; 12. an anchoring hole; 13. a bolt; 14. wedging nails; 15. a temporary plate; 16. adding a groove; 17. a butt joint hole; 18. a movable groove; 19. a support plate; 20. a stressed screw; 21. and (4) an anti-slip hole.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a high pin-connected panel frame of encorbelmenting of stability, including loose axle 1, 1 outside swing joint of loose axle has outer knob 2 and interior knob 3, interior knob 3 sets up between outer knob 2, the first cantilever of 2 left end fixedly connected with of outer knob presss from both sides 4, 3 left end fixedly connected with second cantilever of interior knob presss from both sides 5, first cantilever presss from both sides 4 and sets up in second cantilever clamp 5 top, fixedly connected with spring 6 between first cantilever clamp 4 and the second cantilever clamp 5, the inboard left end swing joint of first cantilever clamp 4 and second cantilever clamp 5 has frame roof beam 7.
Further, the equal fixedly connected with lifting rod 8 in both ends outside around first cantilever presss from both sides 4, 8 lower extreme fixedly connected with balancing poles 9 of lifting rod, adjustment hole 10 has been seted up in the 9 right-hand members outside of balancing pole, 8 length of lifting rod are greater than the thickness of frame roof beam 7, 8 left side balancing poles 9 of lifting rod's length is greater than the width of frame roof beam 7, can adjust the length of balancing pole 9 through adjustment hole 10, to different sizes face and establish board 15 and carry out the support effect of maximize.
Further, the outer side of the right end of the balance rod 9 is movably connected with a configuration rod 11, the outer side of the left end of the configuration rod 11 is provided with an anchor hole 12, the inner sides of the adjustment hole 10 and the anchor hole 12 are in threaded connection with bolts 13, wedge nails 14 are distributed at the upper end of the configuration rod 11, the upper ends of the balance rod 9 and the configuration rod 11 are provided with temporary plates 15, the height of each wedge nail 14 is larger than the thickness of the temporary plates 15, the temporary plates 15 are fixed through the wedge nails 14, and accidents caused by sliding of the temporary plates are prevented.
Further, it has all seted up additional groove 16 to face to establish 15 right-hand members both sides of board, faces to establish about board 15 and all seted up in the middle of the both ends butt joint hole 17, faces to establish 15 left ends both sides of board and has all seted up the activity groove 18, and the inboard swing joint in activity groove 18 has backup pad 19, and backup pad 19 is installed between hoist and mount pole 8, prevents backup pad 19 atress to overturn through backup pad 19 and the fixed contained angle of frame roof beam 7.
Furthermore, the butt joint hole 17 internal thread of the left end of the adjacent plate 15 is connected with a stress screw 20, the upper end of the adjacent plate 15 is equidistantly distributed with anti-slip holes 21, the wedging nails 14 are movably connected with the inner side of the anti-slip holes 21, the length of the stress screw 20 is larger than the width of the frame beam 7, the safety can be further improved through the stress screw 20, and meanwhile, the stress screw 20 can be connected into the other butt joint hole 17 of the adjacent plate 15 to increase the working surface.
The working principle is as follows: firstly, through the movable connection of the outer knob 2 and the inner knob 3 on the movable shaft 1, the first cantilever clamp 4 and the second cantilever clamp 5 are respectively pulled open in opposite directions and fixed on the upper side and the lower side of the frame beam 7, the first cantilever clamp 4 and the second cantilever clamp 5 are loosened, the first cantilever clamp 4 and the second cantilever clamp 5 are tightly connected with the frame beam 7 under the elastic recovery tension of the spring 6, then the bolt 13 is taken out, the balance rod 9 is stretched to a right direction to a proper position, the bolt 13 is inserted into the anchoring hole 12 and the corresponding adjusting hole 10 to relatively fix the balance rod 9 and the configuration rod 11, the support plate 19 on the left side of the adjacent plate 15 is pulled out to a proper position, the stressed screw 20 is screwed out from the butt joint hole 17 until the length is larger than the thickness of the frame beam 7, then the support plate 19 is respectively aligned with the opening between the hoisting rods 8 and pushed to the left until the left end of the adjacent plate 15 is mutually attached with the outer side of the hoisting rod 8, the wedging nail 14 penetrates out of the anti-slip hole 21, the adjacent plate 15 is completely fixed at the moment, another adjacent plate 15 can be additionally arranged by utilizing the additional installation groove 16 and the butt joint hole 17 at the right end of the adjacent plate 15, and meanwhile, the balance rod 9 and the configuration rod 11 are required to be adjusted again, so that the construction working face is enlarged.
It should be finally noted that the above only serves to illustrate the technical solution of the present invention, and not to limit the scope of the present invention, and that simple modifications or equivalent replacements performed by those skilled in the art to the technical solution of the present invention do not depart from the spirit and scope of the technical solution of the present invention.

Claims (5)

1. The utility model provides a pin-connected panel frame of encorbelmenting that stability is high, includes the loose axle, its characterized in that: the utility model discloses a cantilever clamp, including the loose axle outside swing joint, the interior knob sets up between the knob, the first cantilever of outer knob left end fixedly connected with presss from both sides, interior knob left end fixedly connected with second cantilever presss from both sides, first cantilever presss from both sides and establishes in second cantilever clamp top, fixedly connected with spring between first cantilever clamp and the second cantilever clamp, first cantilever clamp and the inboard left end swing joint of second cantilever clamp have the frame roof beam.
2. The high-stability assembled cantilever according to claim 1, wherein: the equal fixedly connected with lifting rod in both ends outside around the first cantilever presss from both sides, lifting rod lower extreme fixedly connected with balancing pole, the regulation hole has been seted up in the balancing pole right-hand member outside, lifting rod length is greater than the thickness of frame roof beam, the length of lifting rod left side balancing pole is greater than the width of frame roof beam.
3. A high stability sectional cantilever according to claim 2, wherein: the balance bar is characterized in that a configuration bar is movably connected to the outer side of the right end of the balance bar, an anchoring hole is formed in the outer side of the left end of the configuration bar, bolts are connected to the inner sides of the adjusting hole and the anchoring hole in a threaded mode, wedge nails are distributed at the upper end of the configuration bar, temporary plates are installed at the upper ends of the balance bar and the configuration bar, and the height of each wedge nail is larger than the thickness of the temporary plate.
4. A high stability sectional cantilever according to claim 3, wherein: face and establish board right-hand member both sides and all seted up additional groove, face and establish all seted up the butt joint hole in the middle of the board left and right both ends, face and establish board left end both sides and all seted up the activity groove, the inboard swing joint in activity groove has the backup pad, the backup pad is installed between the lifting rod.
5. The high-stability assembled cantilever according to claim 4, wherein: face the butt joint hole female connection who establishes the board left end and have the atress screw rod, face and establish board upper end equidistance and distribute and have the antiskid hole, wedge nail swing joint is inboard in the antiskid hole, atress screw rod length is greater than the width of frame roof beam.
