本实用新型公开了一种锂电池极片分切设备，具体涉及锂电池极片分切技术领域，包括台桌，所述台桌上侧面左右对称固定连接有两个侧挡板，所述侧挡板上侧面固定连接有支撑板，所述支撑板上滑动连接有滑动板，所述滑动板下侧面镶嵌固定有升降液压缸，所述升降液压缸下侧固定连接有分切刀，所述台桌上侧面设置有左夹紧杆以及右夹紧杆，所述左夹紧杆左侧以及右夹紧杆右侧均通过轴承与调节螺杆相连接，所述调节螺杆通过螺纹与侧挡板相连接。本实用新型通过对分切刀进行移动，并对分切刀的移动距离进行控制，实现了对锂电池极片的分切尺寸进行控制，扩大了适用范围，而通过左夹紧杆以及右夹紧杆进行固定，则实现了方便拆装的目的。
The utility model discloses a lithium battery pole piece slitting device, in particular to the technical field of lithium battery pole piece slitting, comprising a table. A support plate is fixedly connected to the upper side of the baffle plate, a sliding plate is slidably connected to the support plate, a lifting hydraulic cylinder is inlaid and fixed on the lower side of the sliding plate, and a slitting knife is fixedly connected to the lower side of the lifting hydraulic cylinder. A left clamping rod and a right clamping rod are arranged on the side of the table. The left side of the left clamping rod and the right side of the right clamping rod are connected with an adjusting screw through a bearing, and the adjusting screw is connected to the side baffle through a thread. connected. By moving the slitting knife and controlling the moving distance of the slitting knife, the utility model realizes the control of the slitting size of the lithium battery pole piece and expands the scope of application. The purpose of convenient disassembly and assembly is realized by tightening the rod for fixing.
Description
Technical Field
The utility model relates to a lithium-ion battery pole piece cuts technical field, more specifically says, the utility model relates to a lithium-ion battery pole piece cuts equipment.
Background
A "lithium battery" is a type of battery using a nonaqueous electrolyte solution with lithium metal or a lithium alloy as a positive/negative electrode material. Lithium batteries can be broadly classified into two types: lithium metal batteries and lithium ion batteries. Lithium ion batteries do not contain lithium in the metallic state and are rechargeable.
Among the prior art, when current lithium-ion battery pole piece is cutting, the branch cutter that uses is generally fixed somewhere, has leaded to it to cut the lithium-ion battery pole piece of single specification only, uses the limitation height, and the result of use is poor.
SUMMERY OF THE UTILITY MODEL
In order to overcome the above defects in the prior art, the embodiment of the utility model provides a lithium battery pole piece cutting device, the technical problem that the invention needs to solve is: the existing lithium battery pole piece slitting equipment can only slit the lithium battery pole pieces of one specification, and the problem of high use limitation is solved.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a lithium battery pole piece cuts equipment, includes the table, two side shields of side bilateral symmetry fixedly connected with on the table, side fixedly connected with backup pad on the side shield, sliding connection has the sliding plate in the backup pad, sliding plate downside is inlayed and is fixed with hydraulic cylinder, hydraulic cylinder downside fixedly connected with divides the cutter, the side is provided with left clamp rod and right clamp rod on the table, left clamp rod is located right clamp rod left side, left clamp rod left side and right clamp rod right side are all connected with adjusting screw through the bearing, adjusting screw is connected with the side shield through the screw thread.
The operation through the lead screw is convenient for drive the sliding plate in step, hydraulic cylinder and divide the cutter to control and remove, the convenient shift position who divides the cutter controls, and the operation through hydraulic cylinder is convenient for drive and divides the cutter to reciprocate, the convenience is cut lithium-ion battery pole piece, and control cutting size, application scope has been enlarged, and then be convenient for stably press from both sides tight lithium-ion battery pole piece through left clamp rod and right clamp rod, also convenient collecting the sweeps simultaneously, excellent in use effect.
In a preferred embodiment, the supporting plate is internally provided with an open slot, and the sliding plate is sleeved with a lead screw which is transversely arranged inside the open slot.
In a preferred embodiment, a servo motor is fixedly connected to the right side face of the supporting plate, an output shaft on the left side of the servo motor is connected with a lead screw through a coupler, the lead screw is driven to rotate by the operation of the servo motor, the sliding plate and the slitting knife are driven to move left and right, and the moving distance of the slitting knife is controlled accurately.
In a preferred embodiment, a supporting frame is embedded and fixed in the middle of the upper side face of the table, the cutting knife is located right above the supporting frame, the left clamping rod and the right clamping rod are located on the upper side of the supporting frame, the lithium battery pole piece is conveniently supported through the supporting frame, the cutting knife conveniently penetrates through a gap in the supporting frame, and the cutting thoroughness is improved.
In a preferred embodiment, the left clamping rod and the right clamping rod are symmetrically connected with two limiting bolts front and back, the lower portions of the limiting bolts extend into the guide grooves, the guide grooves are formed in the front portion and the rear portion of the upper side of the table respectively, so that the left clamping rod and the right clamping rod can be conveniently guided to move, and the moving stability of the left clamping rod and the right clamping rod is improved.
In a preferred embodiment, the right side surface of the left clamping rod and the left side surface of the right clamping rod are both processed with anti-slip grains, so that the clamping stability of the lithium battery pole piece is improved.
In a preferred embodiment, the adjusting screw is fixedly connected with a handle on the outer side of the side baffle, the handle is located on the outer side of the side baffle, and the handle is held and rotated, so that the adjusting screw is conveniently driven to move, the left clamping rod and the right clamping rod are further driven to move, and the lithium battery pole piece is conveniently clamped, fixed and detached.
In a preferred embodiment, the table is internally provided with a collecting groove plate, the left side and the right side of the collecting groove plate are integrally connected with guide rails, the guide rails are slidably connected to the guide grooves, and the guide grooves are respectively formed in the left wall and the right wall of the table, so that the scraps can be conveniently collected.
The utility model discloses a technological effect and advantage:
the utility model discloses a be equipped with backup pad, sliding plate, hydraulic cylinder, divide the cutter, the lead screw, left clamp rod, right clamp rod and adjusting screw, remove through dividing the cutter to the displacement to the cutter is controlled, realized controlling lithium battery pole piece cut the size, enlarged application scope, and fix through left clamp rod and right clamp rod, then realized making things convenient for the purpose of dismouting, also be convenient for clear up the sweeps, easy operation, excellent in use effect.
Drawings

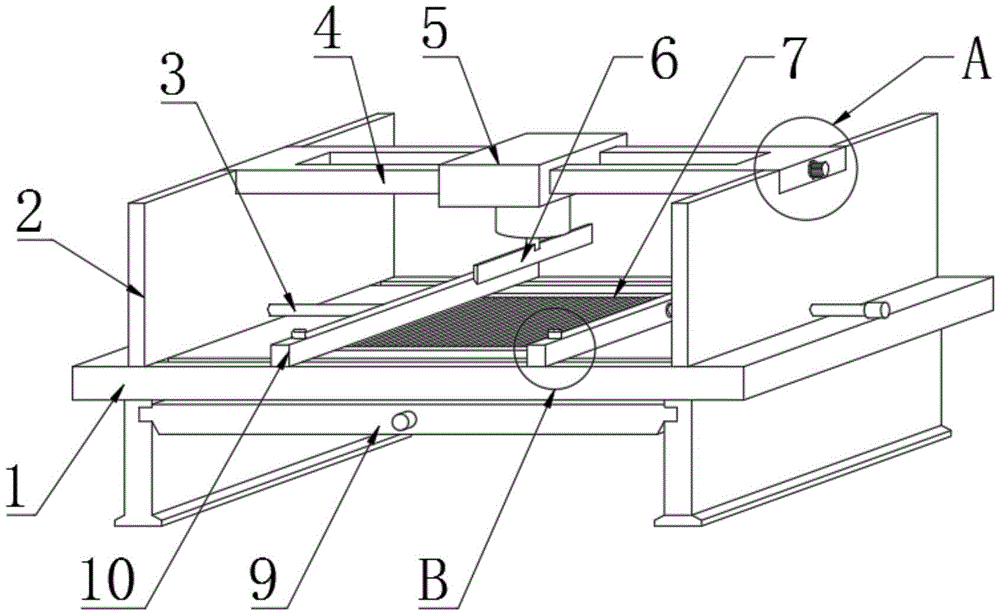

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic cross-sectional view of the support plate and the sliding plate according to the present invention.
Fig. 3 is a schematic view of the overall structure of the middle support frame of the present invention.
Fig. 4 is a schematic view of the overall structure of the middle collecting trough plate of the present invention.
Fig. 5 is an enlarged schematic view of a portion a in fig. 1 according to the present invention.
Fig. 6 is an enlarged schematic view of the structure at B in fig. 2 according to the present invention.
The reference signs are: 1. a table; 2. a side dam; 3. adjusting the screw rod; 4. a support plate; 5. a sliding plate; 6. a slitting knife; 7. a support frame; 8. a lifting hydraulic cylinder; 9. collecting the trough plate; 10. a left clamping bar; 11. a lead screw; 12. a right clamping bar; 13. a servo motor; 14. a limit bolt; 15. a guide groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a lithium-ion battery pole piece cuts equipment, including table 1, 1 side bilateral symmetry fixedly connected with two side shields 2 on the table, side fixedly connected with backup pad 4 on the side shield 2, sliding connection has sliding plate 5 on the backup pad 4, 5 downside inlays and is fixed with hydraulic cylinder 8 on the sliding plate, 8 downside fixedly connected with of hydraulic cylinder divide cutter 6, 1 side on the table is provided with left clamping bar 10 and right clamping bar 12, left clamping bar 10 is located right clamping bar 12 left side, left clamping bar 10 left side and right clamping bar 12 right side all are connected with adjusting screw 3 through the bearing, adjusting screw 3 is connected with side shield 2 through the screw thread.
An open slot is processed inside the supporting plate 4, a screw rod 11 is sleeved on the sliding plate 5, and the screw rod 11 is transversely arranged inside the open slot.
The right side of the supporting plate 4 is fixedly connected with a servo motor 13, and an output shaft on the left side of the servo motor 13 is connected with a lead screw 11 through a coupler.
Two limiting bolts 14 are symmetrically connected to the left clamping rod 10 and the right clamping rod 12 in a front-back mode, the lower portions of the limiting bolts 14 extend into guide grooves 15, and the guide grooves 15 are formed in the front portion and the rear portion of the upper side face of the table 1 respectively.
The right side of the left clamping rod 10 and the left side of the right clamping rod 12 are both provided with anti-skid grains.
The outer side surface of the adjusting screw rod 3 is fixedly connected with a handle which is positioned on the outer side of the side baffle 2.
As shown in fig. 1, fig. 2, fig. 5 and fig. 6, the embodiment specifically includes: the user places the lithium battery pole pieces on the table 1, then rotates the adjusting screw 3, the adjusting screw 3 rotates and moves inwards under the action of the threads, and then drives the left clamping rod 10 to move rightwards and the right clamping rod 12 to move leftwards, so as to clamp the lithium battery pole pieces, and reversely rotates the adjusting bolt, so as to drive the left clamping rod 10 to move leftwards and the right clamping rod 12 to move rightwards, so as to facilitate the disassembly of the lithium battery pole pieces, and simultaneously facilitate the control of the moving positions of the left clamping rod 10 and the right clamping rod 12, and further facilitate the control of the placing positions of the lithium battery pole pieces, so as to realize the clamping and fixing of the lithium battery pole pieces with different sizes, and also facilitate the control of the placing positions, the application range is wide, then the user starts the servo motor 13, the servo motor 13 operates to drive the screw rod 11 to rotate, thereby driving the sliding plate 5 to move leftwards or rightwards, and then drive hydraulic cylinder 8 and divide cutter 6 to remove in step, realized controlling the position of dividing cutter 6, be convenient for control the size of cutting of lithium-ion battery pole piece, operation hydraulic cylinder 8 afterwards to drive and divide cutter 6 downstream and cut lithium-ion battery pole piece, enlarged the scope of cutting, excellent in use effect.
A supporting frame 7 is fixedly embedded in the middle of the upper side face of the table 1, the cutting knife 6 is located right above the supporting frame 7, and the left clamping rod 10 and the right clamping rod 12 are located on the upper side of the supporting frame 7.
The inside collection frid 9 that is provided with of table 1, the equal body coupling in collection frid 9 left side and right side has the guide rail, and guide rail sliding connection is on the guide slot, and left wall and interior right wall are seted up respectively in table 1 to the guide slot.
As shown in fig. 1, 3 and 4, the embodiment specifically includes: divide cutter 6 when cutting lithium-ion battery pole piece, produced sweeps passes braced frame 7, and fall on collecting frid 9, realized collecting the sweeps, the sweeps on the desk 1 also is convenient for fall into in collecting frid 9 through guide way 15 and braced frame 7 simultaneously, conveniently clear up the sweeps, collect frid 9 along the forward pulling of guide slot afterwards, then be convenient for empty the sweeps in collecting frid 9, the purpose of convenient clearance has been realized.
The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," and "connected" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be a direct connection, and "upper," "lower," "left," and "right" are only used to indicate a relative positional relationship, and when the absolute position of the object to be described is changed, the relative positional relationship may be changed;
secondly, the method comprises the following steps: in the drawings of the disclosed embodiments of the present invention, only the structures related to the disclosed embodiments are referred to, and other structures can refer to the common design, and under the condition of no conflict, the same embodiment and different embodiments of the present invention can be combined with each other;
and finally: the above description is only for the preferred embodiment of the present invention and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
