Abstract
本实用新型公开了一种烹饪设备，包括：机体、蒸汽发生器、清洗单元和供水管，机体内具有烹饪腔；蒸汽发生器设于机体，蒸汽发生器用于向烹饪腔内提供蒸汽；清洗单元用于对烹饪腔进行清洗；蒸汽发生器和清洗单元均与供水管相连，供水管可向蒸汽发生器和清洗单元供水。根据本实用新型实施例的烹饪设备，在机体内设置蒸汽发生器，对食物进行蒸汽加热，清洗单元的设置便于对烹饪腔自动清洗，减少用户的清洁工作，在清洗单元对烹饪腔进行自动清洗时，蒸汽发生器可以辅助清洗；并且，蒸汽发生器和清洗单元均与供水管相连，使管路设计更加简单，结构紧凑，方便供水；另外，该烹饪设备将烹饪与清洗功能集成，提高厨房空间利用效率。
The utility model discloses a cooking device, comprising: a body, a steam generator, a cleaning unit and a water supply pipe, the body is provided with a cooking cavity; the steam generator is arranged in the body, and the steam generator is used for providing steam into the cooking cavity; the cleaning unit It is used for cleaning the cooking cavity; both the steam generator and the cleaning unit are connected with the water supply pipe, and the water supply pipe can supply water to the steam generator and the cleaning unit. According to the cooking device of the embodiment of the present invention, a steam generator is arranged in the body to heat the food with steam, the cleaning unit is arranged to facilitate automatic cleaning of the cooking cavity, and the cleaning work of the user is reduced, and the cooking cavity is automatically cleaned in the cleaning unit. In addition, the steam generator can assist in cleaning; in addition, the steam generator and the cleaning unit are connected with the water supply pipe, which makes the pipe design simpler, the structure is more compact, and the water supply is convenient; in addition, the cooking equipment integrates the cooking and cleaning functions, improving the kitchen Space utilization efficiency.
Description
Technical Field
The utility model belongs to the technical field of kitchen appliances and specifically relates to a cooking equipment is related to.
Background
After the cooking equipment cooks food, food residues or oil drop residues and the like exist on the inner wall of the cavity and cooking accessories (baking trays, gridirons or steaming trays), and in a closed environment, the cooking residues are fermented and oxidized in a steaming oven, bacteria are bred, strong peculiar smell is generated, and the cooking experience of a user is influenced. In addition, after cooking is finished, the temperature in the cavity is high, and special manual wiping and cleaning are generally performed after the cavity is cooled to room temperature, so that the cleaning operation is complicated, and the burden of a user is increased.
SUMMERY OF THE UTILITY MODEL
The utility model discloses aim at solving one of the technical problem that exists among the prior art at least. Therefore, an object of the utility model is to provide a cooking device, this cooking device not only can satisfy the demand that the user cooks, still satisfies the demand of the clean cooking device's of user culinary art chamber and tableware, alleviates user's burden and high-efficient utilization kitchen space.
According to the utility model discloses cooking equipment, include: a body having a cooking cavity therein; the steam generator is arranged on the machine body and used for providing steam into the cooking cavity; a washing unit for washing the cooking chamber; and the steam generator and the cleaning unit are connected with the water supply pipe, and the water supply pipe can supply water to the steam generator and the cleaning unit.
According to the cooking equipment provided by the embodiment of the utility model, the steam generator is arranged in the machine body, so that food can be heated by steam to realize a cooking function, the cooking cavity of the cooking equipment can be automatically cleaned by the cleaning unit, the complex cleaning work of a user is reduced, and the steam generator can play a role in auxiliary cleaning when the cleaning unit automatically cleans the cooking cavity of the cooking equipment; moreover, the steam generator and the cleaning unit are connected with a water supply pipe, so that the pipeline design is simpler, the structure is more compact, and the water supply is more convenient; in addition, the cooking device integrates cooking and cleaning functions, and improves the utilization efficiency of the kitchen space.
According to some embodiments of the invention, the cleaning unit is disposed adjacent to the steam generator.
According to some optional embodiments of the present invention, the cleaning unit and the steam generator are both adjacent to a bottom of the machine body.
According to some embodiments of the invention, the water supply pipe comprises: a main pipe, wherein a water inlet is formed on the main pipe; the first branch pipe is connected and communicated with the main pipe and is connected with the cleaning unit so as to supply water to the cleaning unit; and the second branch pipe is connected and communicated with the main pipe, and the second branch pipe is connected with the steam generator to supply water to the steam generator.
According to some optional embodiments of the present invention, the water supply pipe comprises: the first control valve is arranged on the first branch pipe and used for opening and closing a channel of the first branch pipe; and the second control valve is arranged on the second branch pipe and used for opening and closing the passage of the second branch pipe.
According to some embodiments of the invention, the cleaning unit comprises: a cleaning assembly for delivering water flowing into the water supply pipe into the cooking chamber and cleaning the cooking chamber; a drain structure including a drain channel formed on a bottom wall of the cooking chamber.
According to some optional embodiments of the present invention, the drainage structure comprises: and the drainage pump is arranged in the drainage channel.
According to some optional embodiments of the present invention, the cleaning assembly comprises: the spraying piece is used for spraying cleaning liquid into the cooking cavity and movably arranged in the cooking cavity; a water intake pump for delivering water flowing into the water supply pipe to the spray member.
Optionally, the spray member is rotatably disposed within the cooking chamber.
Optionally, the bottom wall of the cooking cavity is provided with a water storage tank, the water supply pipe can supply water to the water storage tank, and the spraying part comprises: the spraying arm is provided with a water spraying hole; the inlet tube, the one end of inlet tube with the spray arm links to each other, the inlet tube with the inner chamber intercommunication of spray arm, the other end of inlet tube is located in the aqua storage tank and with the aqua storage tank intercommunication, the intake pump is located in the inlet tube.
Further, the bottom wall of the cooking cavity is formed with a deflector, excluding a portion where the water storage tank is provided, the deflector extending downward in a direction adjacent to the water storage tank.
According to some optional embodiments of the present invention, the cleaning assembly comprises: a water inlet pump for delivering water flowing into the water supply pipe into the cooking chamber; the ultrasonic generator is arranged on the machine body.
Additional aspects and advantages of the invention will be set forth in part in the description which follows and, in part, will be obvious from the description, or may be learned by practice of the invention.
Drawings
The above and/or additional aspects and advantages of the present invention will become apparent and readily appreciated from the following description of the embodiments, taken in conjunction with the accompanying drawings of which:

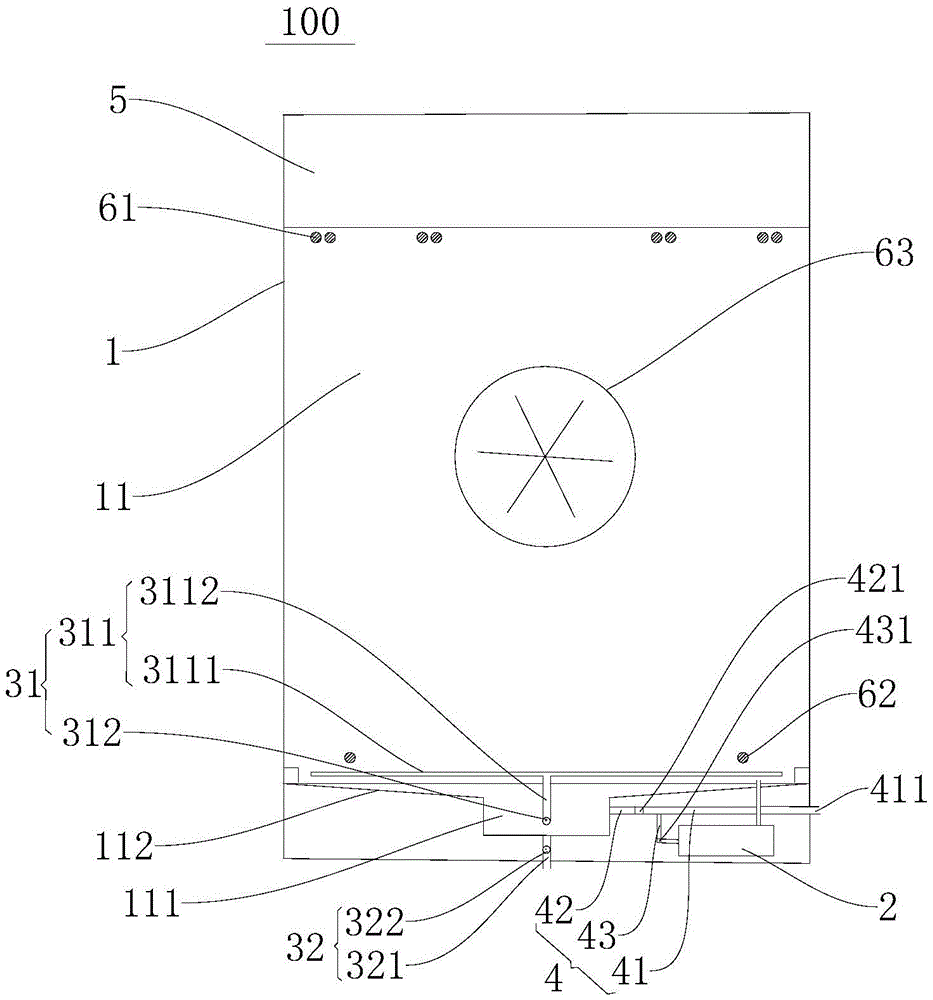

fig. 1 is a schematic view of a cooking apparatus according to some embodiments of the present invention.
Reference numerals:
a cooking apparatus 100;
a machine body 1; a cooking chamber 11; a water storage tank 111; a flow guide part 112;
a steam generator 2;
a cleaning assembly 31; a spray member 311; a spray arm 3111; a water inlet pipe 3112; a water inlet pump 312; a drainage structure 32; a drain passage 321; a drain pump 322;
a water supply pipe 4; a main pipe 41; a water inlet 411; a first branch tube 42; a first control valve 421; a second branch pipe 43; a second control valve 431;
a control panel 5; an upper heat generating tube 61; a lower heat-emitting pipe 62; a back hot air assembly 63.
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present invention, and should not be construed as limiting the present invention.
A cooking apparatus 100 according to an embodiment of the present invention is described below with reference to fig. 1. The cooking apparatus 100 may be built-in, a sink type, or a table top type. Alternatively, the cooking apparatus 100 may be a steam box, a steam oven, or the like.
As shown in fig. 1, a cooking apparatus 100 according to an embodiment of the present invention includes: a machine body 1, a steam generator 2, a washing unit, and a water supply pipe 4.
Have culinary art chamber 11 in the organism 1, steam generator 2 locates organism 1, and steam generator 2 is used for providing steam in to culinary art chamber 11, and the cleaning unit is used for wasing culinary art chamber 11, and the cleaning unit can wash the inner wall in culinary art chamber 11, and the cleaning unit also can wash the tableware of placing in culinary art chamber 11. The steam generator 2 and the cleaning unit are both connected with a water supply pipe 4, the water supply pipe 4 can supply water to the steam generator 2 and the cleaning unit, and the water supply pipe 4 can be externally connected with tap water. The water supply pipe 4 may supply water to the steam generator 2 when the steam generator 2 is operated; the water supply pipe 4 may supply water to the washing unit when the cooking chamber 11 is washed by the washing unit.
Since the steam generator 2 is provided in the body 1, steam is supplied into the cooking cavity 11 through the steam generator 2, and food can be steam-heated to perform a cooking function. By providing the washing unit, the cooking chamber 11 of the cooking apparatus 100 and the tableware placed in the cooking chamber 11 can be automatically cleaned more conveniently and timely, and the troublesome cleaning work of the user is reduced. When the cleaning unit automatically cleans the cooking cavity 11 of the cooking apparatus 100, the steam generator 2 can also assist in cleaning, for example, before the cleaning unit automatically cleans the cooking cavity 11 of the cooking apparatus 100, steam can be provided into the cooking cavity 11 through the steam generator 2, so that the inner wall of the cooking cavity 11 or residues and the like on tableware placed in the cooking cavity 11 are wetted, when the cleaning unit automatically cleans the cooking cavity 11 of the cooking apparatus 100, the residues can be removed more easily, the cleaning work is further ensured to be carried out smoothly, and the cleaning is more thorough.
In addition, because the steam generator 2 and the cleaning unit are both connected with the water supply pipe 4, the pipeline design is simpler, the structure is more compact, and the water supply is more convenient. Also, the cooking apparatus 100 integrates cooking and washing functions, and may improve kitchen space utilization efficiency.
According to some embodiments of the present invention, referring to fig. 1, the washing unit is disposed adjacent to the steam generator 2. Because cleaning unit and steam generator 2 all link to each other with delivery pipe 4, are close to cleaning unit and steam generator 2 and set up, can shorten the length of delivery pipe 4 pipeline from this for the simple structure and the occupation space of delivery pipe are little, also can improve water supply efficiency simultaneously.
According to some alternative embodiments of the present invention, referring to fig. 1, the cleaning unit and the steam generator 2 are disposed adjacent to each other, and both the cleaning unit and the steam generator 2 are adjacent to the bottom of the machine body 1. The cleaning unit and the steam generator 2 are arranged at the bottom of the adjacent machine body 1, so that the arrangement is convenient, and the whole body is more reasonable and compact.
According to some embodiments of the present invention, referring to fig. 1, the water supply pipe 4 includes: a main pipe 41, a first branch pipe 42 and a second branch pipe 43, wherein a water inlet 411 is formed on the main pipe 41, and water can enter the main pipe 41 from the water inlet 411. The first branch pipe 42 is connected to and communicates with the main pipe 41, and water flowing into the main pipe 41 can flow into the first branch pipe 42, and the first branch pipe 42 is connected to the washing unit to supply water to the washing unit. The second branch pipe 43 is connected to and communicates with the main pipe 41, and water flowing into the main pipe 41 can flow into the second branch pipe 43, and the second branch pipe 43 is connected to the steam generator 2 to supply water to the steam generator 2. By providing the water supply pipe 4 to include the main pipe 41 and the first and second branch pipes 42 and 43 both communicating with the main pipe 41, the water supply pipe 4 is simple in structure, reasonable in design, and facilitates the supply of water to the washing unit and the steam generator 2 through the water supply pipe 4, respectively.
According to some alternative embodiments of the present invention, referring to fig. 1, the water supply pipe 4 includes: a first control valve 421 and a second control valve 431. A first control valve 421 is provided in the first branch pipe 42 for opening and closing a passage of the first branch pipe 42. A second control valve 431 is provided to the second branch pipe 43 for opening and closing a passage of the second branch pipe 43. When food is cooked, the second control valve 431 is opened, water enters the second branch pipe 43 from the main pipe 41 to reach the steam generator 2, and the food is cooked; when in cleaning, the first control valve 421 is opened, water flows into the first branch pipe 42 from the main pipe 41 to reach the cleaning unit, and the inner wall of the cooking cavity 11 and tableware placed in the cooking cavity 11 are cleaned; when steam auxiliary cleaning is needed, the second control valve 431 can be opened, operation is convenient, and control is facilitated.
According to some embodiments of the present invention, referring to fig. 1, the cleaning unit comprises: a washing assembly 31 and a drainage structure 32, the washing assembly 31 being used to transfer the water flowing into the water supply pipe 4 into the cooking chamber 11 and wash the cooking chamber 11. The drain structure 32 includes a drain passage 321 formed on the bottom wall of the cooking chamber 11, and the wash water formed after the washing assembly 31 washes the cooking chamber 11 is discharged from the drain passage 321 to the outside of the cooking apparatus 100. Cleaning assembly 31 and drainage structures 32 cooperate together, when the realization is washd culinary art chamber 11, can make the automatic discharge of sewage after the washing, let the cleaning work go on more conveniently smoothly.
According to some optional embodiments of the present invention, referring to fig. 1, the drainage structure 32 further comprises: and a drain pump 322, the drain pump 322 being provided in the drain passage 321. The drain pump 322 can control the opening and closing of the drain passage 321, and the drain pump 322 can be closed during cleaning, so that the drain passage 321 is in a closed state to prevent water leakage in the cooking cavity 11; after the washing is completed, the drain pump 322 is opened to drain the water, and the water is drained to the external environment through the drain passage 321. And the drain pump 322 can accelerate the discharge of the contaminated water remaining in the cooking chamber 11 after the washing and can make the discharge of the contaminated water in the cooking chamber 11 more thorough.
In other embodiments of the present invention, a drain valve may be disposed in the drain passage 321 to replace the drain pump 322, and the drain valve is opened when the water needs to be drained; when no water is required, the drain valve is closed.
According to some optional embodiments of the present invention, referring to fig. 1, the cleaning assembly 31 comprises: a spray piece 311 and a water inlet pump 312. The spraying part 311 is used for spraying cleaning liquid into the cooking cavity 11, the spraying part 311 is movably arranged in the cooking cavity 11, and the spraying cleaning range of the spraying part 311 can be enlarged through the movement of the spraying part 311, so that the cleaning is convenient, and the cleaning efficiency and the cleaning effect are improved. The water inlet pump 312 is used for conveying water flowing into the water supply pipe 4 to the shower member 311, and is simple to operate and convenient to control.
Optionally, referring to fig. 1, the spraying member 311 is rotatably disposed in the cooking cavity 11, for example, the spraying member 311 can rotate 360 degrees, so as to realize all-directional cleaning in the cooking cavity 11, and achieve a better cleaning effect.
Alternatively, referring to fig. 1, the bottom wall of the cooking cavity 11 is provided with a water storage tank 111, the water supply pipe 4 may supply water to the water storage tank 111, and the shower part 311 includes: a spray arm 3111 and a water inlet pipe 3112. Spray arm 3111 is last to be formed with the hole for water spraying, can be formed with a plurality of hole for water spraying on the spray arm 3111, and a plurality of hole for water spraying can be arranged along the length direction interval of spray arm 3111, and the one end of inlet tube 3112 links to each other with spray arm 3111, and inlet tube 3112 and spray arm 3111's inner chamber intercommunication, the other end of inlet tube 3112 be located aqua storage tank 111 and communicate with aqua storage tank 111, and intake pump 312 is located in inlet tube 3112. Therefore, when the cleaning unit works, the water supply pipe 4 supplies water to the water storage tank 111, the water in the water storage tank 111 is pumped to the spray arm 3111 through the water inlet pump 312 and is sprayed into the cooking cavity 11 through the water spray holes 3111 of the spray arm, so that the inner wall of the cooking cavity 11 and tableware placed in the cooking cavity 11 can be cleaned, the water in the cooking cavity 11 can flow back to the water storage tank 3111 at the bottom and is pumped to the spray arm 3111 through the water inlet pump 312, and the operation is repeated in such a way, so that the inner wall of the cooking cavity 11 and the tableware and other objects in the cooking cavity 11 can be cleaned repeatedly.
Wherein, when the cooking cavity 11 is cleaned by the cleaning unit, a cleaning agent can be added into the water storage tank 111 to improve the cleaning effect.
Further, referring to fig. 1, the bottom wall of the cooking cavity 11 except for the portion where the water storage groove 111 is provided is formed with a guide part 112, and the guide part 112 extends downward in a direction adjacent to the water storage groove 111, thereby making it possible to allow the water in the cooking cavity to rapidly and intensively flow back to the water storage groove 111 under the guide of the guide part 112.
According to some optional embodiments of the present invention, referring to fig. 1, the cleaning assembly 31 comprises: a water inlet pump 312 and an ultrasonic generator. The water inlet pump 312 is used for delivering the water flowing into the water supply pipe 4 into the cooking cavity 11, and the ultrasonic generator is provided in the machine body 1. When the cleaning unit is operated, the water inlet pump 312 is used for conveying water flowing into the water supply pipe 4 into the cooking cavity 11, and the ultrasonic generator is operated to vibrate the water in the cooking cavity 11, so that the inner wall of the cooking cavity 11 and tableware placed in the cooking cavity 11 can be ultrasonically cleaned.
A cooking apparatus 100 according to an embodiment of the present invention is described below with reference to fig. 1, in which the cooking apparatus 100 is a steaming oven, and accessories of the steaming oven may include a baking tray, a grill, a steaming tray, and the like.
Referring to fig. 1, the cooking apparatus includes the above-mentioned body 1, a door body, a steam generator 2, a cleaning unit, a water supply pipe 4, a control panel 5, an upper heating pipe 61, a lower heating pipe 62, and a back hot air assembly 63, where the control panel 5 is used for controlling the operation of the cooking apparatus 100. The machine body 1 is provided with a cooking cavity 11 therein, and the door body is rotatably arranged on the machine body 1 and used for opening and closing the cooking cavity 11. An upper heating pipe 61 and a lower heating pipe 62 which are arranged up and down are arranged in the cooking cavity 11 and used for heating food in the cooking cavity 11, and the lower heating pipe 62 is positioned above the cleaning unit. The part opposite to the door body in the cooking cavity 11 is also provided with a back hot air assembly 63, the back hot air assembly 63 comprises fan blades, a motor, a back heating pipe and a hot air cover, wherein the fan blades are fixed at the position of a motor rotating shaft and can rotate along with the motor, so that the gas in the cooking cavity 11 is stirred to flow, the back heating pipe is positioned around the fan blades and can heat the gas which flows by stirring of the fan blades, the fan blades are separated by the hot air cover, the motor and the back heating pipe are isolated from other parts of the cooking cavity 11, the middle and the edge of the hot air cover are respectively provided with a middle hole and an edge hole, the gas in the cooking cavity 11 can enter the back hot air assembly 63 through the middle hole to be heated, and flows back.
The steam generator 2 and the washing unit are both arranged at the bottom of the machine body 1, and the steam generator 2 is used for providing steam into the cooking cavity 11. The water is changed into steam after passing through the steam generator 2, and then enters the cooking cavity 11 from the air outlet of the steam generator 2 through the air pipeline, one end of the air pipeline is connected with the air outlet of the steam generator 2, and the other end of the air pipeline is connected with the cooking cavity 11. The washing unit is used to wash the cooking chamber 11. Both the steam generator 2 and the washing unit are connected to a water supply pipe 4, and the water supply pipe 4 can supply water to the steam generator 2 and the washing unit.
The cleaning unit comprises the cleaning assembly 31 and the drainage structure 32, the cleaning assembly 31 comprises a spraying part 311 and a water inlet pump 312, the water storage tank 111 is arranged on the bottom wall of the cooking cavity 11, and the spraying part 311 comprises a spraying arm 3111 and a water inlet pipe 3112. One end of inlet tube 3112 links to each other with spray arm 3111, inlet tube 3112 and spray arm 3111's inner chamber intercommunication, and the other end of inlet tube 3112 is located aqua storage tank 111 and communicates with aqua storage tank 111, and intake pump 312 is located in inlet tube 3112. The spraying member 311 is rotatable and has a water inlet pipe 3112 as a rotation axis. The drain structure 32 includes a drain passage 321 and a drain pump 322, the drain passage 321 is formed on the bottom wall of the water storage tank 111, and the drain pump 322 is disposed in the drain passage 321. The water supply pipe 4 includes the main pipe 41, the first branch pipe 42 and the second branch pipe 43, the main pipe 41 is formed with a water inlet 411, the first branch pipe 42 and the second branch pipe 43 are both communicated with the main pipe 41, the first branch pipe 42 is provided with a first control valve 421, the second branch pipe 43 is provided with a second control valve 431, the first branch pipe 42 can be communicated with the water storage tank 111, and the second branch pipe 43 can be communicated with the steam generator 2.
The machine body 1 is provided with a control panel 5 for operation control during cooking food and cleaning, and the control panel 5 is provided with a control button which can realize one-key heating and one-key cleaning operation.
When the cooking apparatus 100 performs a cooking function using steam heating, the steam generator 2 is operated, the second control valve 431 opens the second branch pipe 43, water introduced into the main pipe 41 may be introduced into the steam generator 2 through the second branch pipe 43, and the steam function may be performed by selecting a corresponding function key on the control panel 5. The second control valve 431 may be caused to close the second branch pipe 43 when the steam generator 2 is not operated.
When the cooking apparatus 100 implements a cooking function by heating through the heating pipes, the upper heating pipe 61, the lower heating pipe 62, and the back hot air assembly 63 may operate, and a baking function may be implemented by selecting corresponding function keys on the control panel 5.
Of course, the cooking apparatus 100 may also be made to perform steaming and baking functions simultaneously.
When it is desired to wash the cooking chamber 11 using the washing unit, a washing function can be implemented by selecting a corresponding function key on the control panel 5.
When the cleaning unit is used for cleaning, the first control valve 421 opens the first branch pipe 42, water entering the main pipe 41 can enter the water storage tank 111 through the first branch pipe 42, the water inlet pump 312 pumps the water storage tank 111 into the spray arm 3111, and the spray arm 3111 sprays water into the cooking cavity 11 through the water spray holes to clean the cooking cavity 11. The water in the cooking chamber 11 may flow back to the water storage tank 111 for recycling. After the washing is finished, the drain pump 322 operates to discharge the sewage in the cooking chamber 11.
In the description herein, references to the description of the term "one embodiment," "some embodiments," "an illustrative embodiment," "an example," "a specific example," or "some examples" or the like mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the present invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
While embodiments of the present invention have been shown and described, it will be understood by those of ordinary skill in the art that: various changes, modifications, substitutions and alterations can be made to the embodiments without departing from the principles and spirit of the invention, the scope of which is defined by the claims and their equivalents.
Claims (12)
1. A cooking apparatus, characterized by comprising:
a body having a cooking cavity therein;
the steam generator is arranged on the machine body and used for providing steam into the cooking cavity;
a washing unit for washing the cooking chamber;
and the steam generator and the cleaning unit are connected with the water supply pipe, and the water supply pipe can supply water to the steam generator and the cleaning unit.
2. The cooking apparatus according to claim 1, wherein the washing unit and the steam generator are disposed adjacent to each other.
3. The cooking apparatus according to claim 2, wherein the washing unit and the steam generator are both adjacent to a bottom of the body.
4. The cooking apparatus according to claim 1, wherein the water supply pipe includes:
a main pipe, wherein a water inlet is formed on the main pipe;
the first branch pipe is connected and communicated with the main pipe and is connected with the cleaning unit so as to supply water to the cleaning unit;
and the second branch pipe is connected and communicated with the main pipe, and the second branch pipe is connected with the steam generator to supply water to the steam generator.
5. The cooking apparatus according to claim 4, comprising:
the first control valve is arranged on the first branch pipe and used for opening and closing a channel of the first branch pipe;
and the second control valve is arranged on the second branch pipe and used for opening and closing the passage of the second branch pipe.
6. The cooking apparatus according to any one of claims 1 to 5, wherein the washing unit comprises:
a cleaning assembly for delivering water flowing into the water supply pipe into the cooking chamber and cleaning the cooking chamber;
a drain structure including a drain channel formed on a bottom wall of the cooking chamber.
7. The cooking apparatus of claim 6, wherein the drain structure comprises: and the drainage pump is arranged in the drainage channel.
8. The cooking apparatus of claim 6, wherein the washing assembly comprises:
the spraying piece is used for spraying cleaning liquid into the cooking cavity and movably arranged in the cooking cavity;
a water intake pump for delivering water flowing into the water supply pipe to the spray member.
9. The cooking apparatus of claim 8, wherein the spray member is rotatably disposed within the cooking chamber.
10. The cooking apparatus of claim 8, wherein a water storage tank is provided on a bottom wall of the cooking chamber, the water supply pipe supplies water to the water storage tank, and the shower member includes:
the spraying arm is provided with a water spraying hole;
the inlet tube, the one end of inlet tube with the spray arm links to each other, the inlet tube with the inner chamber intercommunication of spray arm, the other end of inlet tube is located in the aqua storage tank and with the aqua storage tank intercommunication, the intake pump is located in the inlet tube.
11. The cooking apparatus of claim 10, wherein a bottom wall of the cooking cavity excluding a portion where the water storage groove is provided is formed with a deflector extending downward in a direction adjacent to the water storage groove.
12. The cooking apparatus of claim 6, wherein the washing assembly comprises:
a water inlet pump for delivering water flowing into the water supply pipe into the cooking chamber;
the ultrasonic generator is arranged on the machine body.
