Abstract
本实用新型属于通讯技术领域，尤其为一种具有防尘散热功能的电子通信箱，包括包括箱体，所述箱体的侧面设置有防护板，所述箱体的内部设置有进风板，所述箱体的内部设置有支撑板，所述支撑板的侧面设置有第一电机，所述第一电机的输出端连接有第一传动轴，所述第一传动轴的表面设置有扇叶。通过两个以箱体为中心相互对称的防护板，提高了装置的防雨效果，通过扇叶旋转产生风力对箱内的装置进行吹动除尘，提高了装置的防尘效果，通过液体传输管道传输至水箱再经过半导体制冷器冷却后回流至水箱，提高了装置的散热和防尘的效果，通过滑块带动安装板在滑槽和支撑柱内部进行滑动，提高了装置的工作效率。
The utility model belongs to the technical field of communication, in particular to an electronic communication box with dustproof and heat dissipation function, comprising a box body, a side surface of the box body is provided with a protective plate, and an air inlet plate is arranged inside the box body, The inside of the box is provided with a support plate, the side of the support plate is provided with a first motor, the output end of the first motor is connected with a first transmission shaft, and the surface of the first transmission shaft is provided with fan blades . The rainproof effect of the device is improved by two mutually symmetrical protective plates centered on the box body, and the wind force generated by the rotation of the fan blades blows and removes dust from the device in the box, which improves the dustproof effect of the device. It is transmitted to the water tank and then cooled by the semiconductor refrigerator and then returned to the water tank, which improves the heat dissipation and dustproof effect of the device. The slider drives the mounting plate to slide inside the chute and the support column, which improves the working efficiency of the device.
Description
Technical Field
The utility model belongs to the technical field of the communication, concretely relates to electronic communication box with dustproof heat dissipation function.
Background
Communication technology, also called communication engineering (also called information engineering, telecommunication engineering, old called long-distance communication engineering, weak electricity engineering), is an important branch of electronic engineering and also one of the basic disciplines. The discipline focuses on the principles and applications of information transmission and signal processing in communication. Communication engineering has investigated the transmission of information in the form of electromagnetic, acoustic or light waves from a transmitting end (source) to one or more receiving ends (sinks) by means of electrical pulses.
The existing large-scale communication box placed outdoors has the common problems of heat dissipation and dust prevention in the operation process, and because of electrostatic adsorption and environmental factors, dust can be deposited in the communication box after being placed for a long time, the dust can be accumulated at the position of a ventilation hole generally, and heat generated by communication equipment during operation can not be discharged in time.
SUMMERY OF THE UTILITY MODEL
To solve the problems set forth in the background art described above. The utility model provides an electronic communication case with dustproof heat dissipation function has solved the dustproof radiating problem of electronic communication case.
In order to achieve the above object, the utility model provides a following technical scheme: an electronic communication box with dustproof and heat dissipation functions comprises a box body, wherein a protection plate is arranged on the side face of the box body, an air inlet plate is arranged inside the box body, a support plate is arranged on the side face of the air inlet plate, a first motor is arranged on the side face of the support plate, the output end of the first motor is connected with a first transmission shaft, fan blades are arranged on the surface of the first transmission shaft, a first filter plate is arranged inside the box body, a water tank is arranged at the bottom of the box body, a pressure water pump is arranged inside the water tank, the output end of the pressure water pump is connected with a liquid transmission pipeline, a second filter screen is arranged inside the box body, an air outlet plate is arranged on the side face of the second filter screen, a sliding groove is arranged on the back face of the box body, a second motor is arranged at the, the surface of lead screw is provided with the slider, the front of slider is provided with the mounting panel, the top of mounting panel is provided with the mounting bracket, the back of mounting bracket is provided with the third motor, the output of third motor is connected with the round brush through the second transmission shaft, the inside of box is provided with the pipe bracket.
Preferably, a supporting column is arranged inside the box body and on one side of the rolling brush, a hinge is arranged on the front face of the box body, a movable door is arranged on the side face of the hinge, and a handle is arranged on the front face of the movable door.
Preferably, the front end shape of guard plate is circular-arc, just leave the space that supplies the ventilation between guard plate and air inlet plate or the air-out board.
Preferably, the semiconductor refrigerator is arranged at the output end of the liquid transmission pipeline, and the semiconductor refrigerator is arranged at a return port arranged at the top of the water tank.
Preferably, the end of the mounting plate is T-shaped, and the T-shaped mounting plate is matched with a T-shaped groove formed in the support column.
Preferably, the rolling brush is arranged between the air outlet plate and the second filter screen.
Compared with the prior art, the beneficial effects of the utility model are that:
through two guard plates that use the box as the mutual symmetry of center, the function of the safety protection of device has been improved, blow the dust removal to the device of incasement through the rotatory wind-force that produces of flabellum, the dustproof effect of device has been improved, it flows back to the water tank after the semiconductor refrigerator cools off again to pass through liquid transmission pipeline transmission to the water tank, the heat dissipation and the dirt-proof effect of device have been improved, it slides inside spout and support column to drive the mounting panel through the slider, the work efficiency is improved, it brushes play tuber plate and second filter screen to rotate through the rolling brush, the dust collection efficiency is improved.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.
In the drawings:

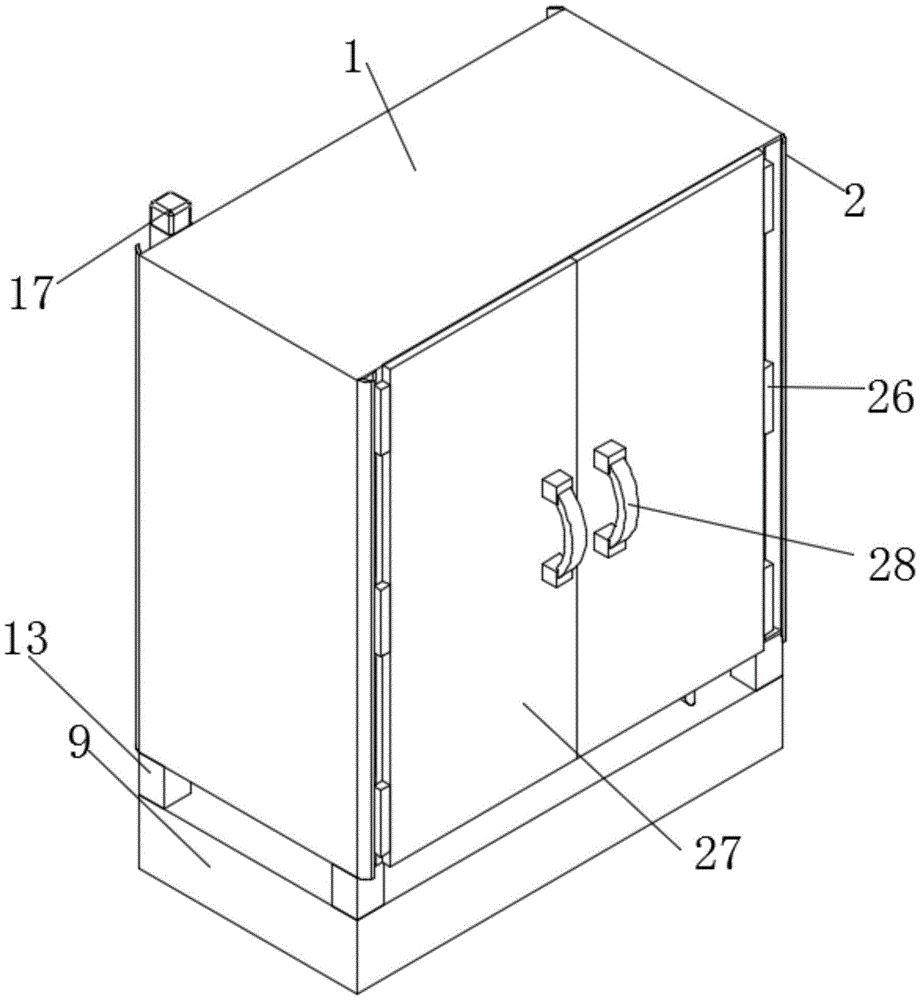

FIG. 1 is a schematic view of the three-dimensional structure of the present invention
FIG. 2 is an internal structural view of the present invention;
FIG. 3 is a front sectional view of the present invention;
fig. 4 is a side sectional view of the present invention;
fig. 5 is an exploded view of the present invention;
fig. 6 is a top sectional view of the present invention.
In the figure: 1, a box body; 2, protecting plates; 3, an air inlet plate; 4, supporting plates; 5 a first motor; 6 a first transmission shaft; 7 fan blades; 8 a first filter plate; 9, a water tank; 10, a pressure water pump; 11 a liquid transport conduit; 12 a semiconductor refrigerator; 13 support legs; 14 a second filter; 15 air outlet plate; 16 chutes; 17 a second motor; 18 lead screws; 19 a slide block; 20, mounting a plate; 21, mounting a frame; 22 a third motor; 23 a second drive shaft; 24, a rolling brush; 25 support columns; 26 a hinge; 27 a movable door; 28 handles, 29 pipe supports.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides the following technical solutions: an electronic communication box with dustproof and heat dissipation functions comprises a box body 1, wherein protection plates 2 are arranged on the side surfaces of the box body 1, the protection plates 2 are symmetrically arranged on two sides of the box body 1, a grid-shaped air inlet plate 3 is arranged on one side inside the box body 1, a support plate 4 is arranged on the side surface of the air inlet plate 3, a plurality of ventilation hole grooves are formed in the surface of the support plate 4, the upper end and the lower end of the ventilation hole grooves are connected with the inner wall of the box body 1, a first motor 5 is arranged on the side surface of the support plate 4, the output end of the first motor 5 is connected with a first transmission shaft 6, fan blades 7 are arranged on the surface of the first transmission shaft 6, a first filter plate 8 is arranged inside the box body 1 and on one side, away from the support plate 4, the bottom of the box body 1 is connected with a water tank 9 through supporting legs 13 (the box body 1 is, and the inside of the box 1 is provided with a pipeline bracket 29 for providing a bearing basis for the liquid transmission pipeline 11, as shown in fig. 3, the left side inside the box 1 is provided with a second filter screen 14 (mesh shape), the side surface of the second filter screen 14 is provided with an air outlet plate 15 (grid plate shape), the back surface of the box 1 is provided with a chute 16, the top of the chute 16 is provided with a second motor 17, the output end of the second motor 17 is connected with a screw rod 18, the surface of the screw rod 18 is provided with a slide block 19, the front surface of the slide block 19 is provided with a mounting plate 20, the top of the mounting plate 20 is provided with a mounting frame 21, the back surface of the mounting frame 21 is provided with a third motor 22, the output end of the third motor 22 is connected with a second transmission shaft 23, the surface of the second transmission shaft 23 is provided with a rolling brush 24, the rolling brush 24 is located between the air outlet plate 15 and the second, the dustproof effect of the device is improved. A supporting column 25 is arranged on one side, located on the rolling brush 24, inside the box body 1, a hinge 26 is arranged on the front face of the box body 1, a movable door 27 is arranged on the side face of the hinge 26, a handle 28 is arranged on the front face of the movable door 27, and a pipeline support 29 is arranged inside the box body 1.
Specifically, the front end of the protection plate 2 is arc-shaped, and a space for ventilation is reserved between the protection plate 2 at the left side and the air inlet plate 3, and between the protection plate 2 at the right side and the air outlet plate 15, so that external rainwater and the like are prevented from entering the box body 1, the safety protection function of the device is improved, the first motor 5 controls the first transmission shaft 6 to rotate, so that the fan blades 7 rotate to generate wind power to blow and remove dust for the device in the box, the dust-proof effect of the device is improved, the water in the water tank 9 is pumped to the liquid transmission pipeline 11 through the pressure water pump 10 and is transmitted back to the water tank 9 through the liquid transmission pipeline 11, so that the wind generated when the fan blades 7 rotate passes through the liquid transmission pipeline 11 to prevent dust of the communication box and improve the heat dissipation effect of air cooling, the liquid delivery pipe 11 is made more secure inside the tank 1 by the pipe bracket 29 provided in the tank 1.
The screw rod 18 is controlled to rotate through the second motor 17, the sliding block 19 drives the mounting plate 20 to slide inside the sliding groove 16 and the supporting column 25, the second transmission shaft 23 is controlled to rotate through the third motor 22, the rolling brush 24 is made to rotate to brush the air outlet plate 15 and the second filter screen 14, the filtered dust on the surface of the second filter screen 14 is brushed off, the air generated by the fan blades 7 blows the dust out of the box body 1, the dust removal efficiency of the device is improved, notches formed in the positions of the protection plates 2 on the two sides of the box body 1 are located on the side faces of the air inlet plate 3 and the air outlet plate 15, the external air enters the box body 1 through the air inlet plate 3 to be cooled and dedusted, and then flows out of the air outlet plate 15, and the heat dissipation and dustproof effects of the device. The input ends of the electric equipment in the equipment are electrically connected with an external power supply so as to realize operation and rotation.
Specifically, the quantity of first motor 5 is eight, and eight even distributions of first motor 5 are in the side of backup pad 4, through eight evenly distributed first motor 5 in backup pad 4 sides, make first motor 5 move simultaneously and blow the dust of box 1 inside, have improved the dustproof effect of device.
Specifically, the surface of the liquid transmission pipeline 11 is provided with the semiconductor refrigerator 12, and the semiconductor refrigerator 12 is located at a return port arranged at the top of the water tank 9, that is, the semiconductor refrigerator 12 is located at an open space between the tank body 1 and the water tank 9, the cold end of the semiconductor refrigerator 12, that is, the peltier device, is closely attached to the liquid transmission pipeline 11, and the hot end faces outwards, so that heat can be dissipated conveniently. The semiconductor refrigerator 12 enables water to circulate in the box body 1, then the water is cooled by the semiconductor refrigerator 12, and then the water enters the water tank 9 through the return port, so that the temperature of the water is reduced, and the heat dissipation effect of the device is improved.
Specifically, the end shape of the mounting plate 20 is T-shaped, and the mounting plate 20 of T-shaped is matched with the T-shaped groove formed inside the supporting column 25, and the mounting plate 20 of T-shaped slides inside the supporting column 25 formed with the T-shaped groove, so that the mounting plate 20 moves more stably, and the stability of the rolling brush 24 during operation is improved.
The utility model discloses a theory of operation and use flow: communication instrument equipment is arranged in the box body 1, holes (not shown in the figure) for wiring are formed in the back surface of the box body, external rainwater and the like are prevented from directly entering the box body 1 from the side edge through two arc-shaped protection plates 2 which are symmetrical to each other by taking the box body 1 as the center during operation, the safety protection function of the device is improved, the first motor 5 controls the first transmission shaft 6 to rotate, the fan blades 7 are enabled to rotate to generate wind power to blow and remove dust for the device in the box, the water in the water tank 9 is pumped to the liquid transmission pipeline 11 through the pressure water pump 10, the water is transmitted to the semiconductor refrigerator 12 through the liquid transmission pipeline 11 to be cooled and then flows back to the water tank 9 through the return port, the wind generated when the fan blades 7 rotate plays a role in heat dissipation and cooling for the communication box while being prevented dust by the liquid transmission pipeline 11, the screw rod 18 is controlled to rotate by the second motor 17, and the sliding block 19 drives, the second transmission shaft 23 is controlled to rotate by the third motor 22, so that the rolling brush 24 rotates to brush the air outlet plate 15 and the second filter screen 14, filtered dust on the surface of the second filter screen 14 is brushed, and then the wind generated by the fan blades 7 blows the dust out of the box body 1.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. The utility model provides an electronic communication box with dustproof heat dissipation function, includes box (1), the side of box (1) is provided with guard plate (2), its characterized in that: the air inlet plate (3) is arranged in the box body (1), the supporting plate (4) is arranged on the side face of the air inlet plate (3), the first motor (5) is arranged on the side face of the supporting plate (4), the output end of the first motor (5) is connected with the first transmission shaft (6), the fan blades (7) are arranged on the surface of the first transmission shaft (6), the first filter plate (8) is arranged in the box body (1), the water tank (9) is arranged at the bottom of the box body (1), the pressure water pump (10) is arranged in the water tank (9), the output end of the pressure water pump (10) is connected with the liquid transmission pipeline (11), the second filter screen (14) is arranged in the box body (1), the air outlet plate (15) is arranged on the side face of the second filter screen (14), the sliding groove (16) is arranged on the back face of the, the top of spout (16) is provided with second motor (17), the output of second motor (17) is connected with lead screw (18), the surface of lead screw (18) is provided with slider (19), the front of slider (19) is provided with mounting panel (20), the top of mounting panel (20) is provided with mounting bracket (21), the back of mounting bracket (21) is provided with third motor (22), the output of third motor (22) is connected with round brush (24) through second transmission shaft (23) the inside of box (1) is provided with pipe bracket (29).
2. The electronic communication box with the dustproof and heat dissipation function as set forth in claim 1, wherein: the inside of box (1) and the one side that is located round brush (24) are provided with support column (25), the front of box (1) is provided with hinge (26), the side of hinge (26) is provided with dodge gate (27), the front of dodge gate (27) is provided with handle (28).
3. The electronic communication box with the dustproof and heat dissipation function as set forth in claim 1, wherein: the front end shape of guard plate (2) is circular-arc, just leave the space that supplies the ventilation between guard plate (2) and air inlet plate (3) or air-out board (15).
4. The electronic communication box with the dustproof and heat dissipation function as set forth in claim 1, wherein: the surface of the liquid transmission pipeline (11) is provided with a semiconductor refrigerator (12), and the semiconductor refrigerator (12) is positioned at a return port arranged at the top of the water tank (9).
5. The electronic communication box with the dustproof and heat dissipation function as set forth in claim 2, wherein: the end part of the mounting plate (20) is T-shaped, and the T-shaped mounting plate (20) is matched with a T-shaped groove formed in the supporting column (25).
6. The electronic communication box with the dustproof and heat dissipation function as set forth in claim 1, wherein: the rolling brush (24) is arranged between the air outlet plate (15) and the second filter screen (14).
