Abstract
本实用新型公开了一种半导体元件分选用转盘，包括转盘，所述转盘通过底面的环形支撑块架设在支撑台上，所述转盘的盘面上呈圆形阵列设置有若干个夹紧机构，通过在转盘的盘面上呈圆形阵列设置四个对半导体元件进行固定的夹紧机构，使该转盘能够实现多工位同步操作，灵活性高，根据半导体元件的尺寸，转动手轮，使螺杆驱动两端的螺母座一和螺母座二相向或反向移动，将夹紧块一和夹紧块二调整到与半导元件相适配的间距，将半导体元件放置在夹紧块一和夹紧块二之间，进一步转动手轮，使螺杆驱动两端的螺母座一和螺母座二进一步带动夹紧块一和夹紧块二对半导体元件固定，使该夹紧机构能够实现对不同尺寸的半导体元件进行装夹固定。
This utility model discloses a semiconductor component sorting turntable, including a turntable mounted on a support platform via an annular support block on its bottom surface. Several clamping mechanisms are arranged in a circular array on the turntable surface. By arranging four clamping mechanisms in a circular array on the turntable surface to fix semiconductor components, the turntable can achieve multi-station synchronous operation with high flexibility. Depending on the size of the semiconductor component, rotating the handwheel causes the screw drive's two nut seats (one and two) to move in opposite directions, adjusting the clamping blocks (one and two) to a spacing suitable for the semiconductor component. The semiconductor component is then placed between the clamping blocks. Further rotating the handwheel causes the screw drive's two nut seats (one and two) to further drive the clamping blocks (one and two) to fix the semiconductor component, enabling the clamping mechanism to clamp and fix semiconductor components of different sizes.
Description
Technical Field
The utility model belongs to the technical field of semiconductor sorting; in particular to a turntable for sorting semiconductor elements.
Background
The semiconductor testing and sorting equipment is used for testing the bulk semiconductor devices packaged in large scale, sorting and printing braids, automatically finishing the work of rejecting unqualified products and collecting qualified products, and clamping and fixing the semiconductor elements by using a turntable in the sorting process.
The clamping size of the existing rotary table for the semiconductor elements in the semiconductor testing and sorting equipment is fixed, the semiconductor testing and sorting equipment is not beneficial to rotating to test and sort the semiconductor elements with different sizes, meanwhile, the existing rotary table supports and rotates through a single rotating shaft in the rotating process, stress points of the rotary table are concentrated, the rotary table is easy to deform in the long-time use process, and the service life of the rotary table is influenced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a carousel is selected for use to semiconductor component branch to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a turntable for sorting semiconductor components comprises a turntable, clamping mechanisms and a supporting table, wherein the turntable is erected on the supporting table through an annular supporting block on the bottom surface, and a plurality of clamping mechanisms are arranged on the surface of the turntable in an annular array;
clamping mechanism includes screw rod, nut seat one, nut seat two, presss from both sides tight piece one and presss from both sides tight piece two, it has seted up a plurality of bar grooves to be circular array on the quotation of carousel, the quantity in bar groove corresponds with clamping mechanism quantity, the inside in bar groove is provided with the screw rod along radial direction, the screw rod is opposite along central line position both ends screw thread turning, there are nut seat one and nut seat two at the both ends of screw rod through threaded connection, nut seat one is provided with on the surface and presss from both sides tight piece one, nut seat two is provided with on the surface and presss from both sides tight piece two, press from both sides tight piece one and press from both sides tight piece two and all be L type structure, and press from both sides tight piece one and press from both sides the L type opening of tight piece.
As a further aspect of the present invention: the supporting table is of a square cavity structure, a motor is fixedly arranged on the outer side face of the supporting table, an output shaft of the motor penetrates through the side face of the supporting table and is arranged inside the supporting table cavity and is connected with a bevel gear II, a rotating shaft is vertically arranged inside the supporting table cavity, the top of the rotating shaft penetrates through the top face of the supporting table and is fixedly connected with the center of the bottom face of the rotating disc, one end, located inside the supporting table cavity, of the rotating shaft is provided with a bevel gear I through key connection, and the bevel gear I is connected with the bevel gear.
As a further aspect of the present invention: the top surface of the supporting table is provided with an annular groove matched with the annular supporting block, the bottom end of the annular supporting block is rotatably connected in the annular groove of the supporting table, and the top end of the annular supporting block is fixedly connected with the bottom surface of the rotary table.
As a further aspect of the present invention: the outer wall that the screw rod runs through the bar groove is connected with the hand wheel.
As a further aspect of the present invention: the sliding grooves are formed in two sides of the inner portion of the strip-shaped groove along the longitudinal direction, sliding blocks matched with the sliding grooves are arranged on two sides of the first nut seat and the second nut seat, and the first nut seat and the second nut seat are connected into the sliding grooves of the strip-shaped groove in a sliding mode through the sliding blocks on the two sides.
As a further aspect of the present invention: t-shaped grooves are formed in the inner side faces of the vertical plates of the first clamping block and the second clamping block in the vertical direction, and auxiliary clamping frames are connected in the T-shaped grooves of the first clamping block and the second clamping block in a sliding mode.
The utility model has the advantages that:
1. this application sets up four clamping mechanism that fix to semiconductor element through being circular array on the quotation of carousel, make this carousel can realize multistation synchronous operation, the flexibility is high, simultaneously according to semiconductor element's size, the hand wheel is rotated, make nut seat one and nut seat two at screw drive both ends move in opposite directions or reverse direction, will press from both sides tight piece one and press from both sides tight piece two and adjust to the interval with semiconductor element looks adaptation, place semiconductor element and press from both sides tight piece one and press from both sides between tight piece two, further rotate the hand wheel, make nut seat one and nut seat two at screw drive both ends further drive and press from both sides tight piece one and press from both sides two pairs of semiconductor element of tight piece and fix, make this clamping mechanism can realize fixing the semiconductor element clamping of not unidimension, therefore, the clothes hanger is strong in practicability.
2. Through set up annular supporting shoe on the bottom surface at the carousel to make the carousel bigger at the rotation in-process stress face, avoid the carousel to concentrate because of the atress at the rotation in-process and take place to warp, improved the life of carousel.
Drawings
In order to facilitate understanding for those skilled in the art, the present invention will be further described with reference to the accompanying drawings.

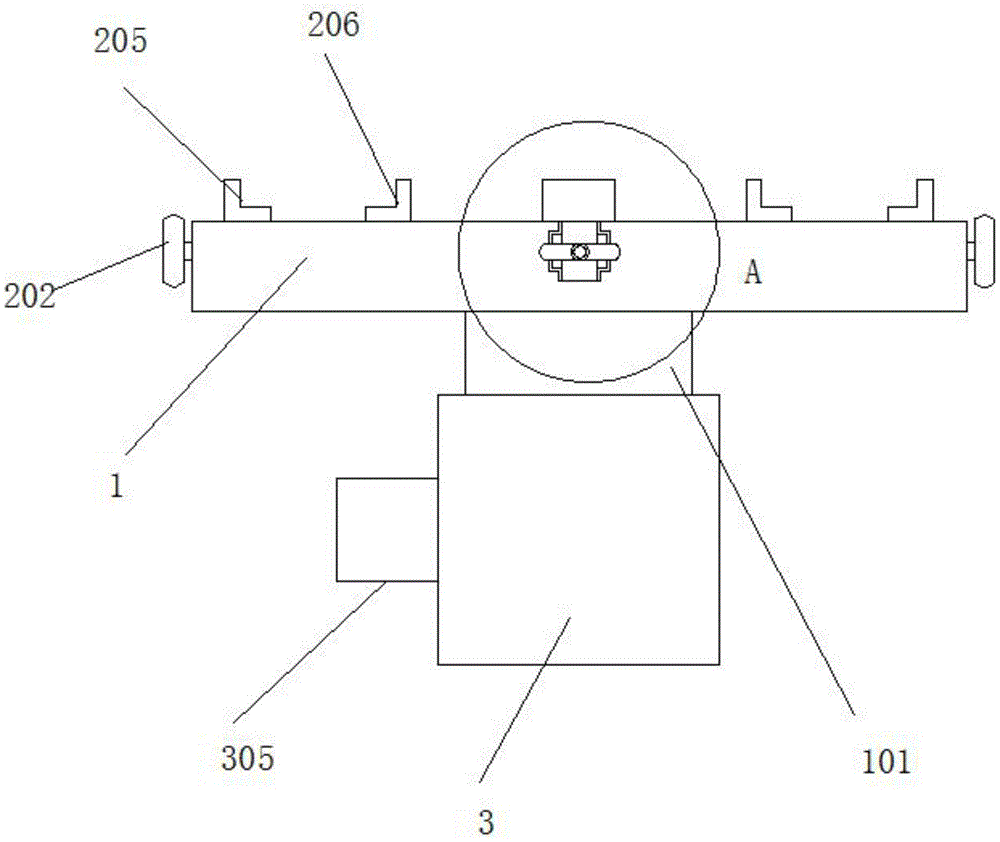

Fig. 1 is a schematic front view of a turntable for semiconductor device separation.
Fig. 2 is a schematic view of an internal structure of a turntable for semiconductor device separation.
FIG. 3 is a top view of a support table in a turntable for semiconductor device sorting.
Fig. 4 is a top view of a turntable in a semiconductor device sorting turntable.
Fig. 5 is an enlarged view of a portion a in fig. 1.
Fig. 6 is an enlarged view of fig. 4 at B.
In the figure: the device comprises a turntable 1, an annular supporting block 101, a strip-shaped groove 102, a clamping mechanism 2, a screw rod 201, a hand wheel 202, a first nut seat 203, a second nut seat 204, a first clamping block 205, a second clamping block 206, a T-shaped groove 207, an auxiliary clamping frame 208, a supporting table 3, an annular groove 301, a rotating shaft 302, a first bevel gear 303, a second bevel gear 304, a motor 305, a first nut, a second nut, a third nut, a fourth,
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, in an embodiment of the present invention, a turntable for semiconductor component sorting includes a turntable 1, a clamping mechanism 2 and a supporting table 3, wherein the turntable 1 is erected on the supporting table 3 through an annular supporting block 101 on a bottom surface, a plurality of clamping mechanisms 2 are arranged in an annular array in a disc surface of the turntable 1, and four clamping mechanisms 2 for fixing semiconductor components are arranged in a circular array in a disc surface of the turntable 1, so that the turntable 1 can realize multi-station synchronous operation and has high flexibility.
The clamping mechanism 2 comprises a screw 201, a first nut seat 203, a second nut seat 204, a first clamping block 205 and a second clamping block 206, a plurality of strip-shaped grooves 102 are formed in the disc surface of the turntable 1 in a circular array, the number of the strip-shaped grooves 102 corresponds to the number of the clamping mechanism 2, the screw 201 is arranged in the strip-shaped grooves 102 along the radial direction, the screw 201 is oppositely threaded along the two ends of the center line, the two ends of the screw 201 are connected with the first nut seat 203 and the second nut seat 204 through threads, the first clamping block 205 is arranged on the surface of the first nut seat 203, the second clamping block 206 is arranged on the surface of the second nut seat 204, the first clamping block 205 and the second clamping block 206 are both in L-shaped structures, the first clamping block 205 is arranged opposite to the L-shaped opening of the second clamping block 206, and the hand wheel 202 is rotated according to the size of a semiconductor element, so that the first nut seat 203 and the second nut seat 204 at the two ends are driven by the screw 201, adjusting the distance between the first clamping block 205 and the second clamping block 206 to be matched with the semiconductor element, placing the semiconductor element between the first clamping block 205 and the second clamping block 206, and further rotating the hand wheel 202 to enable the screw 201 to drive the first nut seat 203 and the second nut seat 204 at the two ends to further drive the first clamping block 205 and the second clamping block 206 to fix the semiconductor element, so that the clamping mechanism 2 can clamp and fix the semiconductor elements with different sizes.
The supporting table 3 is of a square cavity structure, a motor 305 is fixedly arranged on the outer side face of the supporting table 3, an output shaft of the motor 305 penetrates through the side face of the supporting table 3 and is arranged inside the cavity of the supporting table 3 and connected with a bevel gear II 304, a rotating shaft 302 is vertically arranged inside the cavity of the supporting table 3, the top of the rotating shaft 302 penetrates through the top face of the supporting table 3 and is fixedly connected with the center of the bottom face of the rotating disc 1, one end of the rotating shaft 302, which is located inside the cavity of the supporting table 3, is provided with a bevel gear I303 through a key connection, the bevel gear I303 is meshed with the bevel gear II 304, and the motor 305 drives the bevel gear II 304 to be meshed with the bevel gear I303 for transmission.
The top surface of the supporting table 3 is provided with an annular groove 301 matched with the annular supporting block 101, the bottom end of the annular supporting block 101 is rotatably connected in the annular groove 301 of the supporting table 3, and the top end of the annular supporting block 101 is fixedly connected with the bottom surface of the turntable 1, so that the stress surface of the turntable 1 is larger in the rotating process, the phenomenon that the turntable 1 is concentrated in the rotating process due to stress is avoided, and the service life of the turntable 1 is prolonged.
The screw 201 penetrates through the outer wall of the strip-shaped groove 102 and is connected with a hand wheel 202.
Sliding grooves are formed in two sides of the interior of the strip-shaped groove 102 along the longitudinal direction, sliding blocks matched with the sliding grooves are arranged on two sides of the first nut seat 203 and the second nut seat 204, and the first nut seat 203 and the second nut seat 204 are connected into the sliding grooves of the strip-shaped groove 102 in a sliding mode through the sliding blocks on the two sides.
T-shaped grooves 207 are formed in the inner side faces of the vertical plates of the first clamping block 205 and the second clamping block 206 in the vertical direction, an auxiliary clamping frame 208 is connected in the T-shaped grooves 207 of the first clamping block 205 and the second clamping block 206 in a sliding mode, and the clamping range of the first clamping block 205 and the second clamping block 206 on the semiconductor element is wider by additionally arranging the auxiliary clamping frame 208.
The working principle is as follows: four clamping mechanisms 2 for fixing semiconductor elements are arranged on the disc surface of a rotary disc 1 in a circular array, so that the rotary disc 1 can realize multi-station synchronous operation, a hand wheel 202 is rotated according to the size of the semiconductor elements, a screw 201 drives a first nut seat 203 and a second nut seat 204 at two ends to move oppositely or reversely, a first clamping block 205 and a second clamping block 206 are adjusted to be at a distance matched with the semiconductor elements, the semiconductor elements are placed between the first clamping block 205 and the second clamping block 206, the hand wheel 202 is further rotated, the screw 201 drives the first nut seat 203 and the second nut seat 204 at two ends to further drive the first clamping block 205 and the second clamping block 206 to fix the semiconductor elements, the clamping mechanisms 2 can clamp and fix the semiconductor elements with different sizes, a motor 305 drives a bevel gear two 304 to be meshed with a bevel gear one 303 for transmission, and the rotation of a rotating shaft 302 is realized, the rotating shaft 302 drives the rotating disc 1 to rotate, and the semiconductor testing and sorting equipment is sorted.
The foregoing is merely exemplary and illustrative of the structure of the invention, and various modifications, additions and substitutions as described in the detailed description may be made by those skilled in the art without departing from the structure or exceeding the scope of the invention as defined in the claims.
Claims (6)
