CN212553976U - A ham dividing device with automatic cleaning function - Google Patents
A ham dividing device with automatic cleaning function Download PDFInfo
- Publication number
- CN212553976U CN212553976U CN202020812519.0U CN202020812519U CN212553976U CN 212553976 U CN212553976 U CN 212553976U CN 202020812519 U CN202020812519 U CN 202020812519U CN 212553976 U CN212553976 U CN 212553976U
- Authority
- CN
- China
- Prior art keywords
- sliding
- screw rods
- cleaning
- sliding grooves
- motors
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cleaning In General (AREA)
Abstract
一种带有自动清洗功能的火腿分割装置，旨在解决工作台无法进行清洗的问题。其技术方案要点是：包括传送机构、工作台和切割装置，切割装置包括外壳以及多个切割机构，外壳由顶板、左侧板、右侧板、前侧板和后侧板拼接而成，左侧板的内侧壁开设有两个第一滑槽，左侧板的内部还开设有两个容纳槽，两个容纳槽与两个第一滑槽之间均开设有通孔，右侧板的内侧壁开设有两个第二滑槽，外壳的内部还设置有清洗装置和升降装置，升降装置包括两个第一电机、两根第一丝杆、两个第一滑块，两根滑杆和两个第二滑块，清洗装置包括清洗板、两个第二电机和两根第二丝杆。本实用新型通过升降装置和清洗装置的设置，达到自动清洗工作台的目的。
A ham dividing device with automatic cleaning function is designed to solve the problem that the workbench cannot be cleaned. The main points of the technical solution are: including a transmission mechanism, a worktable and a cutting device, the cutting device includes a casing and a plurality of cutting mechanisms, and the casing is formed by splicing a top plate, a left side plate, a right side plate, a front side plate and a rear side plate. The inner side wall of the side plate is provided with two first sliding grooves, the interior of the left side plate is also provided with two accommodating grooves, and through holes are opened between the two accommodating grooves and the two first sliding grooves, The inner side wall is provided with two second chutes, and the interior of the casing is also provided with a cleaning device and a lifting device. The lifting device includes two first motors, two first screw rods, two first sliding blocks, and two sliding rods. and two second sliding blocks, the cleaning device includes a cleaning plate, two second motors and two second screw rods. The utility model achieves the purpose of automatically cleaning the workbench through the arrangement of the lifting device and the cleaning device.
Description
Technical Field
The utility model relates to a ham processing technology field, more specifically say, it relates to a ham cutting device with self-cleaning function.
Background
The ham cutting tool which is most commonly used in the prior art is easy to disperse produced particles and waste fragments into a workshop when cutting, so that the odor of the salted meat is diffused indoors, and the indoor sanitation and the air environment are poor. In addition, the motor, the transmission part, the saw blade and the like of the whole cutting machine are in an exposed state, so that potential safety hazards are formed for the operation.
In the prior art, a shell is used for wrapping a workbench to prevent particles from scattering from the workbench, for example, a Chinese patent with publication number of CN207771896U discloses a ham cutting device which comprises a conveyor belt and a workbench positioned on one side of a blanking end of the conveyor belt, wherein a cutting device and supporting legs are respectively arranged above and below the workbench; the cutting device comprises a shell and a plurality of cutting mechanisms, a shell side plate is arranged along the edge of the workbench in a frame body manner, a feed port is formed in one side of the shell side plate close to the conveyor belt, and a discharge port is formed in the other side of the shell side plate; the cutting mechanism comprises a telescopic connecting rod and a cutting knife fixed at the lower end of the telescopic connecting rod, the telescopic connecting rod penetrates through the shell, and the cutting knife is positioned in the shell; the workbench is provided with a plurality of filtering holes, a slotted hole is formed in the position corresponding to the cutting knife, and a slag recovery box is arranged below the workbench; according to the utility model discloses device is cut apart to ham, when cutting the ham, the particle piece that produces when can also cutting apart the ham is concentrated and is collected.
However, in the utility model, because the workstation is being wrapped up by the shell, can not wash the workstation, long time in the past, can breed a large amount of bacteriums on the workstation.
The utility model provides a technical scheme solves foretell workstation and can't carry out abluent problem.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art exists, the utility model aims to provide a ham cutting device with self-cleaning function through elevating gear and belt cleaning device's setting, reaches the purpose of self-cleaning workstation.
The above technical purpose of the present invention can be achieved by the following technical solutions: a ham cutting device with an automatic cleaning function comprises a conveying mechanism, a workbench and a cutting device, wherein a plurality of filter holes are formed in the workbench, the cutting device comprises a shell and a plurality of cutting mechanisms, the shell is formed by splicing a top plate, a left side plate, a right side plate, a front side plate and a rear side plate, each cutting mechanism comprises a telescopic connecting rod fixed on the top plate and a cutting knife fixed at the lower end of the telescopic connecting rod, two first sliding grooves are formed in the inner side wall of the left side plate, two accommodating grooves respectively corresponding to the two first sliding grooves are formed in the left side plate, through holes are formed between the two accommodating grooves and the two first sliding grooves and used for communicating the accommodating grooves with the first sliding grooves, two second sliding grooves are formed in the inner side wall of the right side plate, a cleaning device used for cleaning the workbench and a lifting device used for lifting the cleaning device are further arranged in the shell, the lifting device comprises two first motors, two first screw rods, two first sliding blocks, two sliding rods and two second sliding blocks, wherein the two first motors are respectively arranged in the two accommodating grooves, the two first screw rods are respectively fixedly connected with output shafts of the two first motors, the other ends of the two first screw rods respectively penetrate into the two first sliding grooves through two through holes and are rotatably connected with groove walls of the two first sliding grooves, the two first sliding blocks are respectively sleeved on the two first screw rods, the two first sliding blocks are respectively connected with the two first screw rods through threads, the two first sliding blocks are respectively inserted into the two first sliding grooves and slide in the two first sliding grooves, the two sliding rods are respectively arranged in the two second sliding grooves, the two second sliding blocks are respectively sleeved on the two sliding rods, the two second sliding blocks are respectively inserted into the two second sliding grooves and slide in the two second sliding grooves, the cleaning device comprises a cleaning plate, two second motors and two second screw rods, the two second screw rods are symmetrically arranged, the cutting mechanism is located between the two second screw rods, the two second motors are fixedly connected with the two first sliding blocks respectively, one ends of the two second screw rods are fixedly connected with output shafts of the two second motors respectively, and the other ends of the two second screw rods are rotatably connected with the two second sliding blocks through bearings respectively.
The utility model discloses further set up to: the lower end surface of the cleaning plate is detachably connected with a sponge sleeve.
The utility model discloses further set up to: the cleaning plate is provided with an annular clamping groove, and the sponge sleeve is connected with the annular clamping groove in a matched mode.
The utility model discloses further set up to: the inner wall of the top plate is also provided with a small fan, and the air exhaust direction of the small fan faces the filter holes.
The utility model discloses further set up to: the surface of the cutting knife is coated with a Teflon coating.
The utility model discloses further set up to: the first motor and the second motor are both alternating current motors and are both connected with reversing switches.
To sum up, the utility model discloses following beneficial effect has:
the utility model provides a ham cutting device with self-cleaning function, after the cutting was accomplished, shrink cutting mechanism descends belt cleaning device through elevating gear, and cleaning plate and workstation contact start belt cleaning device, cleaning plate back and forth movement on the workstation washs the workstation automatically.
Drawings

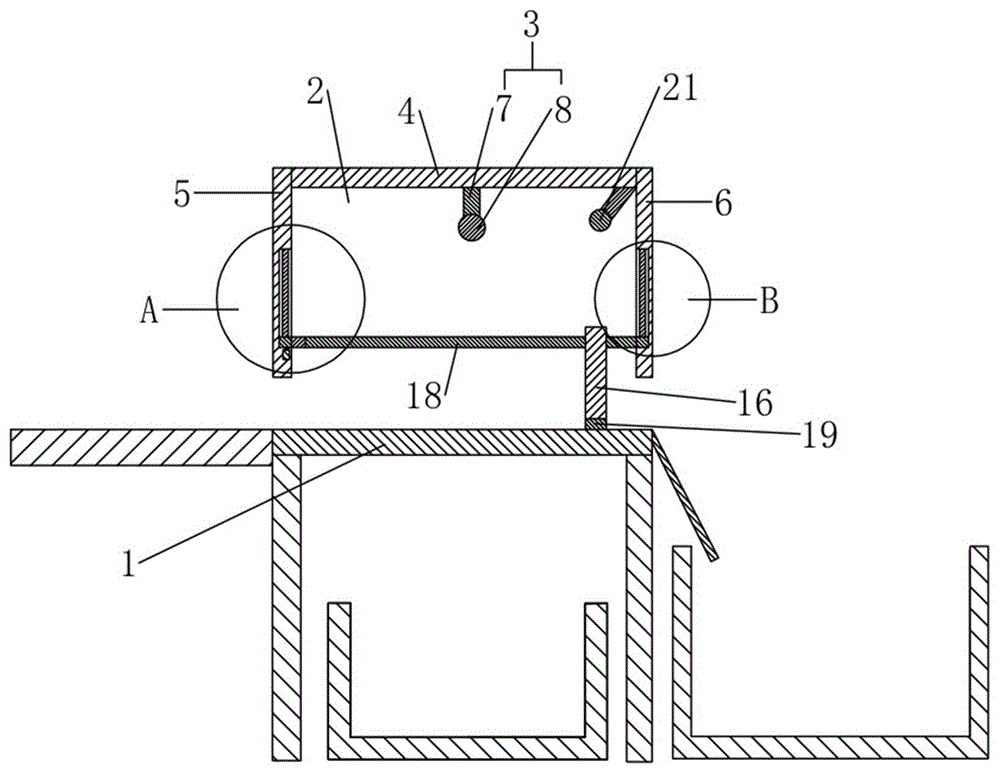

FIG. 1 is a schematic view of the overall structure of a ham cutting device with an automatic cleaning function of the present invention, which is mainly used for showing the overall structure of the present invention;
fig. 2 is a schematic structural view of a cleaning device and a lifting device of a ham cutting device with an automatic cleaning function of the present invention, which is mainly used for showing the position relationship and the connection relationship between the cleaning device and the lifting device;
FIG. 3 is an enlarged view taken at A in FIG. 1, and is mainly used for showing the internal structure of the left side plate;
fig. 4 is an enlarged view of fig. 1 at B, and is mainly used for representing the internal structure of the right side plate.
In the figure: 1. a work table; 2. a housing; 3. a cutting mechanism; 4. a top plate; 5. a left side plate; 6. a right side plate; 7. a telescopic connecting rod; 8. a cutting knife; 9. a first chute; 10. a second chute; 11. a first motor; 12. a first lead screw; 13. a first slider; 14. a slide bar; 15. a second slider; 16. cleaning the plate; 17. a second motor; 18. a second lead screw; 19. a sponge sleeve; 20. an annular neck; 21. a small fan.
Detailed Description
The present invention will be described in detail with reference to the accompanying drawings and examples.
A ham cutting device with an automatic cleaning function comprises a conveying mechanism, a workbench 1 and a cutting device, wherein a plurality of filter holes are formed in the workbench 1, the cutting device comprises a shell 2 and a plurality of cutting mechanisms 3, the shell 2 is formed by splicing a top plate 4, a left side plate 5, a right side plate 6, a front side plate and a rear side plate, the left side plate 5 and the workbench 1 form a feed inlet, the right side plate 6 and the workbench 1 form a discharge outlet, the cutting mechanism 3 comprises a telescopic connecting rod 7 fixed on the top plate 4 and a cutting knife 8 fixed at the lower end of the telescopic connecting rod 7, two first sliding grooves 9 are formed in the inner side wall of the left side plate 5, two accommodating grooves respectively corresponding to the positions of the two first sliding grooves 9 are further formed in the left side plate 5, through holes are formed between the two accommodating grooves and the two first sliding grooves 9 and are used for communicating the accommodating, the inner side wall of the right side plate 6 is provided with two second chutes 10, the inside of the shell 2 is also provided with a cleaning device for cleaning the workbench 1 and a lifting device for lifting the cleaning device, the lifting device comprises two first motors 11, two first screw rods 12, two first slide blocks 13, two slide rods 14 and two second slide blocks 15, the two first motors 11 are respectively arranged in the two accommodating grooves, the two first screw rods 12 are respectively fixedly connected with output shafts of the two first motors 11, the other ends of the two first screw rods 12 respectively penetrate the two first chutes 9 through two through holes and are rotatably connected with the groove walls of the two first slide grooves 9, the two first slide blocks 13 are respectively sleeved on the two first screw rods 12, the two first slide blocks 13 are respectively connected with the two first screw rods 12 through threads, the two first slide blocks 13 are respectively inserted into the two first slide grooves 9 and slide in the two first slide grooves 9, the two slide bars 14 are respectively installed in the two second sliding grooves 10, the two second sliding blocks 15 are respectively sleeved on the two slide bars 14, the two second sliding blocks 15 are respectively inserted into the two second sliding grooves 10 and slide in the two second sliding grooves 10, the cleaning device comprises a cleaning plate 16, two second motors 17 and two second screw rods 18, the two second screw rods 18 are symmetrically arranged, the cutting mechanism 3 is located between the two second screw rods 18, the two second motors 17 are respectively and fixedly connected with the two first sliding blocks 13, one ends of the two second screw rods 18 are respectively and fixedly connected with output shafts of the two second motors 17, and the other ends of the two second screw rods 18 are respectively and rotatably connected with the two second sliding blocks 15 through bearings.
Preferably, a sponge case 19 is detachably attached to the lower end surface of the cleaning plate 16.
Preferably, the cleaning plate 16 is provided with an annular clamping groove 20, and the sponge sleeve 19 is connected with the annular clamping groove 20 in a matching manner.
Preferably, the first motor 11 and the second motor 17 are both ac motors and are both connected with a reversing switch
When ham is required to be cut, the first sliding block 13 is located at the top end of the first sliding groove 9, the cleaning plate 16 is close to the second motor 17, the telescopic connecting rod 7 extends, the cutting knife 8 is driven to penetrate through the two second screw rods 18, and the ham on the workbench 1 is cut. After cutting, the telescopic connecting rod 7 is contracted, the telescopic connecting rod 7 drives the cutting knife 8 to move upwards, then the first motor 11 is started, the output shaft of the first motor 11 rotates clockwise, so as to drive the first slide block 13 to move downwards along the first chute 9, the first slide block 13 moves downwards to drive the second motor 17 and the second screw rod 18 to move downwards, so as to drive the cleaning plate 16 to move downwards, when the annular clamping groove 20 on the cleaning plate 16 can be seen from the feed inlet, the first motor 11 is stopped first, the prepared wet sponge sleeve 19 soaked with the cleaning agent is sleeved on the lower end face of the cleaning plate 16, then the first motor 11 is restarted, the output shaft of the first motor 11 continues to rotate clockwise, when the first slide block 13 moves to the bottommost end of the first chute 9, the sponge sleeve 19 is contacted with the workbench 1 and is tightly pressed on the workbench 1, at this time, the cutting mechanism 3 is positioned above the cleaning plate 16, will not cause the influence to the removal of wasing board 16, close first motor 11 after that, start second motor 17, the output shaft clockwise rotation of second motor 17, thereby drive and wash board 16 and remove curb plate 6 right, remove the in-process again and wash workstation 1, after wasing board 16 and right curb plate 6 contact, the rethread is the switch of reversing, make the output shaft counter-clockwise turning of second motor 17, wash board 16 and remove curb plate 5 left, so this circulation is reciprocal several times, can be with 1 sanitization of workstation. After the cleaning is finished, the cleaning plate 16 is moved to a position close to the left side plate 5, the output shaft of the first motor 11 is rotated anticlockwise through the reversing switch, the first sliding block 13 moves upwards, the first motor 11 is stopped after the first sliding block 13 moves upwards for a distance, the sponge sleeve 19 is detached, then the first motor 11 is restarted, the output shaft of the first motor 11 continues to rotate anticlockwise, and the first sliding block 13 moves upwards to the top end of the first sliding groove 9 to return to the original state.
In the above working process, if the foam generated by the detergent attached to the working table is considered to be removed, the clean sponge case 19 is replaced again, and the operation is performed again according to the above principle, and the detailed description is omitted in the present embodiment.
It should be noted that how to realize the synchronous rotation of the two motors is a mature prior art because the two first motors 11 rotate synchronously and the two second motors 17 rotate synchronously, and various modes such as a PLC controller can be adopted, which is not described in detail in this embodiment.
Preferably, the inner wall of the top plate 4 is further provided with a small fan 21, and the air discharge direction of the small fan 21 is directed to the filtering hole. The small fan 21 can blow a part of the slag fragments which do not pass through the filtering holes to the filtering holes, so that excessive quenching slag fragments are prevented from being clamped by the cut hams.
Preferably, the surface of the cutting blade 8 is coated with a teflon coating. Teflon coating has the characteristics of non-adhesiveness, abrasion resistance and corrosion resistance, can avoid the adhesion of particle fragments on cutting knife 8, and avoid long-time corrosion of cutting knife 8 by the oil on the ham, thereby prolonging the service life of cutting knife 8.
It is above only the utility model discloses a preferred embodiment, the utility model discloses a scope of protection does not only confine above-mentioned embodiment, the all belongs to the utility model discloses a technical scheme under the thinking all belongs to the utility model discloses a scope of protection. It should be noted that, for those skilled in the art, various modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.
Claims (6)
1. The utility model provides a ham segmenting device with self-cleaning function, includes transport mechanism, workstation (1) and cutting device, a plurality of filtration pores of crossing have been seted up on workstation (1), cutting device includes shell (2) and a plurality of cutting mechanism (3), shell (2) are formed by roof (4), left side board (5), right side board (6), preceding curb plate and posterior lateral plate concatenation, and cutting mechanism (3) are including being fixed in telescopic link (7) of roof (4) and being fixed in cutting knife (8) of telescopic link (7) lower extreme, its characterized in that: the inner side wall of the left side plate (5) is provided with two first sliding grooves (9), the inside of the left side plate (5) is further provided with two accommodating grooves corresponding to the positions of the two first sliding grooves (9) respectively, through holes are formed between the two accommodating grooves and the two first sliding grooves (9) and used for communicating the accommodating grooves with the first sliding grooves (9), the inside wall of the right side plate (6) is provided with two second sliding grooves (10), the inside of the shell (2) is further provided with a cleaning device used for cleaning the workbench (1) and a lifting device used for lifting the cleaning device, the lifting device comprises two first motors (11), two first screw rods (12), two first sliding blocks (13), two sliding rods (14) and two second sliding blocks (15), and the two first motors (11) are arranged in the two accommodating grooves respectively, the two first screw rods (12) are respectively fixedly connected with output shafts of two first motors (11), the other ends of the two first screw rods (12) penetrate into the two first sliding grooves (9) through the two through holes respectively and are rotatably connected with groove walls of the two first sliding grooves (9), the two first sliding blocks (13) are respectively sleeved on the two first screw rods (12), the two first sliding blocks (13) are respectively connected with the two first screw rods (12) through threads, the two first sliding blocks (13) are respectively inserted into the two first sliding grooves (9) and slide in the two first sliding grooves (9), the two sliding rods (14) are respectively installed in the two second sliding grooves (10), the two second sliding blocks (15) are respectively sleeved on the two sliding rods (14), the two second sliding blocks (15) are respectively inserted into the two second sliding grooves (10) and slide in the two second sliding grooves (10), the cleaning device comprises a cleaning plate (16), two second motors (17) and two second screw rods (18), wherein the two second screw rods (18) are symmetrically arranged, the cutting mechanism (3) is positioned between the two second screw rods (18), the two second motors (17) are fixedly connected with the two first sliding blocks (13) respectively, one ends of the two second screw rods (18) are fixedly connected with output shafts of the two second motors (17) respectively, and the other ends of the two second screw rods (18) are rotatably connected with the two second sliding blocks (15) through bearings respectively.
2. The ham splitting device with automatic washing function as claimed in claim 1, wherein: the lower end surface of the cleaning plate (16) is detachably connected with a sponge sleeve (19).
3. The ham splitting device with automatic washing function as claimed in claim 2, wherein: an annular clamping groove (20) is formed in the cleaning plate (16), and the sponge sleeve (19) is connected with the annular clamping groove (20) in a matched mode.
4. The ham splitting device with automatic washing function as claimed in claim 1, wherein: the inner wall of the top plate (4) is also provided with a small fan (21), and the air exhaust direction of the small fan (21) faces the filter holes.
5. The ham splitting device with automatic washing function as claimed in claim 1, wherein: the surface of the cutting knife (8) is coated with a Teflon coating.
6. The ham splitting device with automatic washing function as claimed in claim 1, wherein: the first motor (11) and the second motor (17) are both alternating current motors and are both connected with a reversing switch.
