CN212553061U

CN212553061U - A convenient mobile burr removal device for steel processing

Info

Publication number: CN212553061U
Application number: CN202020920828.XU
Authority: CN
Inventors: 徐妍
Original assignee: Individual
Current assignee: Shenyang Kainuo Materials Co Ltd
Priority date: 2020-05-27
Filing date: 2020-05-27
Publication date: 2021-02-19
Anticipated expiration: 2030-05-27

Abstract

The utility model discloses a convenient moving burr removal device for steel processing, which belongs to the technical field of steel body processing. The lower surface of the table board is fixedly connected with the upper surface of the collection cover, the lower surface of the collection cover is fixedly connected with the upper surface of the base, and the front of the collection cover is provided with a drawer slot. The easy-to-move burr removal device for steel processing uses a motor, a burr brush, a movable plate and a fixed plate to fix the steel body in the fixed plate, adjust the position of the rotating shaft and the burr brush through a threaded rod, and pull the handle on the front of the movable plate , so that the movable plate drives the steel body to slide back and forth in the table board, so that the entire upper surface of the steel body can be in contact with the burr brush without moving the burr brush, which is convenient for the staff to operate and improves the processing efficiency.

Description

Convenient burr clearing device for steel processing that removes

Technical Field

The utility model belongs to the technical field of steel processing, specifically be a burr clearing device is used in steel processing of convenient removal.

Background

The deburring technology receives whole industry attention, the deburring is particularly important in accurate components such as steel, metal, five metals, therefore, steel processing manufacture process often increases a deburring technology, the trimming, get rid of stainless steel burr, can rationally optimize the remaining phenomenon of burr through the burr clearance, current burr clearing device for steel processing, during the deburring, the piece that produces after the deburring is easily scattered, be not convenient for clear up, and when clearing up the burr to the different positions of steel, always will remove the burr brush, the efficiency of processing has still been reduced when the staff's of being not convenient for operation.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

In order to overcome the above-mentioned defect of prior art, the utility model provides a burr clearing device is used in steel processing of convenient removal has solved current burr clearing device is used in steel processing, during the burring, the piece that produces after the burring is scattered easily, is not convenient for clear up to when clearing up the burr of steel different positions, always will remove the burr brush, still reduced the problem of the efficiency of processing when the staff's operation of being not convenient for.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: a burr clearing device for steel processing convenient to move comprises a base, wherein four corners of the upper surface of the base are fixedly connected with four corners of the lower surface of a table plate through stand columns, the lower surface of the table plate is fixedly connected with the upper surface of a collecting cover, the lower surface of the collecting cover is fixedly connected with the upper surface of the base, a drawer groove is formed in the front of the collecting cover, a drawer cabinet is clamped in the drawer groove, first sliding grooves are formed in the left side surface and the right side surface of the inner wall of the table plate, first sliding blocks are connected in the first sliding grooves in a sliding mode, one surfaces, close to each other, of the first sliding blocks are fixedly connected with the left side surface and the right side surface of a movable plate respectively, two second sliding grooves are formed in the front surface and the back surface of the inner wall of the movable plate, second sliding blocks are connected in the second sliding grooves in a sliding mode, the left surface of fixed plate is through the left surface fixed connection of two first telescopic links and two springs and fly leaf inner wall, the spring cup joints at first telescopic link outer wall, the front and the back of fly leaf inner wall and the both ends fixed connection who places the board, two the opposite face joint of fixed plate has the steel body, the lower surface of steel body and the upper surface overlap joint of placing the board.

As a further aspect of the present invention: the upper surface of table passes through the lower fixed surface connection of second telescopic link with the pallet, there is the threaded rod through thread bush threaded connection in the pallet.

As a further aspect of the present invention: the top of threaded rod and the lower fixed surface of carousel are connected, the bottom of threaded rod passes through the bearing joint at the upper surface of table.

As a further aspect of the present invention: the upper surface of pallet and the lower fixed surface of motor are connected, the output of motor and the right-hand member fixed connection of pivot, the bearing joint is passed through in the third telescopic link in the pivot, the lower surface of third telescopic link and the upper fixed surface of table are connected.

As a further aspect of the present invention: the outer wall of pivot is provided with the burr brush, the four corners department of base lower surface all is provided with the universal wheel, the upper surface shape of fixed plate sets up to the arc.

As a further aspect of the present invention: the front of drawer cabinet is provided with the handle, the front of fly leaf is provided with the handle, two the one side that the fixed plate kept away from each other all is provided with the handle.

(III) advantageous effects

Compared with the prior art, the beneficial effects of the utility model reside in that:

1. this convenient burr clearing device for steel processing that removes, through setting up the motor, the burr brush, fly leaf and fixed plate, when the staff need carry out the burr and drive, fix the steel body in the fixed plate, position through threaded rod regulation pivot and burr brush, after burr brush and steel body upper surface contact, the positive handle of pulling fly leaf, make the fly leaf drive the steel body slide around going on in the table, make the whole upper surface homoenergetic of steel body contact with the burr brush, need not remove the burr brush, still improved the efficiency of processing when the staff's of being convenient for operation.

2. This convenient burr clearing device for steel processing that removes collects cover, drawer groove and drawer cabinet through the setting for the staff is when carrying out the burring, and the piece that produces falls into through the fly leaf and collects the cover in, collects through collecting the cover, finally collects in the drawer cabinet, makes the piece be difficult to scatter all around, is convenient for clear up, keeps device internal environment's clean and tidy.

3. This convenient burr clearing device for steel processing that removes, through setting up the second slider, the fixed plate, first telescopic link and spring, because the upper surface of fixed plate is the arc for the shape, when the staff need carry out the burr to different steel bodies and clear away, directly press the steel body, the steel body just can block to in two fixed plates, through the cooperation of first telescopic link and spring, the steel body just is fixed on placing the board, be convenient for fix the steel body, this burr clearing device's security has been improved.

Drawings

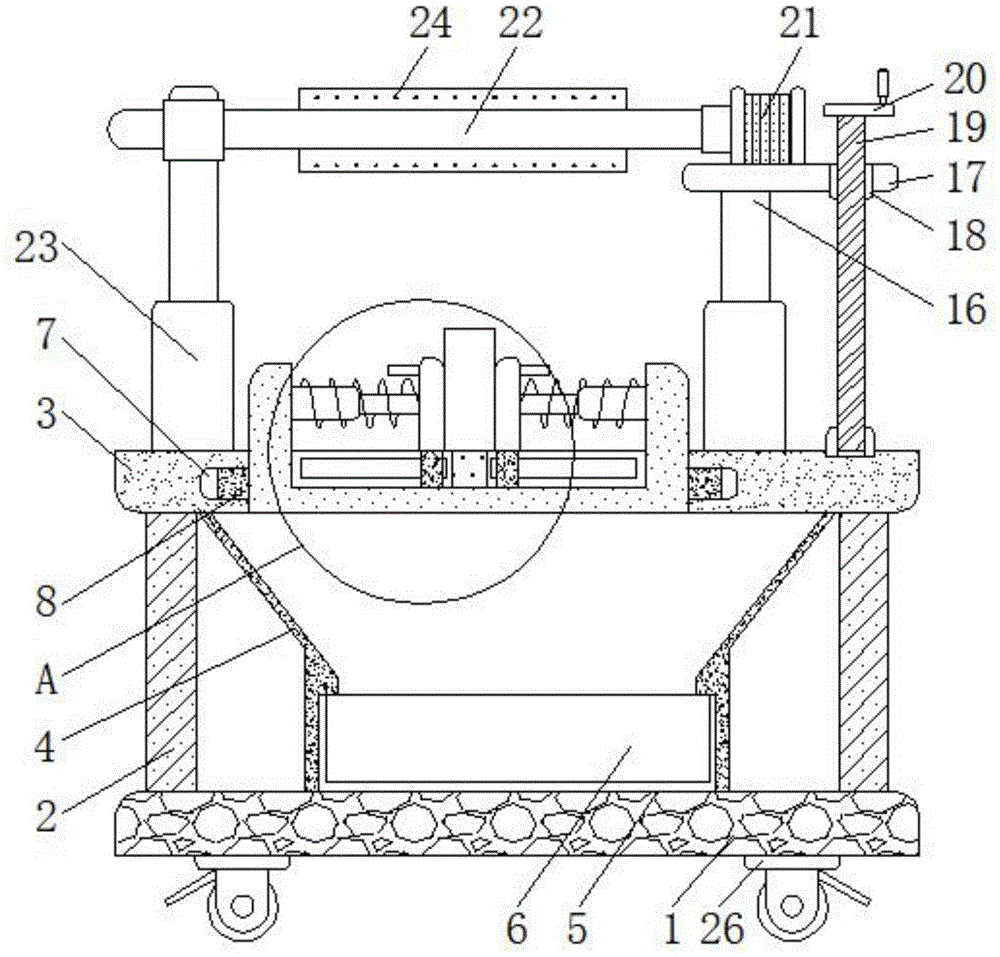

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;

FIG. 2 is a front view of the present invention;

fig. 3 is a schematic structural view of the movable plate of the present invention viewed from above;

FIG. 4 is an enlarged schematic view of the A position of the present invention

In the figure: the device comprises a base 1, a column 2, a table 3, a collecting cover 4, a drawer groove 5, a drawer cabinet 6, a first sliding groove 7, a first sliding block 8, a movable plate 9, a second sliding groove 10, a second sliding block 11, a fixed plate 12, a first telescopic rod 13, a spring 14, a placing plate 15, a second telescopic rod 16, a table 17, a threaded sleeve 18, a threaded rod 19, a rotating disc 20, a motor 21, a rotating shaft 22, a third telescopic rod 23, a burr brush 24, a steel body 25 and a universal wheel 26.

Detailed Description

The technical solution of the present patent will be described in further detail with reference to the following embodiments.

As shown in fig. 1-4, the utility model provides a technical solution: a burr removing device convenient to move for steel processing comprises a base 1, four corners of the upper surface of the base 1 are fixedly connected with four corners of the lower surface of a table plate 3 through upright posts 2, the lower surface of the table plate 3 is fixedly connected with the upper surface of a collecting cover 4, the lower surface of the collecting cover 4 is fixedly connected with the upper surface of the base 1, a drawer groove 5 is formed in the front surface of the collecting cover 4, a drawer cabinet 6 is connected in the drawer groove 5 in a clamping manner, debris generated after burr removing is convenient to collect through the arrangement of the collecting cover 4 and the drawer cabinet 6, the neatness of the interior of the burr removing device is kept, first sliding grooves 7 are formed in the left side surface and the right side surface of the inner wall of the table plate 3, first sliding blocks 8 are connected in the first sliding grooves 7 in a sliding manner, one surfaces, close to each other, of the two first sliding blocks 8 are fixedly connected with the left side surface and the right side surface of a, the movable plate 9 can move forward and backward more conveniently, and the burr on the whole upper surface of the steel body 25 can be removed more conveniently and quickly, the front and back of the inner wall of the movable plate 9 are both provided with two second chutes 10, the second chutes 10 are connected with the second slide block 11 in a sliding manner, the back of the second slide block 11 is fixedly connected with the front of the fixed plate 12, the fixed plate 12 can slide left and right more stably by the arrangement of the second chutes 10 and the second slide block 11, the left side of the fixed plate 12 is fixedly connected with the left side of the inner wall of the movable plate 9 by two first telescopic rods 13 and two springs 14, the spring 14 is sleeved on the outer wall of the first telescopic rod 13, the two fixed plates 12 can fix the steel body 25 conveniently by the arrangement of the first telescopic rods 13 and the springs 14, and the front and back of the inner wall of the movable plate 9 are fixedly connected with the two ends, the opposite face joint of two fixed plates 12 has steel body 25, and steel body 25's lower surface and the upper surface overlap joint of placing board 15.

Specifically, as shown in fig. 1 and 2, the upper surface of table 3 passes through the lower fixed surface of second telescopic link 16 and pallet 17 and is connected, there is threaded rod 19 through 18 threaded connection of thread bush in the pallet 17, through setting up thread bush 18 and threaded rod 19, make pallet 17 can drive motor 21 and reciprocate, the convenience carries out the burr to steel body 25 of co-altitude and clears away, the top of threaded rod 19 and the lower fixed surface of carousel 20 are connected, through setting up carousel 20, make convenient and fast more during rotatory threaded rod 19, the bearing joint is passed through at the upper surface of table 3 in the bottom of threaded rod 19.

Specifically, as shown in fig. 1, 3 and 4, the upper surface of the pallet 17 is fixedly connected with the lower surface of the motor 21, the output end of the motor 21 is fixedly connected with the right end of the rotating shaft 22, the rotating shaft 22 is clamped in the third telescopic rod 23 through a bearing, the rotating shaft 22 can rotate more stably while moving up and down by arranging the third telescopic rod 23, the stability of the deburring device is enhanced, the lower surface of the third telescopic rod 23 is fixedly connected with the upper surface of the table 3, the outer wall of the rotating shaft 22 is provided with the burr brush 24, the deburring is more convenient and faster by arranging the burr brush 24, the universal wheels 26 are arranged at the four corners of the lower surface of the base 1, the upper surface of the fixing plate 12 is arc-shaped, by arranging the upper surface of the fixing plate 12 into arc-shaped, when the steel body 25 needs to be deburred, the steel body 25 is directly pressed down from the upper parts of the two fixing, the steel body 25 can be snapped into the two fixing plates 12, so that the operation is more convenient.

Specifically, as shown in fig. 2 to 4, the front of the drawer cabinet 6 is provided with a handle, and the handle is arranged on the front of the drawer cabinet 6, so that the scrap in the drawer cabinet 6 can be poured more conveniently and quickly, the handle is arranged on the front of the movable plate 9, so that the movable plate 9 can be moved back and forth more conveniently, the burr on the whole upper surface of the steel body 25 can be removed more conveniently and quickly, and the handle is arranged on one surface of the two fixing plates 12 away from each other.

The utility model discloses a theory of operation does:

s1, when the worker needs to remove burrs from the steel body 25, the burr removing device is moved to a proper position, the steel body 25 needing to be deburred is pressed downwards from the upper side of the two fixing plates 12, so that the two fixing plates 12 drive the first telescopic rod 13 and the spring 14 to move away from each other, and when the steel body 25 is pressed downwards onto the placing plate 15, the two fixing plates 12 fix the steel body 25 under the elastic force of the spring 14;

s2, turning on the motor 21, rotating the turntable 20, enabling the threaded rod 19 to drive the rotating shaft 22 and the burr brush 24 to move downwards through the pallet 17, stopping rotating the turntable 20 when the burr brush 24 is in contact with the surface of the steel body 25, pulling a handle on the front face of the movable plate 9, enabling the movable plate 9 to move back and forth in the table plate 3, enabling the upper surface of the steel body 25 to be sufficiently rubbed with the burr brush 24 to remove burrs, lifting the steel body 25 when other surfaces of the steel body 25 need to be removed, turning over the steel body 25 to change the surface, pressing the steel body into the movable plate 9, and repeating the operation of removing burrs;

s3, when the staff is carrying out the burr when cleaing away, the piece that produces falls into through fly leaf 9 and collects in covering 4, collects through collecting covering 4, finally collects in drawer cabinet 6, after drawer cabinet 6 collects full piece, the staff take out drawer cabinet 6 through the handle and empty can, after the burr when steel body 25 was clear away and is accomplished, close motor 21.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.

Although the preferred embodiments of the present patent have been described in detail, the present patent is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present patent within the knowledge of those skilled in the art.

Claims

1. A convenient moving burr removal device for steel processing, comprising a base (1), characterized in that: the four corners of the upper surface of the base (1) are all passed under the column (2) and the table top (3). The four corners of the surface are fixedly connected, the lower surface of the table board (3) is fixedly connected to the upper surface of the collection cover (4), and the lower surface of the collection cover (4) is fixedly connected to the upper surface of the base (1) , a drawer slot (5) is opened on the front of the collection cover (4), a drawer cabinet (6) is clamped in the drawer slot (5), and the left and right sides of the inner wall of the table board (3) are provided with A first sliding groove (7), a first sliding block (8) is slidably connected in the first sliding groove (7), and the surfaces of the two first sliding blocks (8) that are close to each other are respectively connected to the movable plate (9). The left and right sides of the movable plate (9) are fixedly connected, the front and back of the inner wall of the movable plate (9) are provided with two second sliding grooves (10), and a second sliding block is slidably connected in the second sliding groove (10). (11), the back of the second slider (11) is fixedly connected to the front of the fixing plate (12), and the left side of the fixing plate (12) is connected by two first telescopic rods (13) and two The spring (14) is fixedly connected to the left side of the inner wall of the movable plate (9), the spring (14) is sleeved on the outer wall of the first telescopic rod (13), and the front and back of the inner wall of the movable plate (9) are connected to the The two ends of the plate (15) are fixedly connected, the opposite surfaces of the two fixing plates (12) are clamped with a steel body (25), the lower surface of the steel body (25) and the upper surface of the placing plate (15) lap.

2. A convenient moving burr removal device for steel processing according to claim 1, characterized in that: the upper surface of the table board (3) passes through the connection between the second telescopic rod (16) and the pallet (17). The lower surface is fixedly connected, and a threaded rod (19) is threadedly connected in the pallet (17) through a threaded sleeve (18).

3. The easily movable burr removal device for steel processing according to claim 2, wherein the top end of the threaded rod (19) is fixedly connected to the lower surface of the turntable (20), and the threaded rod (19) The bottom end of 19) is clamped on the upper surface of the table board (3) through a bearing.

4. A kind of easy-to-move burr removal device for steel processing according to claim 3, characterized in that: the upper surface of the pallet (17) is fixedly connected with the lower surface of the motor (21), and the motor ( The output end of 21) is fixedly connected with the right end of the rotating shaft (22), the rotating shaft (22) is clamped in the third telescopic rod (23) through the bearing, and the lower surface of the third telescopic rod (23) is connected to the table board The upper surface of (3) is fixedly connected.

5 . The easily movable burr removal device for steel processing according to claim 4 , wherein the outer wall of the rotating shaft ( 22 ) is provided with a burr brush ( 24 ), and the lower surface of the base ( 1 ) is provided with a burr brush ( 24 ). Universal wheels (26) are arranged at the four corners of the fixing plate (12), and the shape of the upper surface of the fixing plate (12) is set as an arc.

6 . The easily movable burr removal device for steel processing according to claim 1 , wherein a handle is provided on the front of the drawer cabinet ( 6 ), and a handle is provided on the front of the movable plate ( 9 ). 7 . , handles are provided on the surfaces of the two fixing plates (12) that are far away from each other.
